Flipsky 75100 75V 100A Single ESC
Flipsky 75100 75V 100A Single ESC
Regular price
$79.00 USD
Regular price
$99.00 USD
Sale price
$79.00 USD
Unit price
per
Couldn't load pickup availability
Warm tips:
It is recommended to keep firmware 5.2 from factory ship, the new firmware upgrade may damage the ESC.
Specs:
- Voltage:14-84V (4-20S)
- Continuous Current:100A
- Max Current:120A
- Firmware: latest (firmware update supported)
- ERPM:150000
- Control Interface Ports:USB,CAN,UART
- BEC:5V@1A
- Phase filter: No
- Modes:DC, BLDC, FOC (sinusoidal)
- Supported Sensors:ABI,HALL,AS5047,AS5048A
- Input Set Support:PPM,ADC,NRF,UART
- Wire Size: 12AWG
- Size:L85mm*W50.7mm*H33.8mm
- Programmable: Yes
- Regenerative Capacity: Yes
Feature:
- Two COMM ports, UART bluetooth module, IMU,screen display or remote controller supportable.
- Based on VESC, programmable via vesc_tool with overheat and overcurrent protection.
Warm tips:
Phase filering is not available for Flipsky ESC75100 and 75200!
Please turn off the phase filter function and choose "false" in vesc_tool when use firmware version on or above 5.3 (VESC_TOOL 3.01). Without turning off the phase filter will result in esc damage. Please do not restore the default parameters when using the wizard interface.
Here below video and blog links FYI.
Please turn off the phase filter function and choose "false" in vesc_tool when use firmware version on or above 5.3 (VESC_TOOL 3.01). Without turning off the phase filter will result in esc damage. Please do not restore the default parameters when using the wizard interface.
Here below video and blog links FYI.
Package included:
FS75100*1pcs
USB cable*1pcs
Hall sensor adapter (6pins)*1pcs
Manual*1pcs
USB cable*1pcs
Hall sensor adapter (6pins)*1pcs
Manual*1pcs

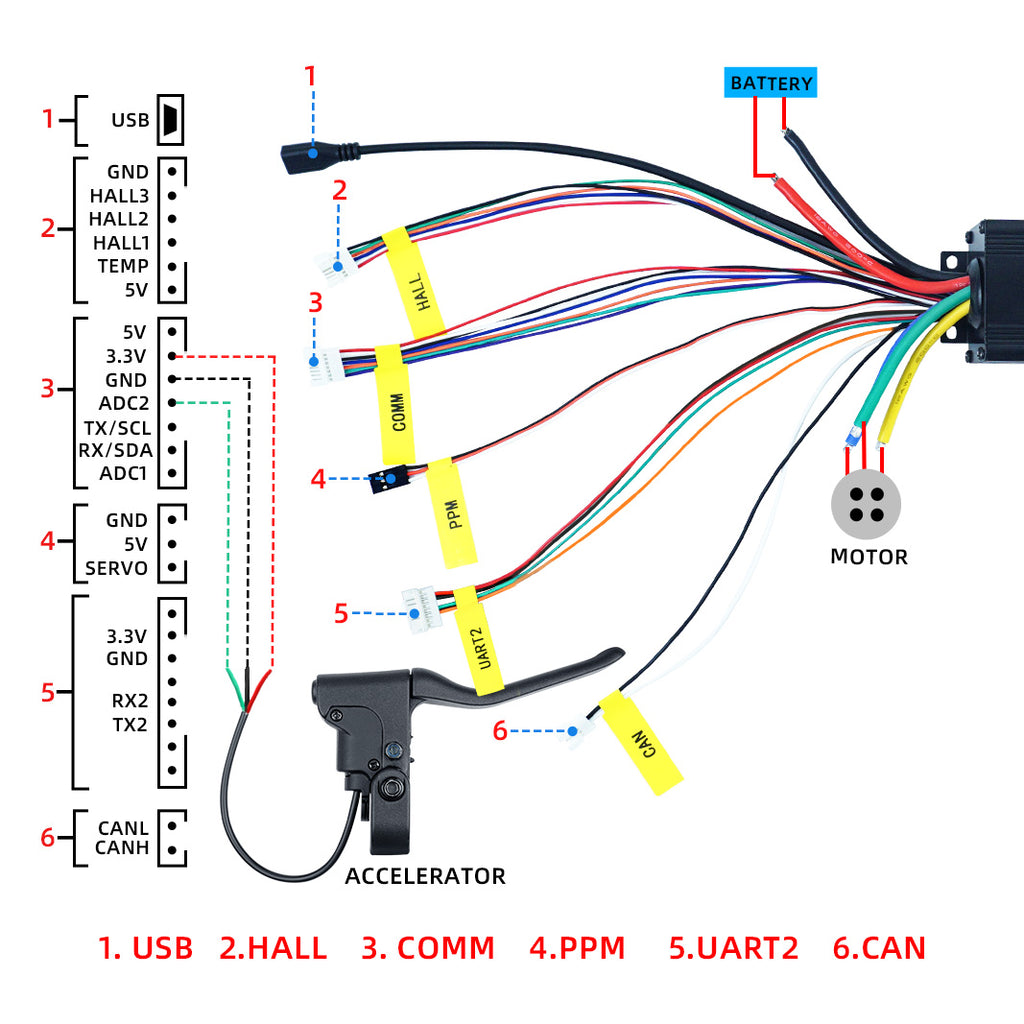

Wiring diagram：
Detail size:
