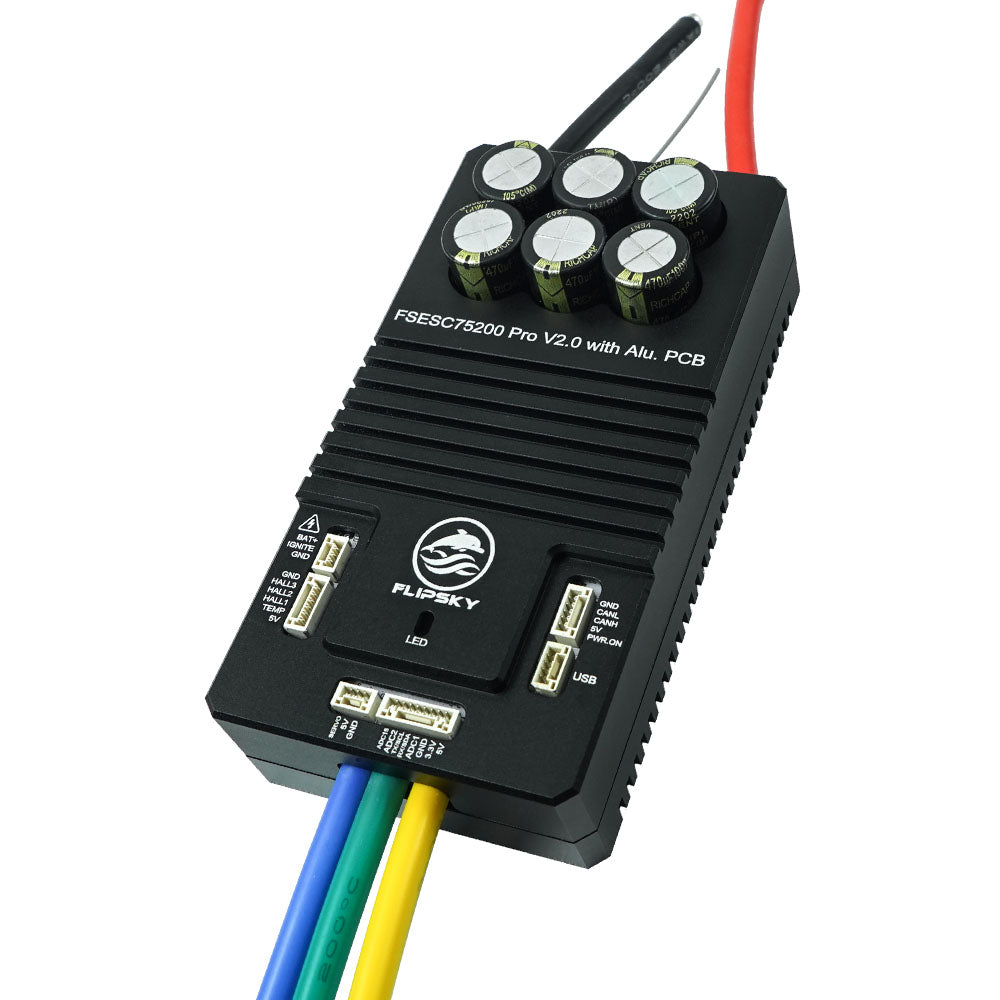

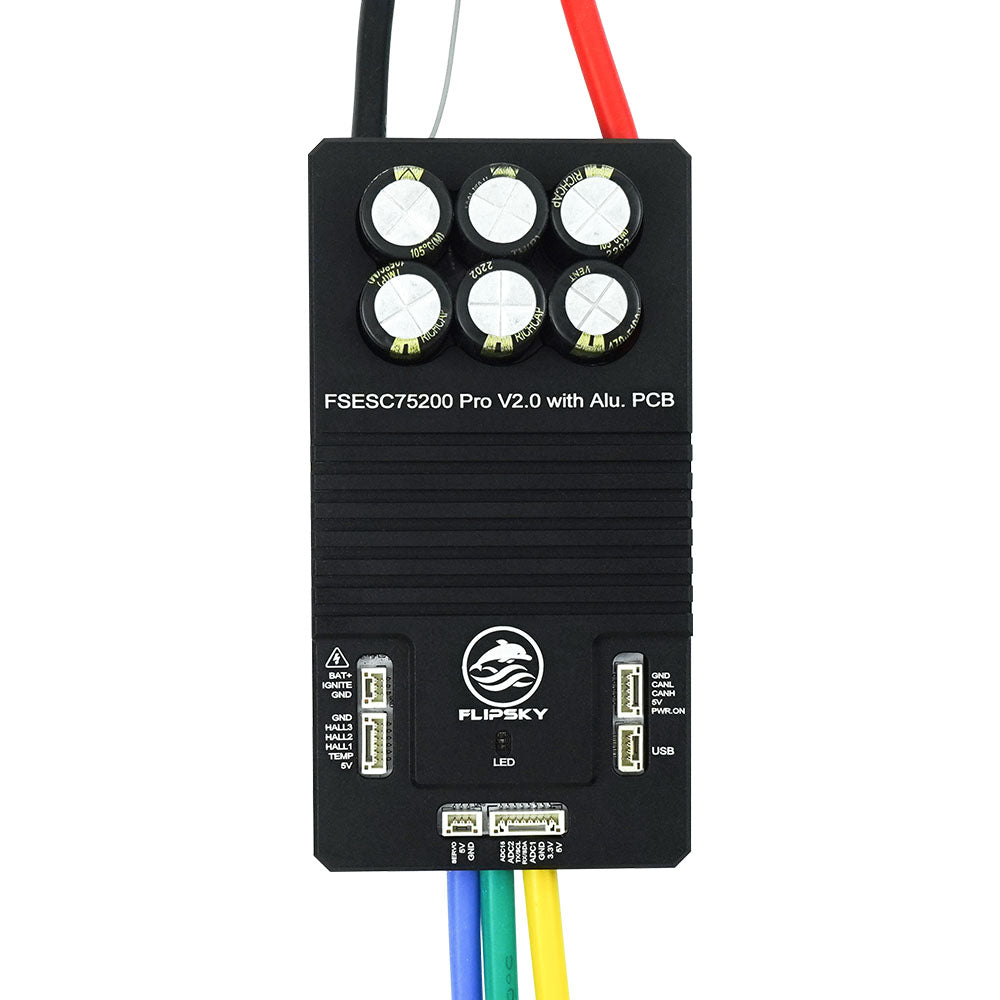

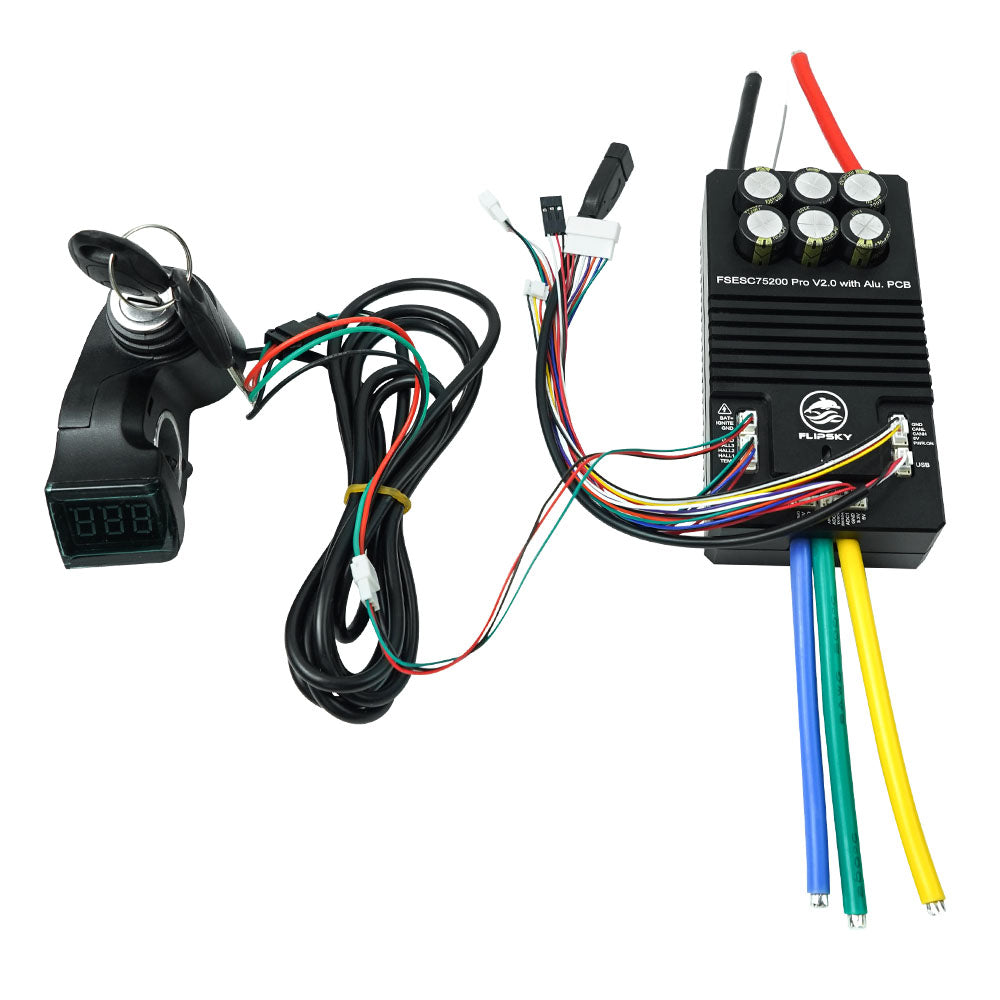

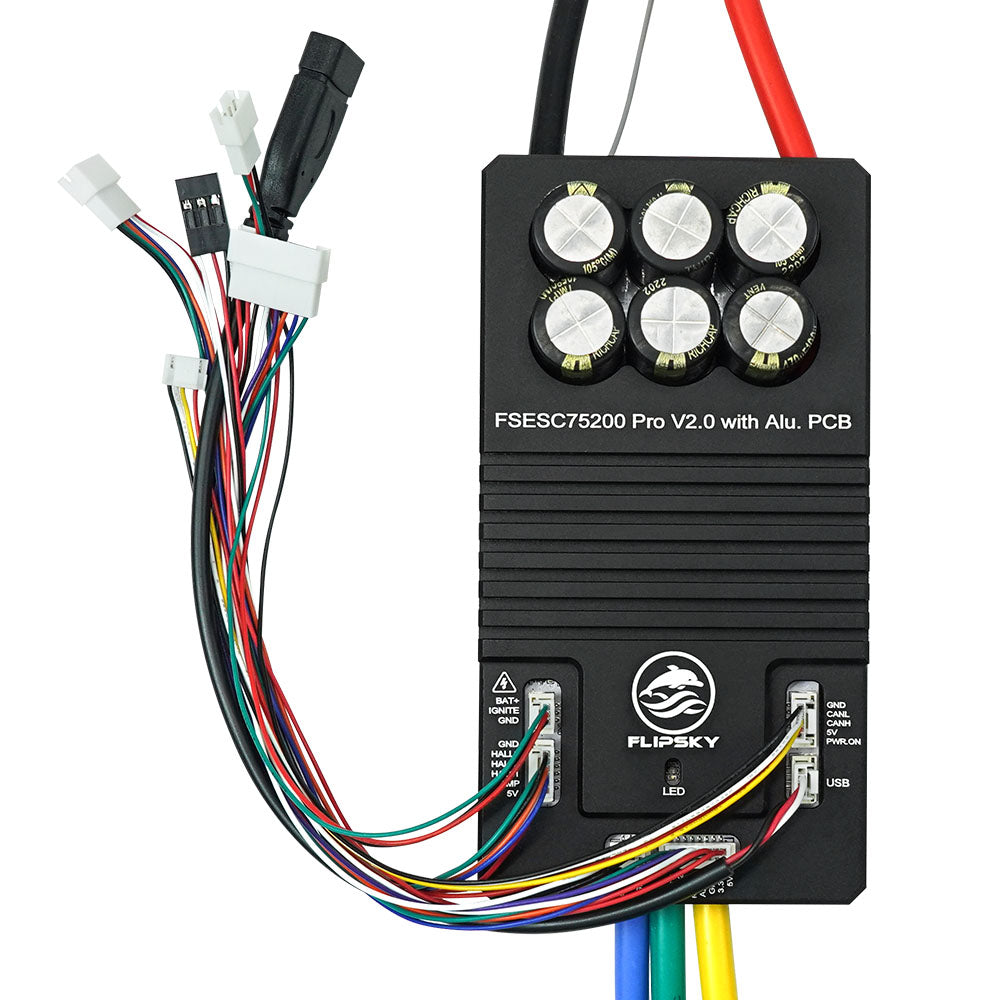

Flipsky 75200 Pro V2.0 with Aluminum PCB Based on VESC for Electric Skateboard / Electric Scooter / Ebike Speed Controller

Spec:

• Firmware: 6.02, supports firmware upgrade
• Voltage: 14-84V (safe for 4-20S)
• Continuous current:50v/200A: 75V/150A(Values depend on the mounting,abbient temperature and air/water circulation around the device!)
• Burst current: 300A
• BEC: 5V@1A
• Support Modes: DC, BLDC, FOC (sinusoidal)
• ERPM: 150000
• Communication Ports: USB, CAN, UART, SPI, IIC
• Supported Sensors: ABI, HALL, AS5047, AS5048A
• Input Source Support: PPM, ADC, NRF, UART
• Supported Sensorless: Yes
• Regenerative capacity: Yes
• Programmable via VESC_TOOL: Yes

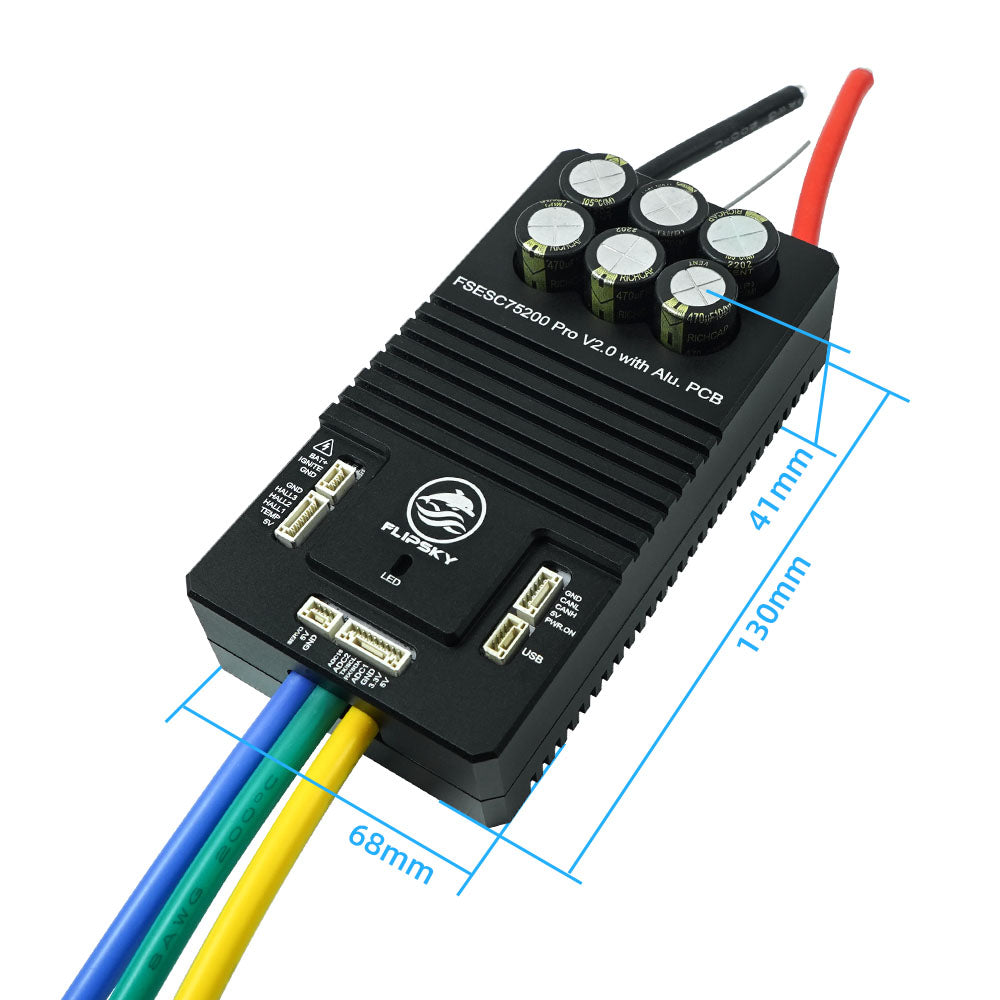

• Size:130x68x41mm
• Motor/power wire size: 8 AWG
• Phase Filter: Yes

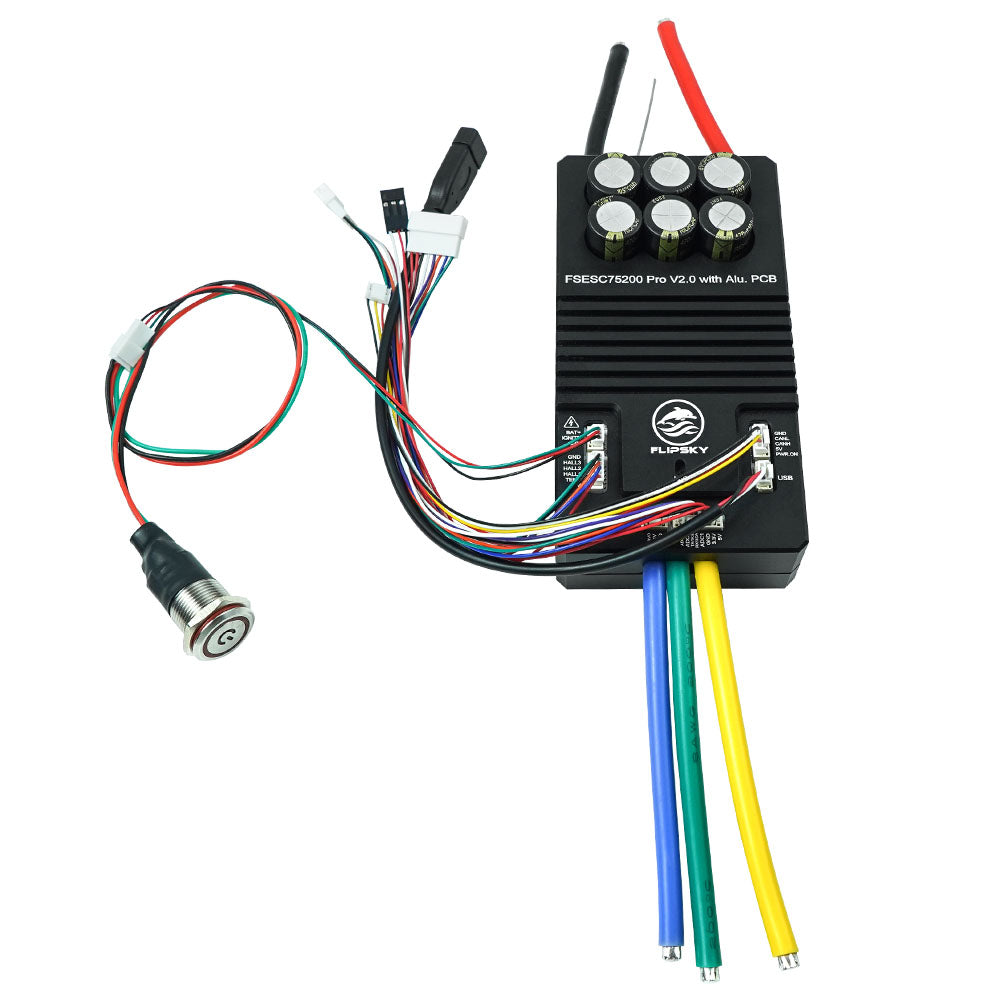

• Power Switch Button: Red

Feature:

• Adjustable protection against: low voltage protection, high voltage protection,over current protection, temperature abnormal protection, mosfets / motor over temperature protection.
• Support various control modes: Current / Duty cycle / Speed / PID control modes.
• Support the function of balancing car by connecting the IMU module through the IIC interface; support inertial measurement unit modules such as MPU9250,MPU9150,MPU6050,LSM6DS3,BMI160.
• CPU:32F405 with frequency 168MHz

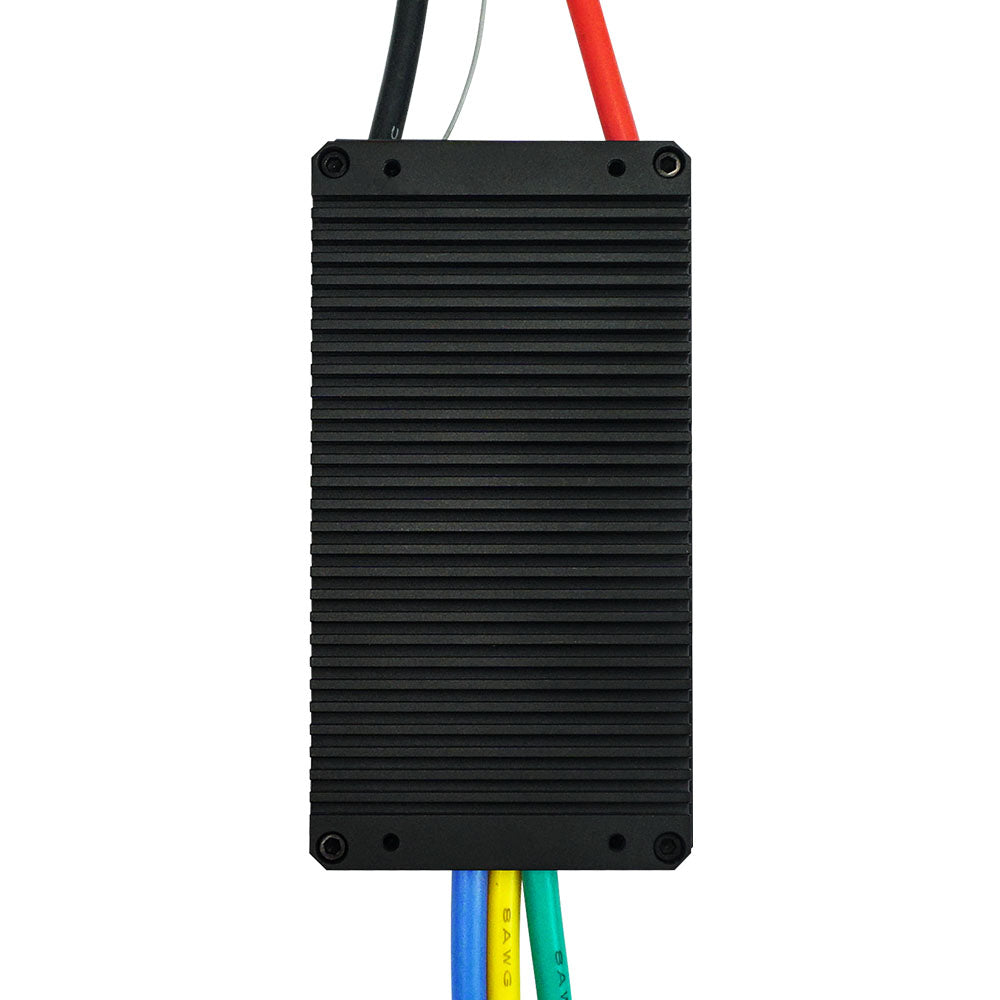

• Aluminum PCB with good heat dissipation to expand life span.
• 75200 Pro V2.0 aluminum substrate single drive: supports single serial port function,and integrates Bluetooth module function (convenient to connect Bluetooth parameters and read data in real time),and built with power on/off switch.

Wiring diagram:
