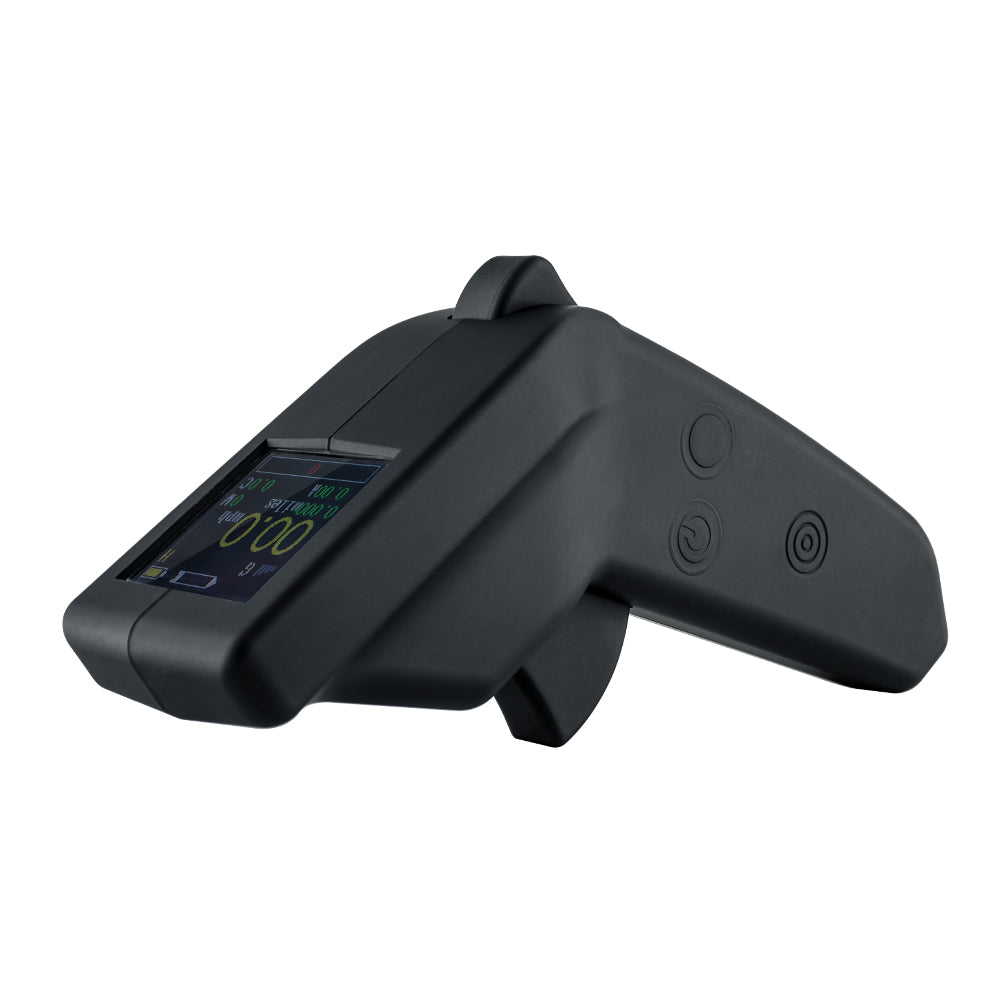

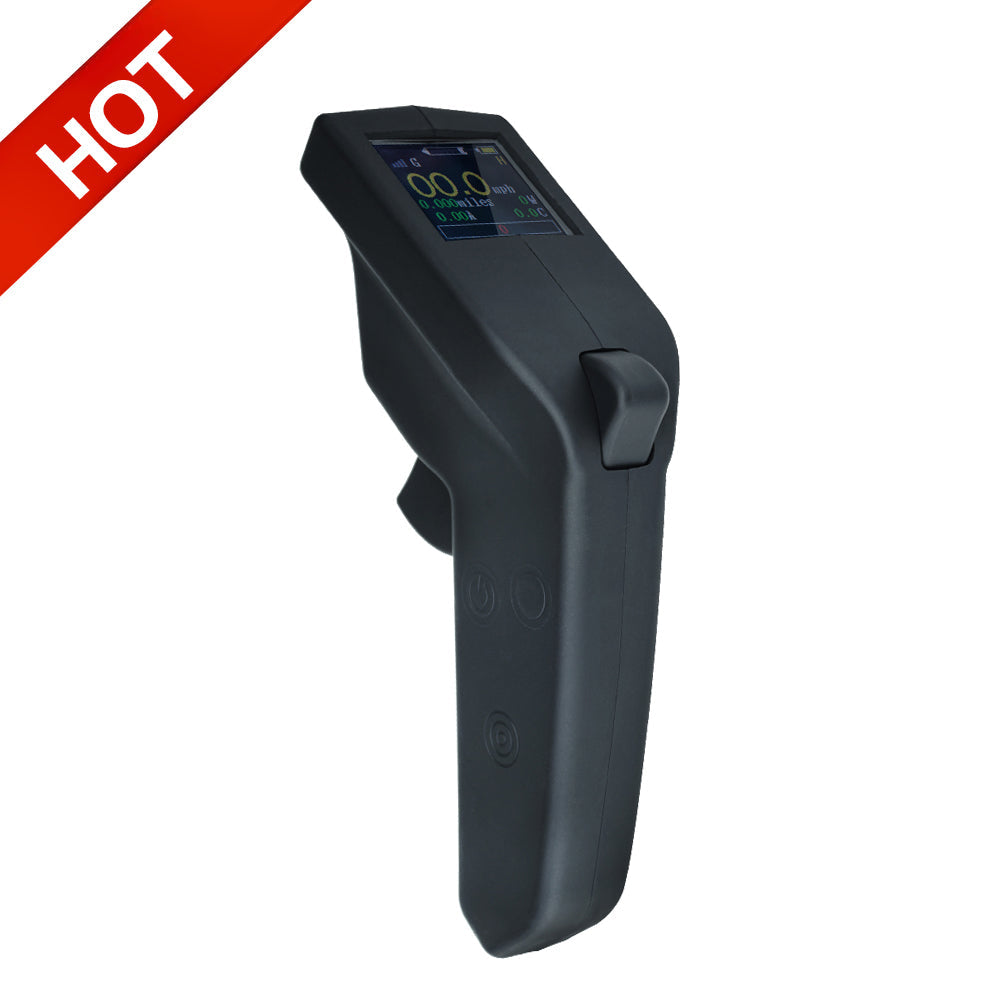

Flipsky Fully Waterproof Remote VX3 Controller for Efoil | Esurf | ESK8

note:If you want to use UART mode on FT series ESC, please purchase VX3 or VX4 PRO

Remarks: For remote VX3, it is recommended to wash it with fresh water or soak it in fresh water for at least one minute after using to reduce salt residue and extend the service life of the remote.

Feature:

• 1.6-inch super clear and big screen display
• Display shows more: Except for basic telemetry data, it also display GPS, motor power, real-time temperature of MOS tube, and throttle progress bar information
• Be compatible with Flipsky FSESC and other VESC and Non-VESC
• ESK8 mode / E-surf mode switching freely
• Esurf mode：Cruise speed control function
• Waterproof IP rating: IP67
• Bigger remote battery capacity:1500MA
• ESC failure report ：Detect possible failures of the ESC in time for replacing
• Controller mode: PPM/UART

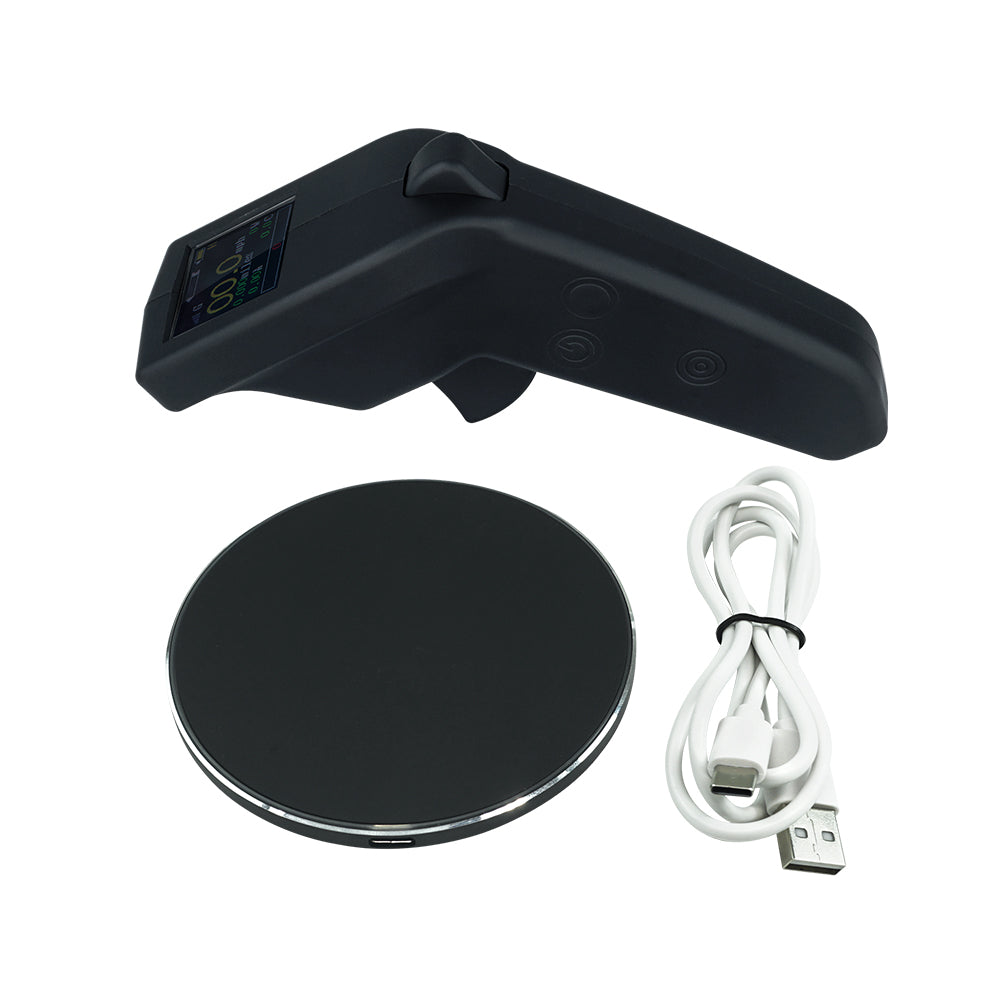

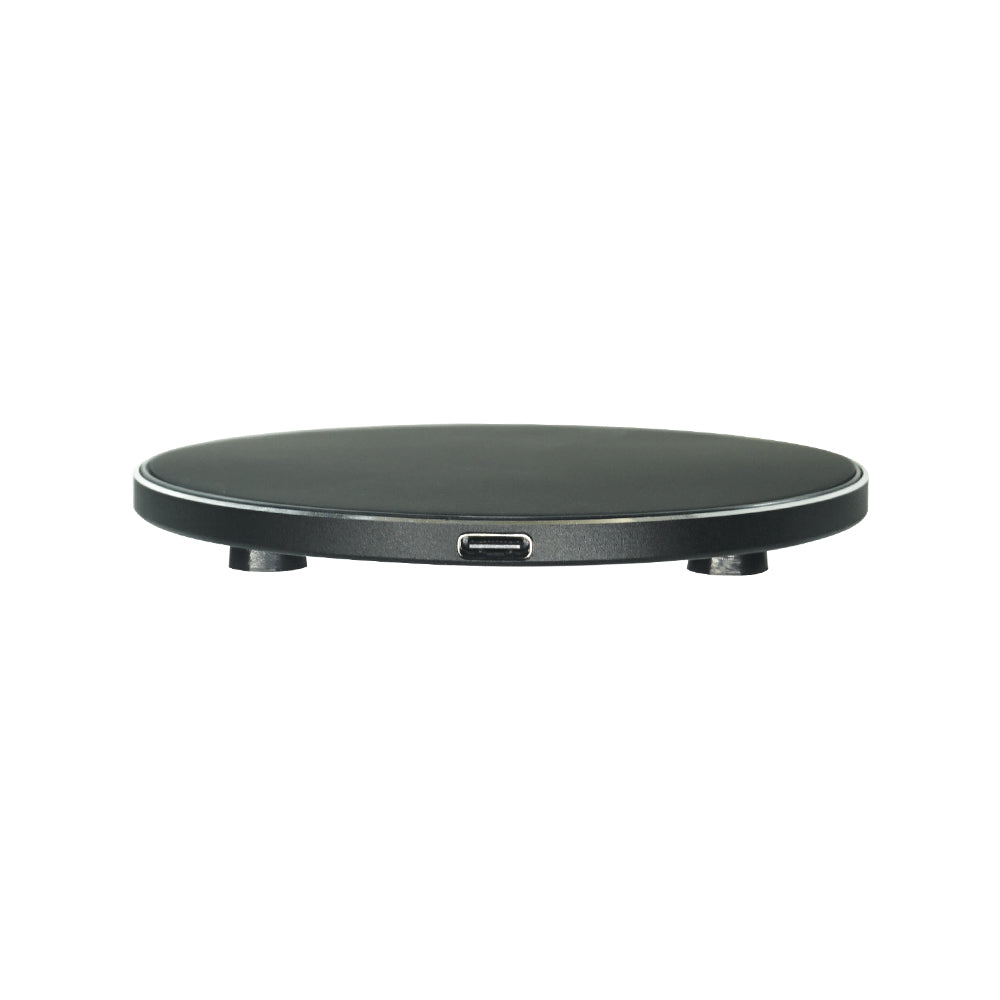

• Charging way:Wireless Magnetic Charging

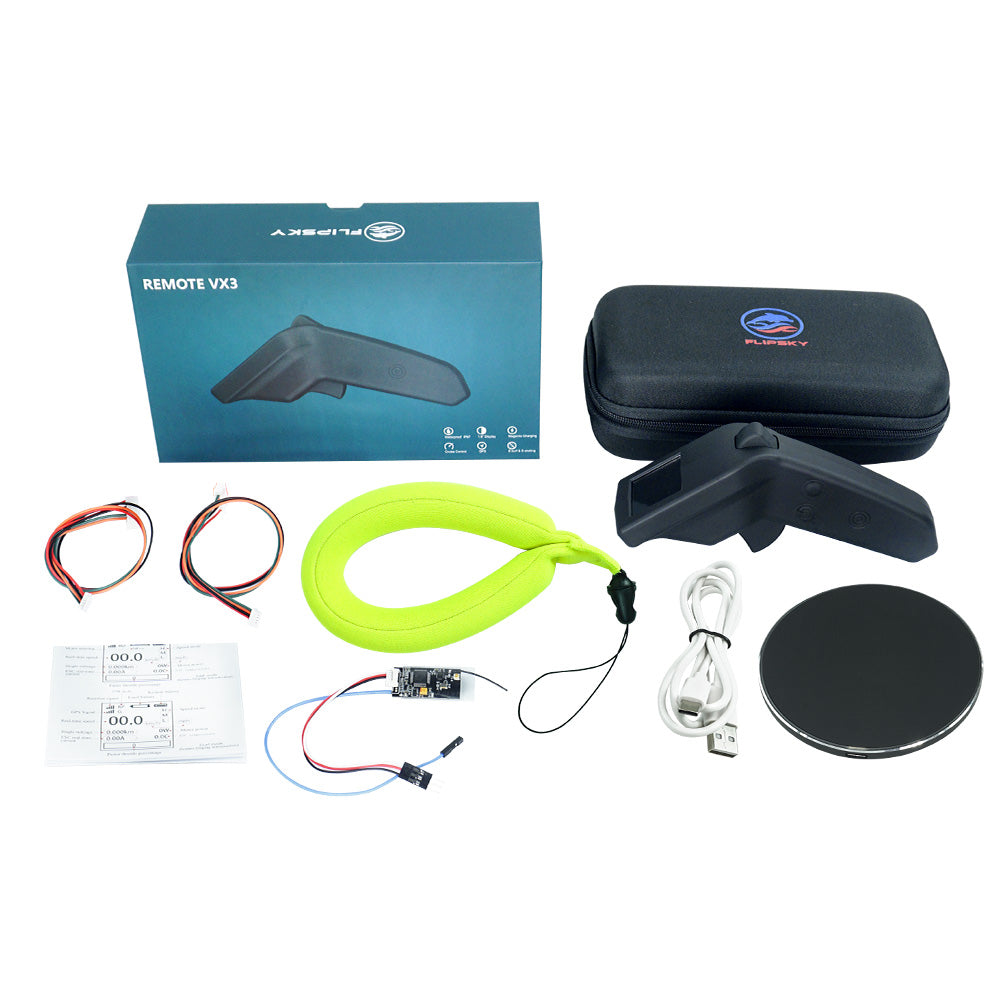

• VX3 Remote comes with Receiver

Wiring Diagram:
