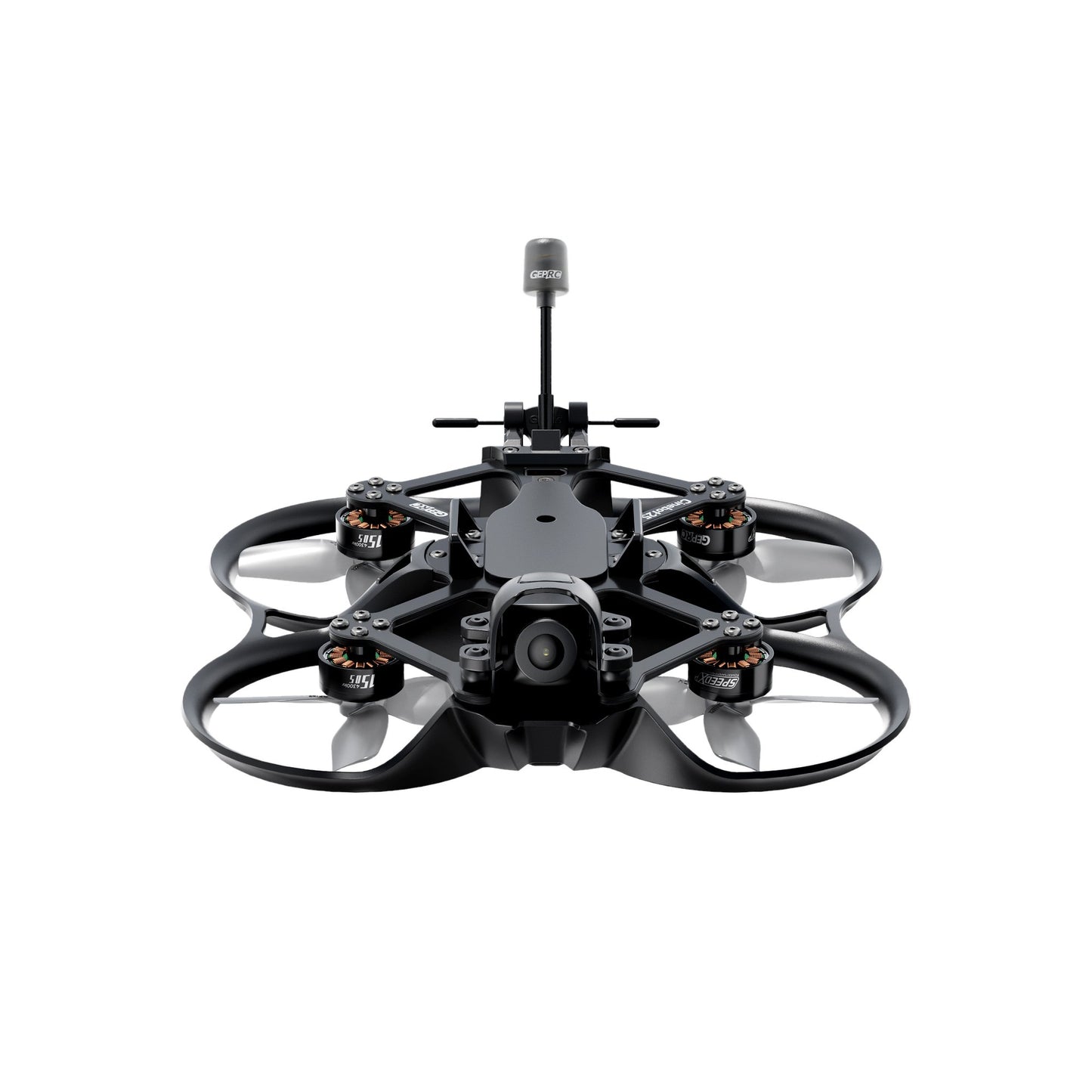

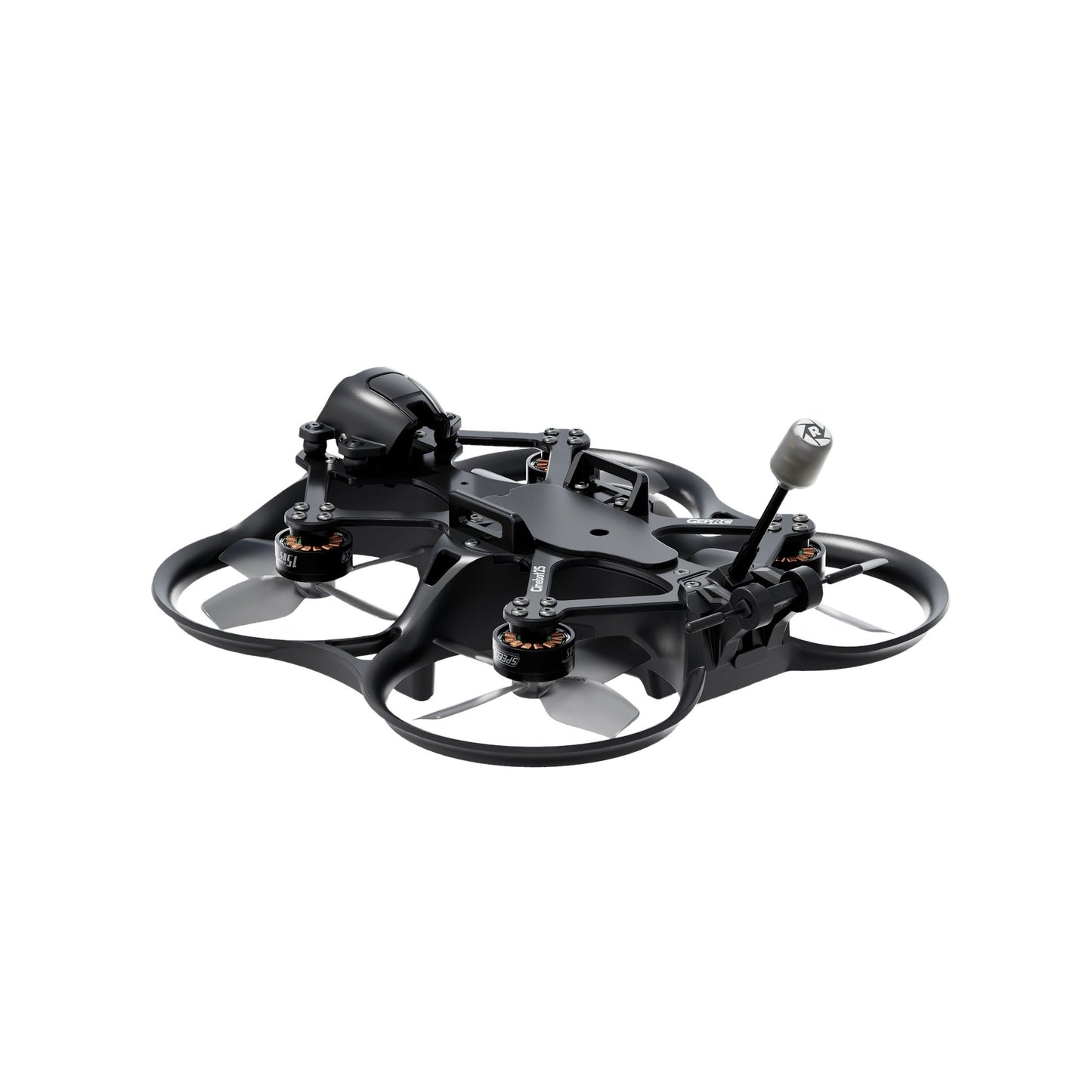

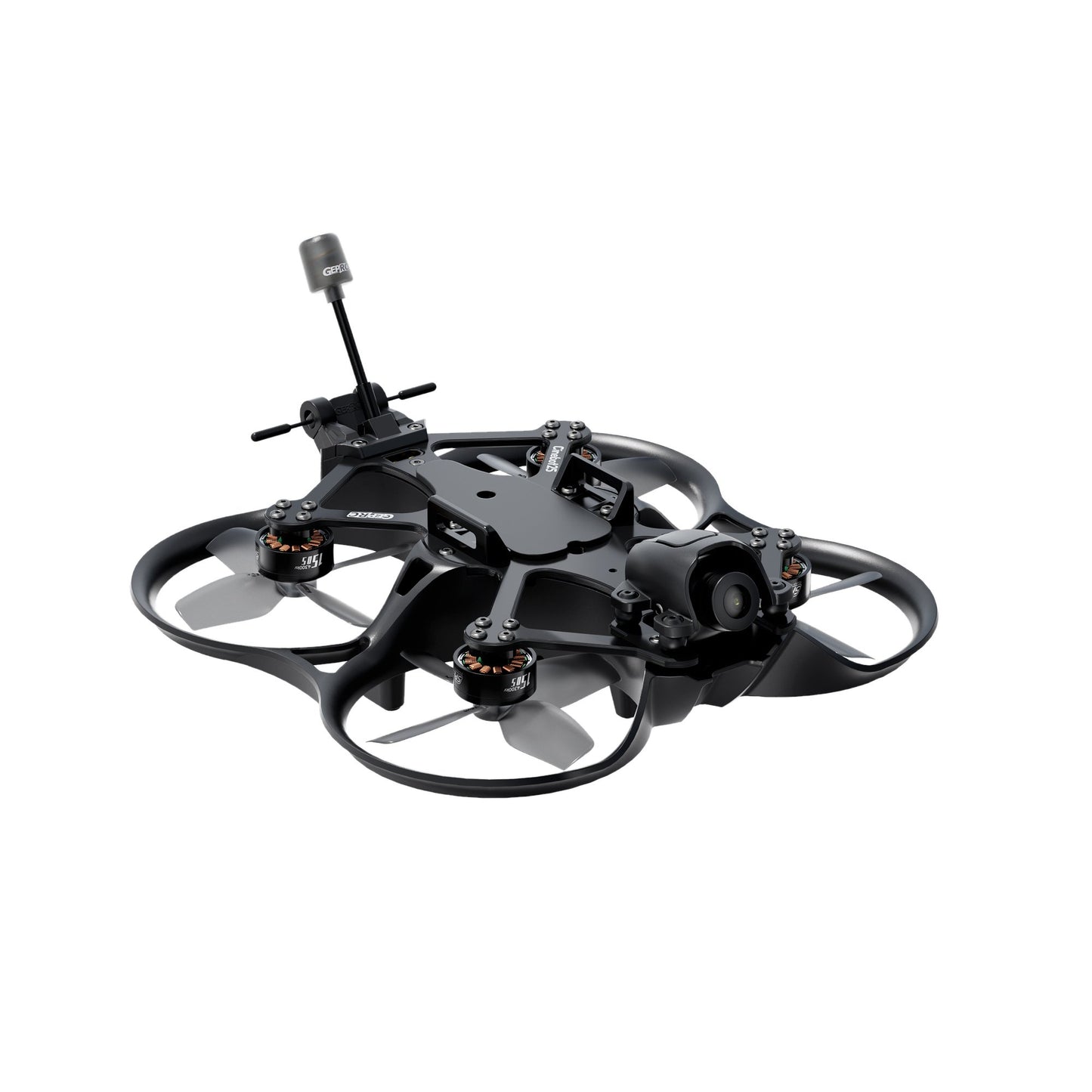

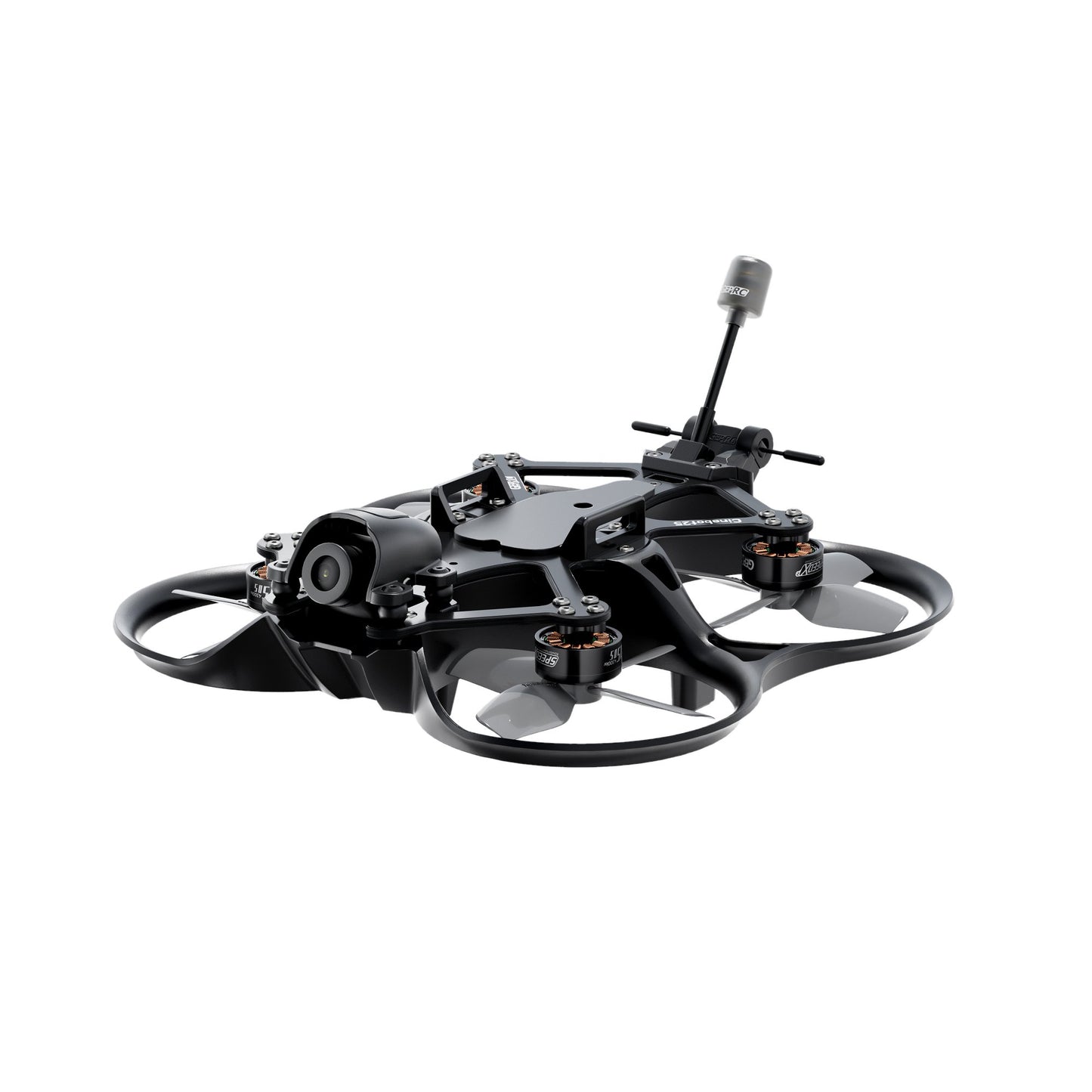

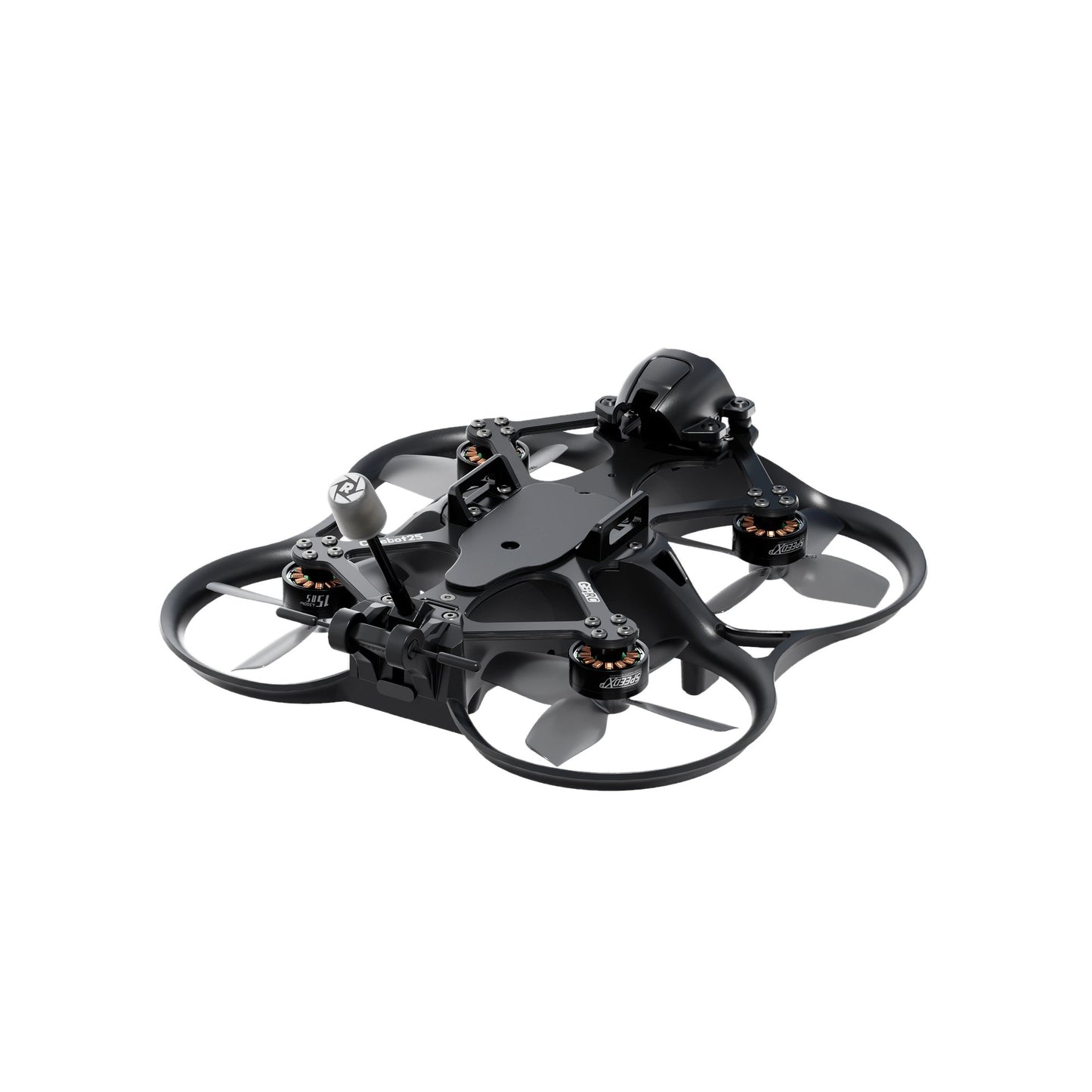

GEPRC Cinebot25 S Analog Quadcopter

Specifications

• Model: Cinebot25 S Analog Quadcopter

• Frame: GEP-CT25 Black

• Wheelbase: 115mm

• FC: TAKER G4 45A AIO

• MCU: STM32G473CEU6

• Gyro: ICM 42688-P

• FC firmware: TAKERG4AIO

• ESC: BLHeli 32Bit 45A

• Motor: SPEEDX2 1505 4300KV

• Propellers:  HQprop DT63mm x4

• Connector: XT30

• VTX: RAD mini 5.8G 1W

• Camera: CADDX Ratel 2

• Antenna: Peano 5.8G RHCP UFL

• Receiver: PNP/ELRS2.4G / TBS NanoRX

• Weight: Cinebot25 S Analog PNP version 170g+1g

• Recommended battery: LiHV 4S 660mAh-720mAh

• Flight Time：5′-8’（The reference time is based on low-speed flight. The actual time depends on individuals’ flying methods. ）

Includes

1 x Cinebot25 quadcopter
1 x HQprop DT63mmx4 propeller（pack）
2 x Battery anti-slip pads
1 x 15150mm battery strap
1 x 15*180mm battery strap
1 x Naked GoPro base
1 x Reserved screw pack
1 x L-shaped screwdriver 1.5mm
1 x Frequency paring pointer
1 x Damping ball puncher

Reserved screw pack includes

Reserved screw pack includes：
2 x Camera damping balls
4 x M2 nuts
6 x M2*6 button head screws
4 x M2*18 button head screws
4 x M1.6*8 Round Head screws with collar
4 x M2*5 button head screws
4 x M1.6*10 allen screws
2 x M2*12 button head screws
2 x M2 self-clinching nuts
2 x T-shaped antenna fixing silicones
