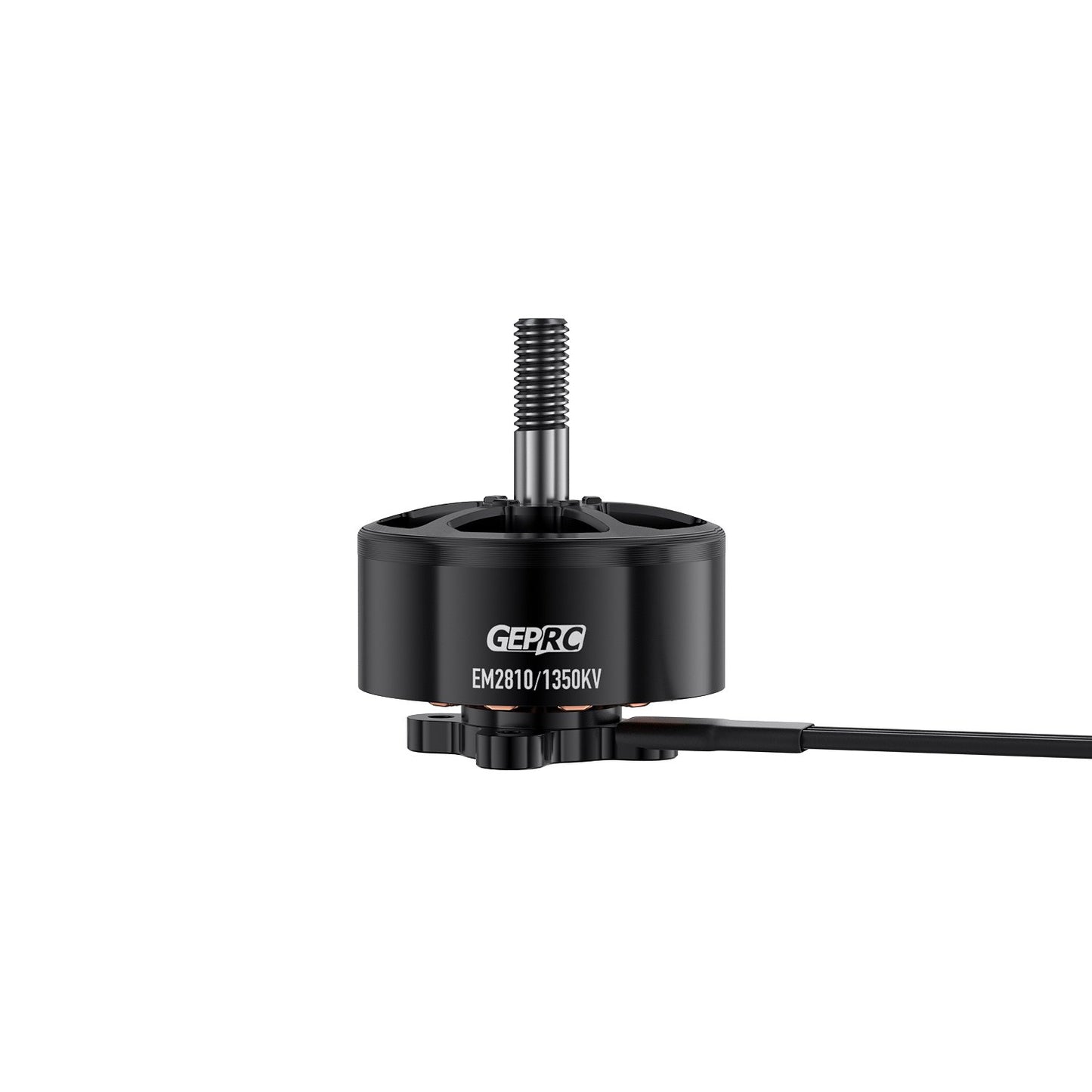

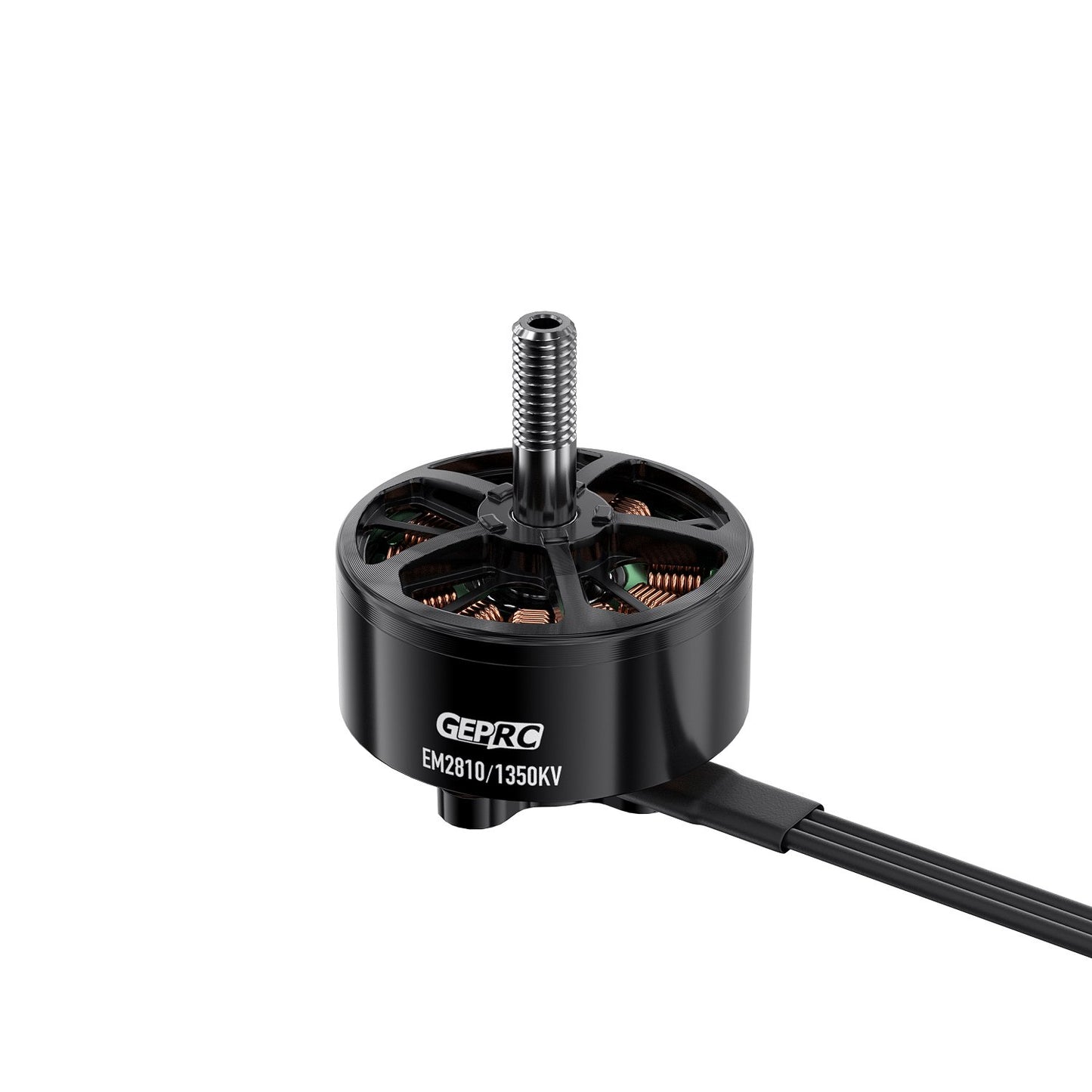

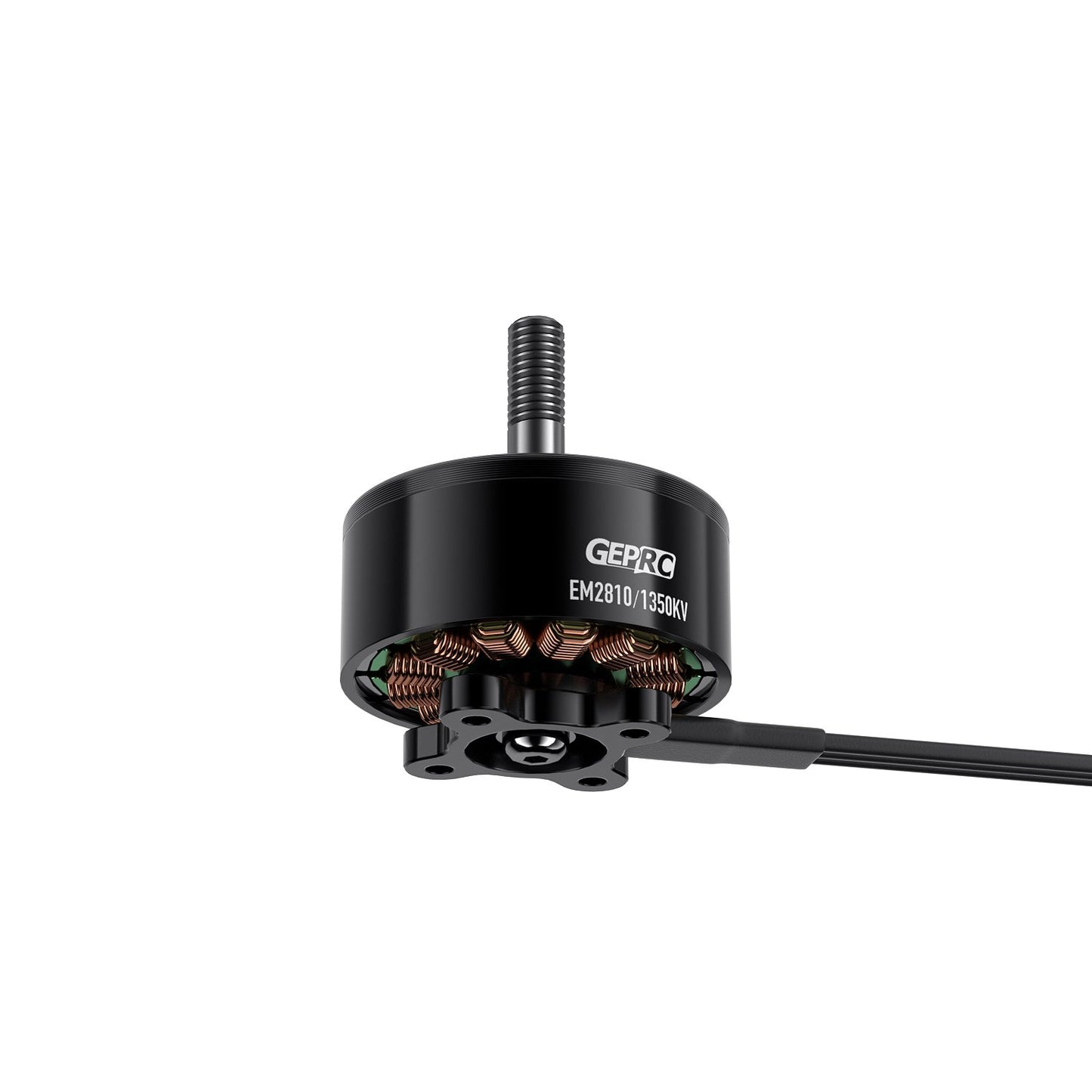

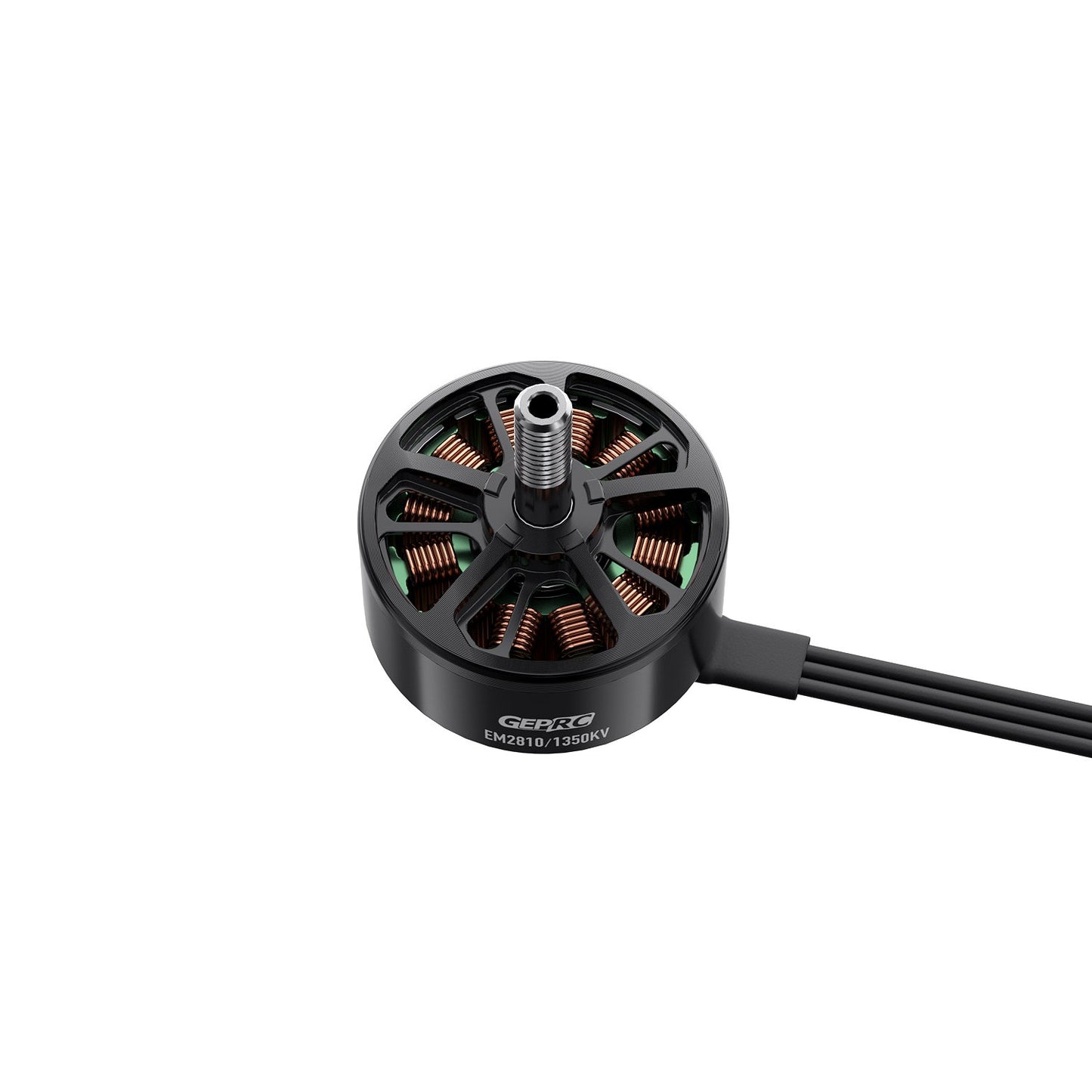

GEPRC EM2810 1280KV/1350KV Motor

Feature

1. New EM series motors,mainly design for long range FPV
2. High-strength M5 steel shaft
3.  High torque magnetic circuit design
4. 19mmx19mm base

Specifications

ITEM:EM2810-1280KV

• Model: EM2810 1280KV Motor
• Max Watt: 1160W
• Peak current: 54A
• Interphase resistance: 46mΩ
• Propeller: 7-8inch Propeller
• Magnet: N52H
• Bearing type: NSK/NMB
• Configuration: 12N14P
• Dimension: φ33mmx23.1mm
• Shaft Diameter: φ5mm
• Shaft Protruding Length: 16mm
• Mounting holes: 19mmx19mm
• Lead: 260mm/18AWG
• ESC: 50A-60A
• Input Volts: 25.2V（6S LiPo)
• Winding: Single strand copper winding
• Weight: 69.5g(included wire)
• Suitable for :7-8 inch  long range FPV

ITEM:EM2810-1350KV

• Model: EM2810 1350KV Motor
• Max Watt: 1240W
• Peak current: 61A
• Interphase resistance: 43mΩ
• Propeller: 7-8inch Propeller
• Magnet: N52H
• Bearing type: NSK/NMB
• Configuration: 12N14P
• Dimension: φ33mmx20.1mm
• Shaft Diameter: φ5mm
• Shaft Protruding Length: 16mm
• Mounting holes: 19mmx19mm
• Lead: 260mm/18AWG
• ESC: 50A-60A
• Input Volts: 25.2V（6S LiPo)
• Winding: Single strand copper winding
• Weight: 69.5g(included wire)
• Suitable for :7-8 inch  long range FPV

Includes

1 x EM2810 motor

4 x M3*9 round head screws

1 x M5 anti-slip nut
