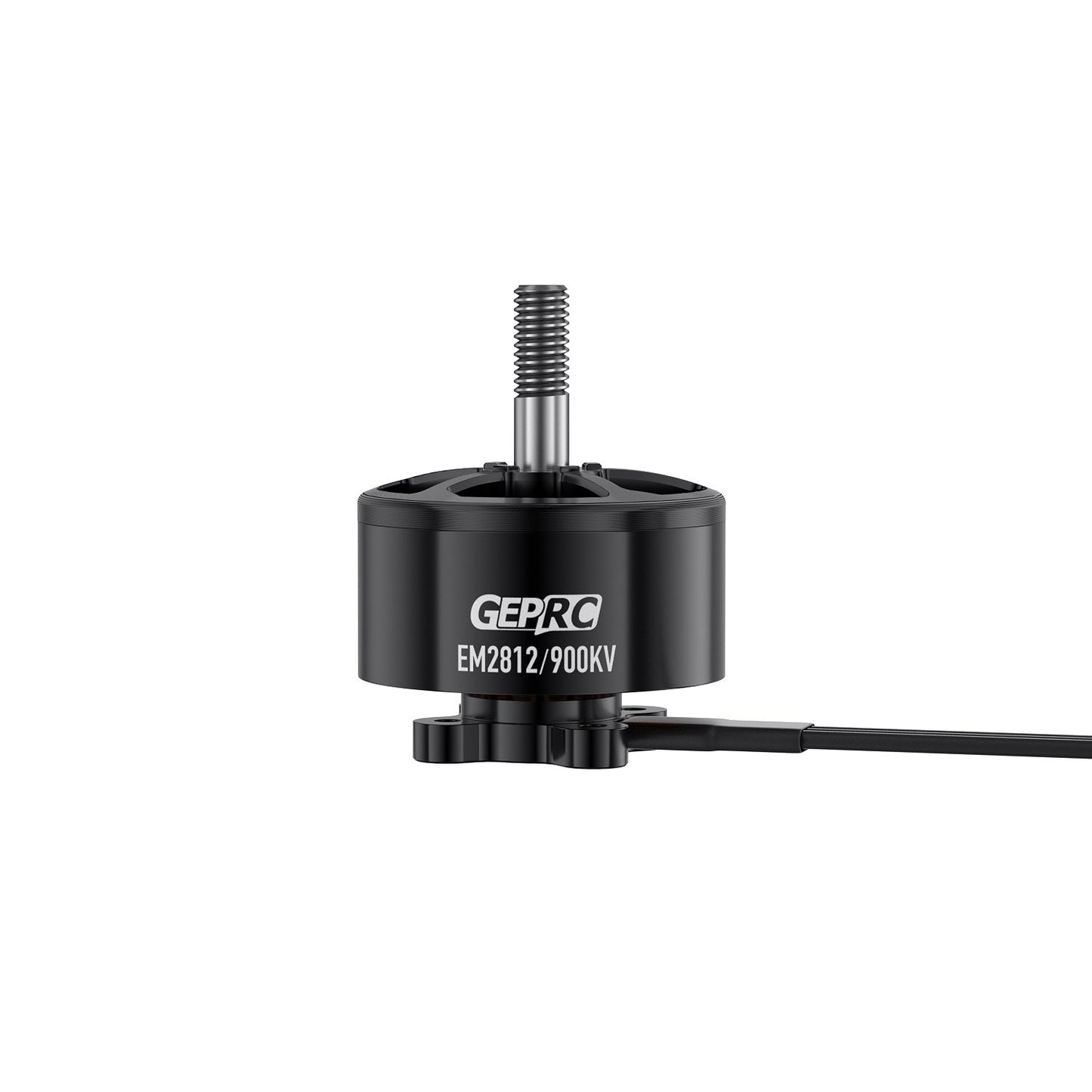

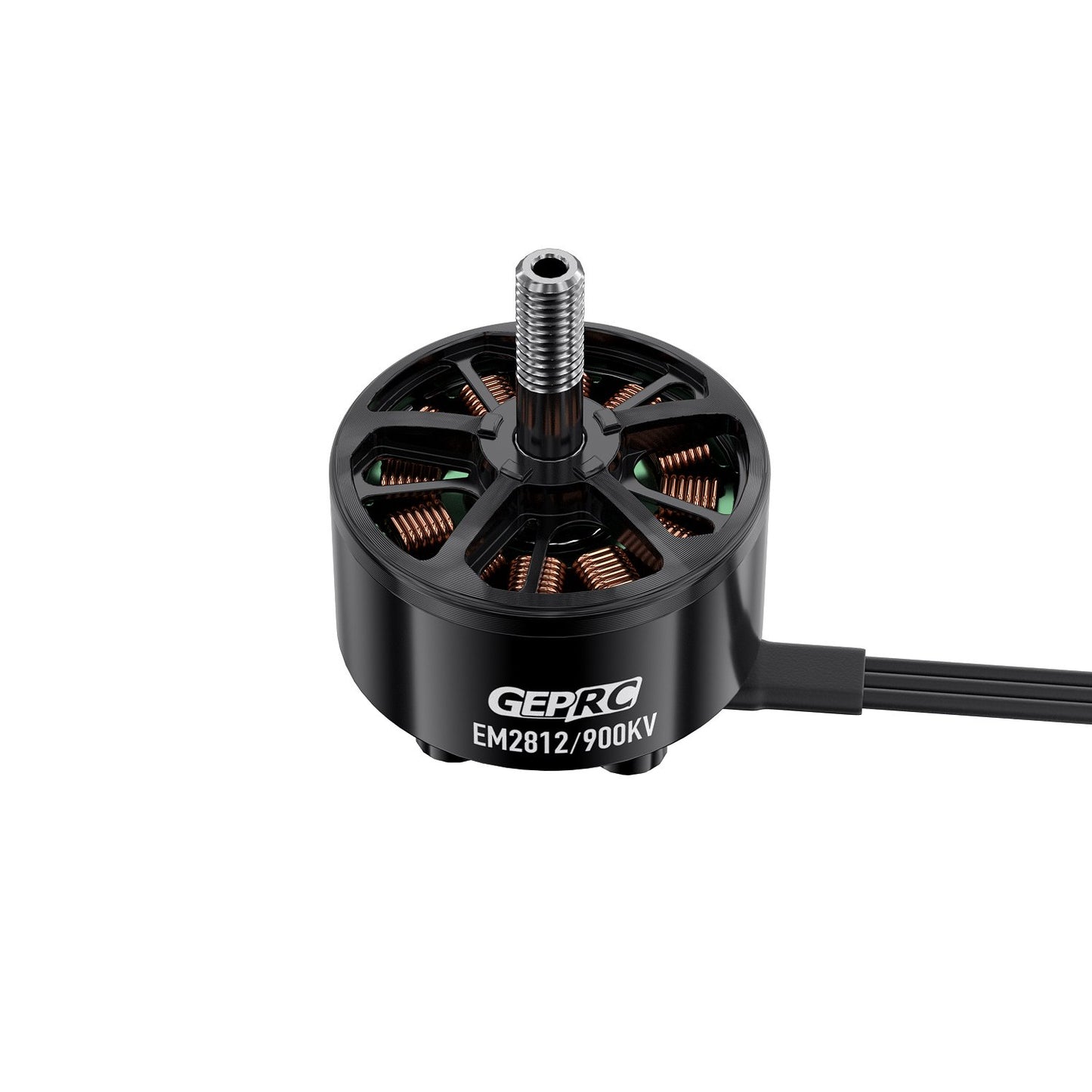

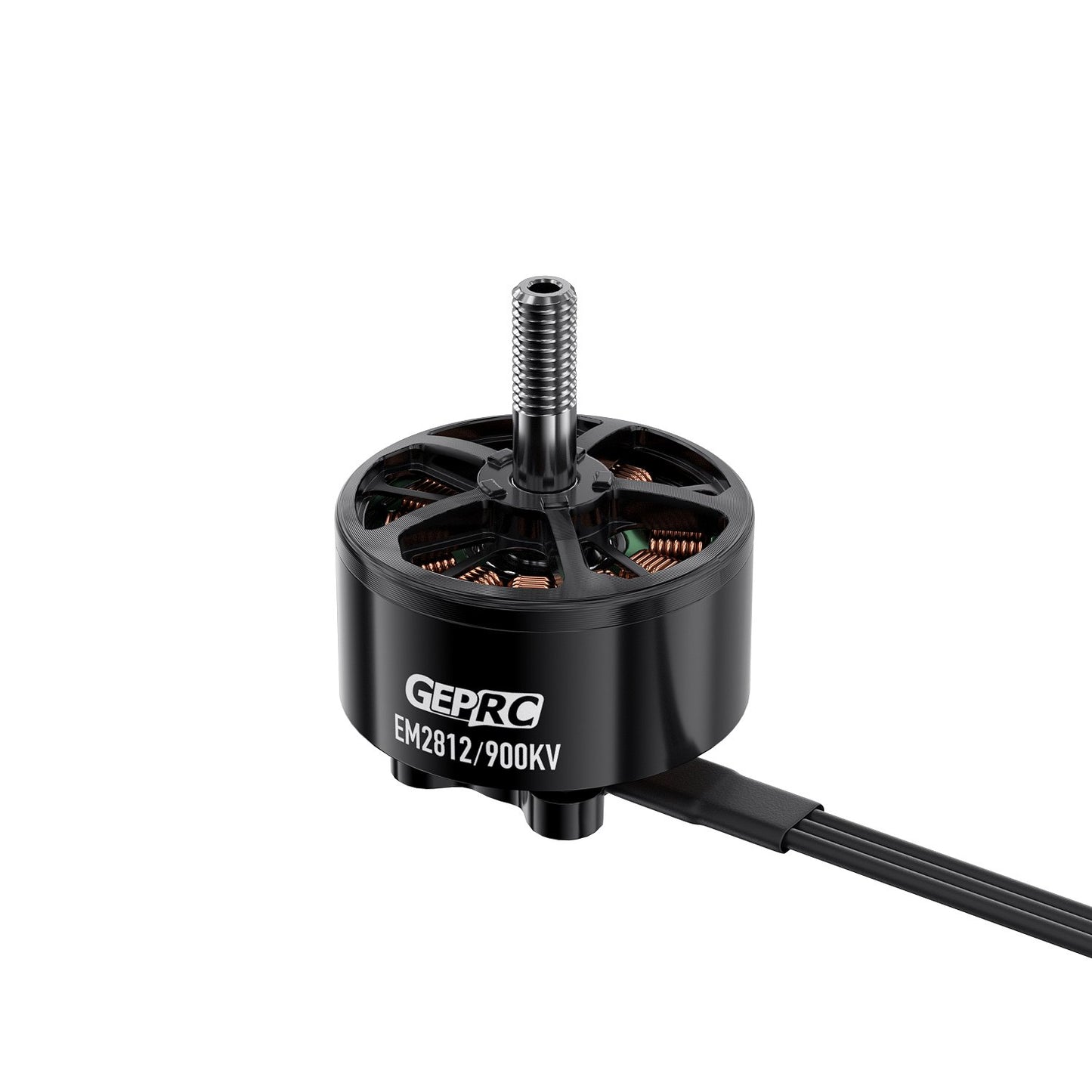

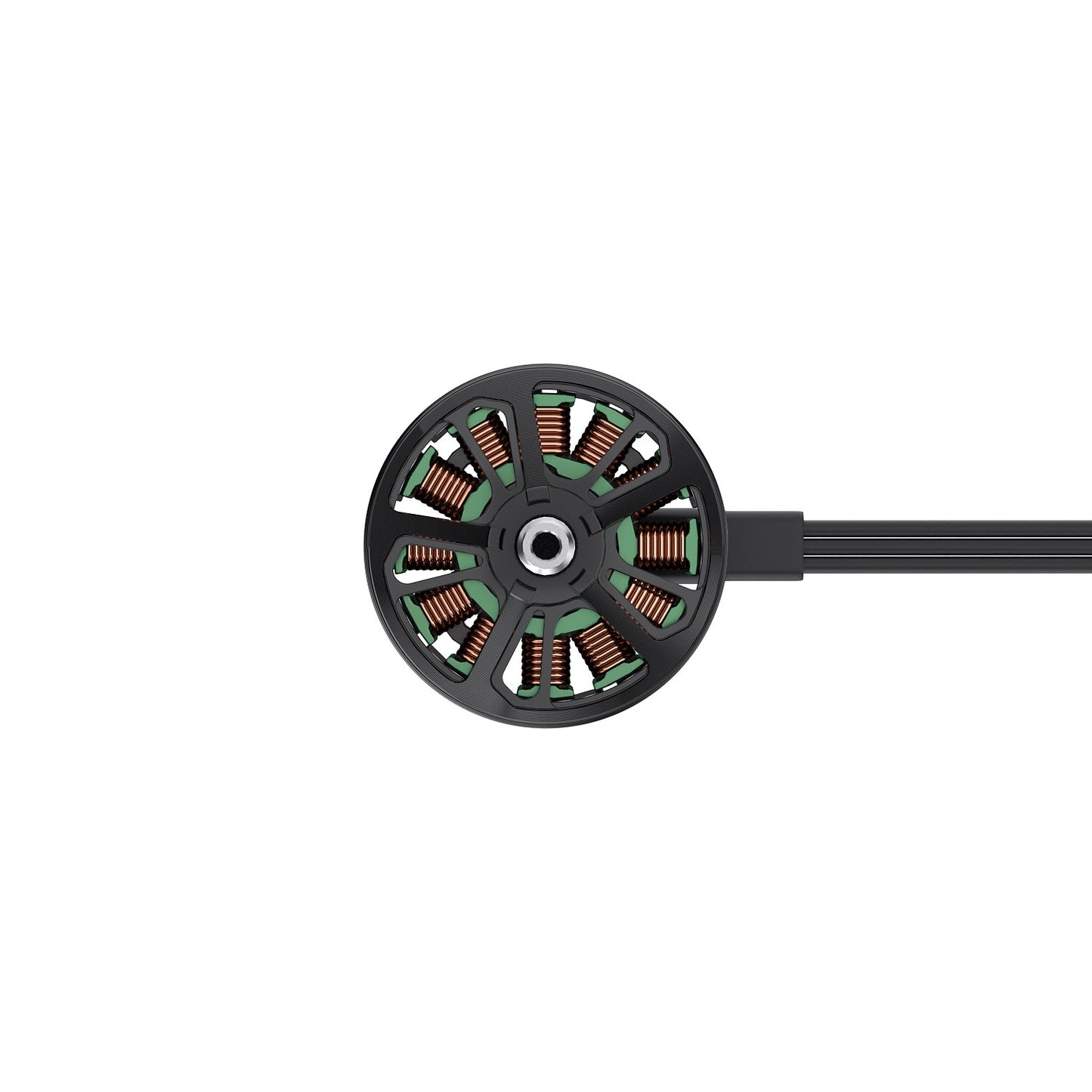

GEPRC EM2812 900KV Motor

Feature

1. New EM series motors，mainly designed for long range FPV.
2.  High-strength M5 steel shaft
3. High torque magnetic circuit design
4. 19mmx19mm base

Specifications

• Model: EM2812 900KV Motor
• Max Watt: 1010W
• Peak current: 46A
• Interphase resistance: 43mΩ
• Propeller: 7-9inch Propeller
• Magnet: N52H
• Bearing type: NSK/NMB
• Configuration: 12N14P
• Dimension: φ33mmx26.1mm
• Shaft Diameter: φ5mm
• Shaft Protruding Length: 16mm
• Mounting holes: 19mmx19mm
• Lead: 260mm/18AWG
• ESC: 50A-60A
• Input Volts: 25.2V（6S LiPo)
• Winding: Single strand copper winding
• Weight: 76g(included wire)
• Suitable for :7-9 inch  long range FPV

Includes

1 x EM2812 motor

4 x M3*9 round head screws

1 x M5 anti-slip nut
