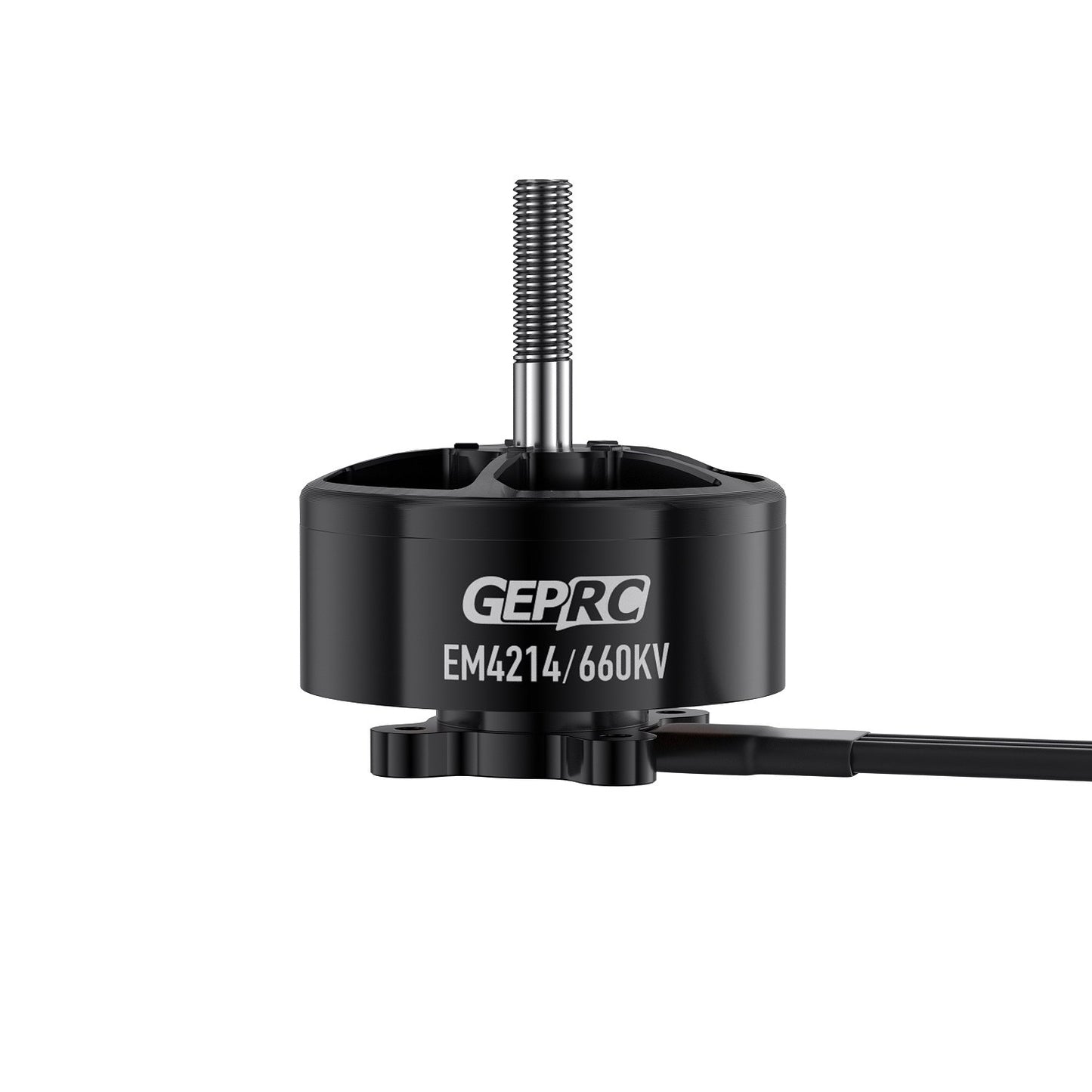

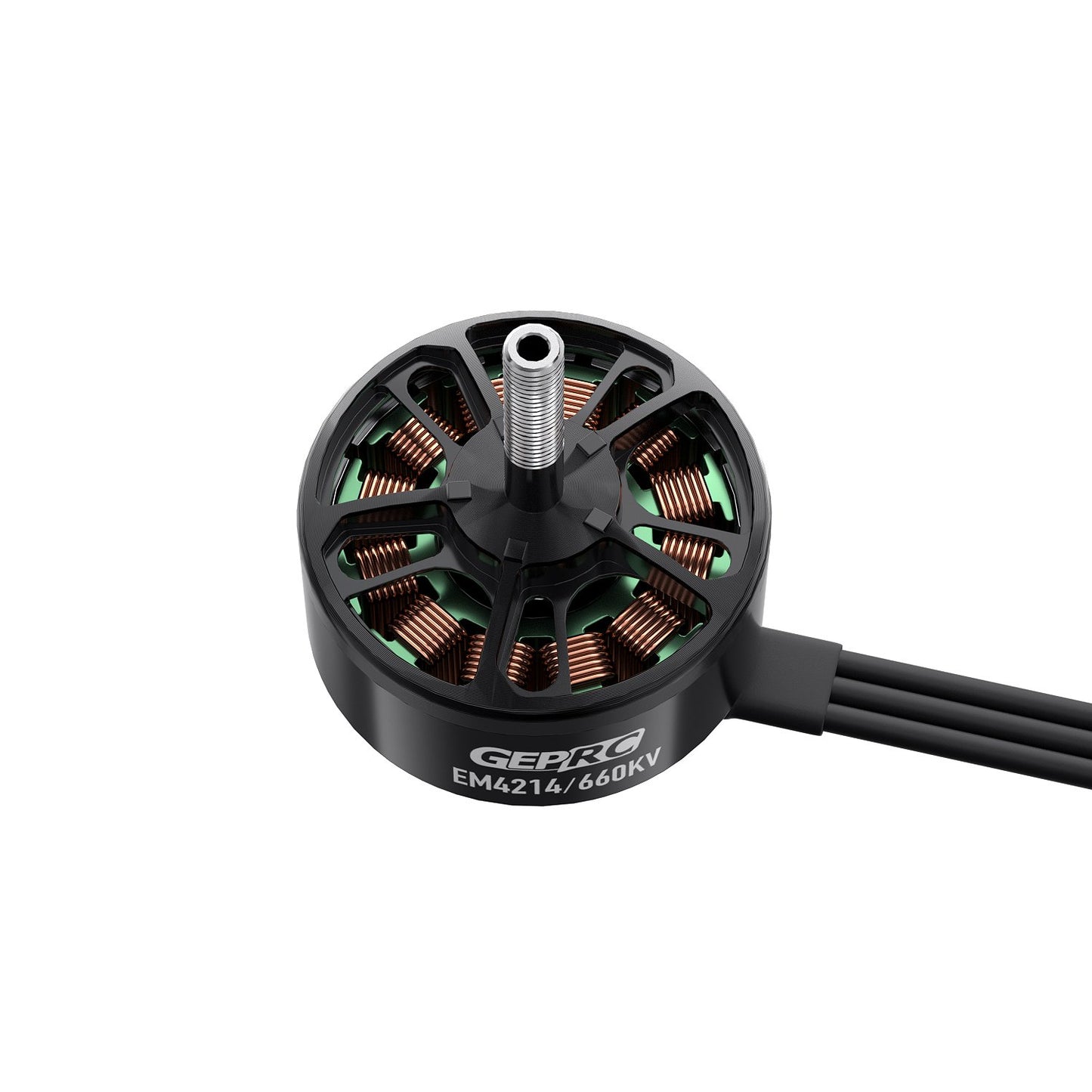

GEPRC EM4214 660KV Motor

Feature

1. New EM series motors designed for long-range FPV
2.  High-strength M6 steel shaft
3.  High torque magnetic circuit design

Specifications

• Model: EM4214 660KV Motor

• KV: 660KV

• Max Watt: 2120W

• Peak Current: 90A

• Interphase Resistance: 25mΩ

• Propeller: 12-14inch Propeller

• Magnet: N52H

• Bearing Type: NMB

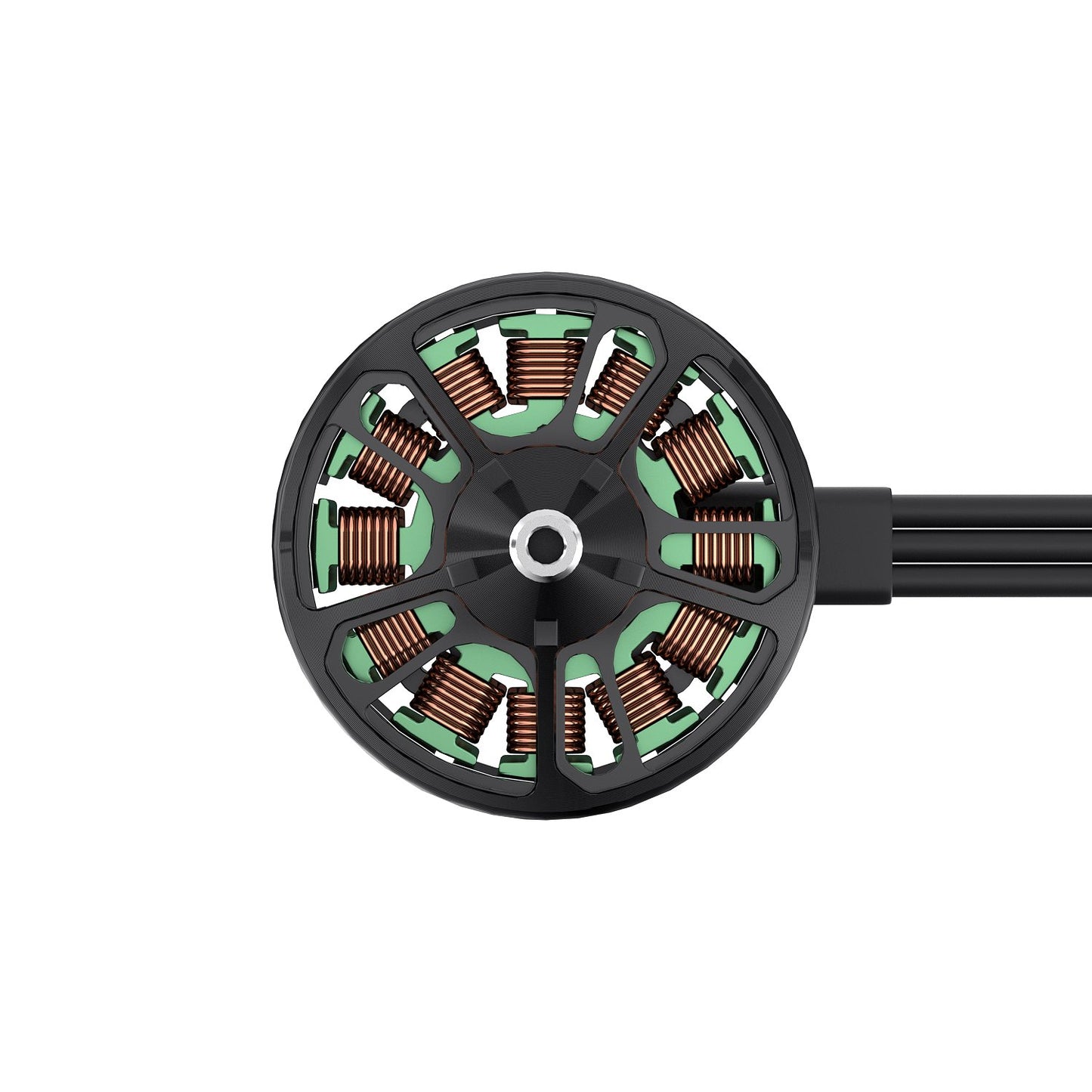

• Configuration: 12N14P

• Dimension: φ49mmx32.5mm

• Shaft Diameter: φ6mm

• Shaft Protruding Length: 25.5mm

• Mounting holes: 30mmx30mm

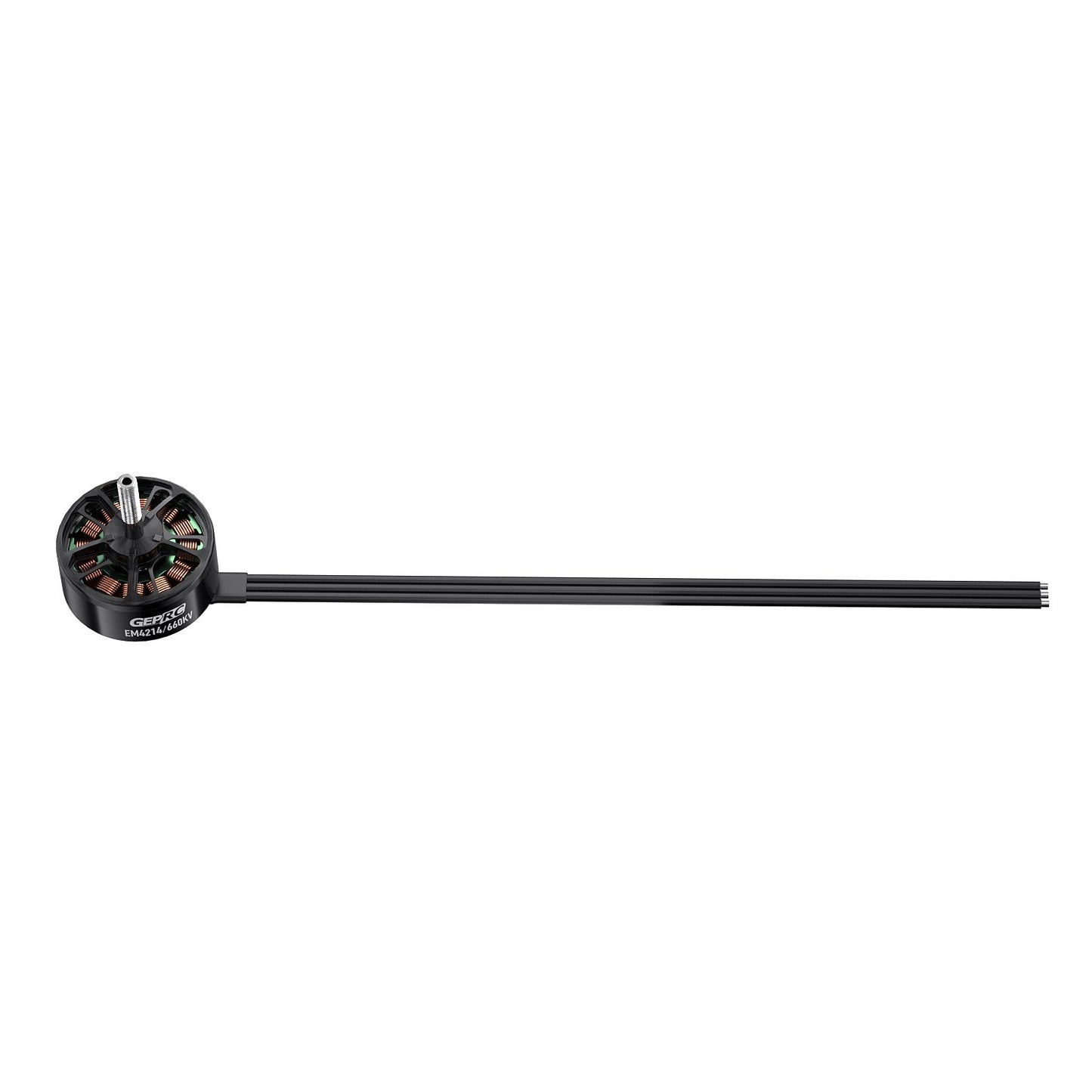

• Lead: 800mm/14AWG

• Compatible ESC: 80A-100A

• Input Volts: 25.2V(6S LiPo)

• Winding: Single-strand copper winding

• Included Screws: Semi-spherical Head M4*10 (4PCS)/M6 Flange Nut (1PCS)

• Weight: 246g(included wire)

• Compatible Models: 12-14 inch long-range FPV

Includes

1 x EM4214 motor

4 x M4*10 round head screws

1 x M6 anti-slip nut
