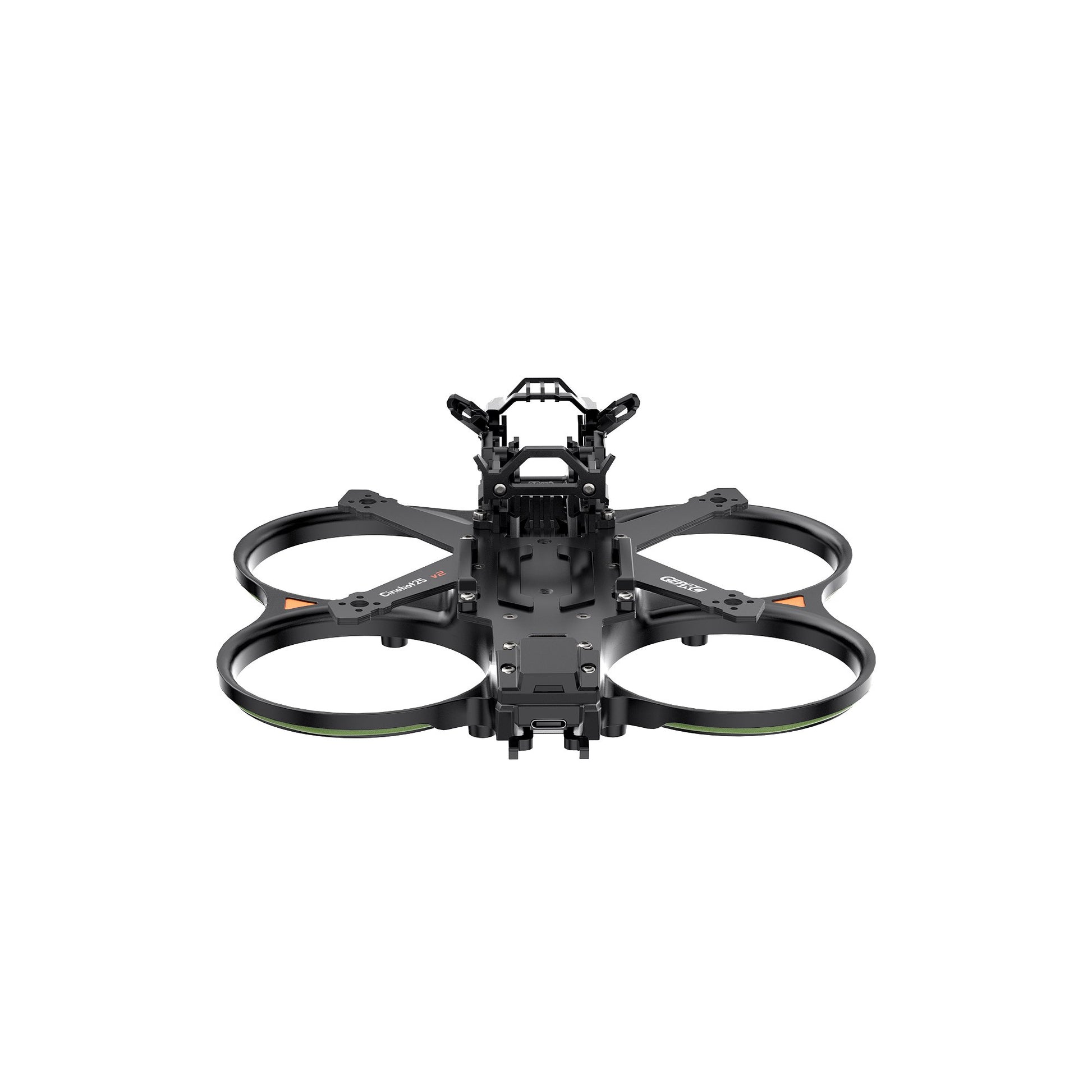

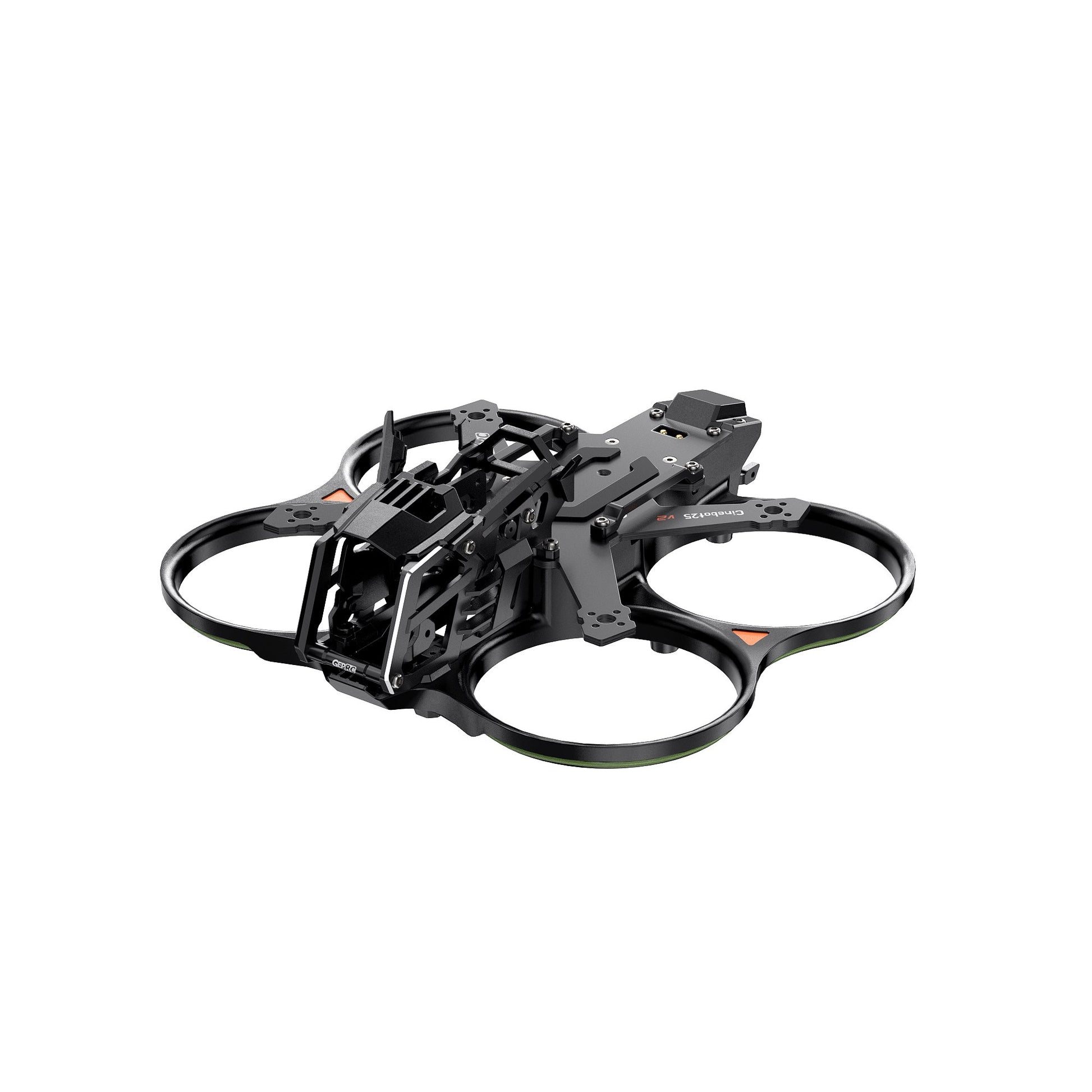

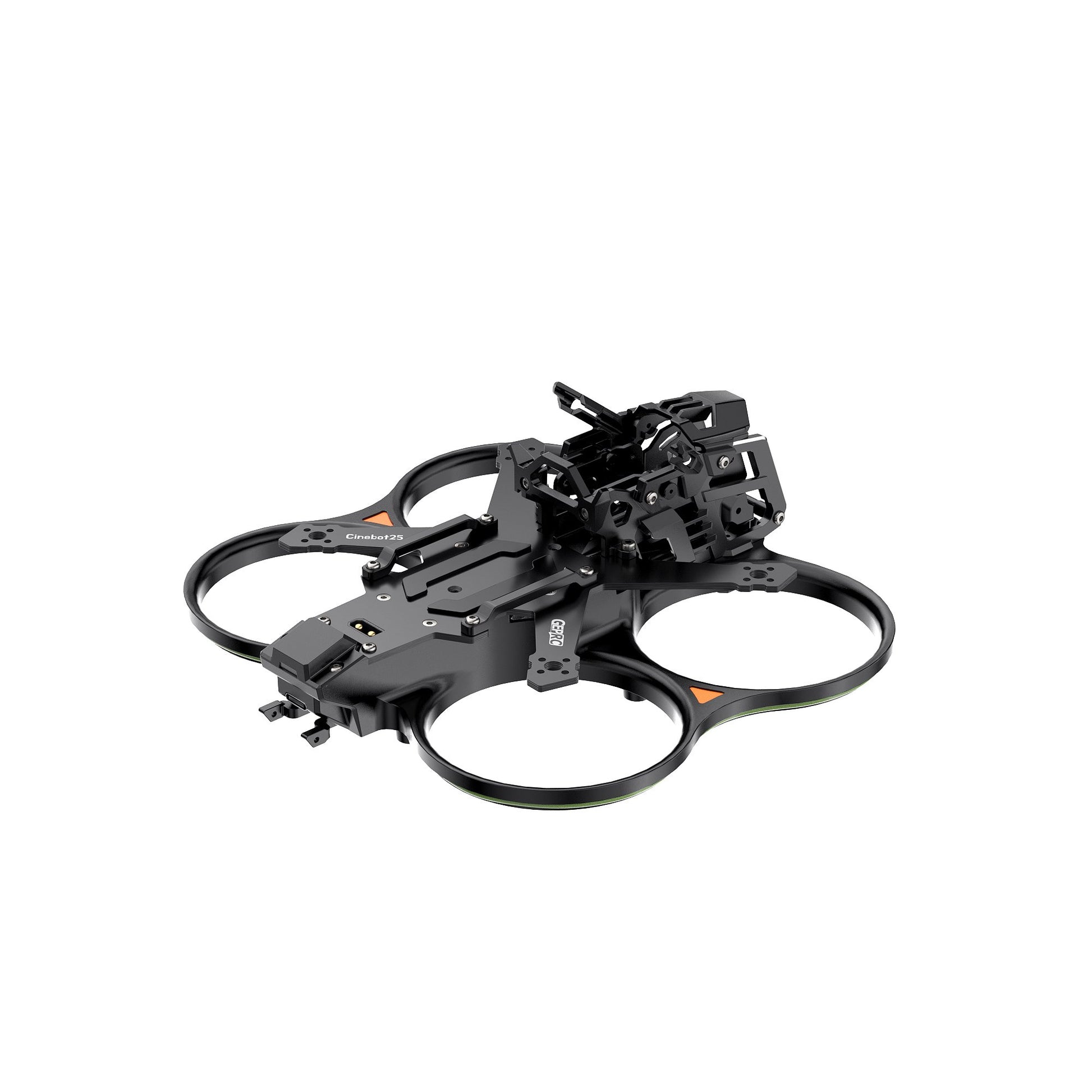

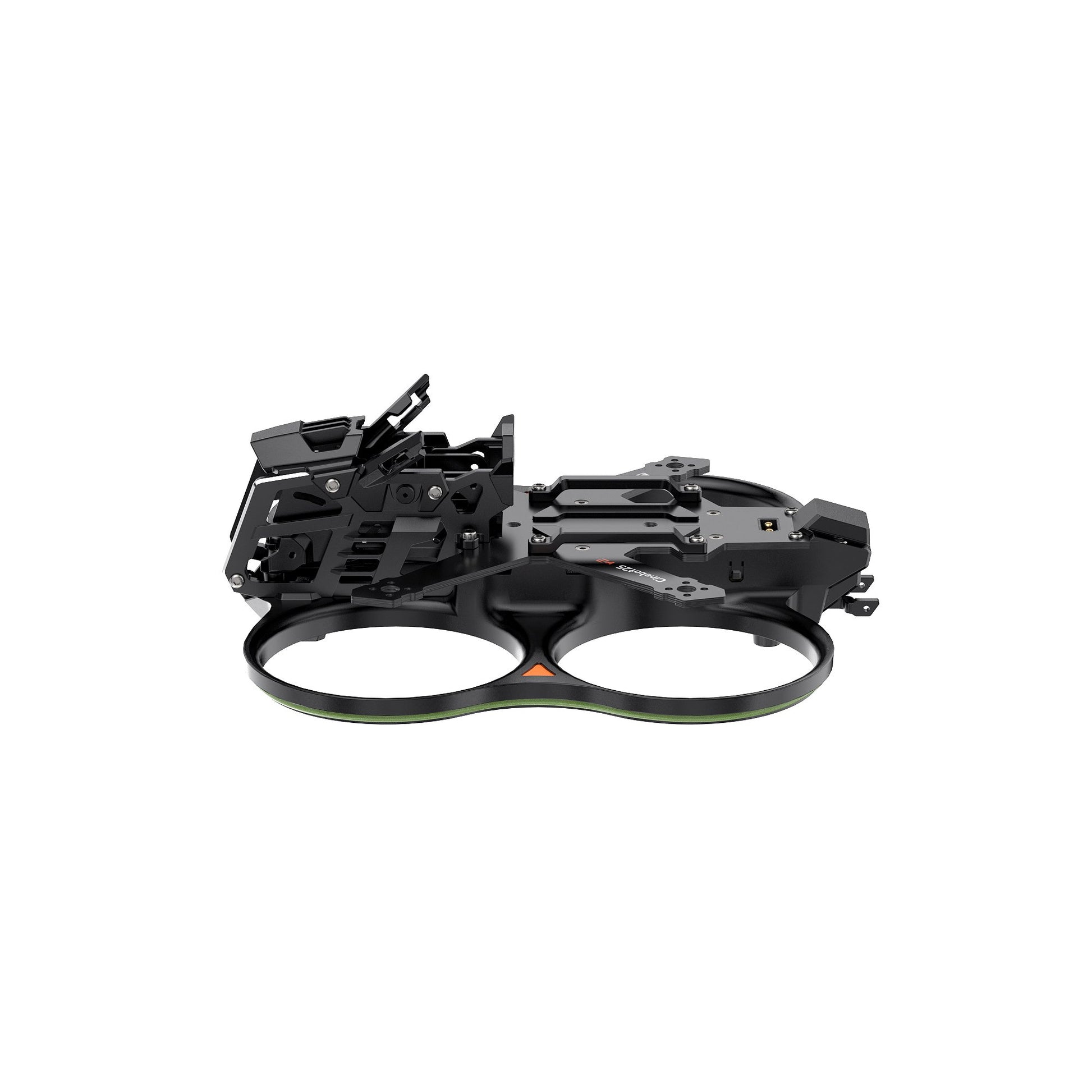

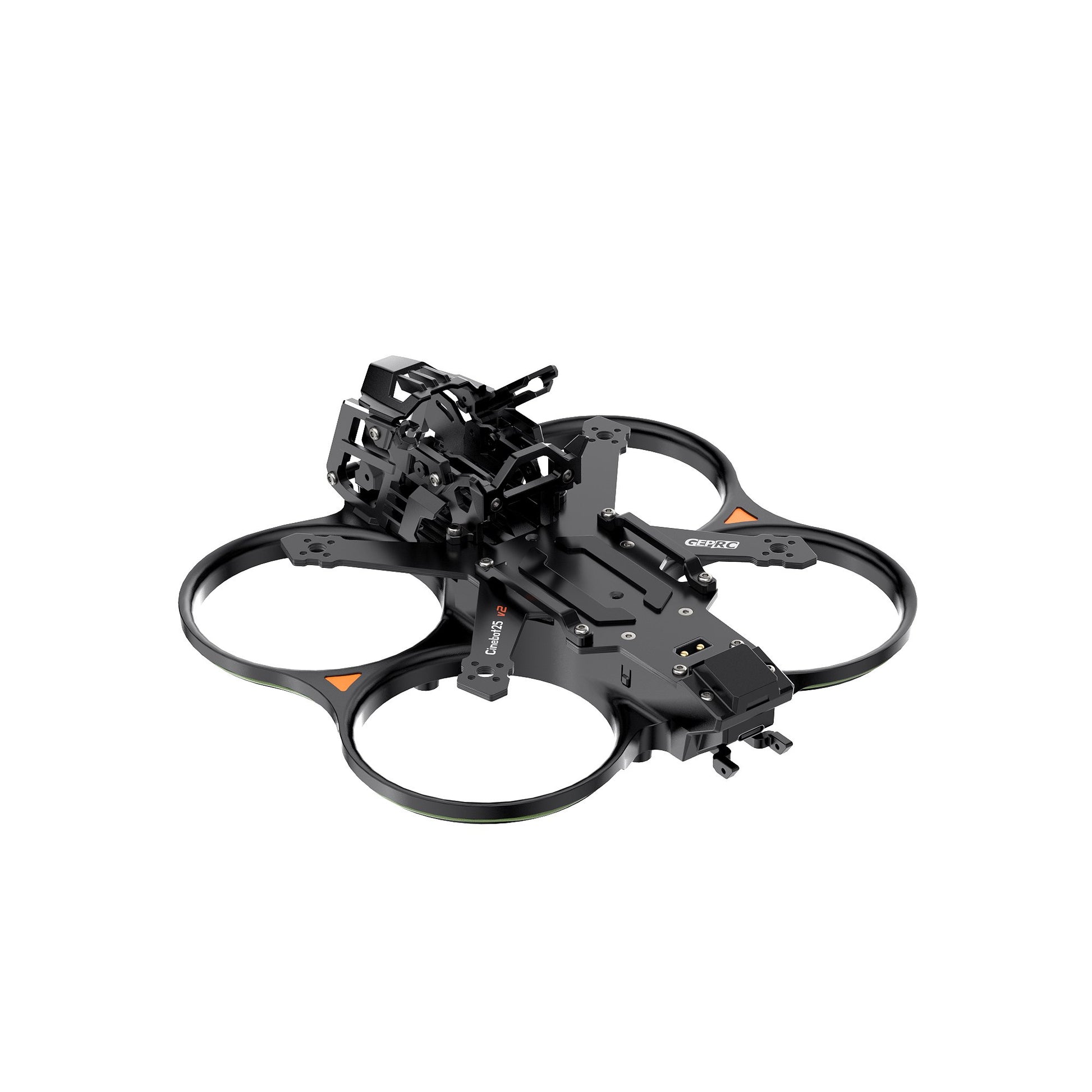

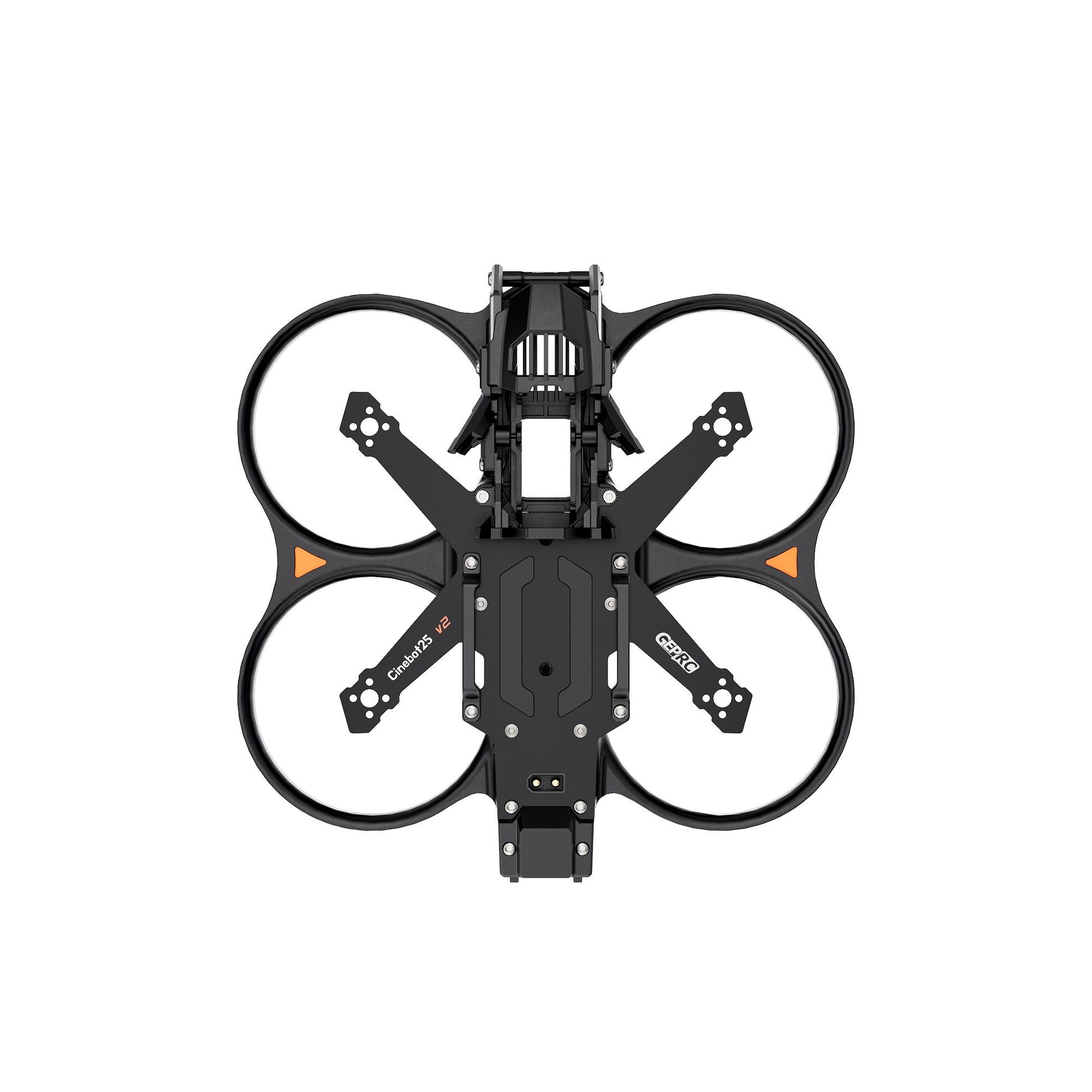

GEPRC GEP-CT25 V2 FPV Frame

Summary

GEPRC introduces the all-new Cinebot25 V2, built for superior image quality and long-term versatility.

Featuring our innovative 6-Point Floating Shock-Absorbing VTX Module, the DJI O4 Air Unit Pro is mounted in an independent suspended structure to effectively isolate high-frequency vibrations, delivering cleaner and more stable footage.

The modular design supports 2.5-inch frames and future platforms, enabling flexible upgrades and lower maintenance costs.

Cinebot25 V2 — Fly smarter. Capture better.

Features

1. Equipped with the latest DJI O4 Air Unit Pro
2. 6-Point Floating Shock-Absorbing VTX Module
3. Fully optimized frame structure with enhanced electronics bay protection
4. Dedicated function board with buzzer, LED BEC, and USB tuning port
5. Precision-designed front cover to protect the O4 Pro lens
6. Integrated Prop Guard frame with built-in COB LED mounting slots for night visibility

Specification

• Model: GEP-CT25 V2 Frame Kit
• Color: Black
• Wheelbase: 123 mm
• Main Carbon Plate Thickness: 2.0 mm
• FC Mounting: 25.5 × 25.5 mm
• Motor Mounting: 9 × 9 mm
• Camera Mount Width: 20 mm
• Power Connector: XT30
• Compatible Propellers: 2.5 inch
• Frame Weight: 110±5g

Manual

Cinebot25 V2 Frame Assembly Instruction

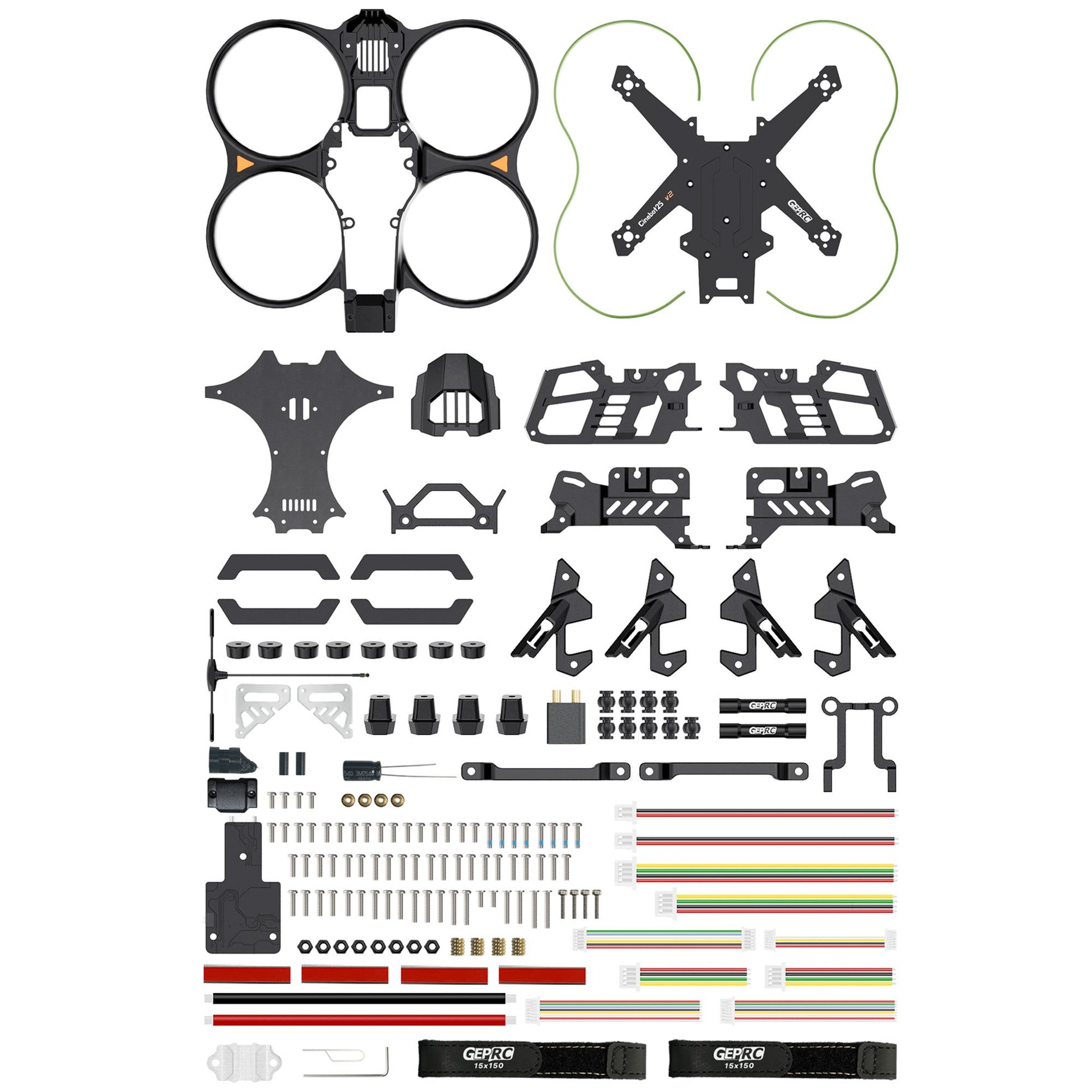

Includes

1 × Prop Guard

1 × Top Plate

1 × Bottom Plate

2 × Battery Straps

2 × Aluminum Battery Strap Mounts

4 × Anti-Slip Battery Pads

1 × Function Board

1 × Receiver Antenna

1 × Receiver Antenna Injection-Molded Mount

1 × Receiver 3D Printed Mount

1 × Capacitor 3D Printed Mount

2 × Acrylic Plates

1 × Screw Kit

1 × Cinebot Front Module Kit

1 × Front Module / Landing Injection-Molded Parts Pack

1 × Cable Set
