GEPRC GEP-CT35 Cinebot35 FPV Frame
GEPRC GEP-CT35 Cinebot35 FPV Frame
Regular price
$89.99 USD
Regular price
$159.00 USD
Sale price
$89.99 USD
Quantity
Couldn't load pickup availability
Summary

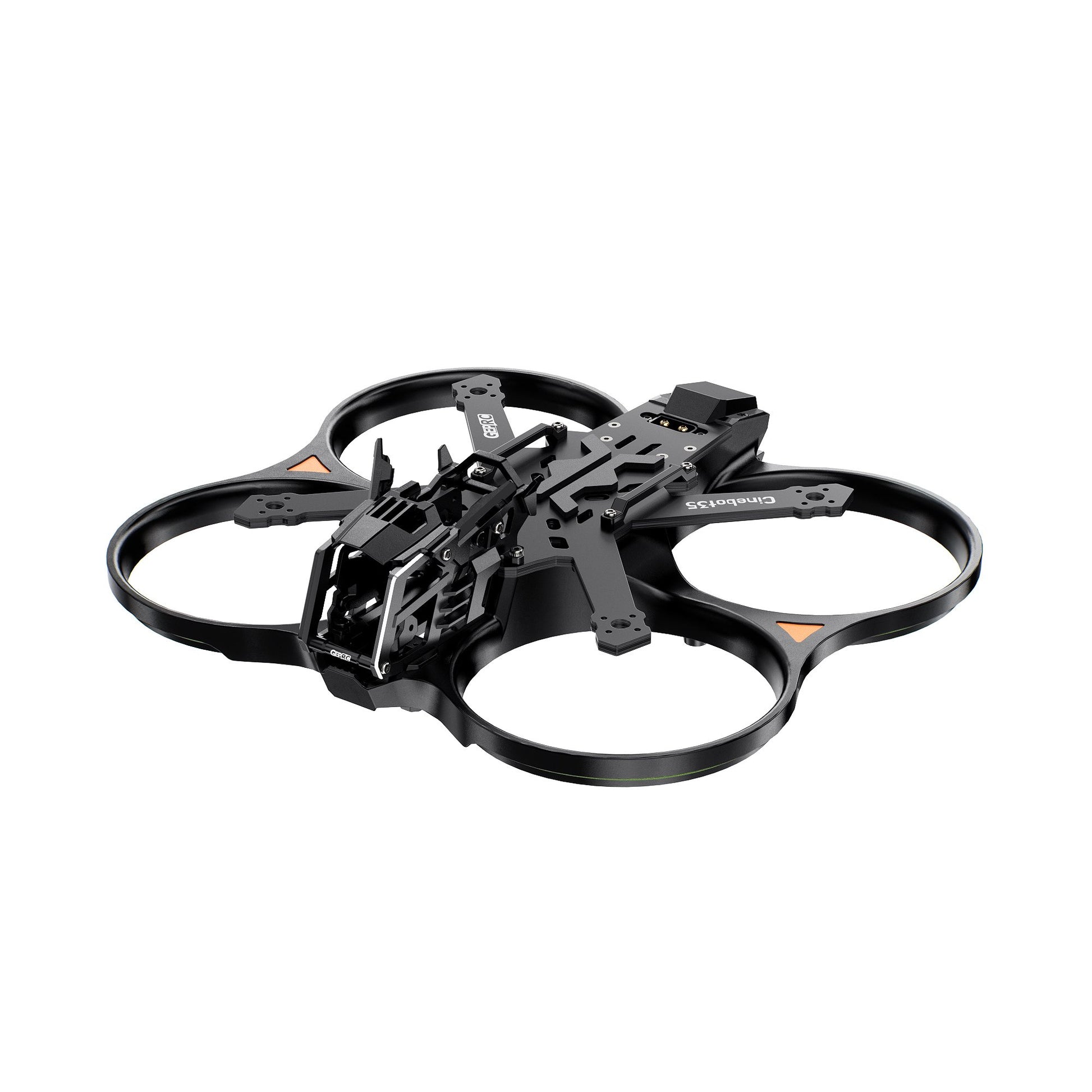

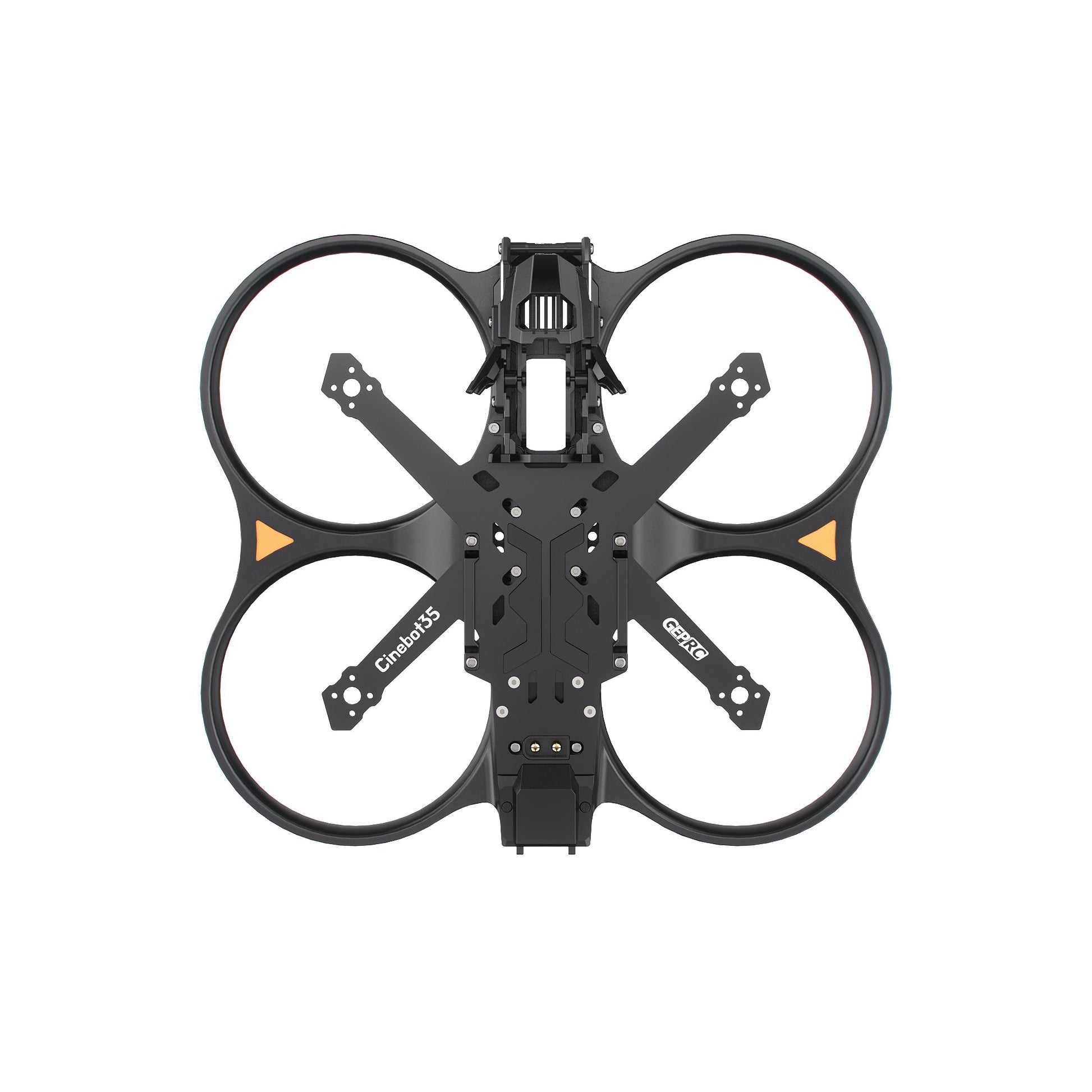

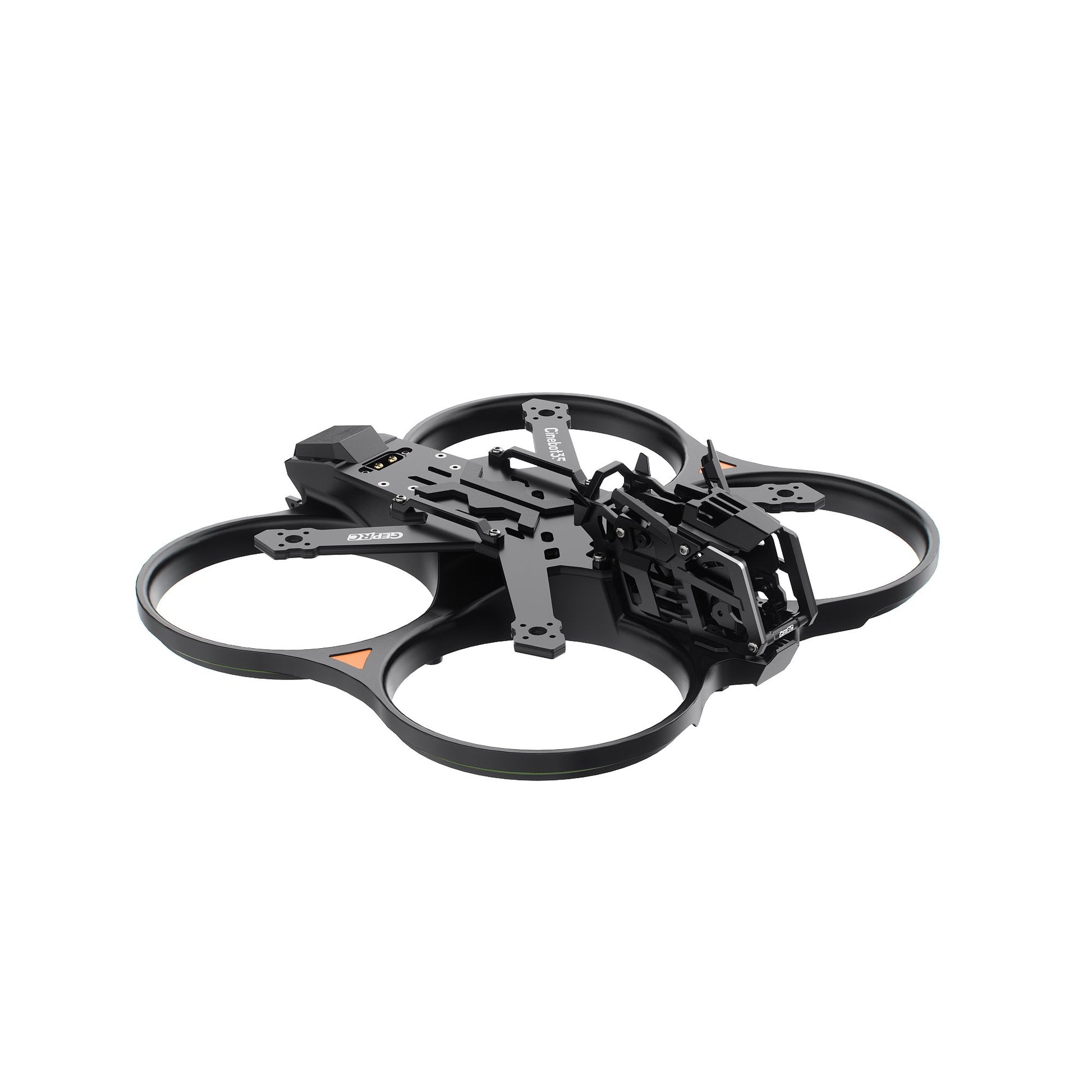

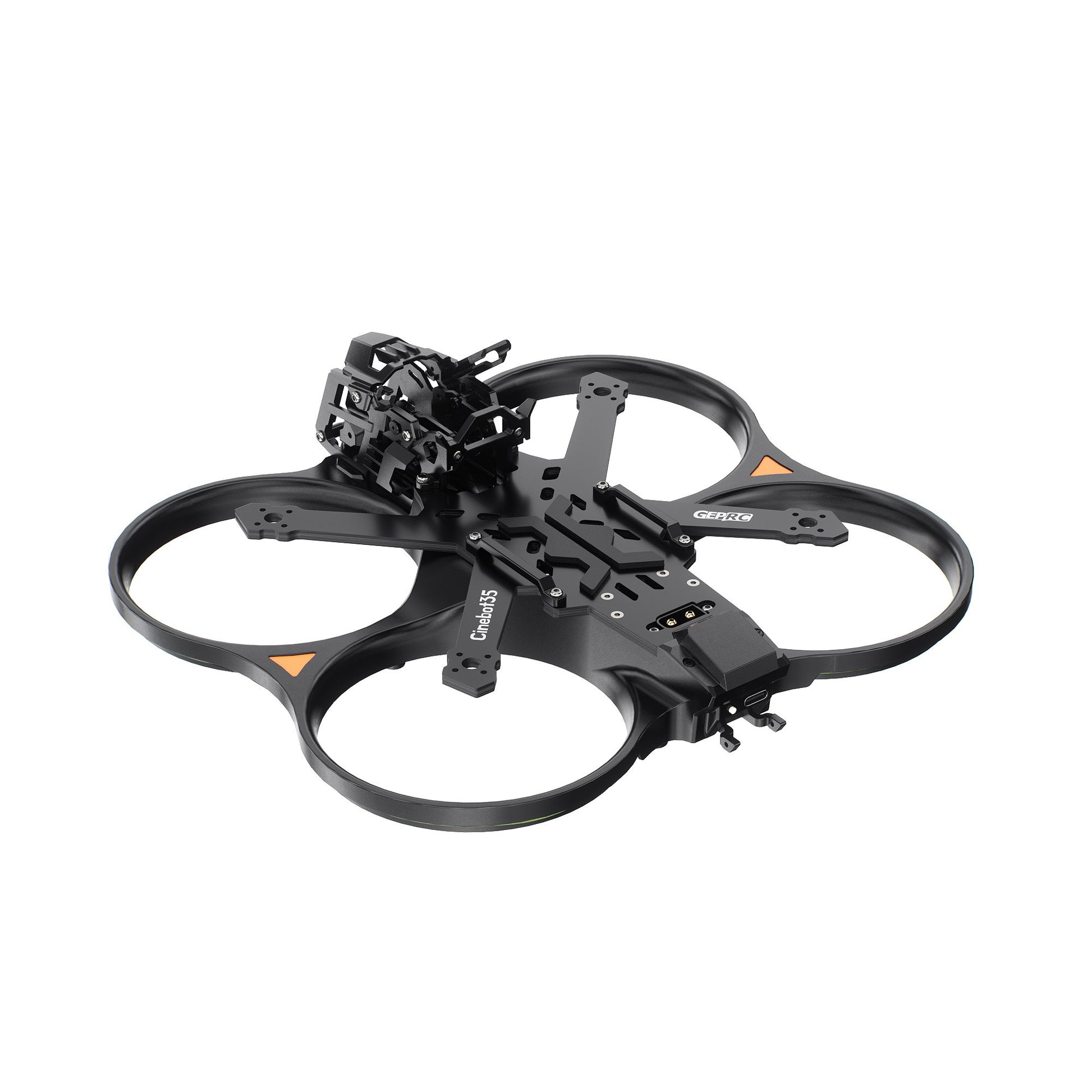

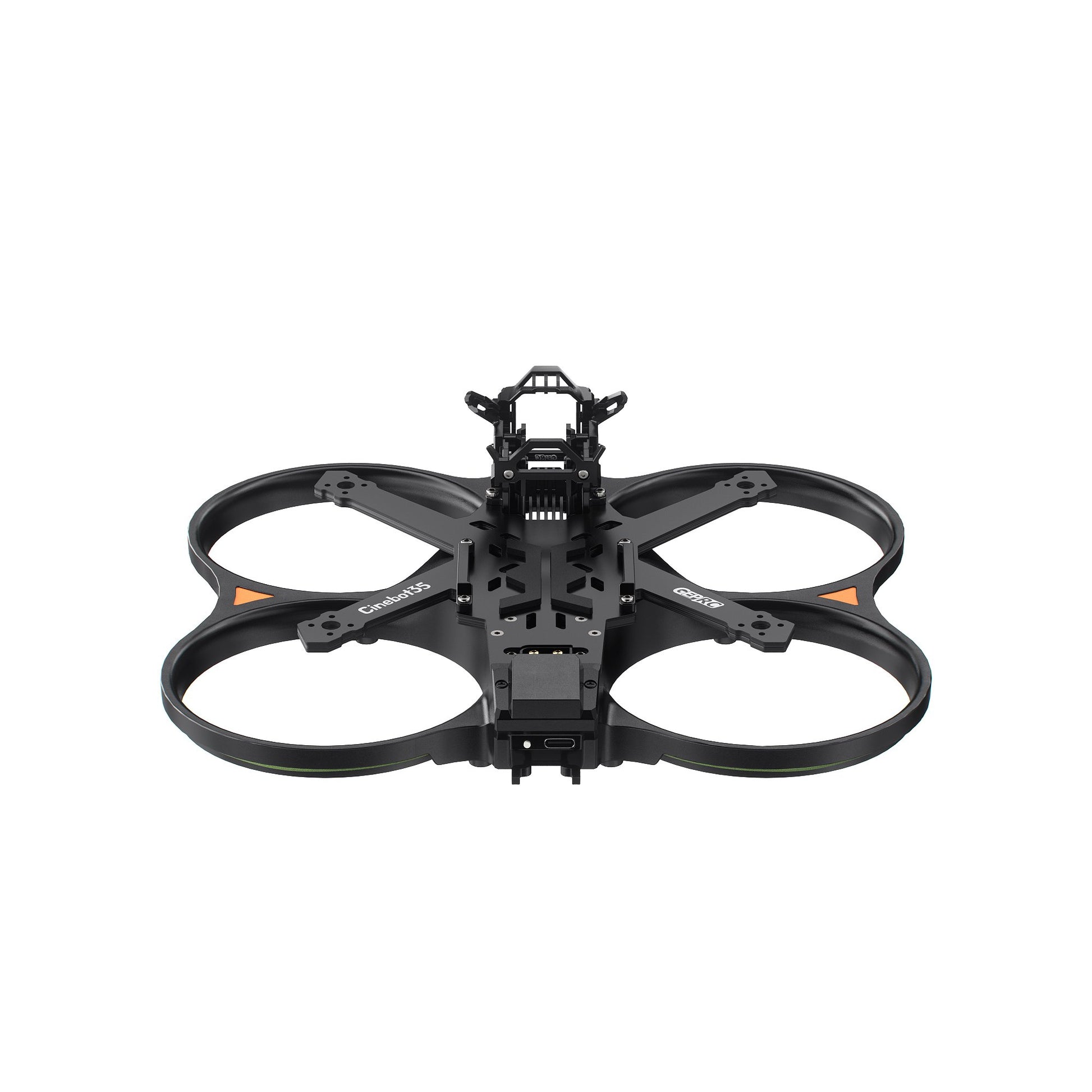

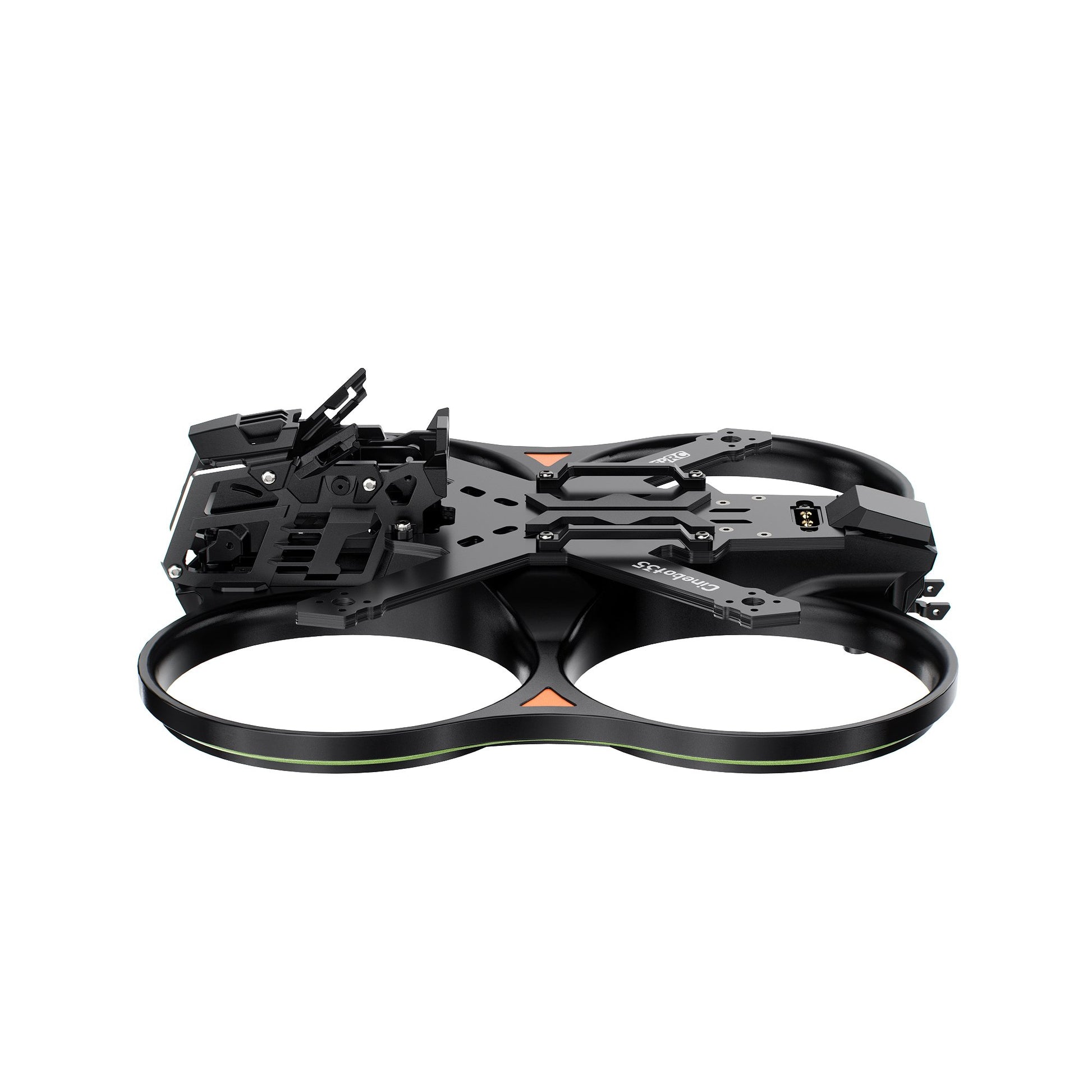

GEP-CT35 is a 3.5-inch FPV frame built for HD indoor and outdoor aerial filming. It features a new 6-point suspended vibration-damping independent VTX unit, delivering stable footage with strong protection.
High-toughness composite materials and an optimized structure form a reinforced protective frame, effectively absorbing impacts while maintaining a compact and powerful build.
Features
- 6-point suspended vibration-damping structure, compatible with O4 Pro for smooth cinematic footage
- Reinforced aluminum front module and protective frame for enhanced structural strength
- Finely designed canopy for effective camera lens protection
- Bottom quick-release design for easy and efficient maintenance
- Dedicated functional board for optimized wiring layout
- Reserved GPS mounting holes for flexible installation
Specification
- Model: GEP-CT35 Frame
- Color: Black
- Wheelbase: 167mm
- Main Carbon Plate Thickness: 3.5mm
- Bottom Plate Thickness: 1.5mm
- FC Mounting: 20×20mm / 25.5×25.5mm
- Motor Mounting: 12×12mm
- Camera Mount Width: 20mm
- Power Connector: XT60
- Compatible Propellers: 3.5-inch
- Weight: 201g ±5g
Manual
Cinebot35 Frame Assembly Instruction
Includes
1 × Prop Guard
1 × Top Plate
1 × Bottom Plate
2 × Battery Straps
4 × Battery Anti-Slip Pads
1 × Function Board
1 × Receiver 3D Printed Mount
1 × Capacitor 3D Printed Mount
2 × Acrylic Plates
1 × Screw Kit
1 × Aluminum Parts Set
1 × Injection-molded Parts Set
1 × Cable Set
