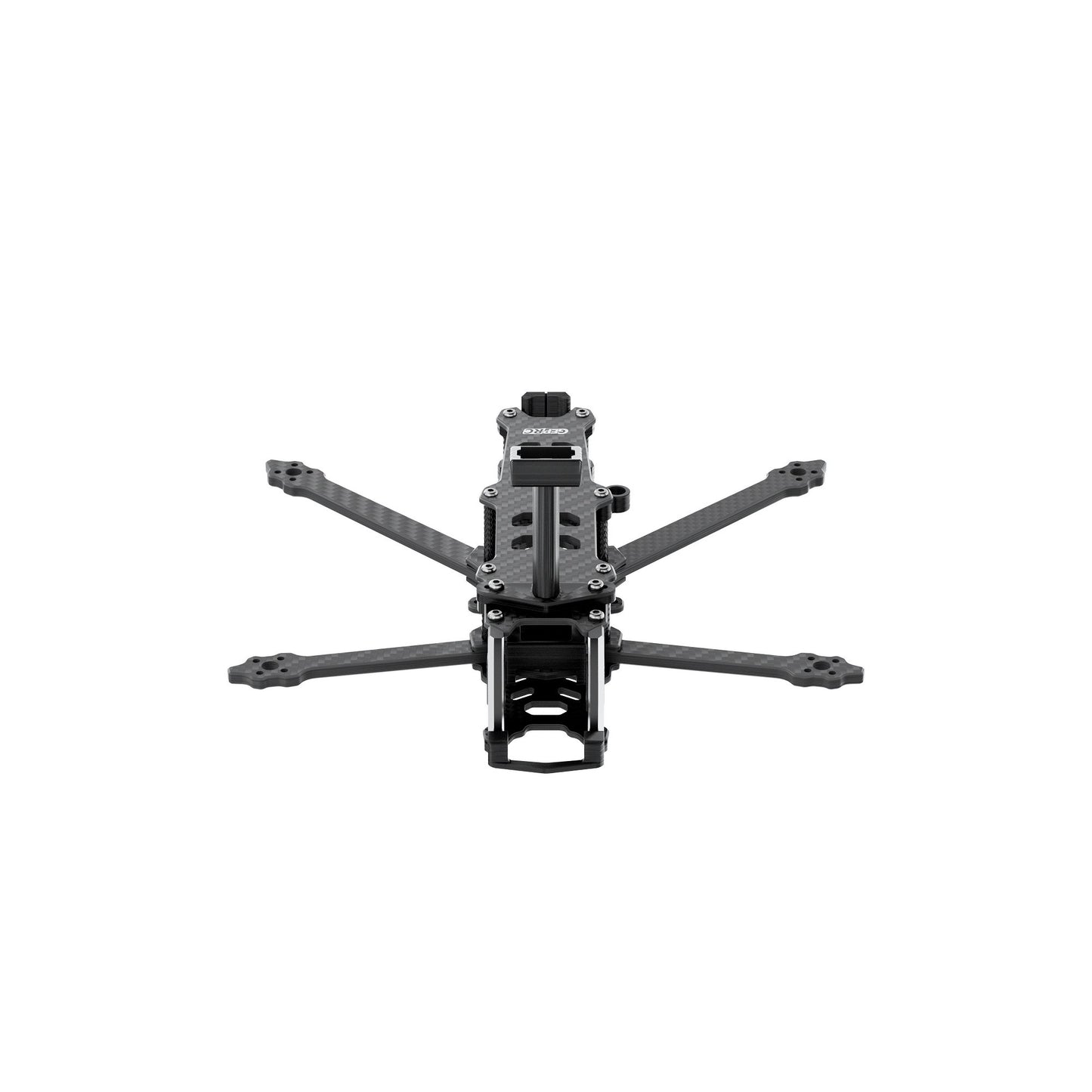

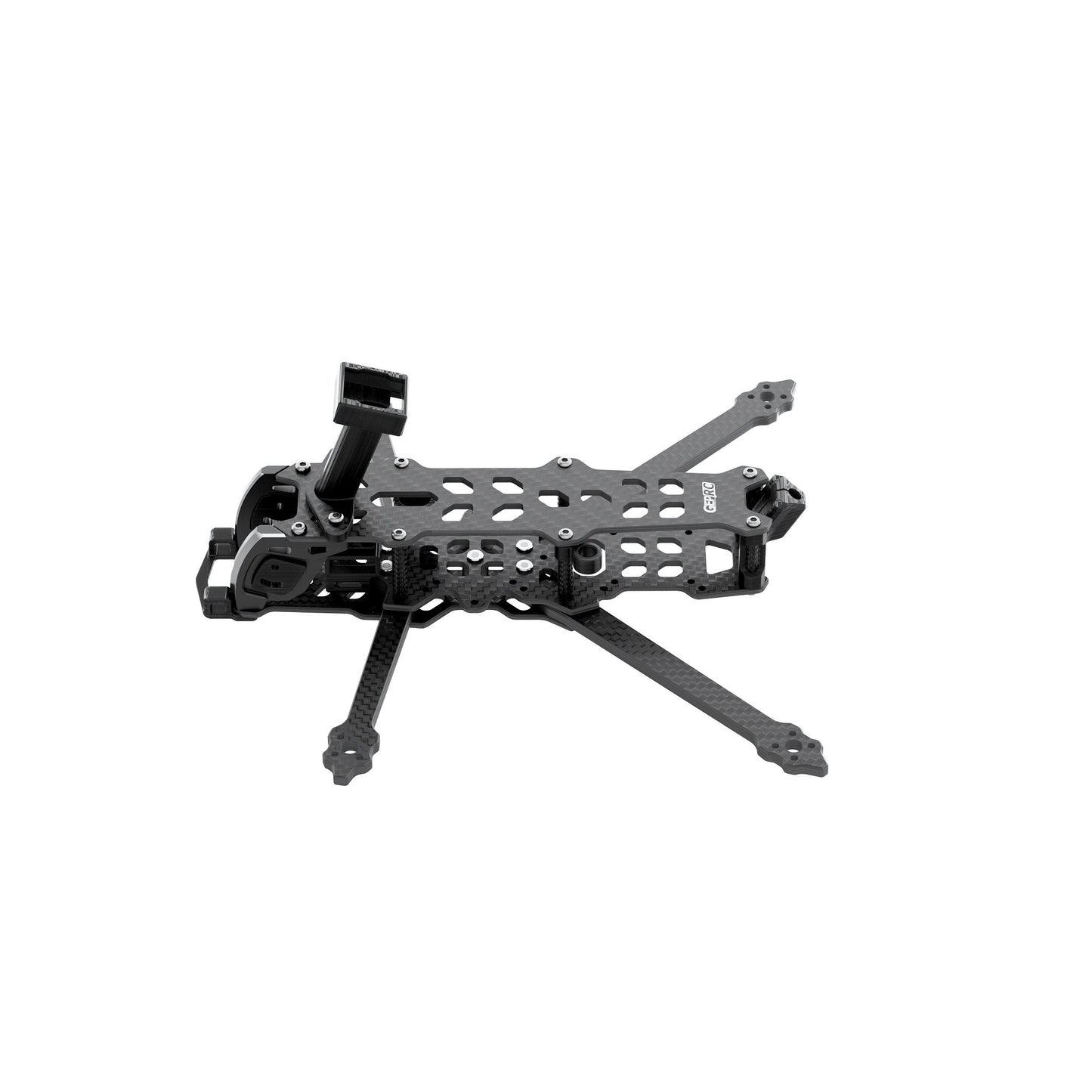

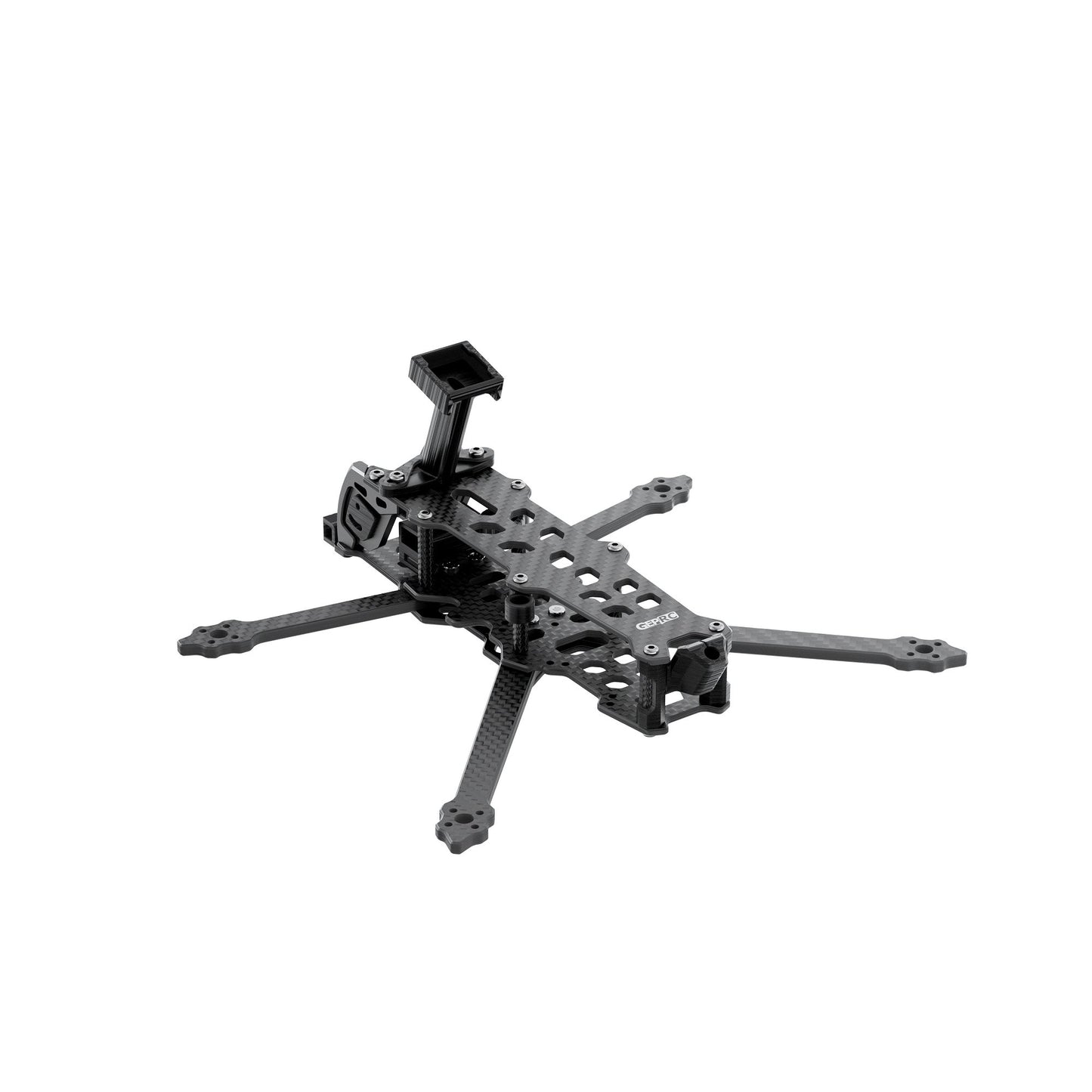

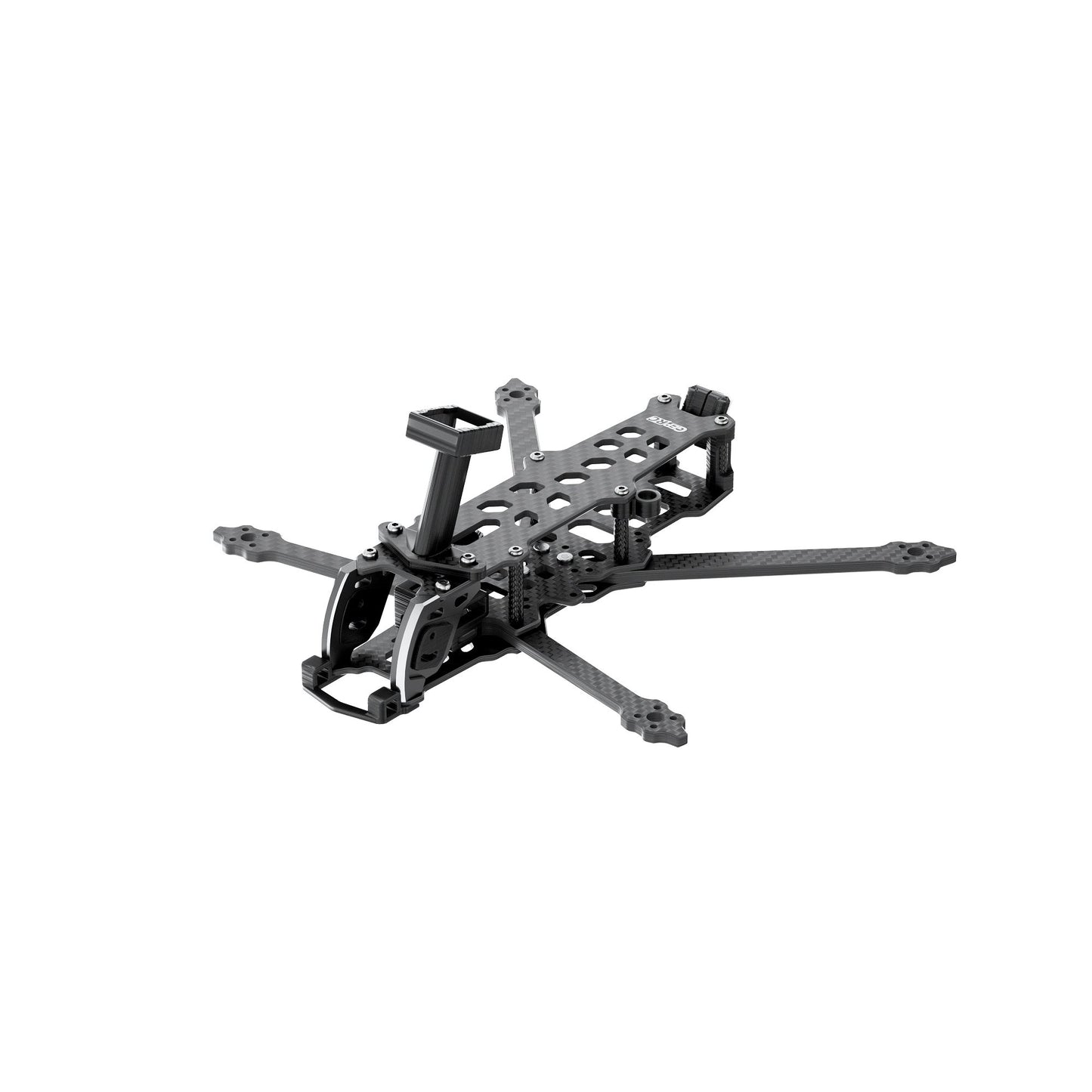

GEPRC GEP-Tern-LR40 Frame

Summary

The Tern-LR40 frame is specially designed for the 4-inch long-range FPV drone. Adopting a well-designed DC shape structure, after the extensive host of lightweight experiments and the use of 7075 aviation-grade Aluminum parts, the Tern-LR40 frame achieved lightness and rigidity. Top-fixing GPS avoids the effect on GPS from disturbance. In addition, applying a Silicone shock absorption pad can effectively reduce the frequent vibration of O3 from instability.

Tern-LR40 lets you effortlessly embark on a long voyage and explore the further area.

Feature

1.  The lightweight designed frame only weighs 59±2g.
2.  Top fixing GPS, anti-interference function, and unique look in one.
3.  The aluminum component on the side of the camera is embedded with a silicone shock absorber to reduce jello.
4. Compatible Gopro seat setting enables better scalability of photo shooting.

Specification

• Frame：GEP-Tern-LR40 Frame
• Motor to motor：180mm
• Top plate：1.5mm
• Mid plate：2.0mm
• Arm thickness：3.5mm
• Bottom plate：1.5mm
• FC fixing hole size：20 * 20mm/25 * 25mm
• VTX fixing hole size：20 * 20mm/25 * 25mm
• Motor fixing hole size：9 * 9mm
• Camera mounting size：20mm
• Recommended propellers：4-inch
• Weight：59±2g
