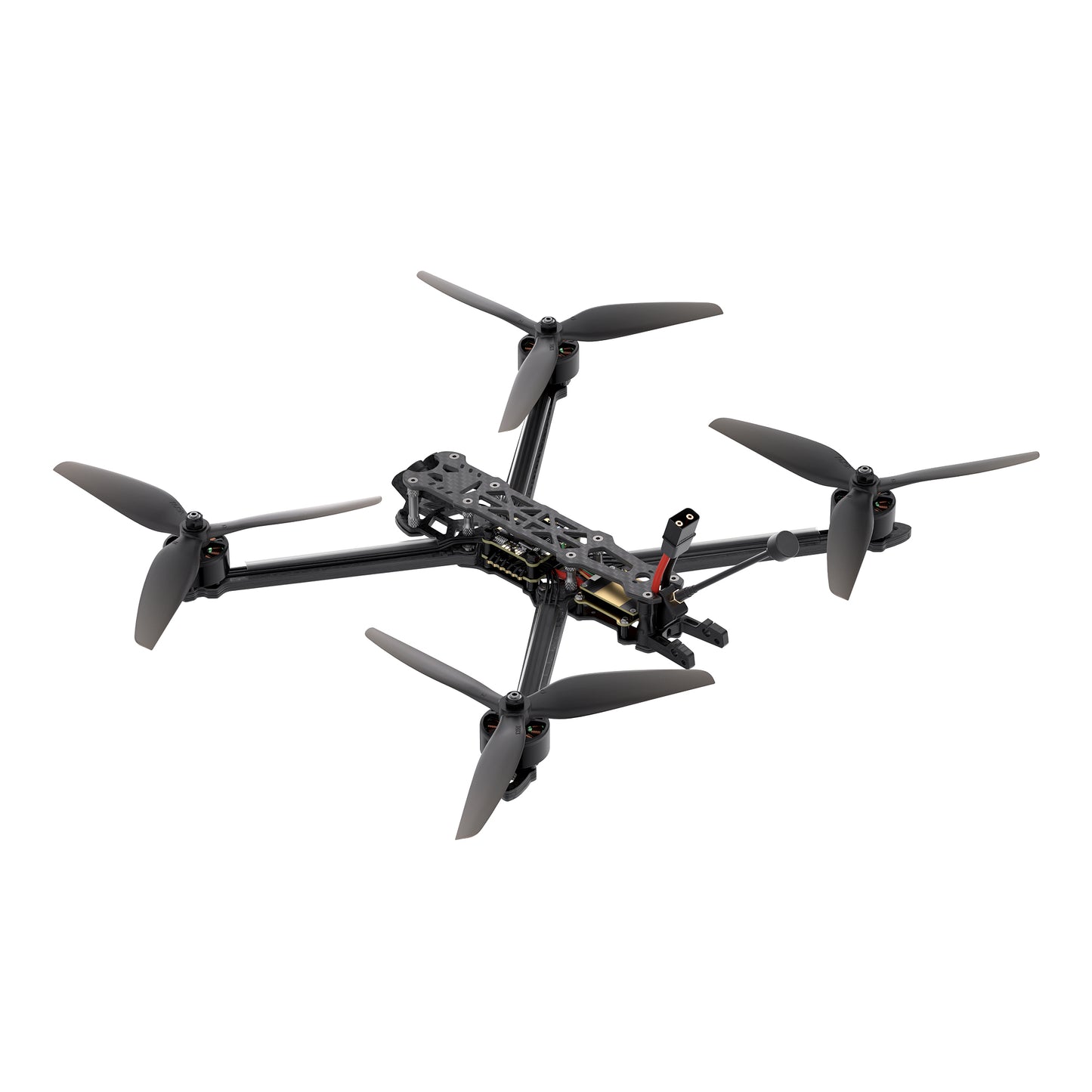

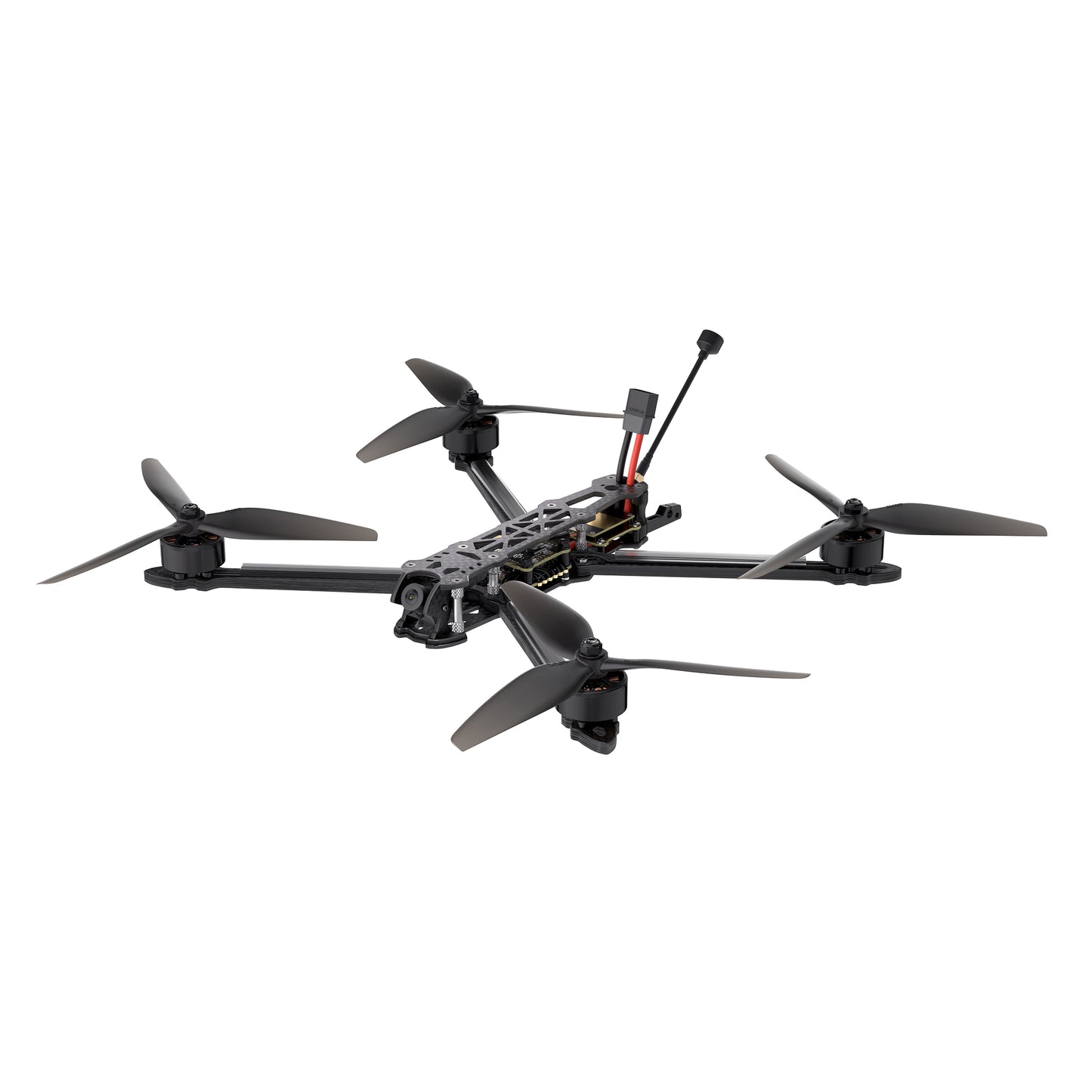

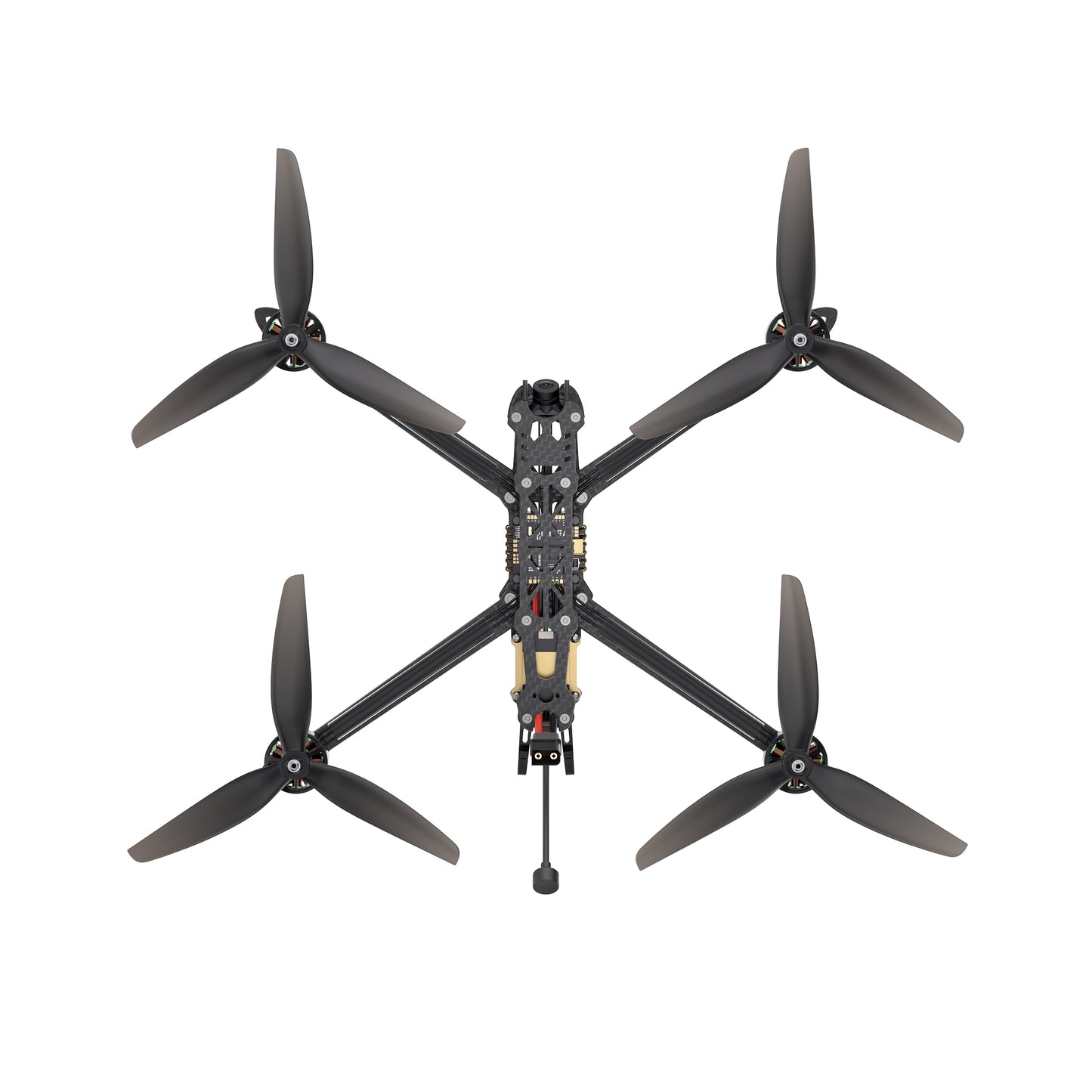

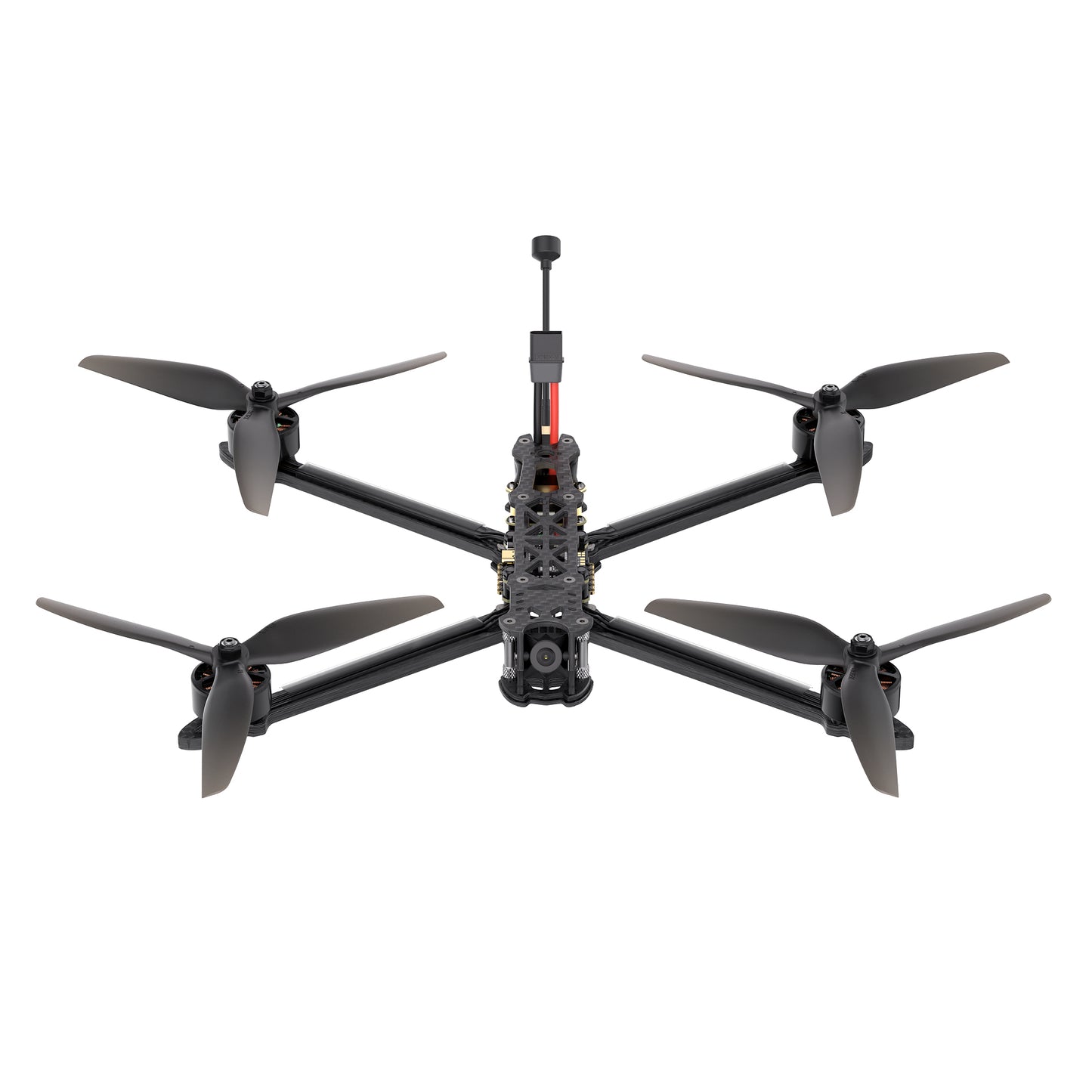

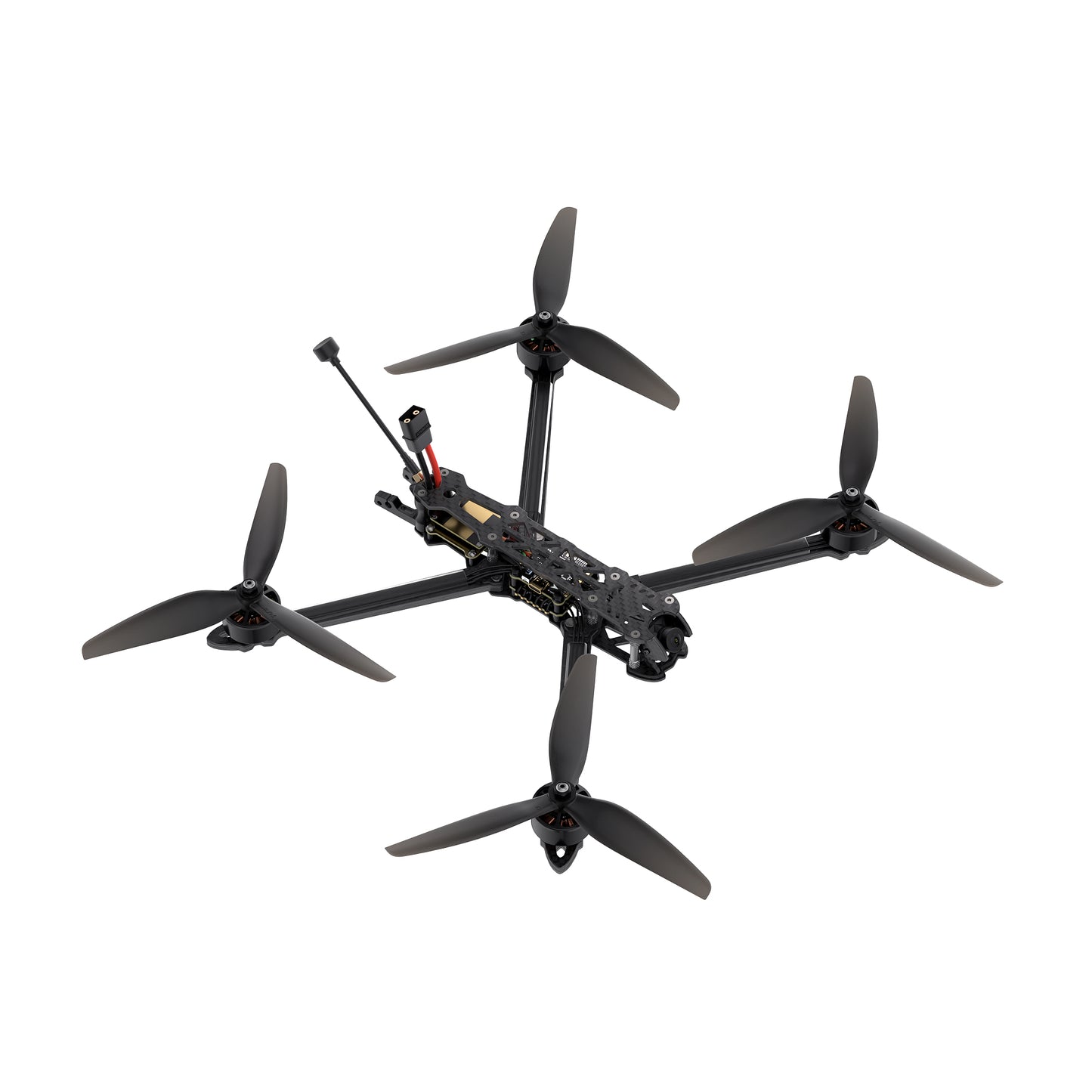

GEPRC MARK4 LR8 FPV Long Range

Feature

1. Use high-power image transmission to ensure signal stability and reliability
2.  Equipped with EM2810 KV1280 motors, using 8-inch propeller with a maximum load of 2kg
3.  GEP-BLS60A-4IN1 ESC and F405 flight control, high-performance hardware provides more stable output
4. 6mm arms can increase strength and overall stability.
5. Use CADDX H1 camera, which is more suitable for fancy long-distance flights.

Specfication

• Model: MARK4 LR8
• Frame: GEP-Mark4-8
• Wheelbase: 338mm
• Top plate thickness: 3mm
• Bottom plate thickness: 3mm
• Side panel thickness: 2.5mm
• Arm thickness: 6mm
• Plywood thickness: 2mm
• FC: GEP-F405-HD v2
• ESC: GEP-BLS60A-4IN1
• MCU: STM32F405RGT6
• Gyro: ICM-42688-P
• VTX: GEPRC 1.2G 1.6W
• Camera: Caddx H1
• Motor: EM2810 1280KV
• Propeller: Gemfan 8040-3
• Payload: 1.2-2kg
• Weight: 529g

Includes

1 x Mark4 LR8
4 x Gemfan 8040-3
2 x Battery anti-slip pads
1 x Screw pack
1 x L-shaped screwdriver 1.5mm
1 x L-shaped screwdriver 2.0mm
1 x M5 wrench
