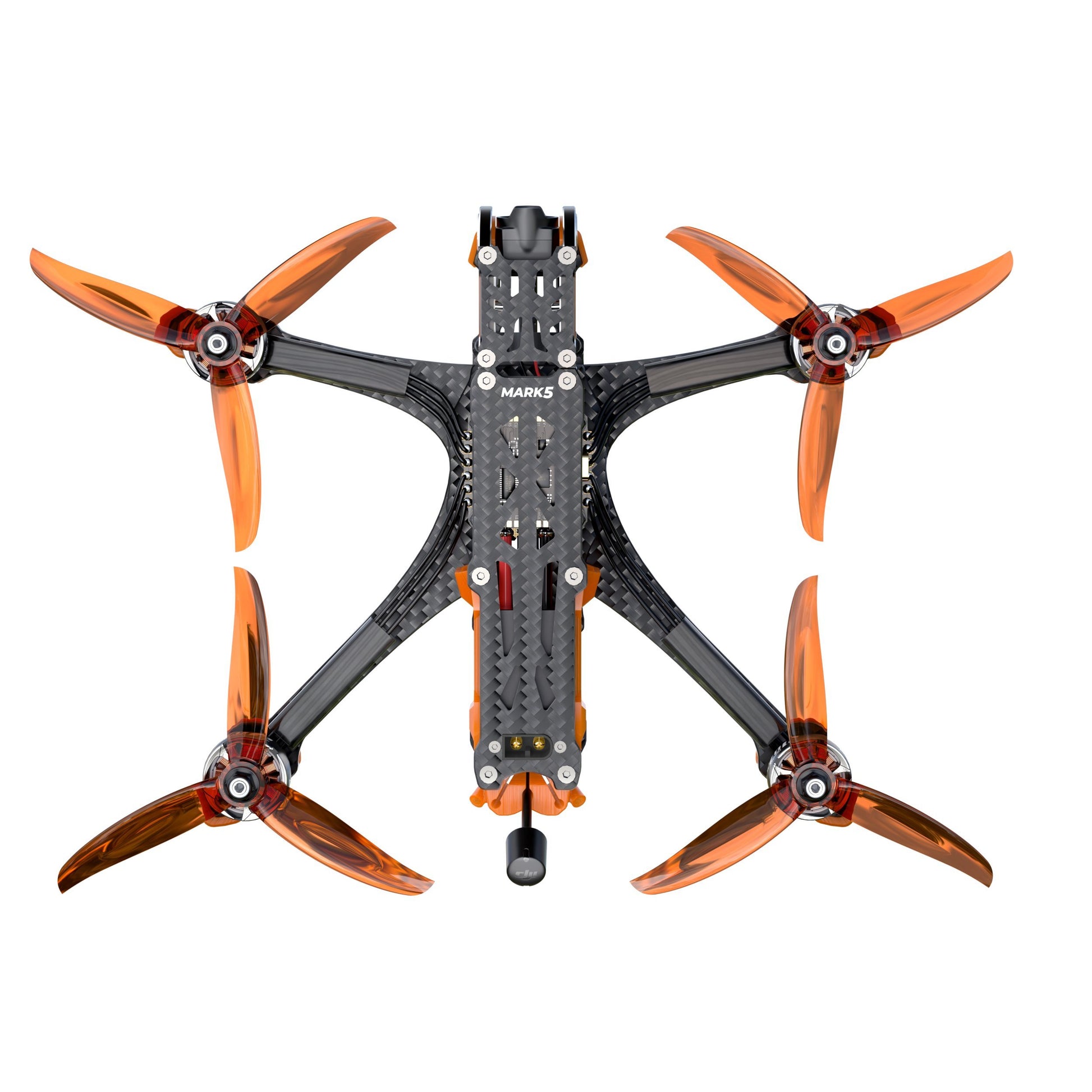

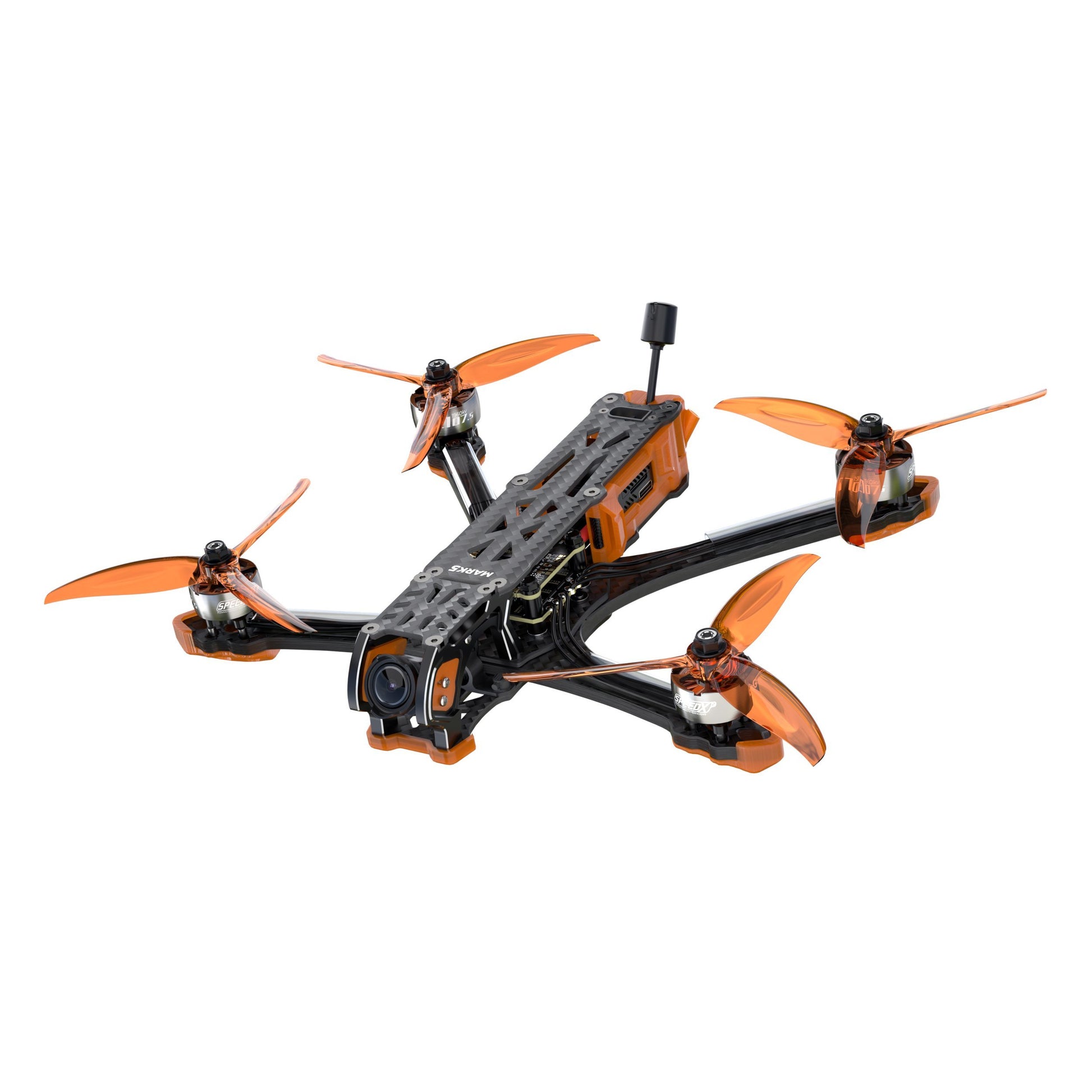

GEPRC MARK5 DC HD O3 6S FPV Drone with O3 Air Unit

Specifications

• Model: MARK5 DC HD O3 Quadcopter

• Brand: GEPRC

• Frame: GEP-MK5D O3

• Wheelbase: 230mm

• Top plate: 2.5mm

• Bottom plate: 2.5mm

• Arm plate: 5mm

• FC system: SPAN F722-BT-HD V2

• MCU: STM32F722

• Gyro: 42688-P(SPI)

• OSD: BetaFlight OSD w/AT7456E chip

• ESC: SPAN G50A BLHeli_32 4IN1 50A 4-6S ESC

• VTX: DJI O3 Air Unit

• Camera: DJI O3

• Propeller: Gemfan 5136

• Antenna: DJI O3 antenna

• Motor: SPEEDX2 2107.5-1960KV (6S Version)

• Weight: MK5D: 426.0g, MK5X: 404.9g(MARK5 HD O3 including 3D printed parts)

• Receiver: TBS Nano RX

• Recommended Battery: LiPo 6S 1050mAh-1550mAh(6S Version)
