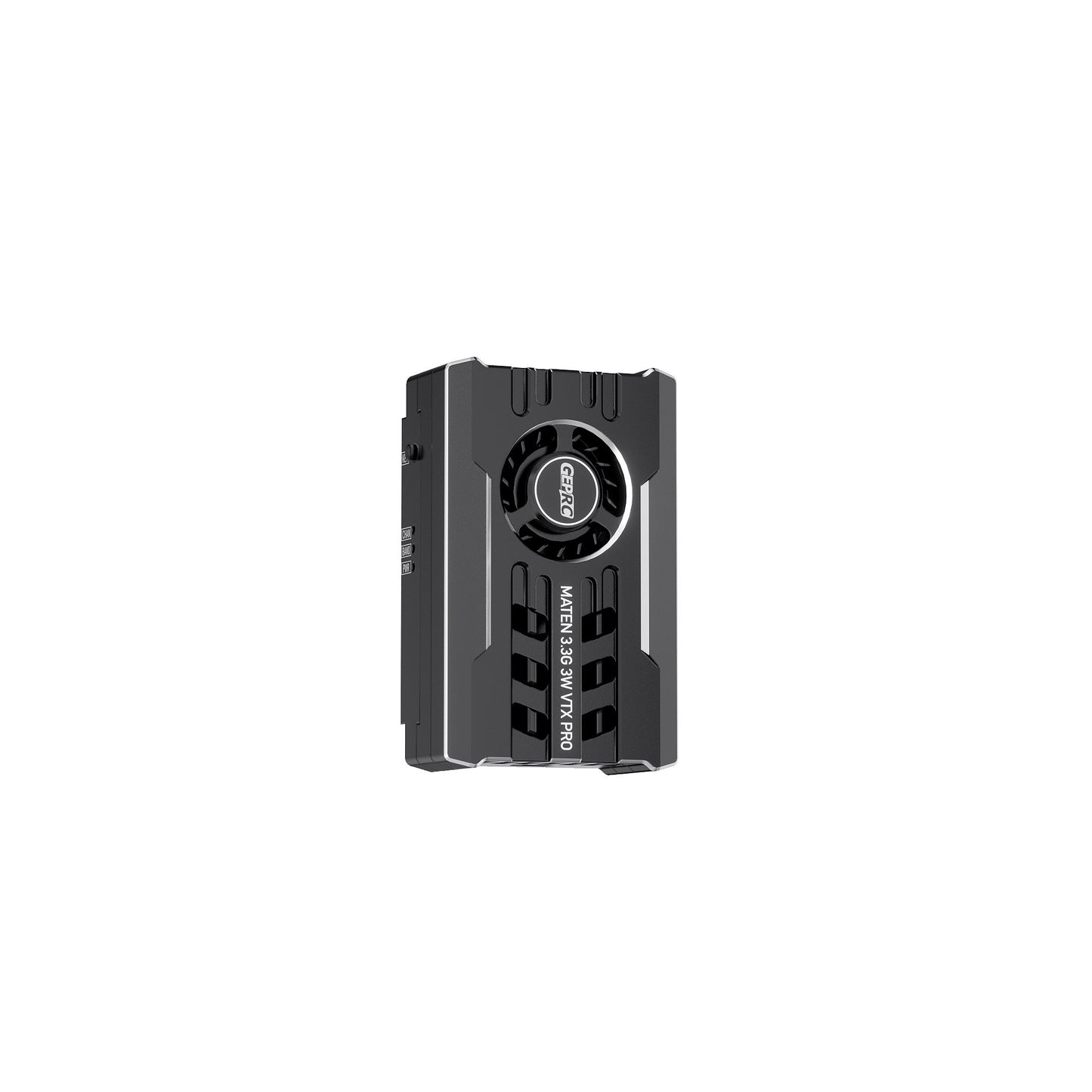

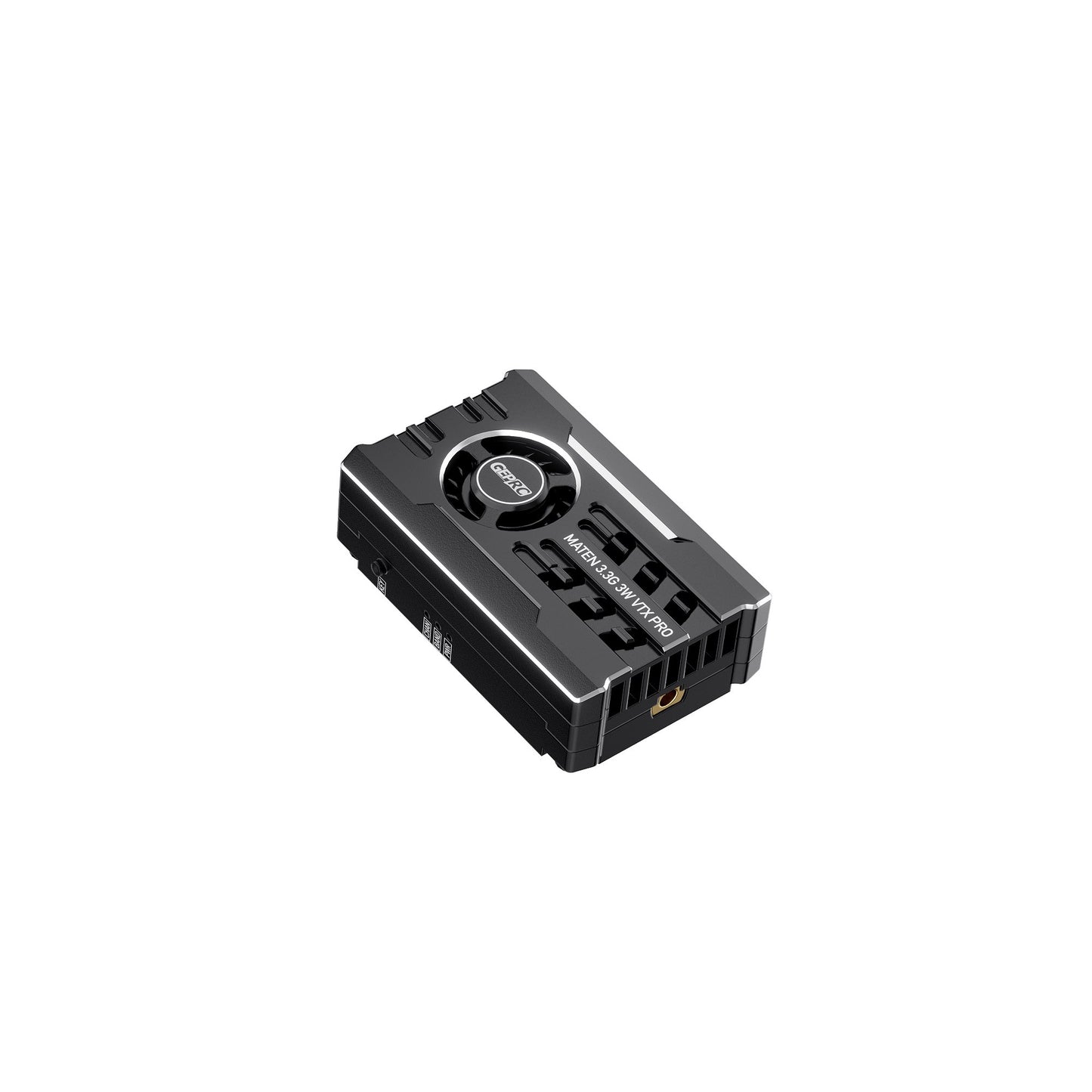

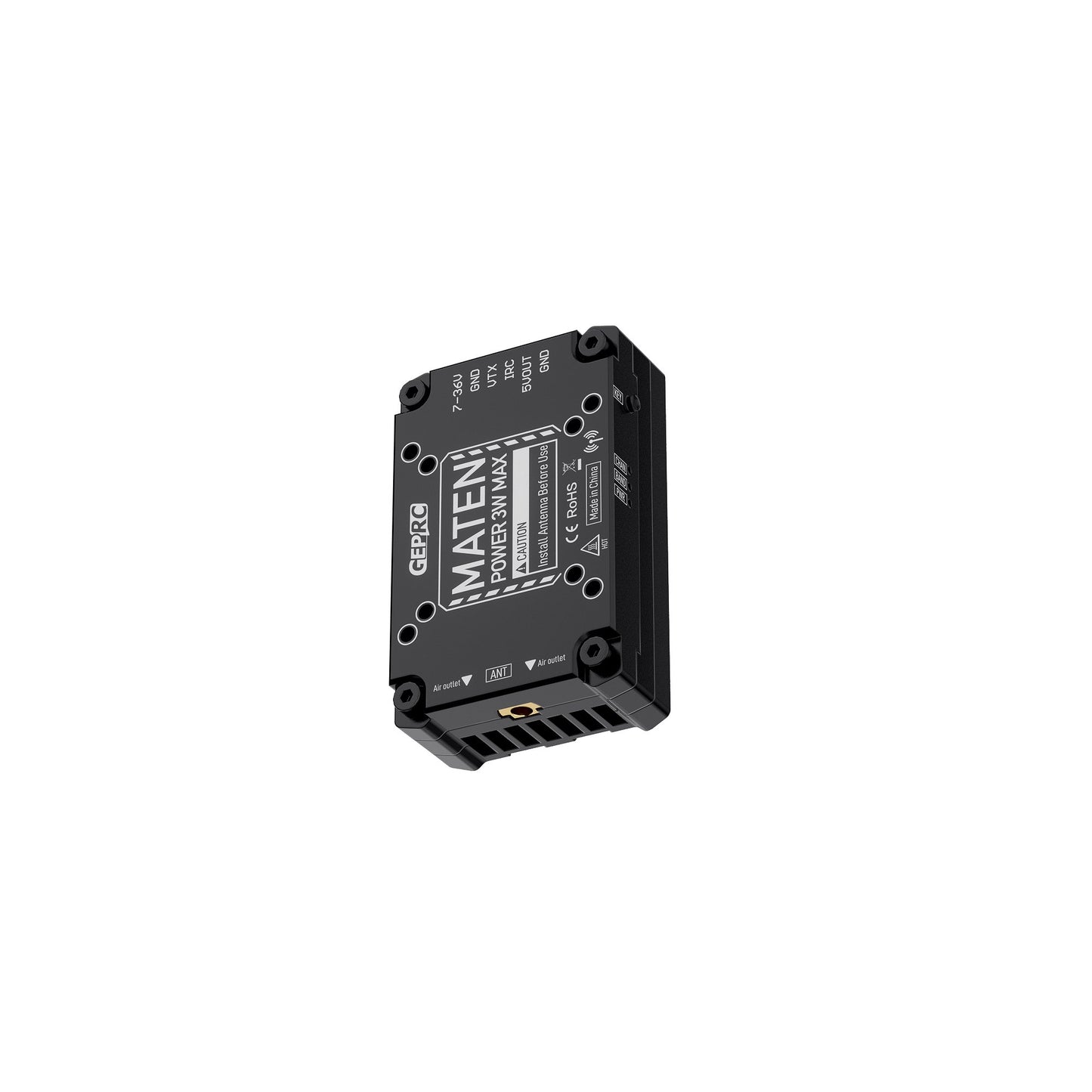

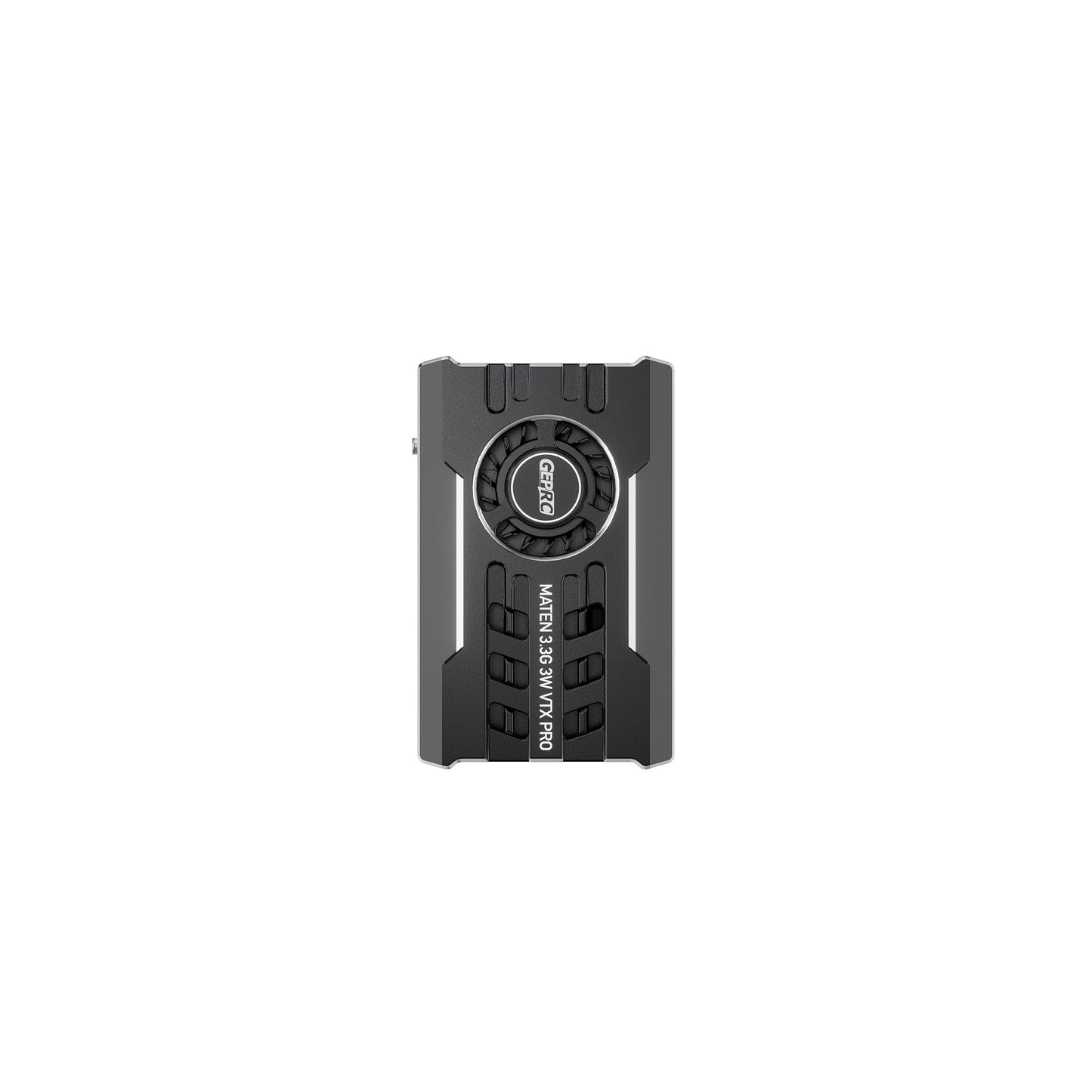

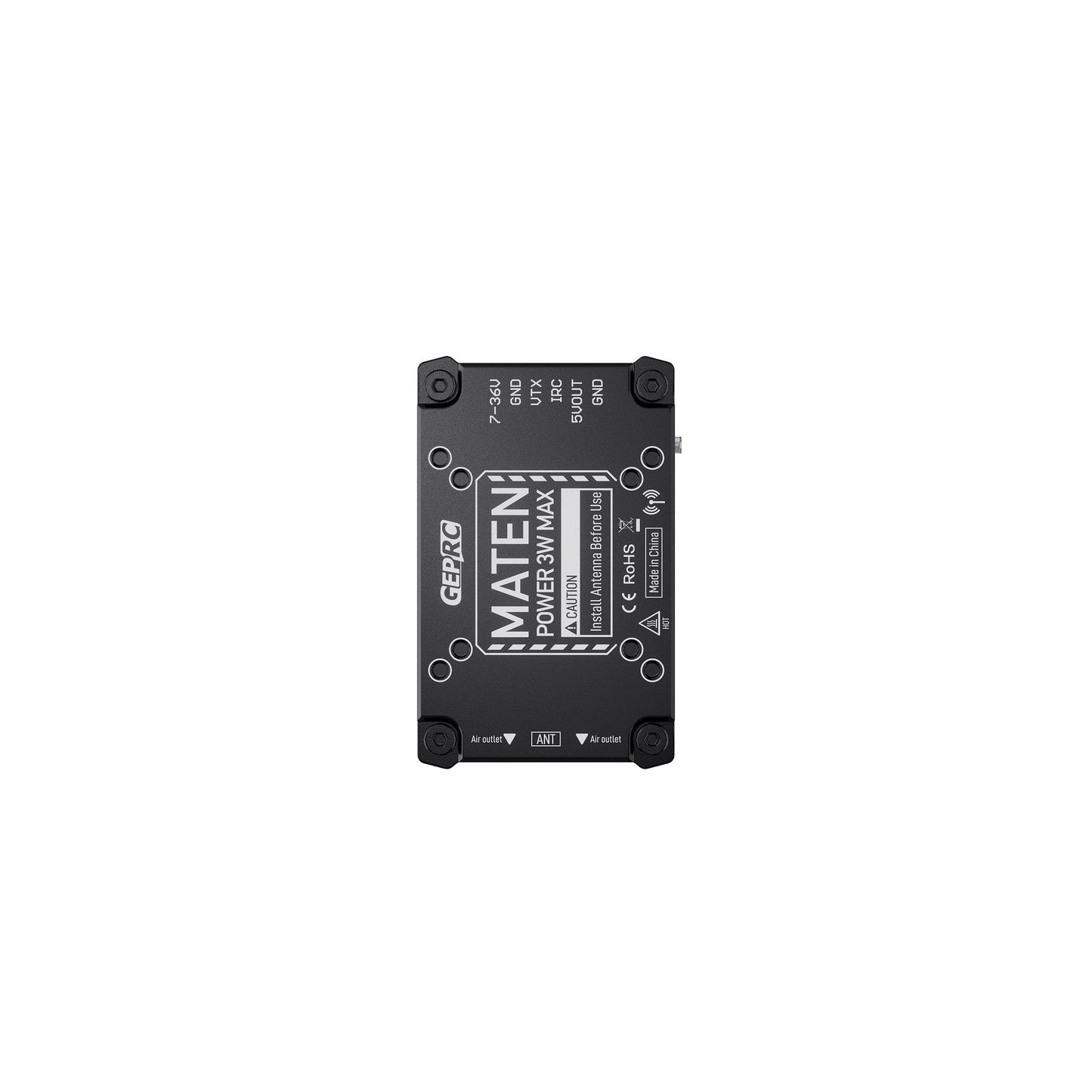

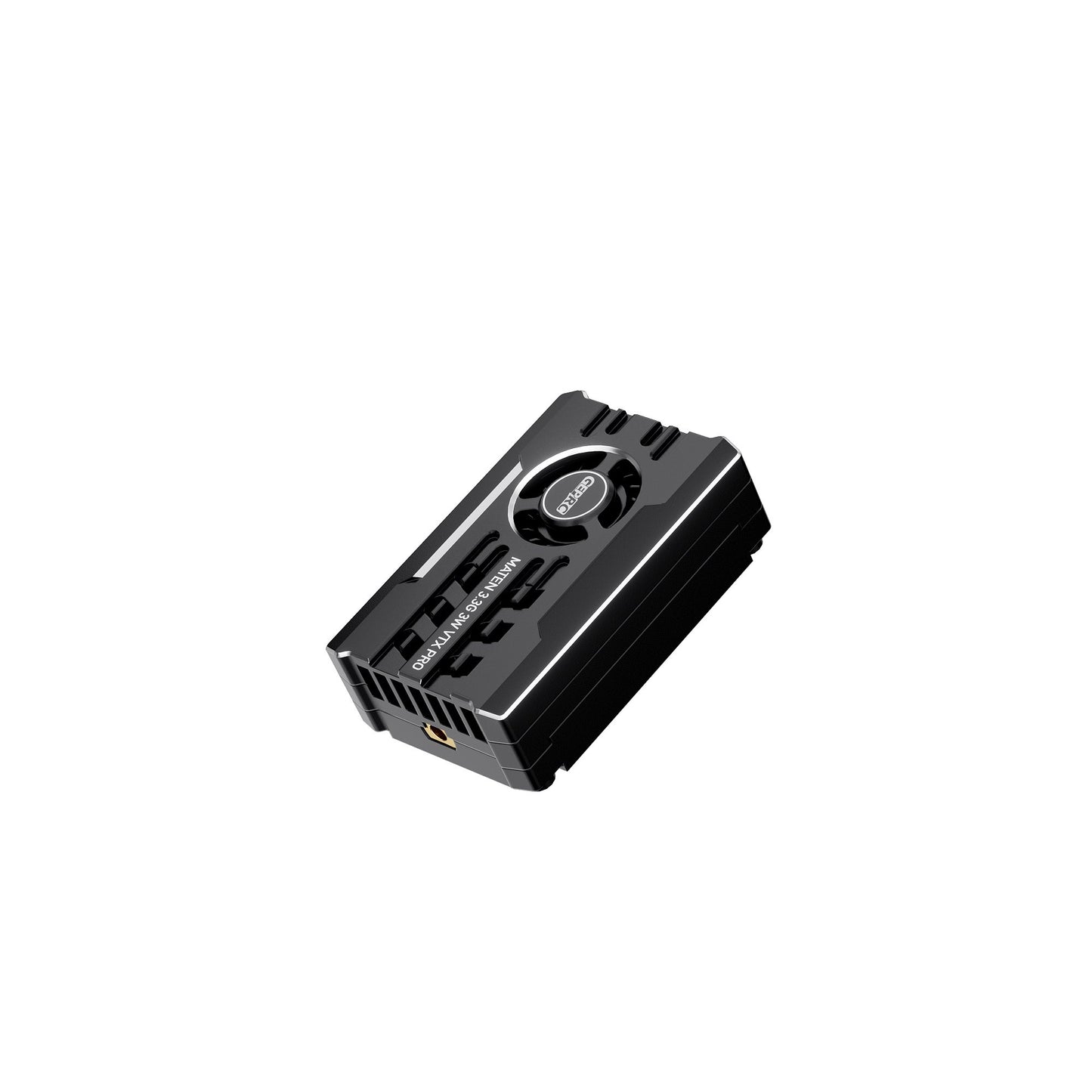

GEPRC MATEN 3.3G 3W VTX PRO

GEPRC MATEN 3.3G 3W VTX PRO

Regular price $69.99 USD
Regular price $89.00 USD Sale price $69.99 USD
Sale Sold out

Features

  1. Operates in the 3.3GHz frequency, up to 3000mW, suitable for long range flight
  2. The well-chosen high-strength aluminum alloy CNC shell assist heat dissipation
  3. The built-in micro turbofan dissipates heat actively
  4. Wide voltage input supports 12-36V input
  5. One function adjustment buttons, three indicator lights, easy to operate.
  6. VTX control protocol IRC Tramp supports OSD parameter adjustment.
  7. Temperature control protection function prevent overheat
  8. Supports 40 transmission channels
  9. Support 20x20mm(M2) and 25.5×25.5mm(M2) two different mounting hole sizes

Specifications

  • Model:GEPRC MATEN 3.3G 3W VTX PRO
  • Size:50×31.5×17.5mm
  • Mounting hole:20x20mm(M2),25.5×25.5mm(M2)
  • Output power:25mW/3000mW/Pit mode
  • Frequency:3083-3480MHz
  • Channel:40CH
  • Input voltage:DC12-36V(3-8S Battery)
  • Output voltage:5V@600mA
  • Protocol:IRC Tramp
  • Antenna interface:MMCX
  • Cable interface:SH1.0 6pin
  • Weight:37g

Frequency Bands

A:3083,3114,3145,3176,3207,3238,3269,3300
B:3215,3235,3255,3275,3295,3315,3335,3355
C:3170,3190,3210,3230,3250,3270,3290,3310
D:3320,3345,3370,3395,3420,3445,3470,3495
E:3310,3330,3355,3380,3405,3430,3455,3480

Includes

1 x MATEN 3.3G 3W VTX PRO

1 x MMCX to SMA connector

1 x sh1.0 6P Connecting cable

1 x User manual
