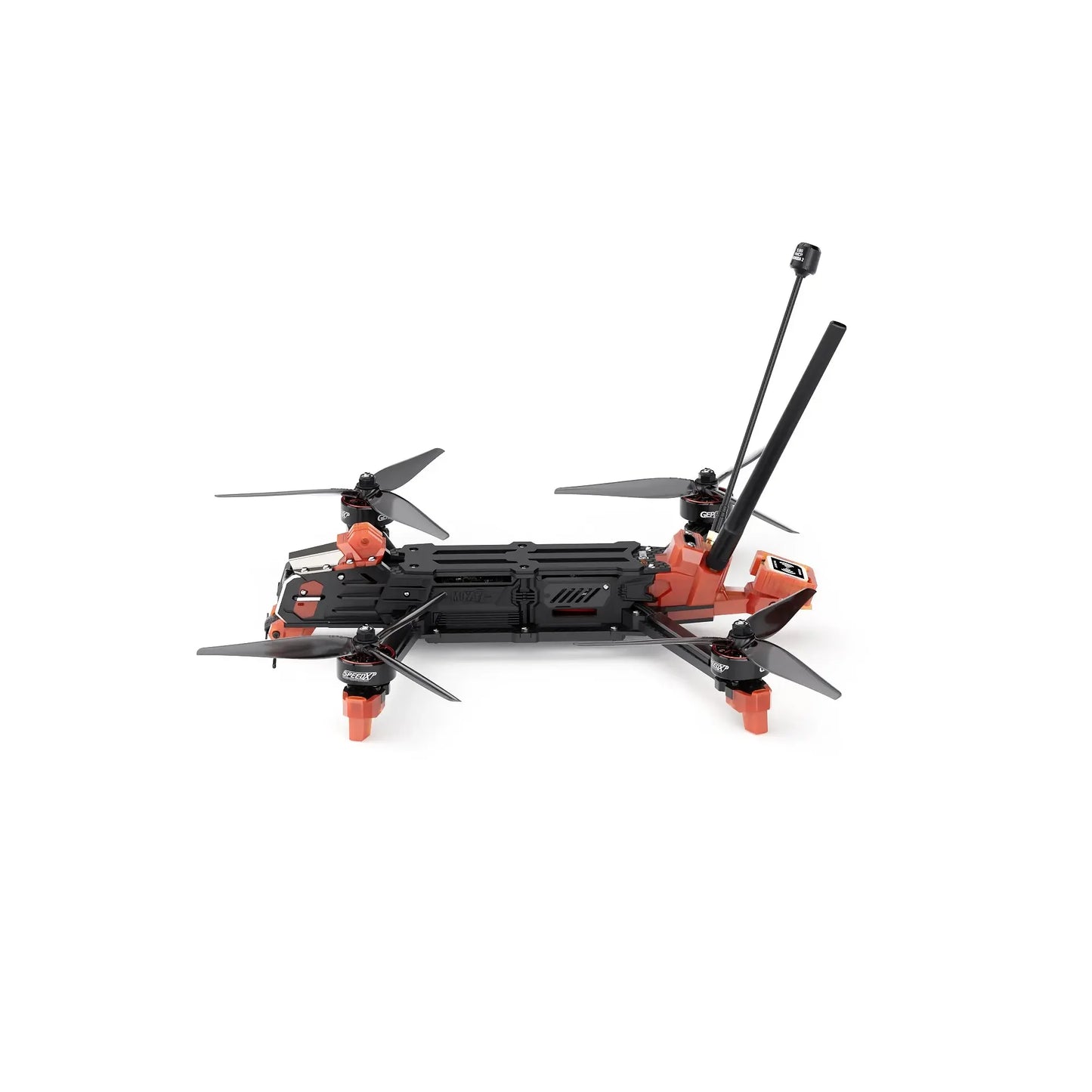

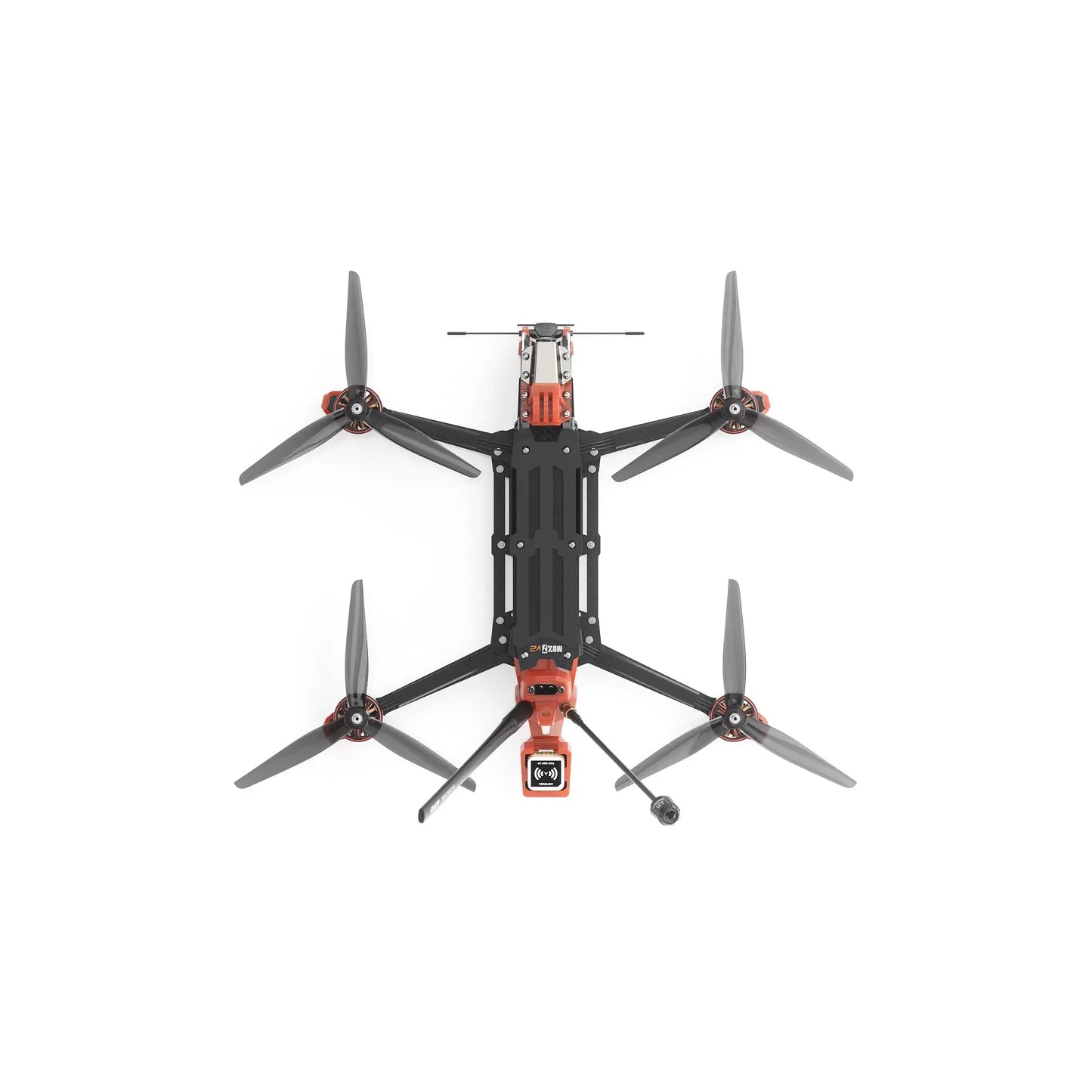

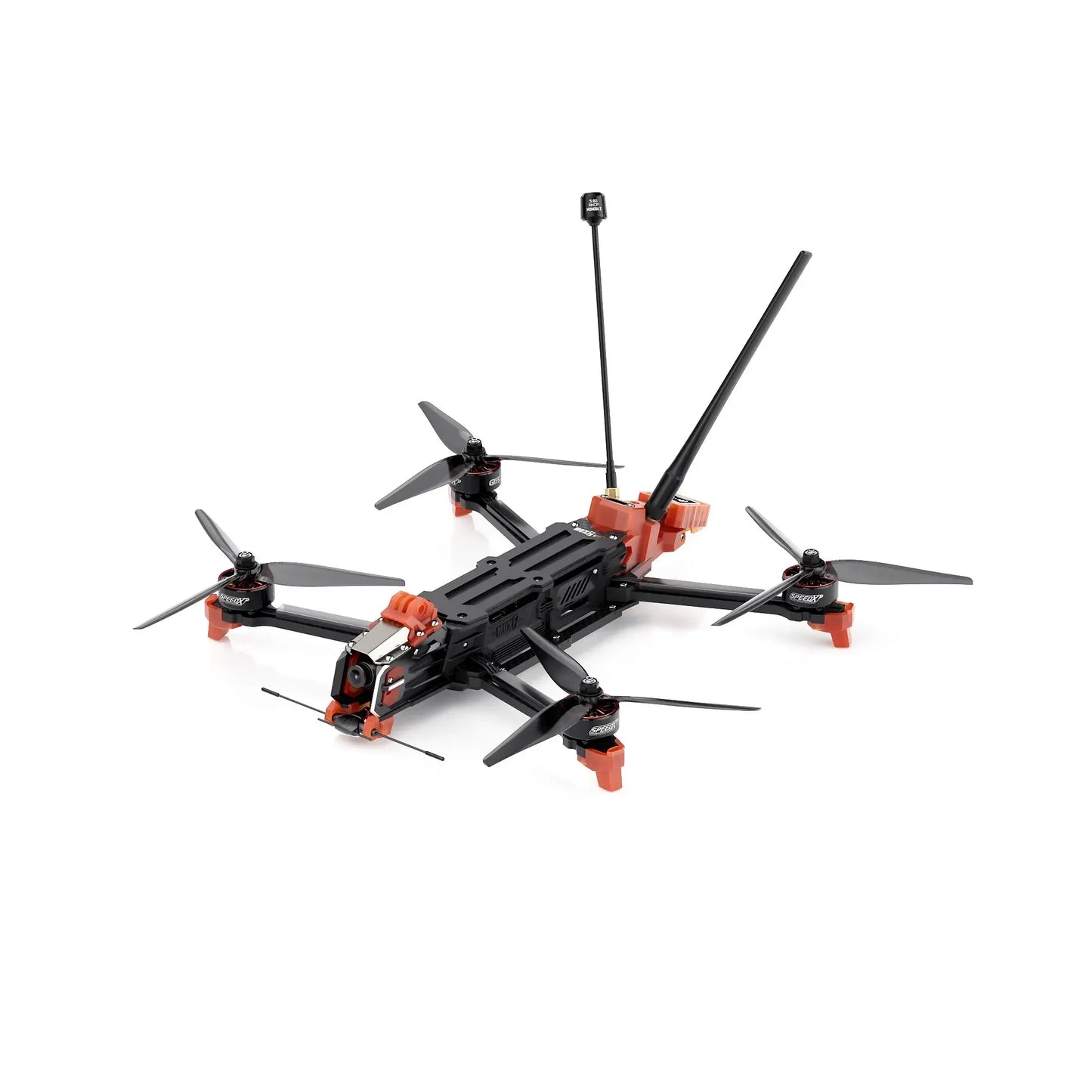

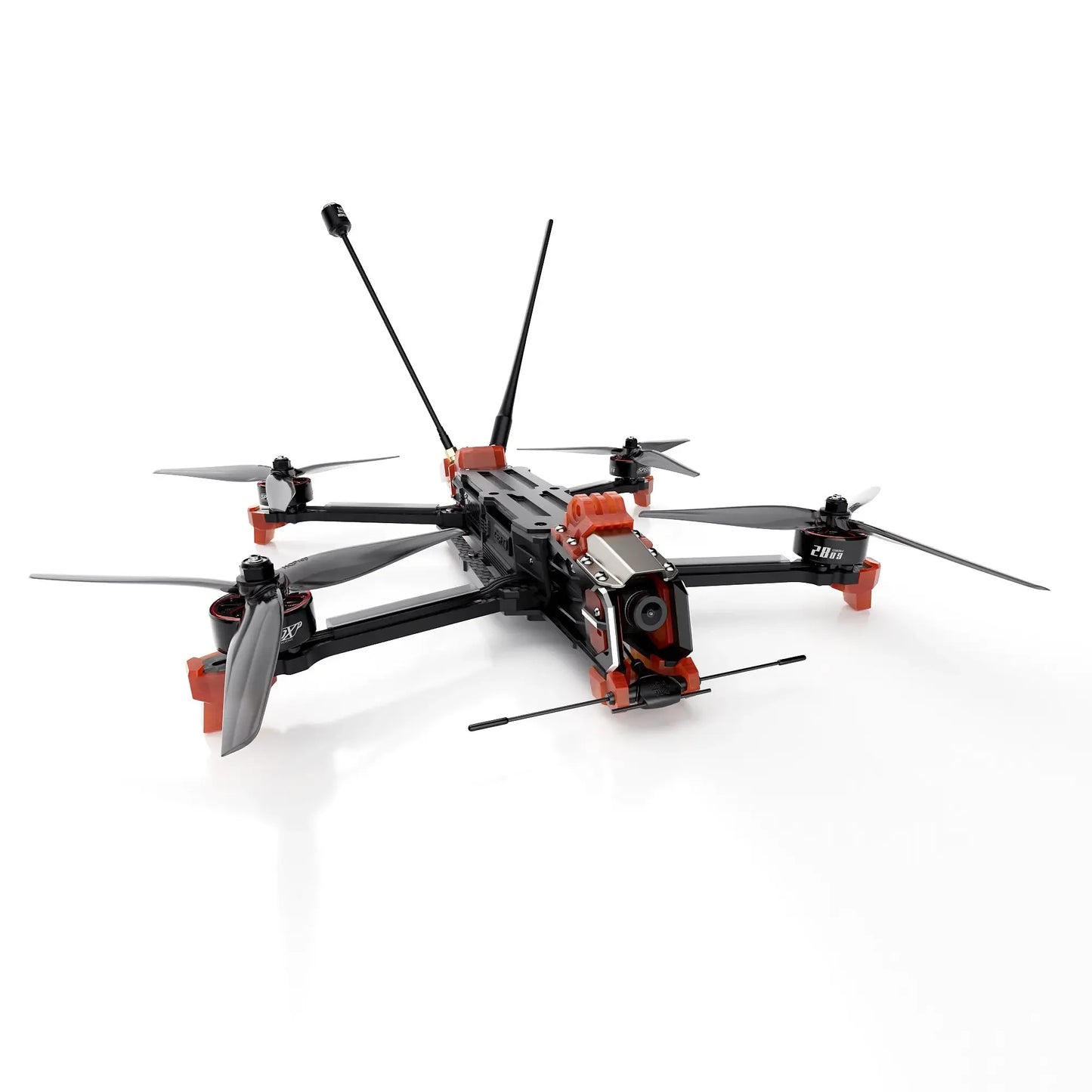

GEPRC MOZ7 V2 Analog Long Range FPV Drone



Changelog

Jul 19, 2025: MOZ7 V2 Motor changed from GEPRC SPEEDX2 2809 V1.1 1450kv Motor to GEPRC SPEEDX2 2809 V1.1 1280kv Motor.

Jul 19, 2025: MOZ7 V2 ESC changed from GEPRC GEP-BL32 50A 96K 4IN1 ESC  to GEPRC TAKER H65_8S_32Bit 65A 4IN1 ESC.

Features

1. Reinforced frame for better stability.

2. DJI O4 Air Unit Pro supports 4K/120fps and 1080p/100fps H.265 image transmission.

3. Upgraded V1.1 version 2809 1280KV motors provide up to 25 minutes of flight time.

4. ELRS 915M/2.4G Gemx Dual-Band Receiver minimizes signal dead zones with its front-horizontal and rear-vertical setup.

5. GEP-M1025 GPS offers a quick, stable satellite connection.

6. Reinforced side bars ensure a balanced center of gravity.

7. Swappable action camera mount for versatile positioning.

8. Two battery mounting options for flexible setup.

9. Paired TAKER H743 BT FC with MPU6000&ICM42688-P gyro for fast data processing and stable flight.

10.Equipped with TAKER H65_8S_32Bit 65A 4IN1 ESC 32-bit delivers smooth, responsive control.

Specification

• Model: GEPRC MOZ7 V2 Analog
• Frame: GEP-MOZ7 V2
• Wheelbase: 336mm
• Top Plate Thickness: 2.5mm
• Bottom Plate Thickness: 2.5mm
• Clamp Plate Thickness: 3mm
• Arms Thickness: 6mm
• FC: TAKER H743 BT
• MCU: STM32H743
• Gyro: MPU6000&42688-P dual
• Barometer: support
• GPS: GEP-M1025
• OSD：BetaFlight OSD w / AT7456E chip
• ESC: TAKER H65_8S_32Bit 65A 4IN1 ESC
• VTX: MATEN 5.8G 2.5W
• Camera: CADDX RATEL2
• Antenna: Momoda2-SMA-RHCP-170mm-Female
• Power Connector: XT60E-M
• Motor: SPEEDX2 2809 1280KV V1.1
• Prop: HQ 7.5*3.7*3 3-blade-transparent grey
• Weight: 782±10g
• Receiver: PNP / ELRS 915M/2.4G GemX / TBSNanoRX
• Recommended Battery: LiPo 6S 3300mAh / Lilon 8000mAh
• Flight Time: 25 minutes (based on slow cruising tests; actual results may vary due to product differences, firmware version, flying style, and environment)

Includes

1 x GEPRC MOZ7 V2 FPV

2 x HQ 7.5*3.7*3 (2CW+2CCW)

2 x 15*250mm battery strap

1 x L-shaped screwdriver 1.5mm

1 x L-shaped screwdriver 2.0mm

1 x L-shaped screwdriver 3.0mm

1 x Spare screw pack

2 x Battery anti-slip pad

1 x Frequency pairing ejector pin

1 x VTX antenna

1 x tri-band stick antenna
