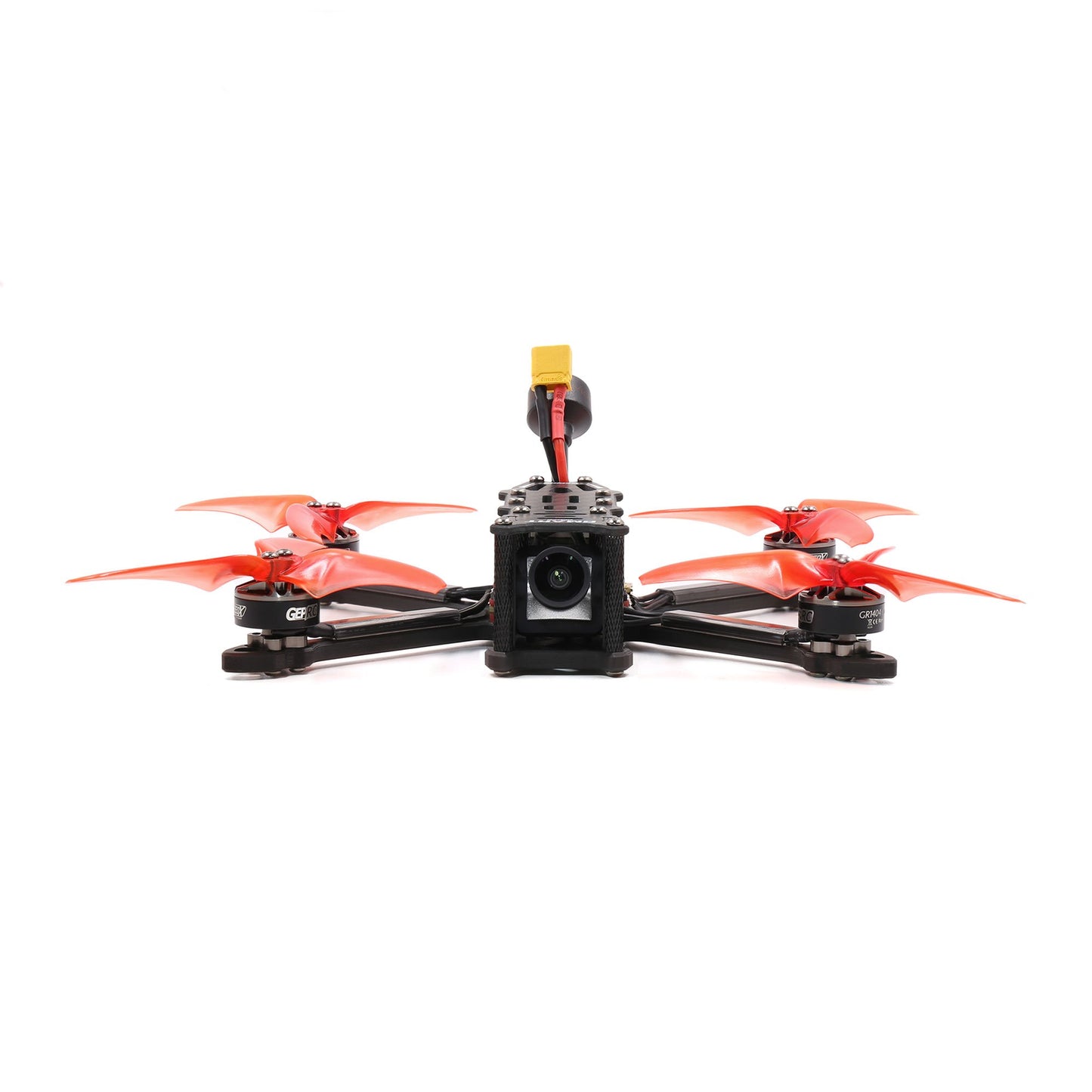

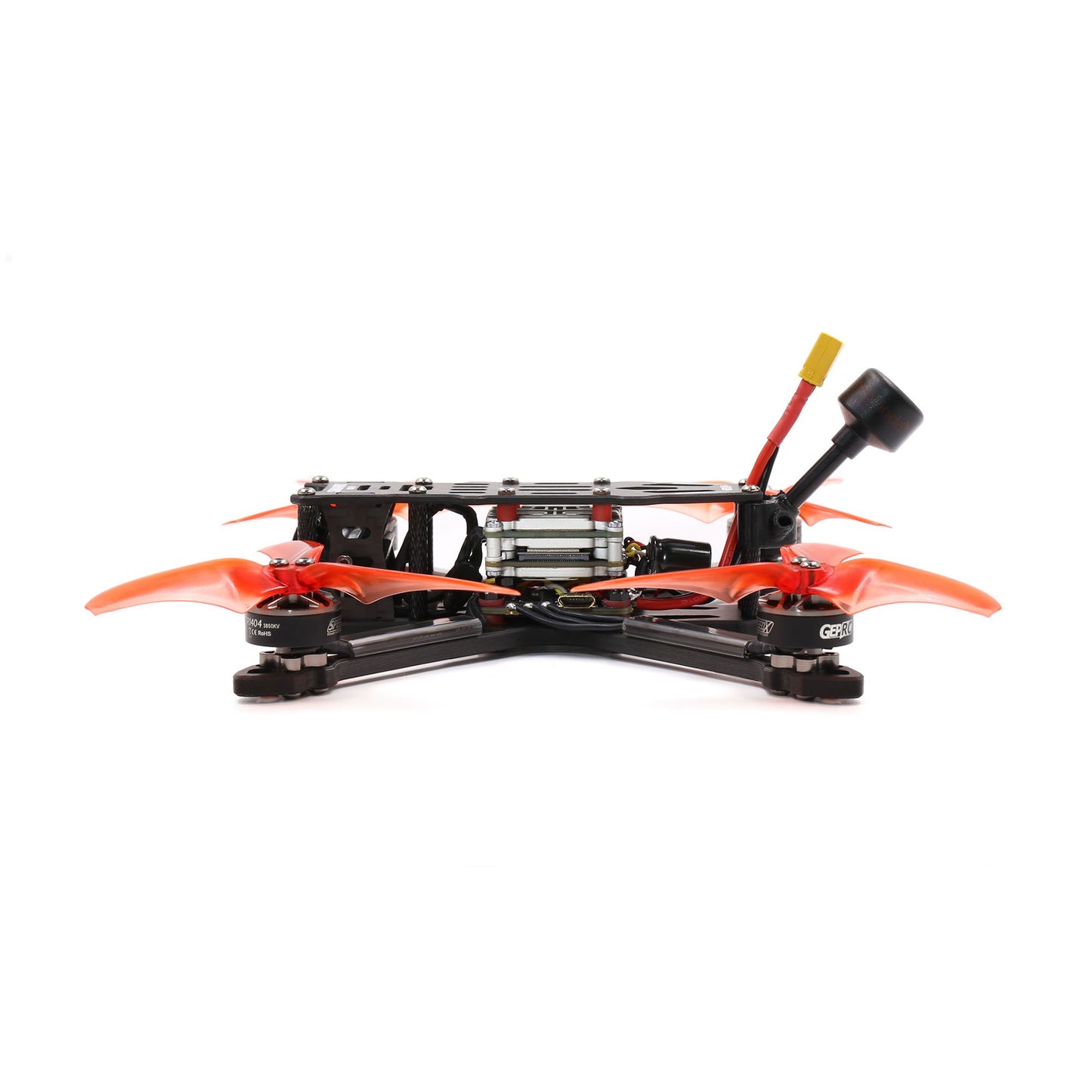

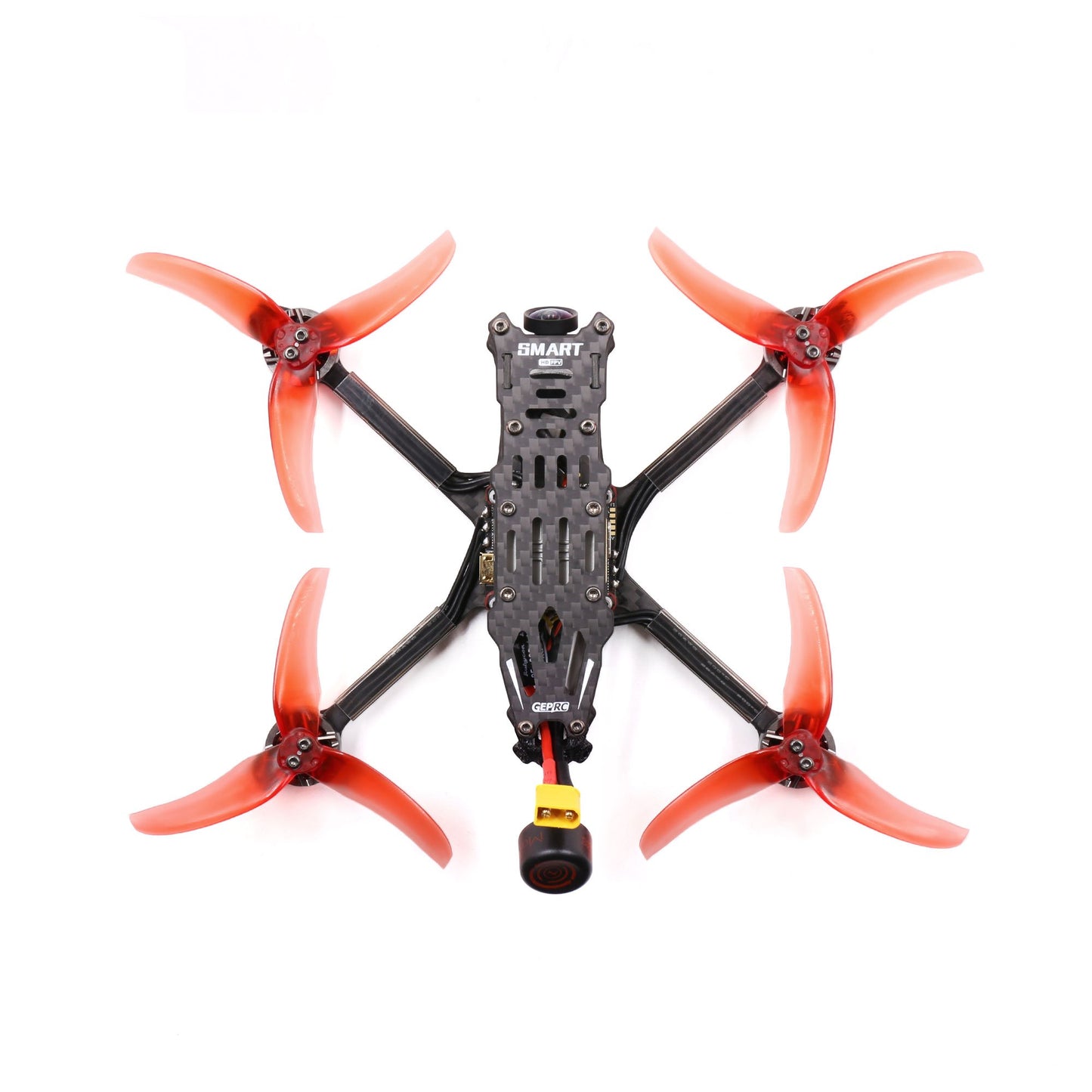

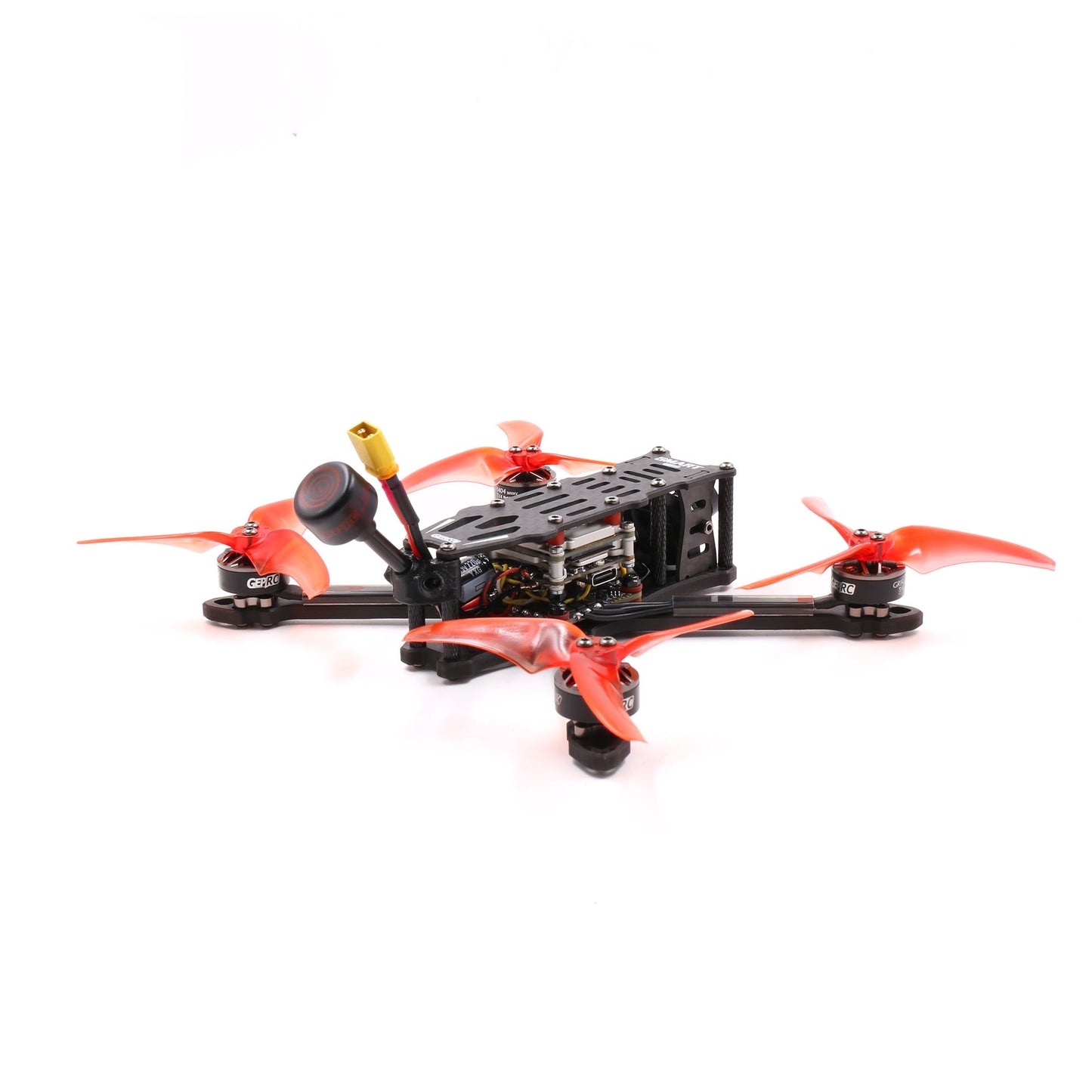

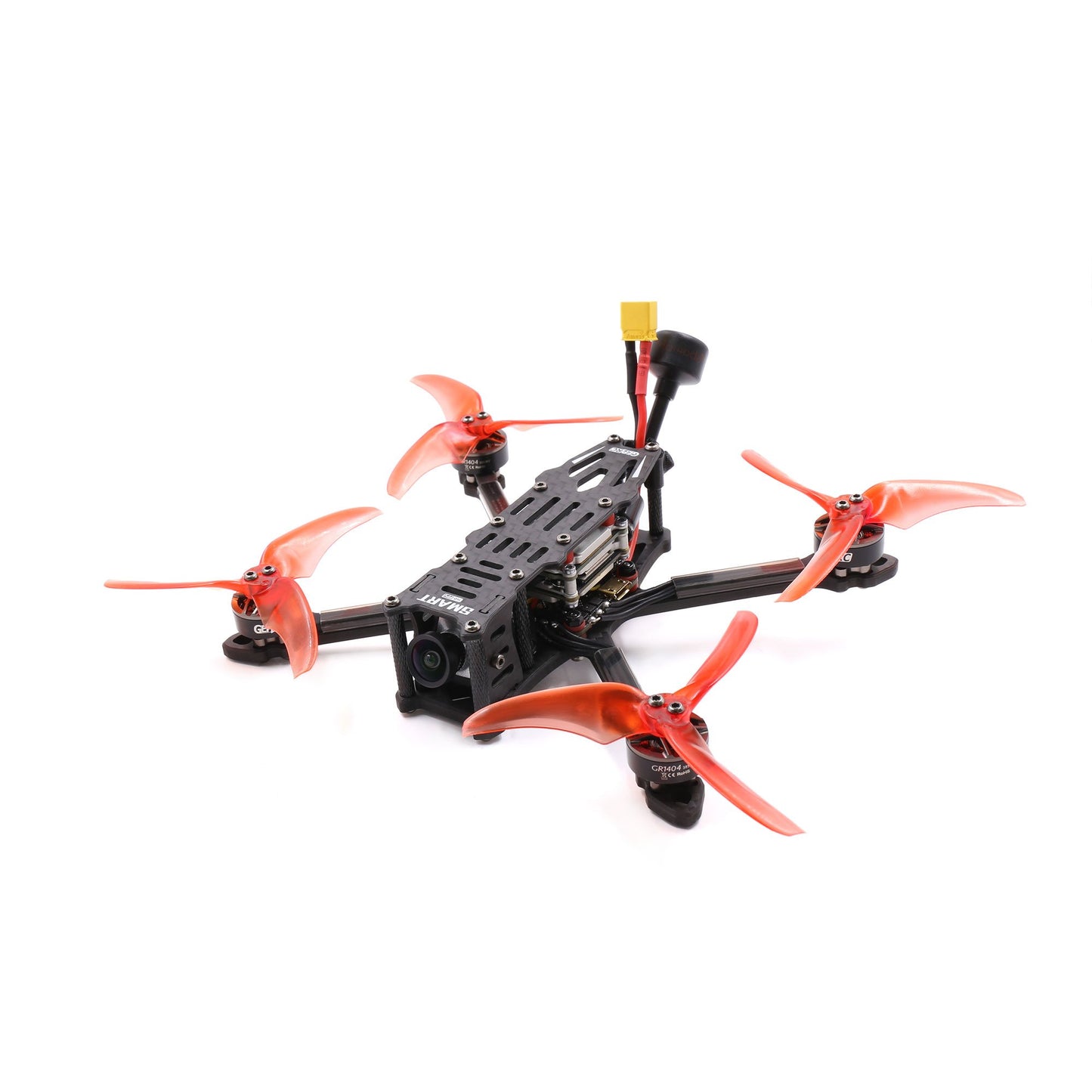

GEPRC SMART 35 HD 3.5inch Micro Freestyle Drone

Summary:

GEPRC Phantom 35 HD Freestyle(SMART 35 HD Freestyle) , The brand new 3.5-inch Freesyle Quadcopter of GepRC Phantom series. There are two versions of SMART 35: HD and Analog 5.8G 600MW.

The SMART 35 Freestyle is a small, lightweight freestyle FPV. If you are looking for a small, freestyle and faster FPV, SMART 35 Freestyle is your best choice.

SMART 35 Freestyle is the first choice of 3.5-inch Freestyle Drone. High efficiency power system, GEPRC 1404-3850KV motors and EMAX 3.5*2.8*3 propellers, Combining with the latest superior GEP-F4-35A AIO flight control system and VISTA HD video transmission system, It could be easily reach stable and flexible flight experience through abundant testings and Flight Analysing, If equipped with a 1100mAh battery, the flight time is 13 minutes, and Even bring the Gopro Lite camera it can fly 12 minutes.

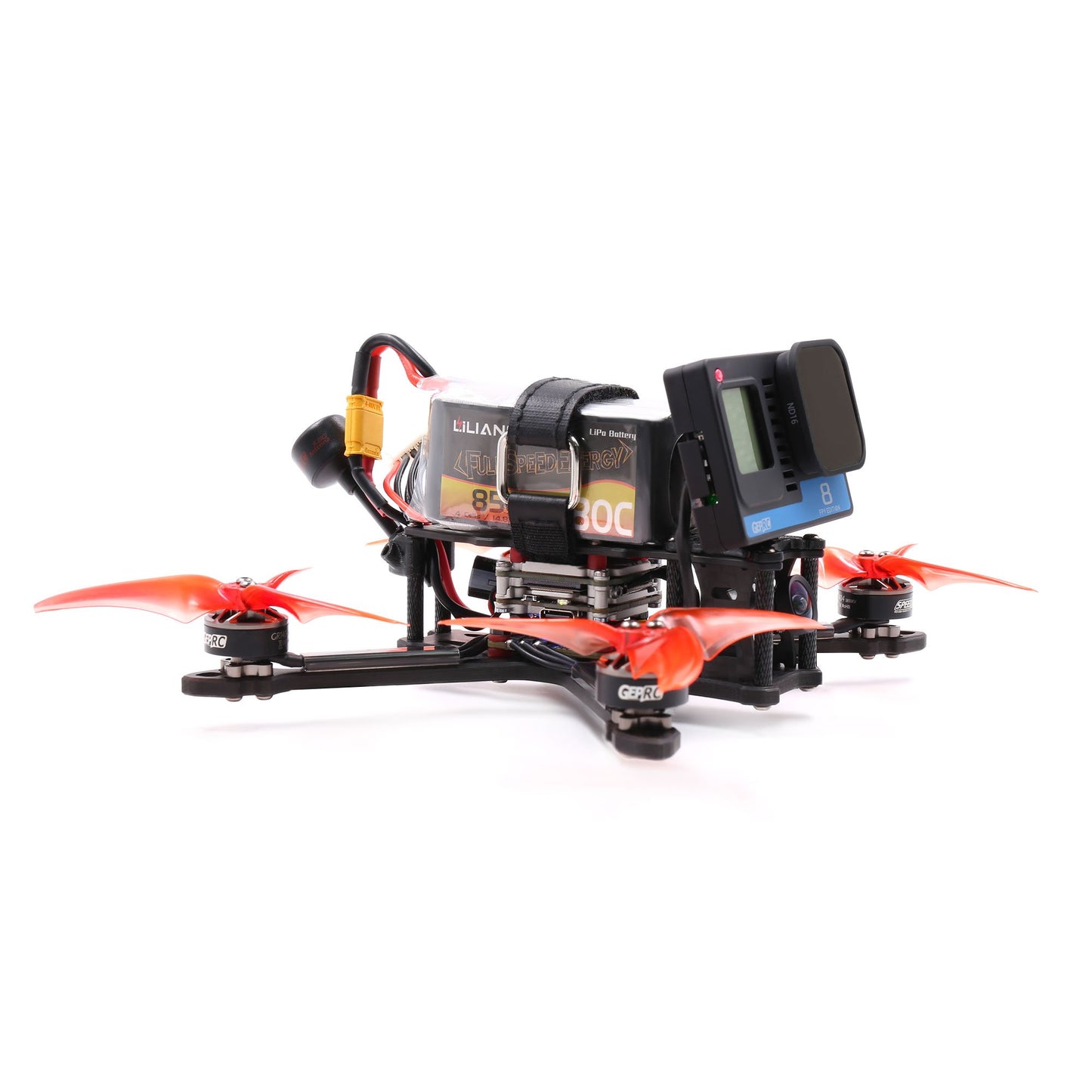

SMART 35 Freestyle was independently designed a GoPro camera mount, with Gopro Hero 8 Naked Camera, Recording 4k 60 fps Magnificent Shooting During Racing and Freestyle condition.

First and last, this is a wonderful 3.5-inch Freesyle Quadcopter. It is Light-weight, Flexible and has excellent flight performance.The GepRC Phantom 35 HD Freestyle is an impressive product that delivers high-quality video and brings unrivalled Whoop Freestyle.

Changelog:

January 3, 2023: SMART 35 HD version changed from CADDX Polar camera to Runcam Link Wasp camera.

Feature:

1. Sub-250g Micro Freestyle ToothPick Drone.

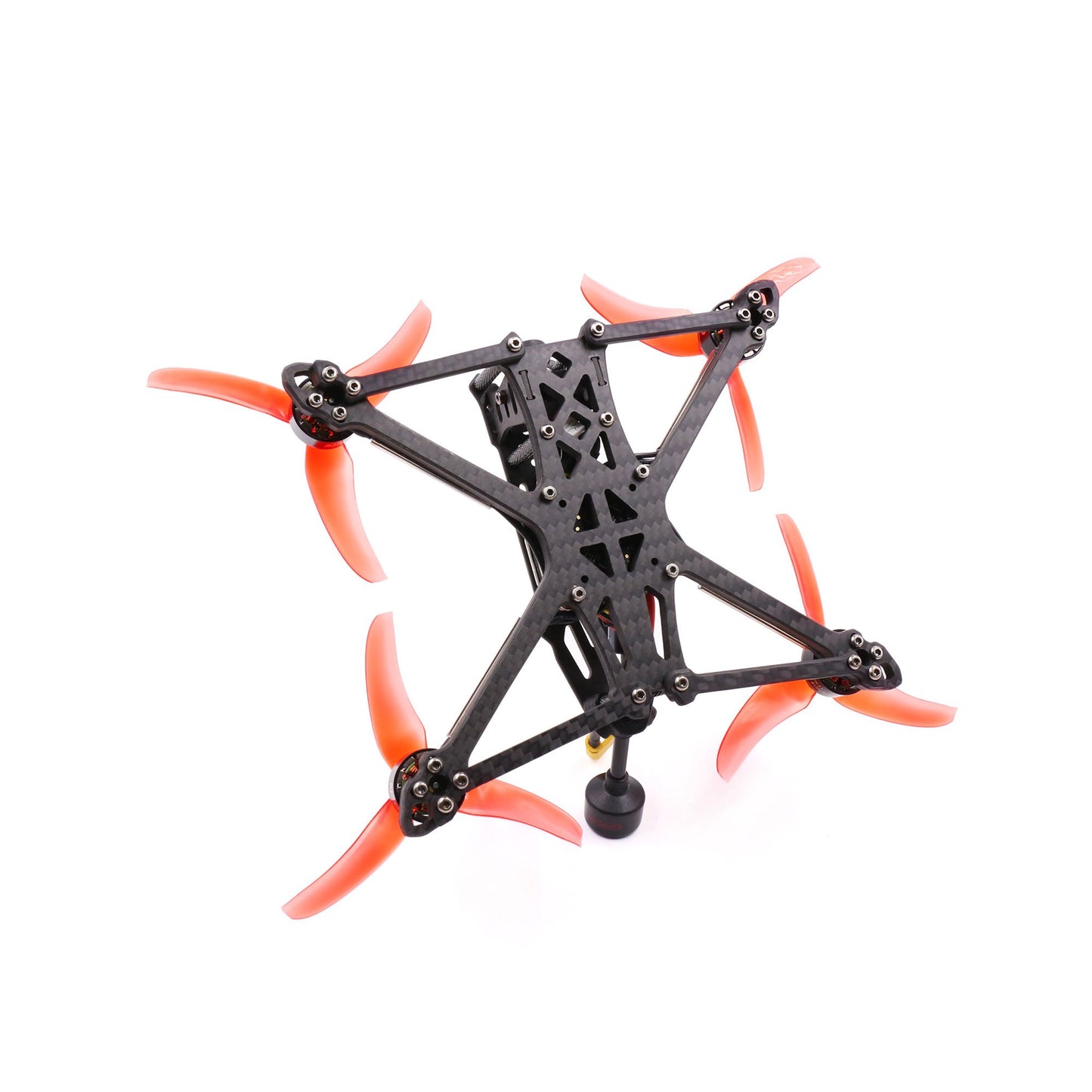

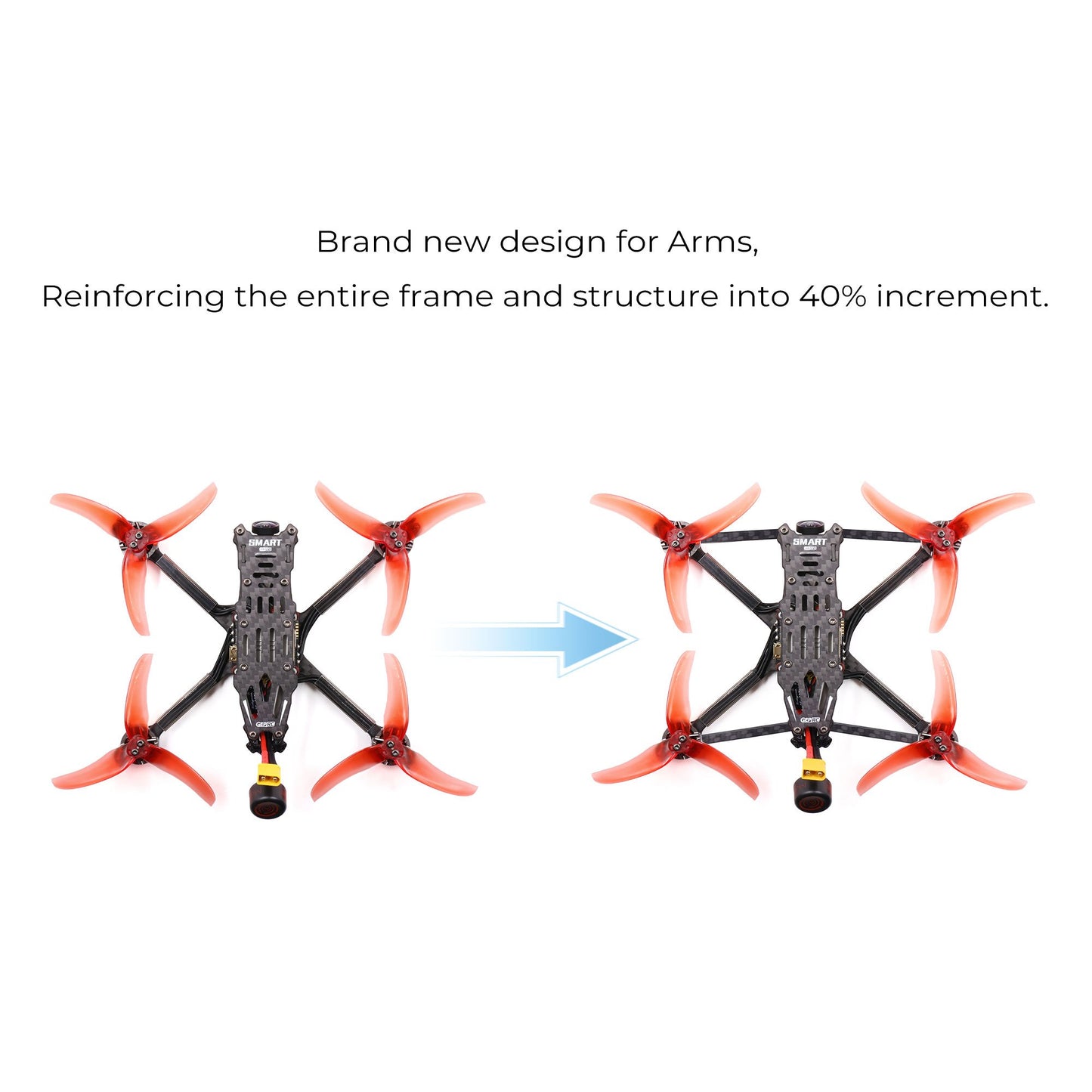

2. The arm is made of 4mm carbon plate with high frame strength. It can also be equipped with front and rear reinforcing arms to strengthen the upper part.
3. Equipped with Vista HD video transmission system.
4. Use 1404-3850kv motor, high efficiency and incredible power.
5. The 3.5-inch lightweight design is suitable for freestyle flight.
6. Using the mainstream F411 AIO flight system, the electronic system runs more stably.

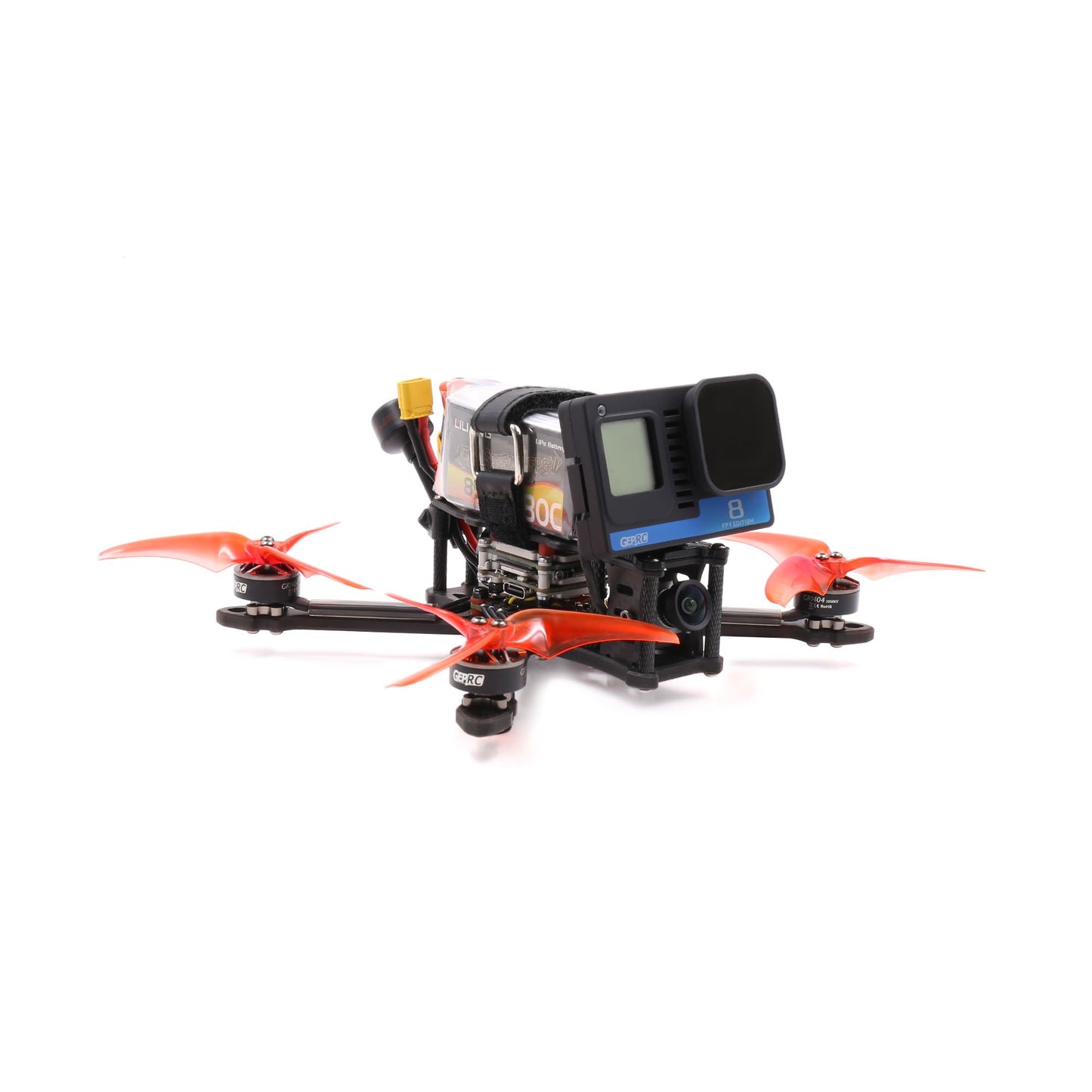

7. Independent design of  GoPro Hero8 Naked Camera 3D Print Mount, which can carry GoPro6 / 8 and Insta Go2.

Specifications：

• Brand: GEPRC
• Model: SMART 35 HD Runcam Link Wasp
• Frame: GEP-ST35
• Wheelbase: 155mm
• Top plate thickness: 2.0mm
• Bottom plate thickness: 4.0mm
• Arms plate thickness: 4.0mm

Flight Controller System：GEP-F411-35A AIO

• MCU: STM32F411
• Gyro: 6-Axis
• OSD: BetaFlight OSD w/ AT7456E chip
• Firmware target: GEPRCF411-35A AIO
• Power input: 4S LiPo
• VTX: Vista
• Camera: Runcam Link Wasp
• Antenna: Momoda 5.8g UFL LHCP
• Motors: GR1404-3850KV
• Props: EMAX 3.5*2.8*3

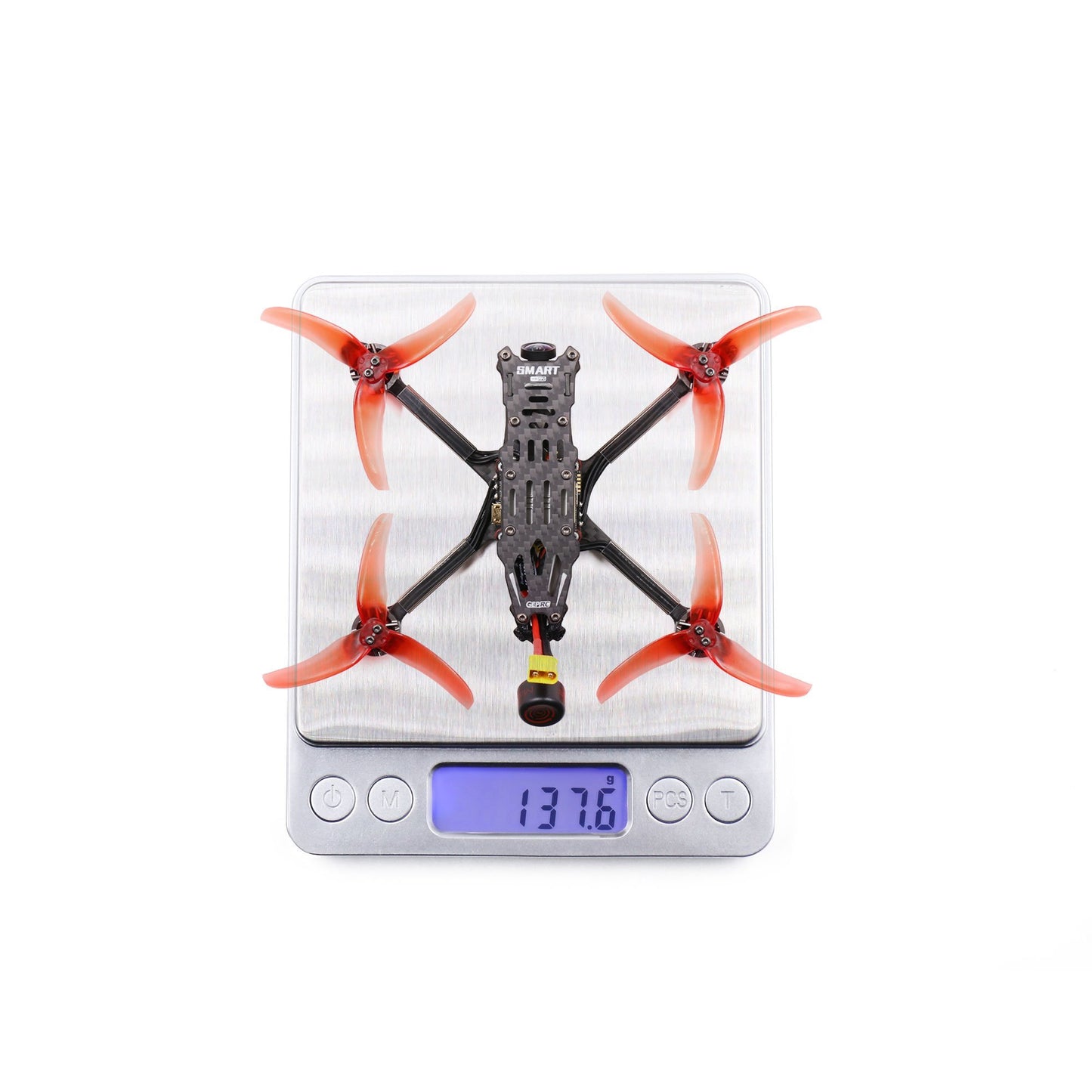

• Weight: 137.6g
• Receiver: PNP / Frsky RXSR / TBS Nano RX

Motors & Batteries Recommended:

• Motors: GR1404-3850KV
• Battery: Lipo 4S 850mAh – 1300mAh

Include:

• 1 x SMART 35 HD Quads
• 2 x EMAX3.5*2.8*3 Props(Pairs)
• 8 x Foot pad
• 1 x The silicone pad
• 1 x L-shaped screwdriver
• 2 x Antenna protection tube
• 1 x 15*200mm Battery strap
