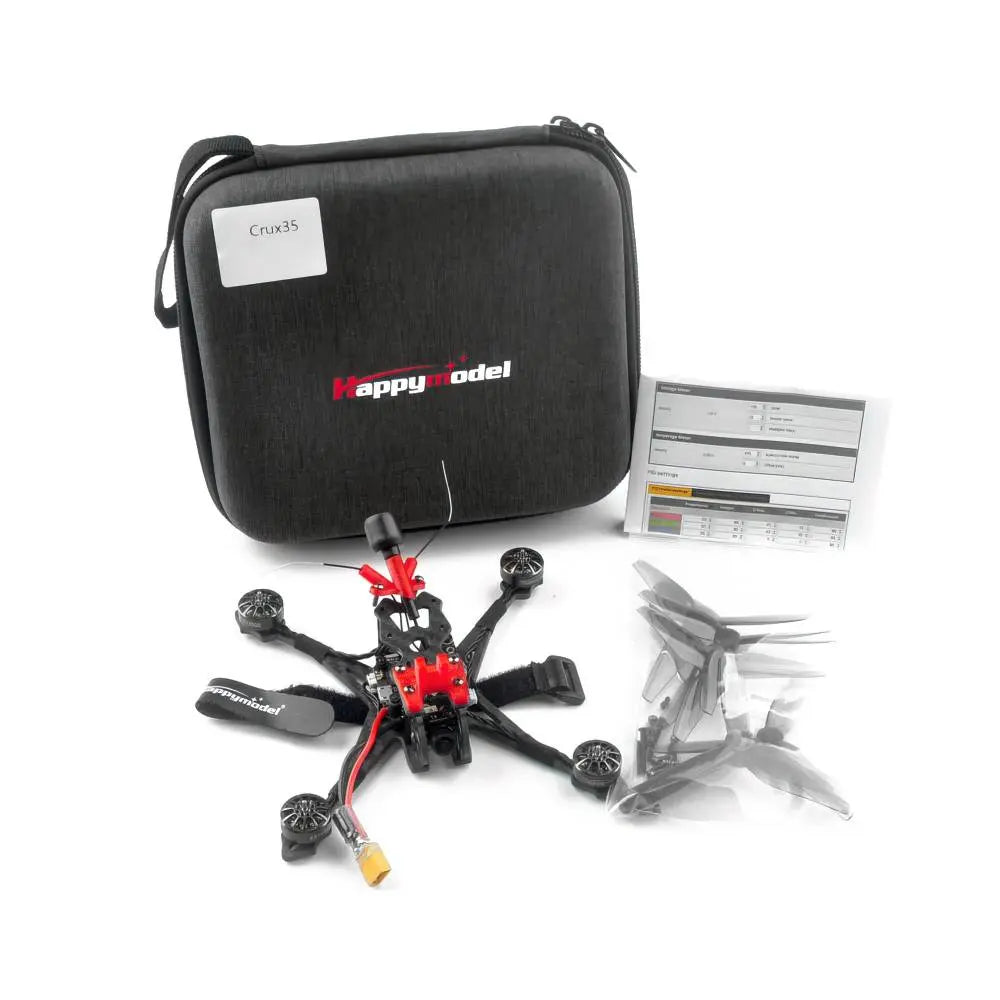

HappyModel Crux35 V2 Analog Drone - UART ELRS
HappyModel Crux35 V2 Analog Drone - UART ELRS
Regular price
$149.00 USD
Regular price
$199.00 USD
Sale price
$149.00 USD
Unit price
/
per
Couldn't load pickup availability
About this product
The Happymodel Crux35 V2 Aanalog is an ultra-lightweight 3.5" drone by Happymodel is an excellent micro racing drone that comes with the CrazyF411 flight controller, EX1404 brushless motors, and the Caddx Ant camera to give you a great flying experience! The HQPROP 3.5-inch three-blade propellers ensure the most significant thrust-to-weight ratio.
Features
- Integrated ExpressLRS SPI receiver or Frsky SPI D8/D16 receiver
- Ultra-lightweight 3.5-inch BNF FPV Freestyle Drone
- Can be equipped with Naked Gopro or SMO4K
- High-efficiency EX1404 power system
- Analog video transmission
- Supports 3-4S battery

Specifications
- Receiver option: SPI ExpressLRS 2.4GHz or SPI Frsky D8/D16 (S-FHSS compatible)
- Size: 130mmx130mmx45mm (without propellers)
- Camera option: Caddx Ant
- Flying time: 9min~15min 4s 750mah battery
- Weight: Crux35 Analog 87 gram
- Product name: Crux35 Analog V2
- Wheelbase: 150mm
- Brand: Happymodel
CADDX ANT CAMERA
- Image Sensor: 1/3" CMOS Sensor
- Horizontal Resolution: 1200 TVL
- TV System: NTSC and PAL(switchable)
- MENU: Support
- IMAGE: 4:3 or 16:
- Synchronization: Internal
- Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000
- S/N Ratio: >52dB (AGC OFF)
- Video Output: CVBS
- Lens: 1.8mm/F2.5
- Minimum illumination: 0.001Lux
- Auto Gain Control: YES
- BLC: YES
- WDR: Global WDR
- DNR: 3D DNR
- Dimensions: 14x14mm
- Wide Power Input: DC 3.7-18V
- Work Temperature: -20°C~+60C
- Work Humidity: 20%~80%
- Weight: 1.7g
CrazyF411 FC
HappyModel Crazyf411 built-in ExpressLRS receiver and 20A AIO FC(ELRS receiver version)
- Input Voltage: 2-4S LiPo
- MCU: STM32F411CEU6
- Gyro: BMI270 or ICM42688P
- OSD: Yes
- UARTs: 2 Sets (UART2 was used for ExpressLRS Receiver)
- ESC Connections: Yes
- Firmware: CrazybeeF4DX
- ·BEC: 5V 1.5A
- Current Sensor: Yes
- Buzzer: Yes
- Barometer: No
- Black Box: No
- DJI Compatible: Yes
- Stack Size: 25x25
- Dimensions: 32x32mm
- Weight: 5g
HappyModel Crazyf411 built-in Frsky receiver and 20A AIO FC(Frsky receiver version)
- Input Voltage: 2-4S LiPo
- MCU: STM32F411CEU6
- Gyro: BMI270 or ICM42688P
- OSD: Yes
- UARTs: 2 Sets
- ESC Connections: Yes
- Firmware: MATEKF411RX
- BEC: 5V 1.5A
- Current Sensor: Yes
- Buzzer: Yes
OVX303 OR OVX306 5.8GHz ANALOG VTX
- Input Voltage: 5V
RF Output Power: 25-300mW
Antenna Connector: U.Fl
Power/Video Connection: Solder Pads
OVX303 Stack Size: 16x16mm, 20x20mm, 25x25mm
OVX306 Stack Size: 25x25mm
Weight: 0.9~1
ONBOARD ESC
- MCU upgraded to EFM8BB21
- Power supply: 2-4S LiPo/LiPo HV (7v/17v)
- Currents: 20A continuous peak 25A (5 seconds)
- Support BLHeliSuite and ESC-Configurator programmable
- Factory firmware: Bluejay 0.18.1
- Firmware target: F_H_40_48_v0.18.
- Support DSHOT150/DSHOT300/DSHOT60
PROPELLERS
- Propeller Diameter: 3.5 inch
- Material: Poly Carbonate
- Hub Diameter: 10mm
- Hub Thickness:4.7mm
- Shaft:1.9/1.5/1.9mm
- Adaptor Rings: NO
- Weight: 1.5g
- Blades : 3
- Pitch: 2
MOTORS
- Kv: 3500Kv
- Input Voltage: 3-4S LiPo
- Configuration: 9N12P
- Motor Dimensions: Φ17.8mm x 17.6mm
- Stator Dimensions: Φ14mm x 4mm
- Shaft Diameter: 1.5mm
- Mounting Pattern: Φ9mm
Weight: 8.7
