HappyModel EX1204 FPV Motor

Mode: EX1204
KV option: KV5000 or KV6500
Configu-ration:9N12P
Stator Diamter:12mm
Stator Length:4mm
Inner Shaft Diameter:Φ2mm

Outer Shaft Diameter:Φ1.5mm

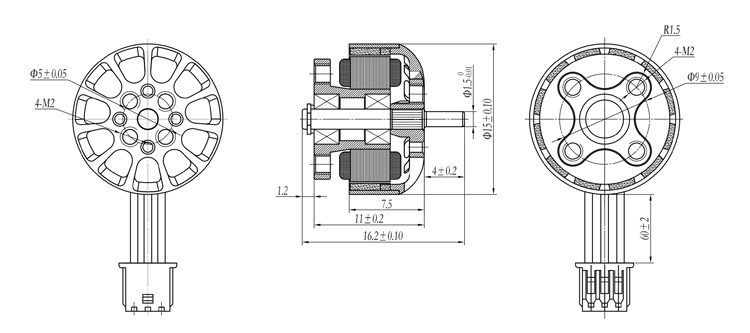

Motor Dimension(Dia.*Len):Φ15mm*16.2mm
Weight(g):5.9g
No.of Cells(Lipo):

KV5000 support 2-4s

KV6500 support 2-3s
