HappyModel M8 Freestyle HDZERO - 80mm Digital HD Micro FPV Whoop 2.4G ELRS
HappyModel M8 Freestyle HDZERO - 80mm Digital HD Micro FPV Whoop 2.4G ELRS
Couldn't load pickup availability
The M8 Freestyle HDZERO 80mm Digital HD Micro FPV whoop comes out now . It comes with the new HDZERO AIO15 2S 5-IN-1 flight controller. The new Happymodel RS1102 KV13500 motor with HQPROP 45mm propellers, bring a smooth and powerful FPV experience.
Features:
Equipment with the New HDZERO AIO15 5-IN-1 flight controller
2S battery support Powerful and Smooth freestyle flying experience
UART ExpressLRS receiver support stable control link
Lighter but powerful for backyard FPV
HDZERO lighter and good quality Camera
Parameters:
80mm wheelbase
45mm propellers

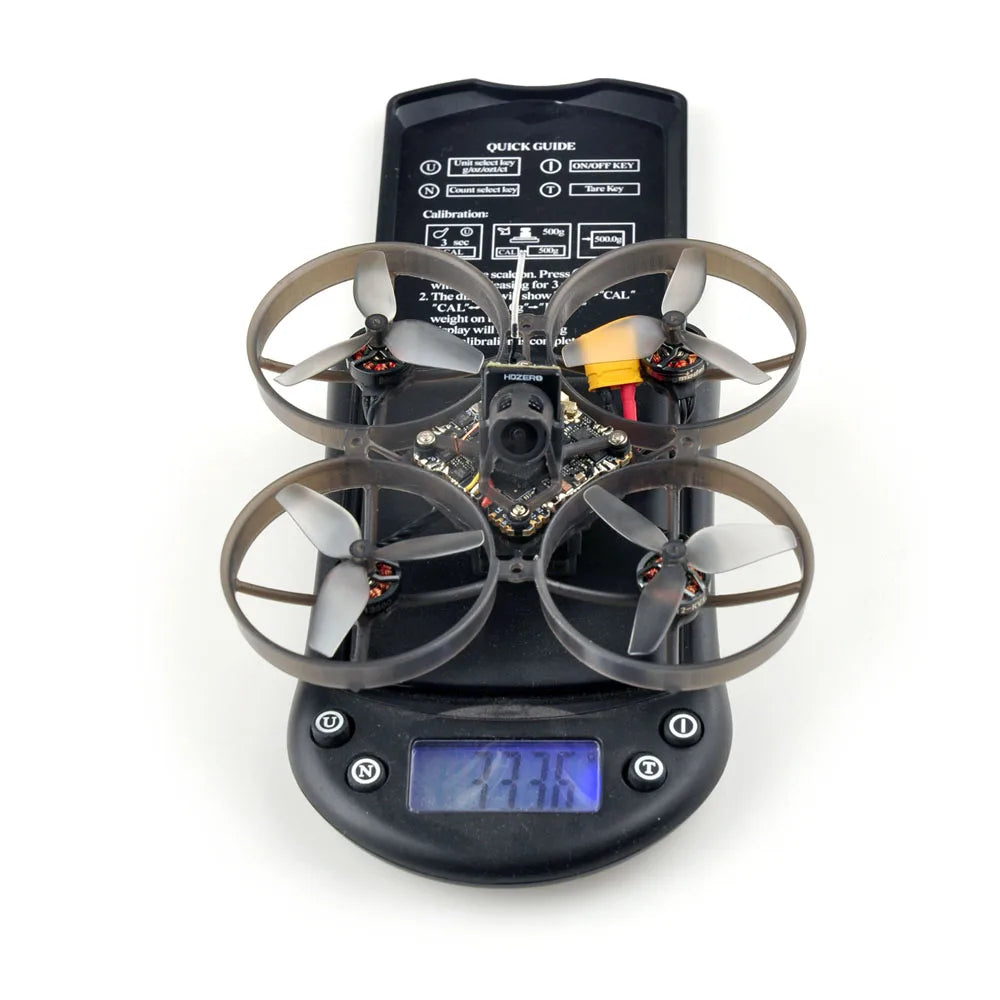

Weight only 33.5gram
RS1102 KV13500 high speed motors
Recommend 2S 550mah battery(Exclude)
2.4G ExpressLRS ready
Package includes:
| Item Name | Qty |
| Happymodel M80 Frame | 1 |
| HDZERO AIO15 5-IN-1 Flight controller | 1 |
| RS1102 KV13500 brushless motor | 4 |
| HQPROP 45MMX3 tri-blade propellers(4cw+4ccw) | 1 |
| HDZERO LUX Camera | 1 |
| Canopy | 1 |
| Screw driver | 1 |
Spare parts specifications:
| Motor | Mode: RS1102 KV13500 Configu-ration:9N12P Stator Diamter:11mm Stator Length:2mm Shaft Diameter:Φ1.5mm Motor Dimension(Dia.*Len):Φ13.5mm*14mm Weight(g):2.8g No.of Cells(Lipo):1-2S |
| Propellers | Weight:0.33g Material: Poly Carbonate Pitch:0.9 Props Dia:45mm Hub Thickness:5mm Shaft:1.5mm |
| Flight controller | MCU: STM32G473 (170MHz, 512K Flash) Gyro: ICM42688 On board voltage and amperage meters Built-in 15A(each) Blue Jay 4-in-1 ESC Built-in 5.8G HDZero VTX RF output: 25mw/200mW Supported channels: R1-R8, F2/F4, L1-L8 UFL connector (ultra-lite linear antenna included) Built-in Serial ExpressLRS 2.4GHz receiver Built-in 5V 3A BEC Flight controller firmware target: HDZERO_AIO15 Power supply: 2S battery (6.4v~8.7v) Fully compatible with the popular whoop frames Board size:31.3×31.3mm with a 25.5×25.5 mounting hole size Weight:7.2g (with motor plugs) |
| Onboard 4in1 ESC | Power supply: 2S LiPo/LiPo HV Current: 15A continuous,18A peak (3 seconds) Support BLHeli_S Bluejay firmware Factory firmware: Bluejay ESC V0.19.2Firmware target: Z-H-30 48KHz Default protocol: DSHOT300 |
| Onboard UART ExpressLRS 2.4GHz Receiver | Packet Rate option: 50/100/150/250/333/500/D250/D500/F500/F1000Hz RF Frequency: 2.4GHz Antenna: Pre-soldered enameled copper wire 31mm length Telemetry output Power: <12dBm |
| LUX camera | HDZero Lux Camera Sensor size: 1/2 inch Resolution: 720p60 4:3 and 16:9 FOV: D:155° H:126° V:94°(4:3) FOV: D:145° H:126° V:70°(16:9) WDR |
