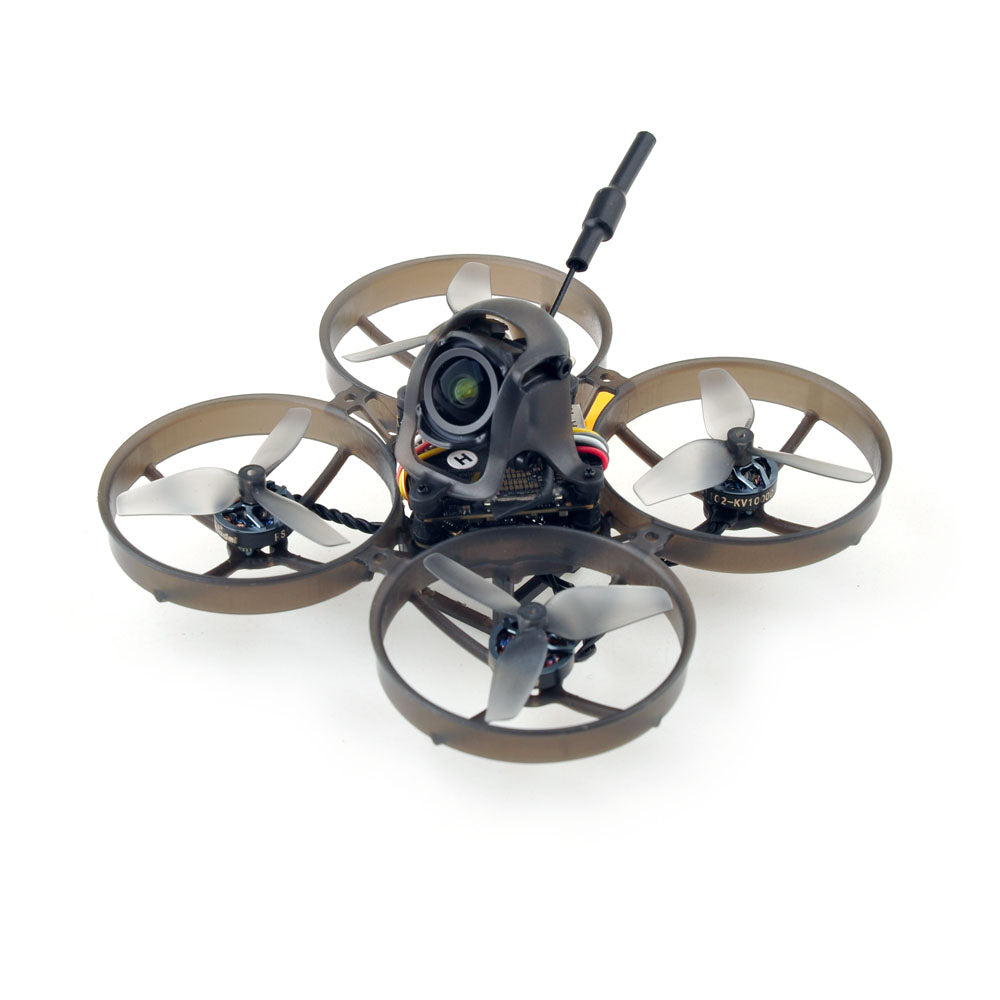

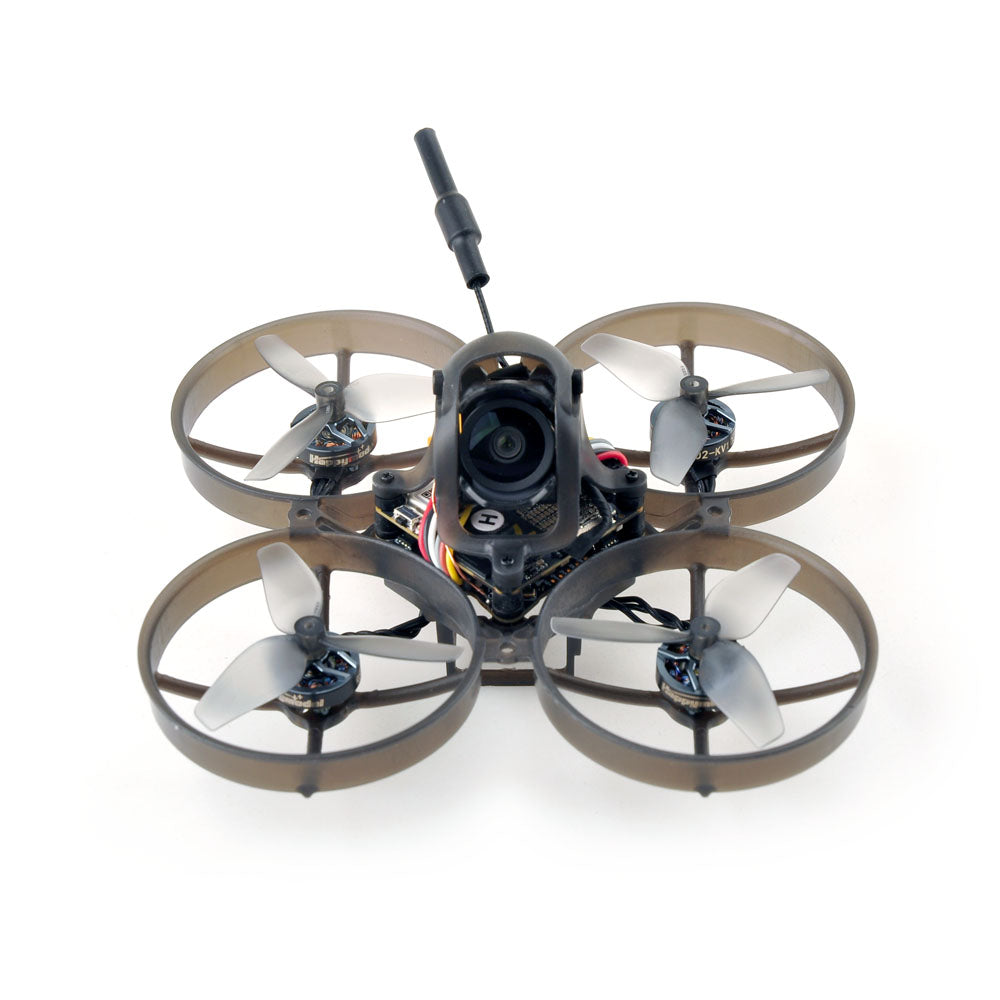

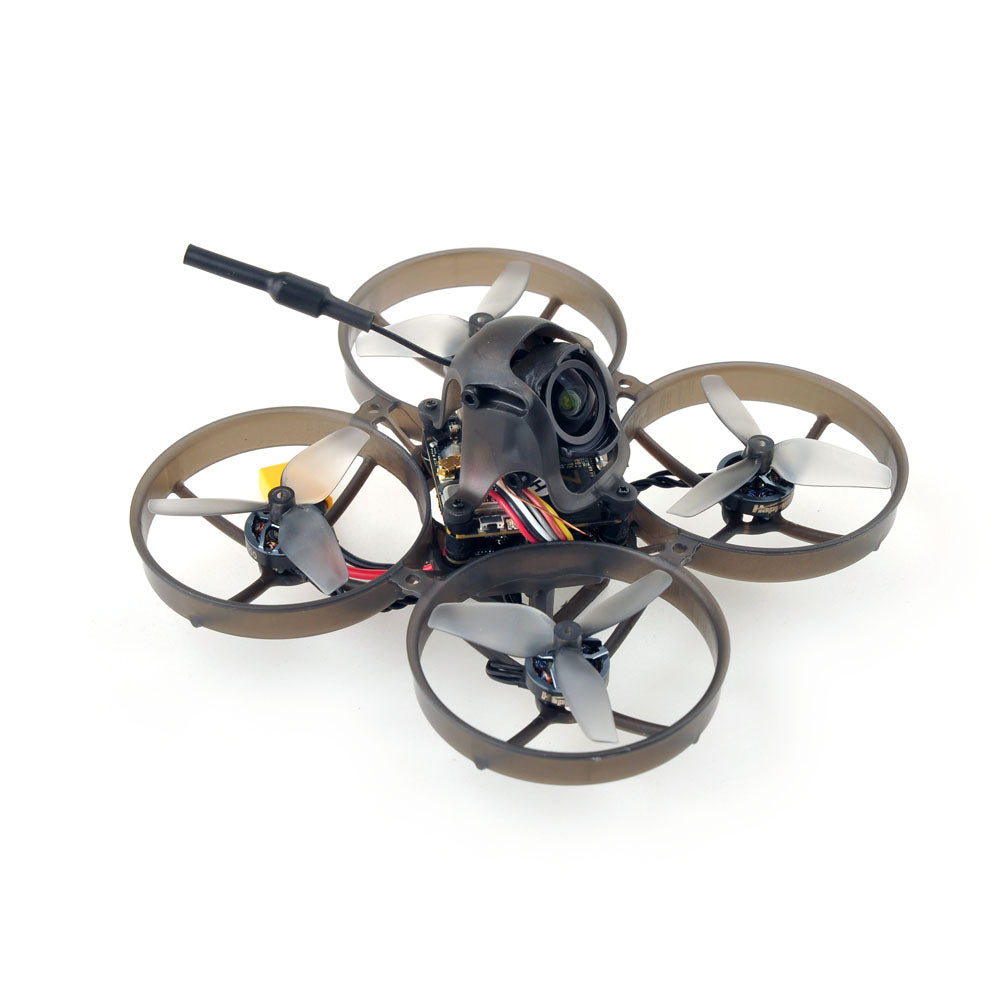

Happymodel Mobula7 O4 Wide 2S 80mm Digital HD Micro FPV Whoop

Happymodel Mobula7 O4 Wide 2S 80mm Digital HD Micro FPV Whoop

$269.00 USD
$399.00 USD $269.00 USD
Sale Sold out

Latest version of Mobula7 digital HD is Mobula7 O4 wide that comes with new DJI O4 Wide system which providing Ultra-wide field of view for immersive FPV experience originally.

Features:
Equipped with the latest DJI O4 Wide system
Lightweight 45mm HD Whoop Design
2S battery support Powerful and Smooth freestyle flying
UART ExpressLRS receiver support stable control link
DJI Radio controller support(Need to flash Betaflight firmware)
Lighter and small for indoor FPV

Specifications:
Brand Name: Happymodel
Item Name: Mobula7 O4 Wide 2S 80mm Digital HD Micro FPV whoop
Wheelbase: 80mm
Size: 107mm*107mm*58mm

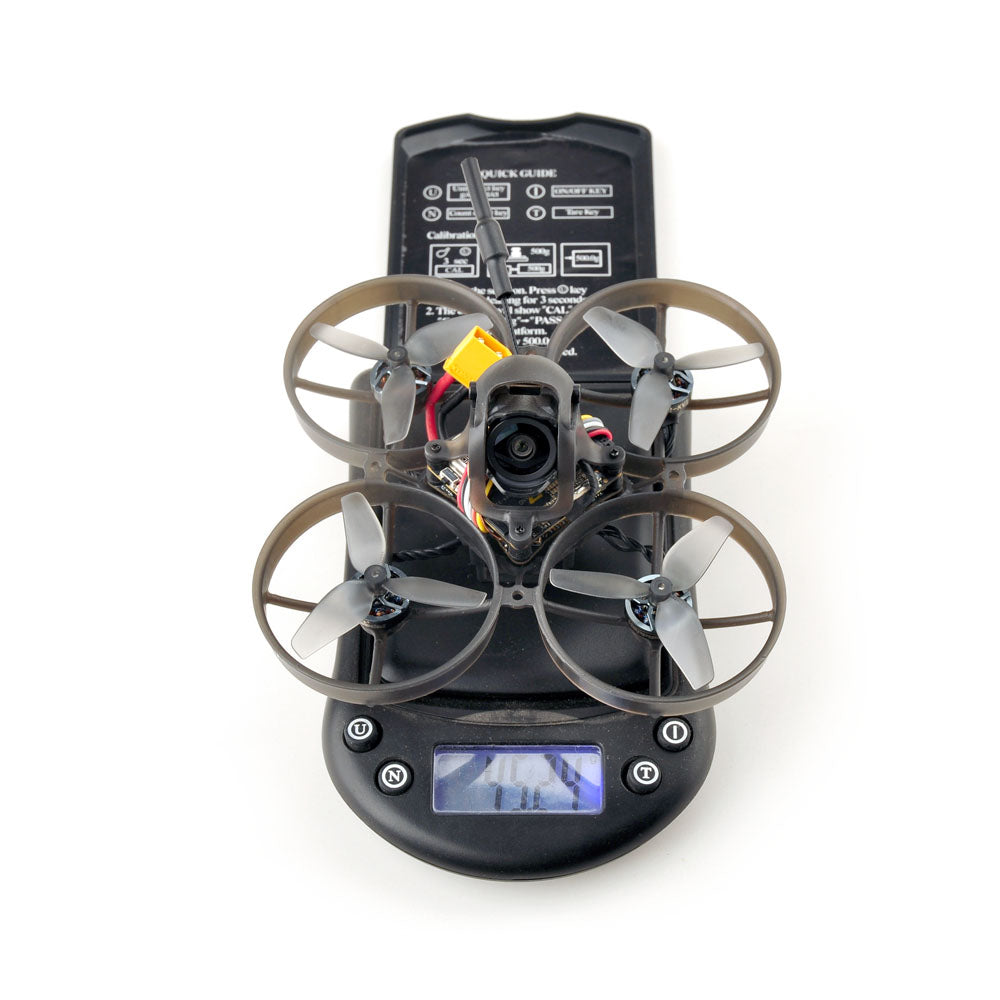

Weight: 45g

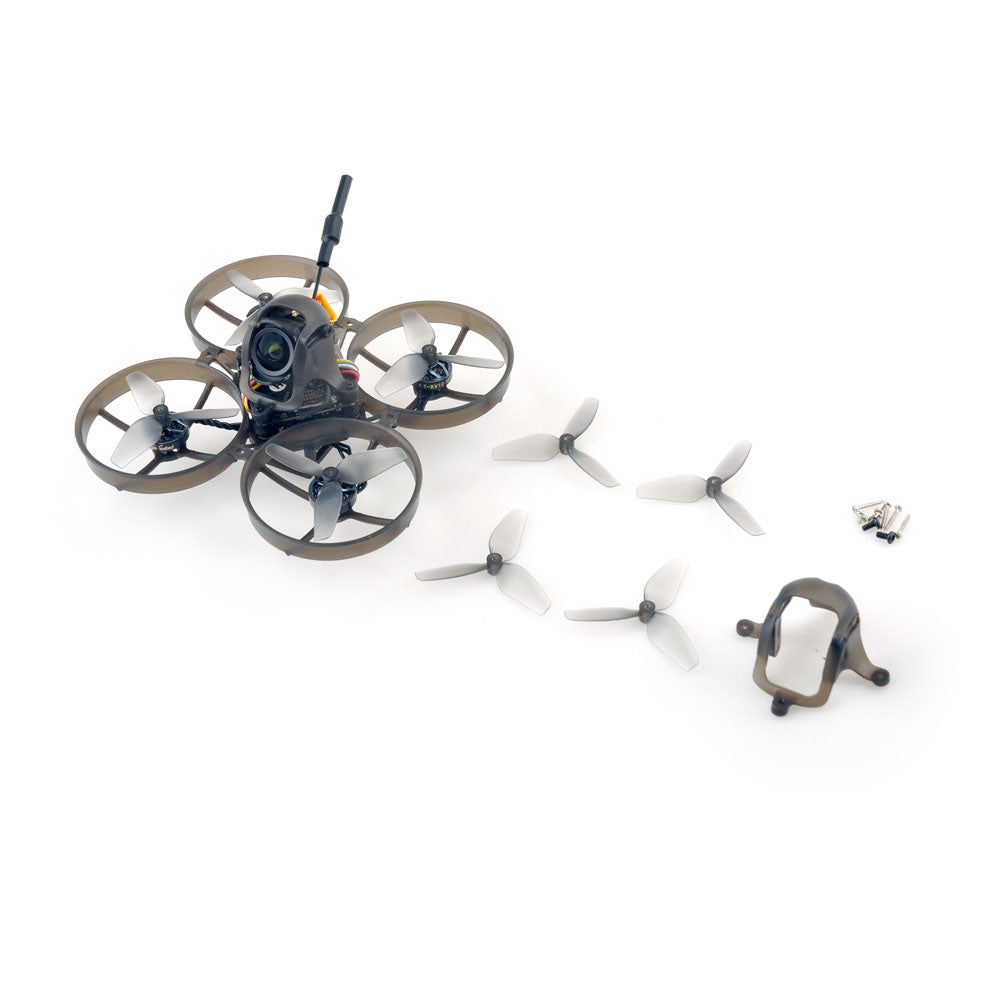

Package includes:

Item Name Qty
Happymodel M80 Frame 1
CrazyF405HD ELRS flight controller firmware 1
RS1102 KV10000 brushless motor 4
HQPROP 45MMX2 bi-blade propellers(4cw+4ccw) 1
DJI O4 Wide Air unit 1
Angle-adjustable Canopy for DJI O4 Wide 1
Screw driver 1



Spare parts specifications:

Motor Mode: RS1102 KV10000
Configu-ration:9N12P
Stator Diamter:11mm
Stator Length:2mm
Shaft Diameter:Φ1.5mm
Motor Dimension(Dia.*Len):Φ13.5mm*14mm
Weight(g):2.8g
No.of Cells(Lipo):1-2S
Propellers Weight:0.25g
Material: Poly Carbonate
Pitch:0.9
Props Dia:45mm
Hub Thickness:5mm
Shaft:1.5mm
Flight controller MCU: STM32F405RGT6 (168MHZ, 1Mbyte FLASH)
GYRO Sensor: BMI270  (SPI connection)
Mount hole size: 25.5mm*25.5mm
Power supply: 1-2S battery input (DC 2.9V-8.7V)
Built-in 12A(each) Blheli_S 4in1 ESC
Built-in Serial UART ExpressLRS 2.4G receiver
Built-in SPL06-001 Barometer (DPS310)
Built-in 8MBp blackbox
Built-in voltage meter sensor , voltage meter scale 110
Built-in current meter sensor , current meter scale 470
Onboard 4in1 ESC Power supply: 1-2S LiPo/LiPo HV
Current: 12A continuous peak 15A (3 seconds)
Support BLHeli_S Bluejay firmware
Factory firmware: Bluejay ESC V0.19
Firmware target: Z-H-30
Default protocol: DSHOT300
When use 1s battery and high KV 0702/0802 motors, should set startup power to 1100/1200
Onboard UART ExpressLRS 2.4GHz Receiver Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
RF Frequency: 2.4GHz
Antenna: enameled copper wire 31mm length
Telemetry output Power: <12dBm
Default firmware version: ExpressLRS V3.0.1
Firmware target: HappyModel EP1/EP2 2.4GHz RX
Could update firmware via ExpressLRS configurator
DJI O4 Air Unit Weight:
Air Unit (camera module included): Approx. 13.3g
Transmission Module: 30×30×6 mm (L×W×H)
Camera Module: 20.5×14×20.5 mm (L×W×H)
Camera Cable Length: 50mm
Coaxial Cable: 50 mm
3-in-1 Cable: 50 mm
Operating Frequency:
5.170-5.250 GHz
5.725-5.850 GHz
Operating frequency varies by region. Refer to local regulations..
Transmitter Power (EIRP):
5.1 GHz: <23 dBm (CE)
5.8 GHz:
<30 dBm (FCC)
<14 dBm (CE)
<30 dBm (SRRC)
Live View Quality: 1080p at 30/50/60/100fps
