HappyModel Mobula8 O4 2S 85mm Digital HD Micro FPV Whoop
HappyModel Mobula8 O4 2S 85mm Digital HD Micro FPV Whoop
Couldn't load pickup availability
Notice before buy:According to DJI’s warranty policy, if there is a problem with the DJI O4 Air unit installed on the BNF Drone, it needs to be sent back to China mainland for warranty, please noticed.
The Happymodel Mobula8 O4 micro FPV whoop comes out now . It comes with DJI O4 air unit which would provide excellent and unbelievable FPV footage. We added FOV Extender for the O4 camera on Mobula8, this would be a great improvement for FPV flying.
Features:
Equipment with DJI O4 air unit and external FOV Extender
ND Filters ready
2S battery support Powerful and Smooth freestyle flying
UART ExpressLRS receiver support stable control link
Recommend use 2S 550Mah battery
Specifications:
Brand Name: Happymodel
Item Name: Mobula8 O4 2S 85mm Digital HD Micro FPV whoop
Wheelbase: 85mm
Size: 120mm*120mm*53mm

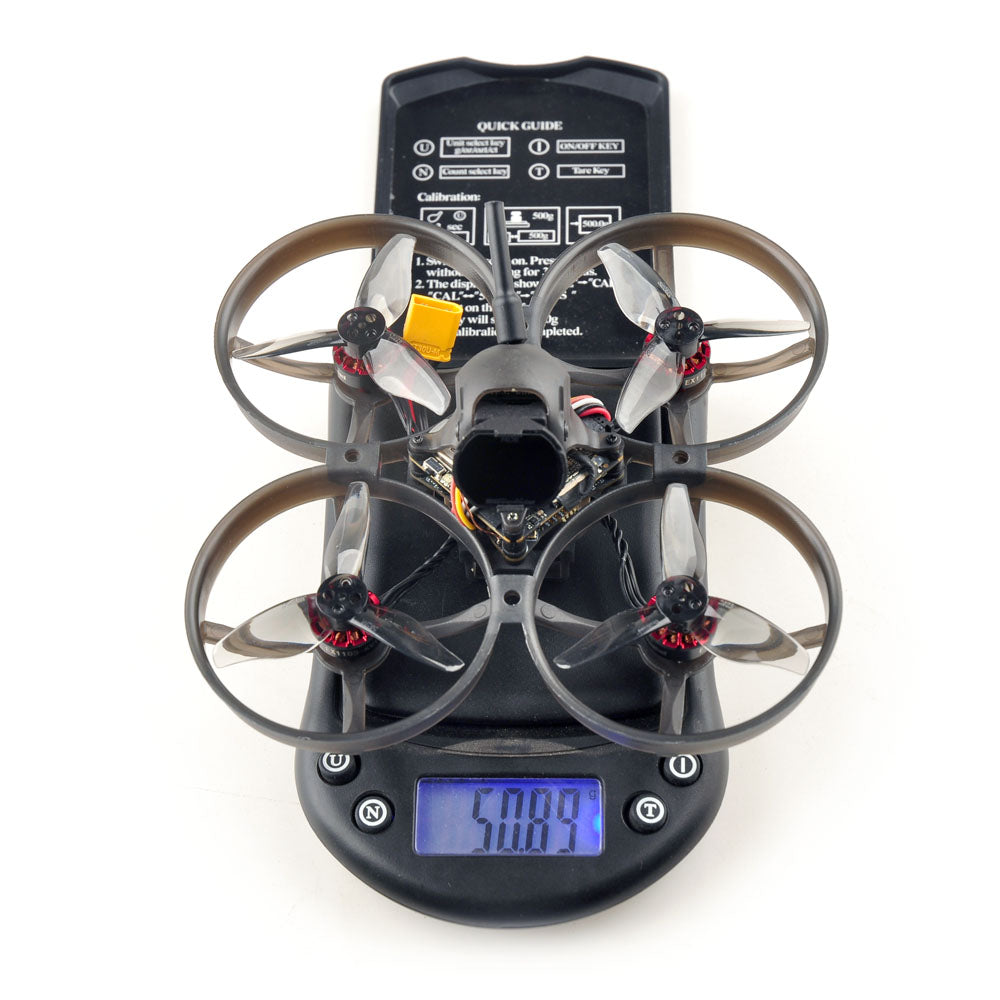

Weight: 50g

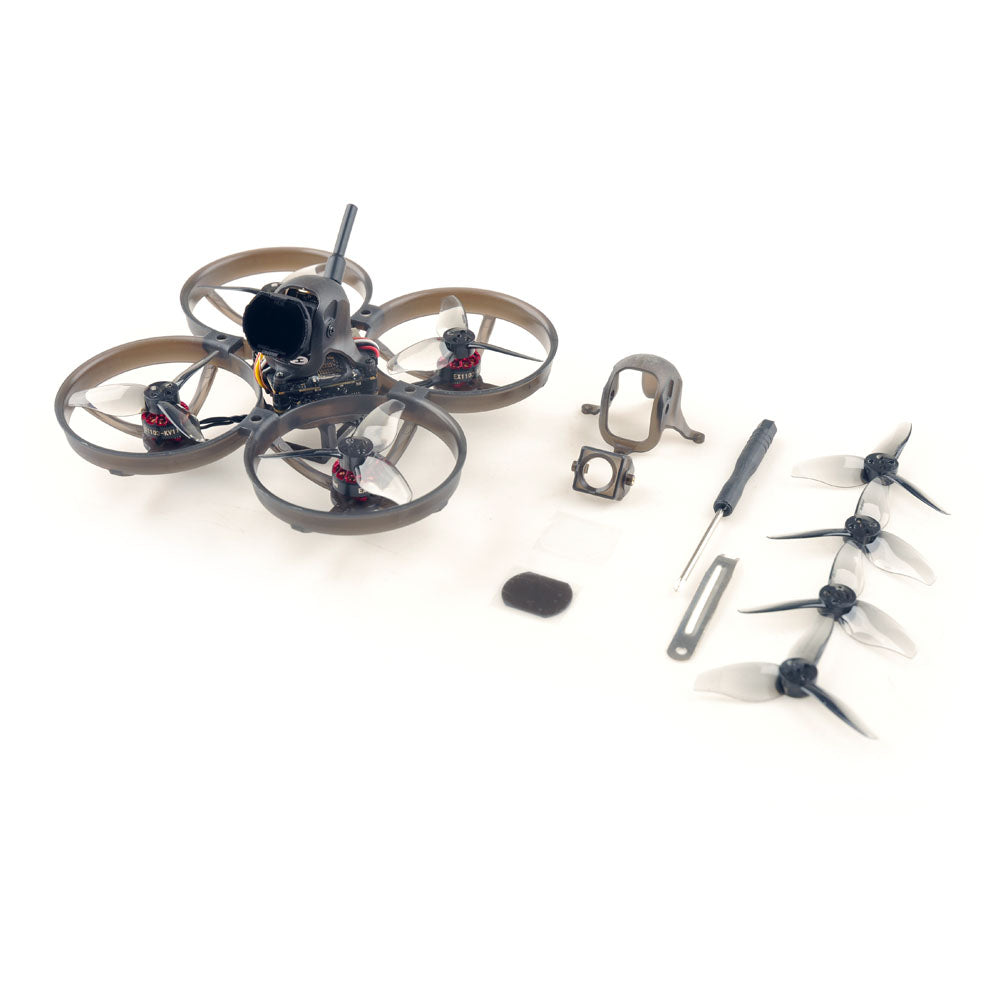

Package includes:
| Item Name | Qty |
| Happymodel Mobula8 Frame | 1 |
| CrazyF405HD ELRS flight controller firmware target:BETAFLIGHTF4 | 1 |
| EX1103 KV11000 brushless motor | 4 |
| Gemfan Hurricane 2023 tri-blade propellers(4cw+4ccw) | 1 |
| DJI O4 Air unit | 1 |
| FOV Extender for O4 camera | 1 |
| Angle-adjustable Canopy | 1 |
| Screw driver | 1 |
Spare parts specifications:
| Motor | Mode: EX1103 KV11000 Configu-ration:9N12P Stator Diamter:11mm Stator Length:3mm Shaft Diameter:Φ1.5mm Motor Dimension(Dia.*Len):Φ13.5mm*15.5mm Weight(g):3.8g No.of Cells(Lipo):1-2S |
| Propellers | Weight:0.88g Material: PC Pitch:2.3inch Props Dia:52.17mm Center Thickness:5mm Center Hole Dia:1.5mm |
| Flight controller | MCU: STM32F405RGT6 (168MHZ, 1Mbyte FLASH) GYRO Sensor: BMI270 (SPI connection) Mount hole size: 25.5mm*25.5mm Power supply: 1-2S battery input (DC 2.9V-8.7V) Built-in 12A(each) Blheli_S 4in1 ESC Built-in Serial ExpressLRS 2.4GBuilt-in BMP280 BarometerBuilt-in 8MBp blackbox Built-in voltage meter sensor , voltage meter scale 110 Built-in current meter sensor , current meter scale 470 |
| Onboard 4in1 ESC | Power supply: 1-2S LiPo/LiPo HV Current: 12A continuous peak 15A (3 seconds) Support BLHeli_S Bluejay firmware Factory firmware: Bluejay ESC V0.19Firmware target: Z-H-30 Default protocol: DSHOT300 |
| Onboard UART ExpressLRS 2.4GHz Receiver | Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz RF Frequency: 2.4GHz Antenna: enameled copper wire 31mm length Telemetry output Power: <12dBm Default firmware version: ExpressLRS V3.0.1 Firmware target: HappyModel EP 2400 RX Could update firmware via ExpressLRS configurator |
| DJI O4 Air Unit | Weight: Air Unit (camera module included): Approx. 8.2 g Transmission Module: 30×30×6 mm (L×W×H) Camera Module: 13.44×12.36×16.50 mm (L×W×H) Camera Cable Length: 50mm Coaxial Cable: 50 mm 3-in-1 Cable: 50 mm Operating Frequency: 5.170-5.250 GHz 5.725-5.850 GHz Operating frequency varies by region. Refer to local regulations. Transmitter Power (EIRP): 5.1 GHz: <23 dBm (CE) 5.8 GHz: <30 dBm (FCC) <14 dBm (CE) <30 dBm (SRRC) Live View Quality: 1080p at 30/50/60/100fps |
| FOV Extender for O4 Camera | Weight: only 3.2gram Built-in widening lens FOV angle up to 150 degree 3d printed Camera holder Include UV filter, ND8 filter, ND16 filter |

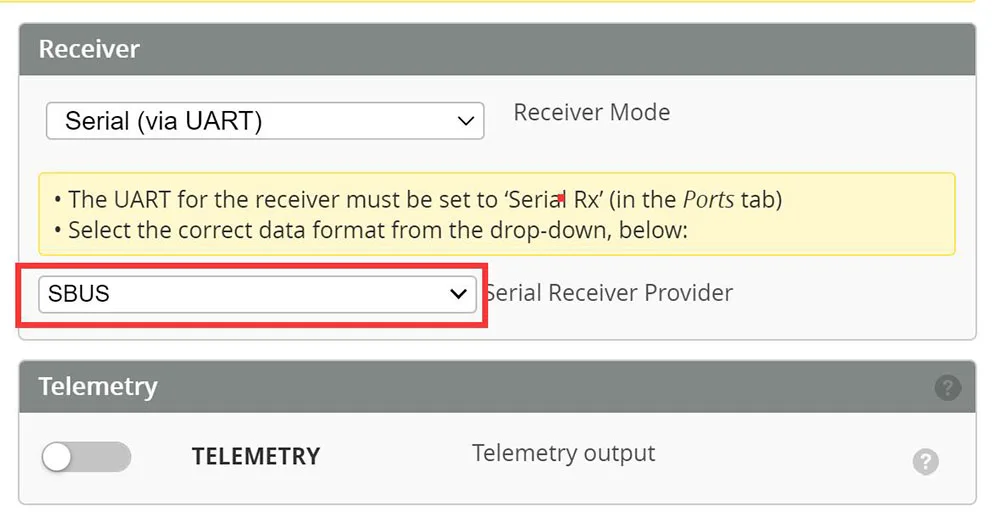

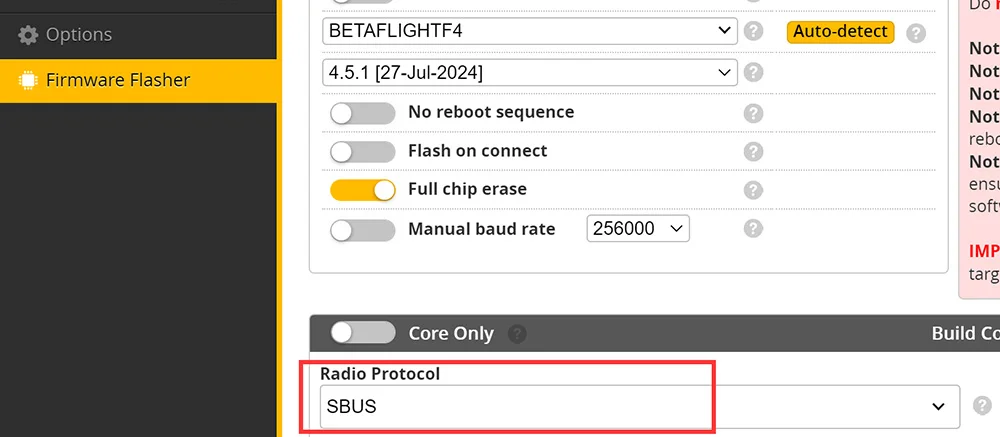

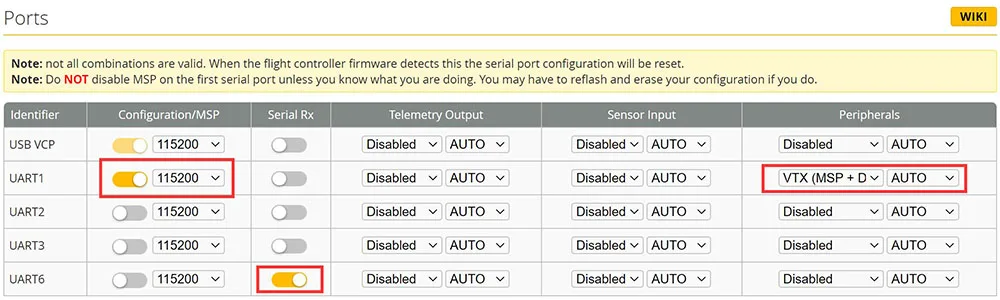

***If you want to use DJI FPV Remote controller, Please first reflash betaflight firmware add add “SBUS” protocol support when load firmware online. And then please import defaulct factor dump file to CLI command , then change betaflight settings like following picture,no need do any hardware modification to the flight controller:
