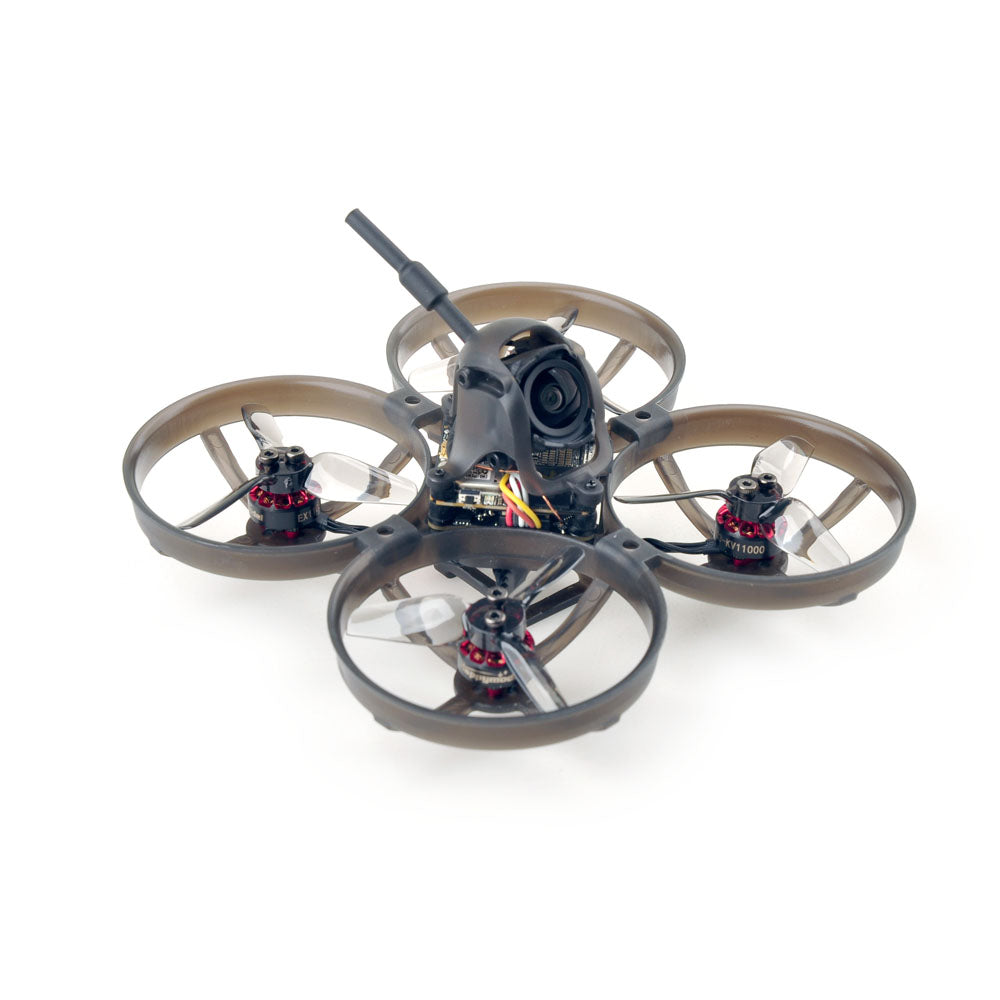

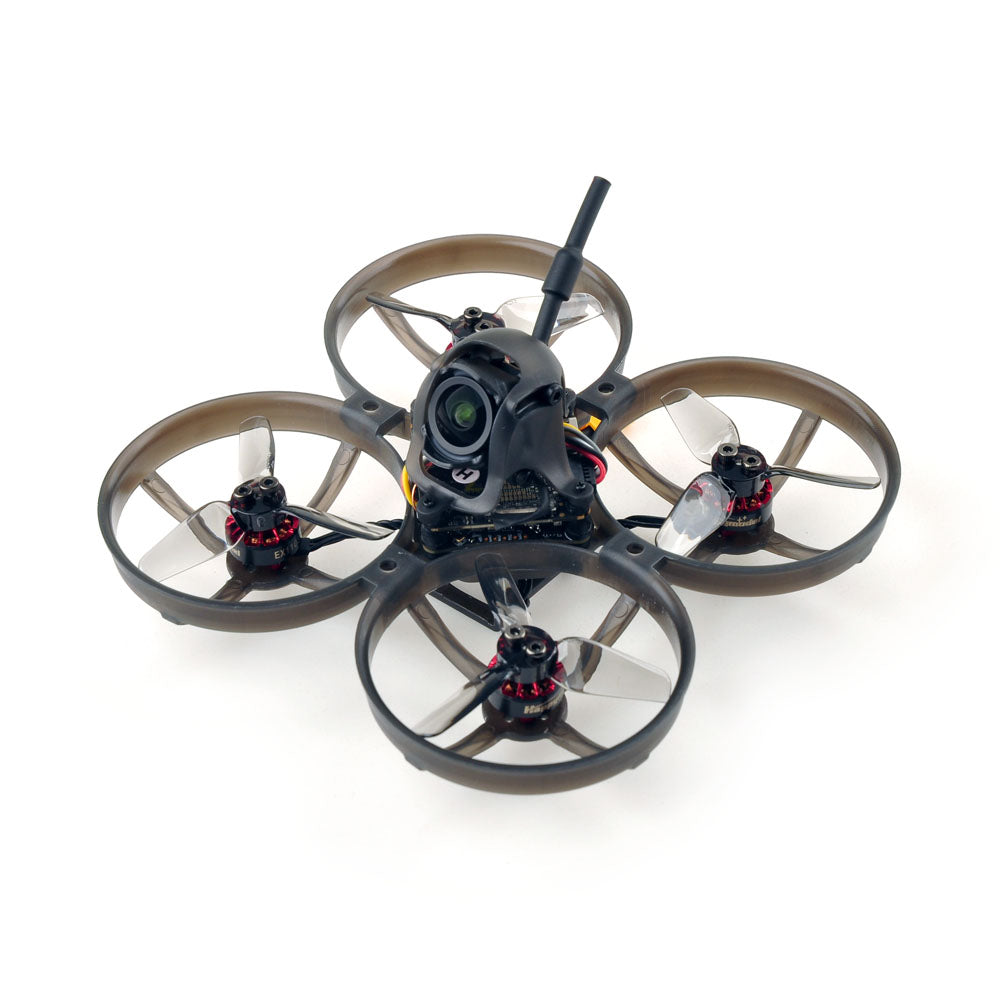

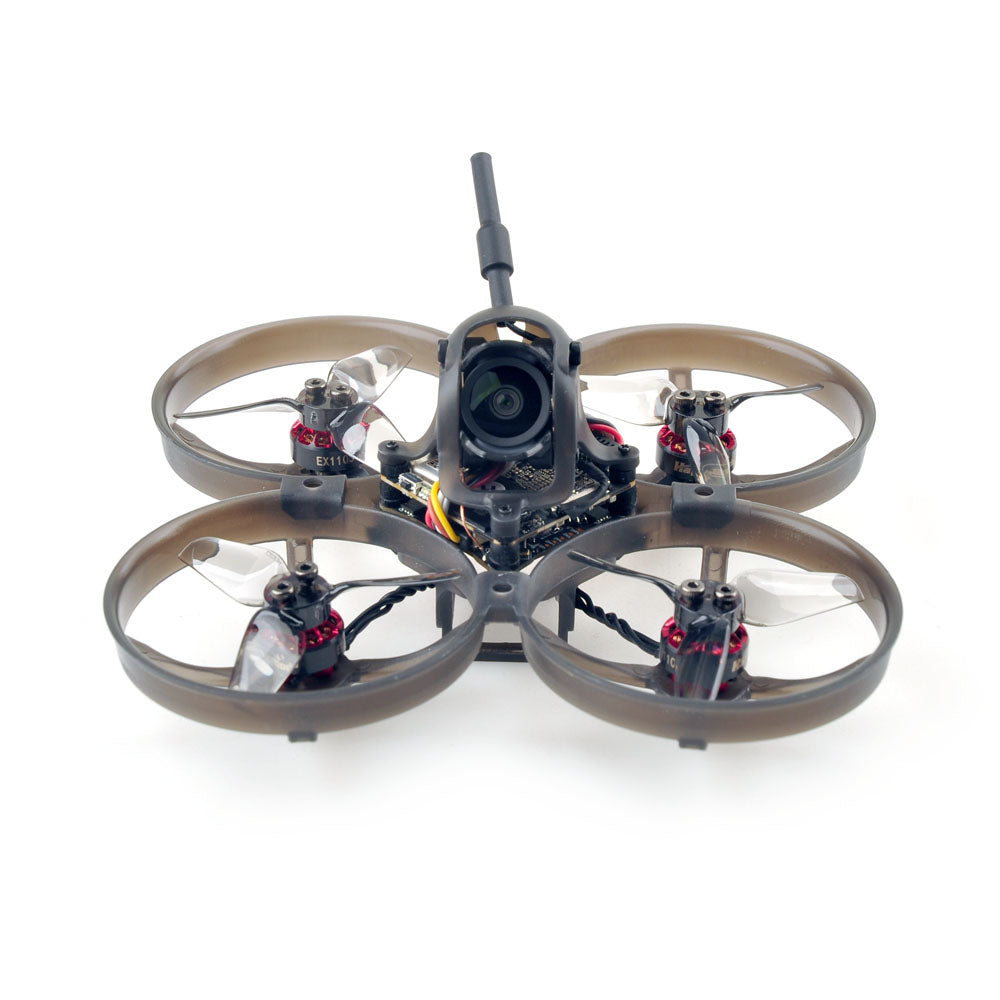

HappyModel Mobula8 O4 Wide 2S 85mm Digital HD Micro FPV Whoop

HappyModel Mobula8 O4 Wide 2S 85mm Digital HD Micro FPV Whoop

$269.00 USD
$399.00 USD $269.00 USD
Sale Sold out

Latest version of Mobula8 digital HD is Mobula8 O4 wide that comes with new DJI O4 Wide system which providing Ultra-wide field of view for immersive FPV experience originally.

Features:
Equipped with the latest DJI O4 Wide system
Lightweight 2-inch HD Whoop Design
Powerful 1103 Brushless Motor System
UART ExpressLRS receiver support stable control link
DJI Radio controller support(Need to flash betaflight firmware)
Recommend use 2S 550Mah battery

Specifications:

Brand Name: Happymodel
Item Name: Mobula8 O4 Wide 2S 85mm Digital HD Micro FPV whoop
Wheelbase: 85mm
Size: 120mm*120mm*58mm

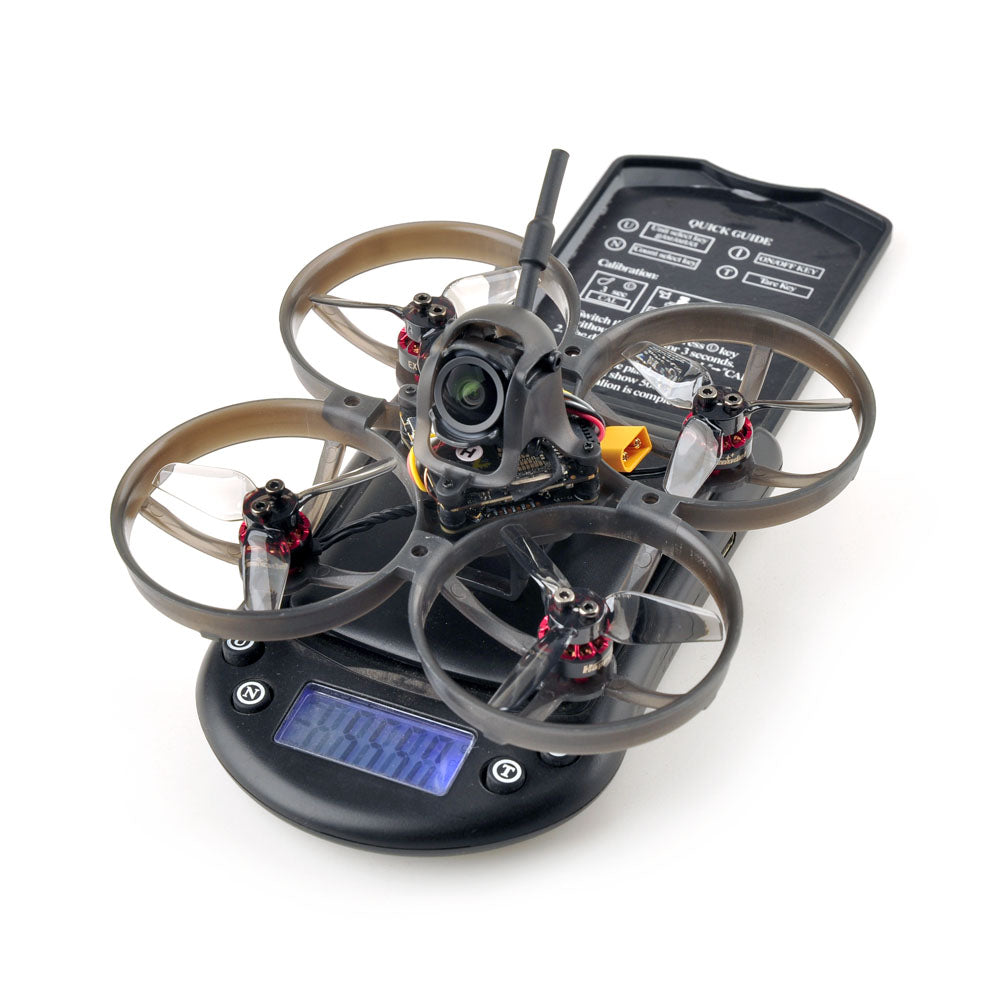

Weight: 55g

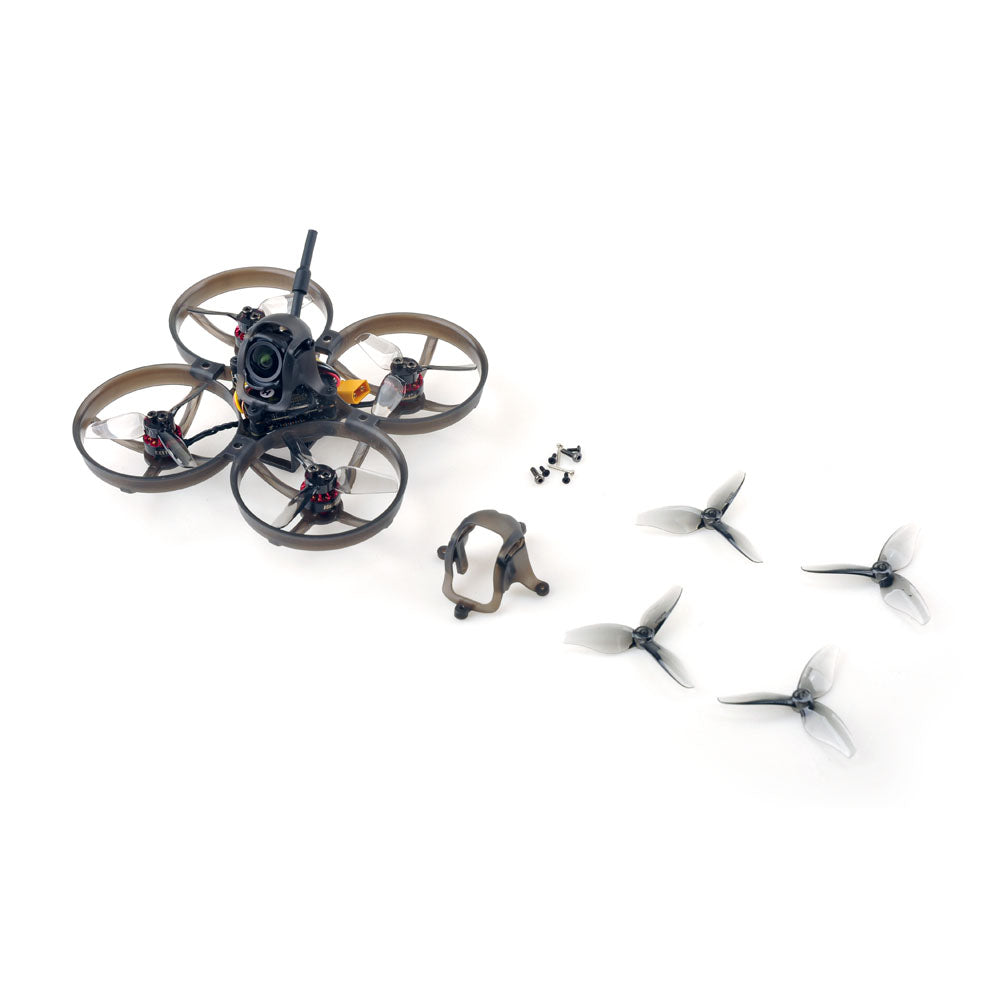

Package includes:

Item Name Qty
Happymodel Mobula8 Frame 1
CrazyF405HD ELRS flight controller firmware target:BETAFLIGHTF4 1
EX1103 KV11000 brushless motor 4
Gemfan Hurricane 2023 tri-blade propellers(4cw+4ccw) 1
DJI O4 Wide Air unit 1
Angle-adjustable Canopy for DJI O4 Wide 1
Screw driver 1



Spare parts specifications:

Motor Mode: EX1103 KV11000
Configu-ration:9N12P
Stator Diamter:11mm
Stator Length:3mm
Shaft Diameter:Φ1.5mm
Motor Dimension(Dia.*Len):Φ13.5mm*15.5mm
Weight(g):3.8g
No.of Cells(Lipo):1-2S
Propellers Weight:0.88g
Material: PC
Pitch:2.3inch
Props Dia:52.17mm
Center Thickness:5mm
Center Hole Dia:1.5mm
Flight controller MCU: STM32F405RGT6 (168MHZ, 1Mbyte FLASH)
GYRO Sensor: BMI270  (SPI connection)
Mount hole size: 25.5mm*25.5mm
Power supply: 1-2S battery input (DC 2.9V-8.7V)
Built-in 12A(each) Blheli_S 4in1 ESC
Built-in Serial Uart ExpressLRS 2.4G receiverBuilt-in SPL06-001 Barometer(DPS310)
Built-in 8MBp blackbox
Built-in voltage meter sensor , voltage meter scale 110
Built-in current meter sensor , current meter scale 470
Onboard 4in1 ESC Power supply: 1-2S LiPo/LiPo HV
Current: 12A continuous peak 15A (3 seconds)
Support BLHeli_S Bluejay firmware
Factory firmware: Bluejay ESC V0.19Firmware target: Z-H-30
Default protocol: DSHOT300
Onboard UART ExpressLRS 2.4GHz Receiver Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
RF Frequency: 2.4GHz
Antenna: enameled copper wire 31mm length
Telemetry output Power: <12dBm
Default firmware version: ExpressLRS V3.0.1
Firmware target: HappyModel EP1/EP2 2.4GHz RX
Could update firmware via ExpressLRS configurator
DJI O4 Wide Air Unit Weight:
Air Unit (camera module included): Approx. 13.3g
Transmission Module: 30×30×6 mm (L×W×H)
Camera Module: 20.5×14×20.5 mm (L×W×H)
Camera Cable Length: 50mm
Coaxial Cable: 50 mm
3-in-1 Cable: 50 mm
Operating Frequency:
5.170-5.250 GHz
5.725-5.850 GHz
Operating frequency varies by region. Refer to local regulations.
Transmitter Power (EIRP):
5.1 GHz: <23 dBm (CE)
5.8 GHz:
<30 dBm (IC)
<14 dBm (CE)
<30 dBm (SRRC)
Live View Quality: 1080p at 30/50/60/100fps
