Happymodel Mobula8 UART ELRS V3 2S 85mm Micro FPV Whoop Drone
Happymodel Mobula8 UART ELRS V3 2S 85mm Micro FPV Whoop Drone
Couldn't load pickup availability
Latest Mobula8 UART ELRS V3 version comes with X14 ELRS AIO flight controller.
Features:
X14 ELRS 5-IN-1 AIO flight controller built-in 2.4G ELRS V3.0 and OPENVTX
VTX Power up to 400mw
ELRS V3.0 (Default), could flash elrs firmware for the receiver by wifi
EX1103 KV110000 motors
CaddxFPV Ant FPV camera
Smooth and powerful
Compatible for 2S Lipo/LIHV battery
Recommend 2S 450mah/550mah/650mah battery (Not include)
Specifications:
Brand Name: Happymodel
Item Name: Mobula8 UART ELRS V3 2S 85mm Micro FPV whoop drone
Wheelbase: 85mm
Size: 120mm*120mm*50mm
Weight: 42g
Receiver option:
2.4GHz UART ExpressLRS

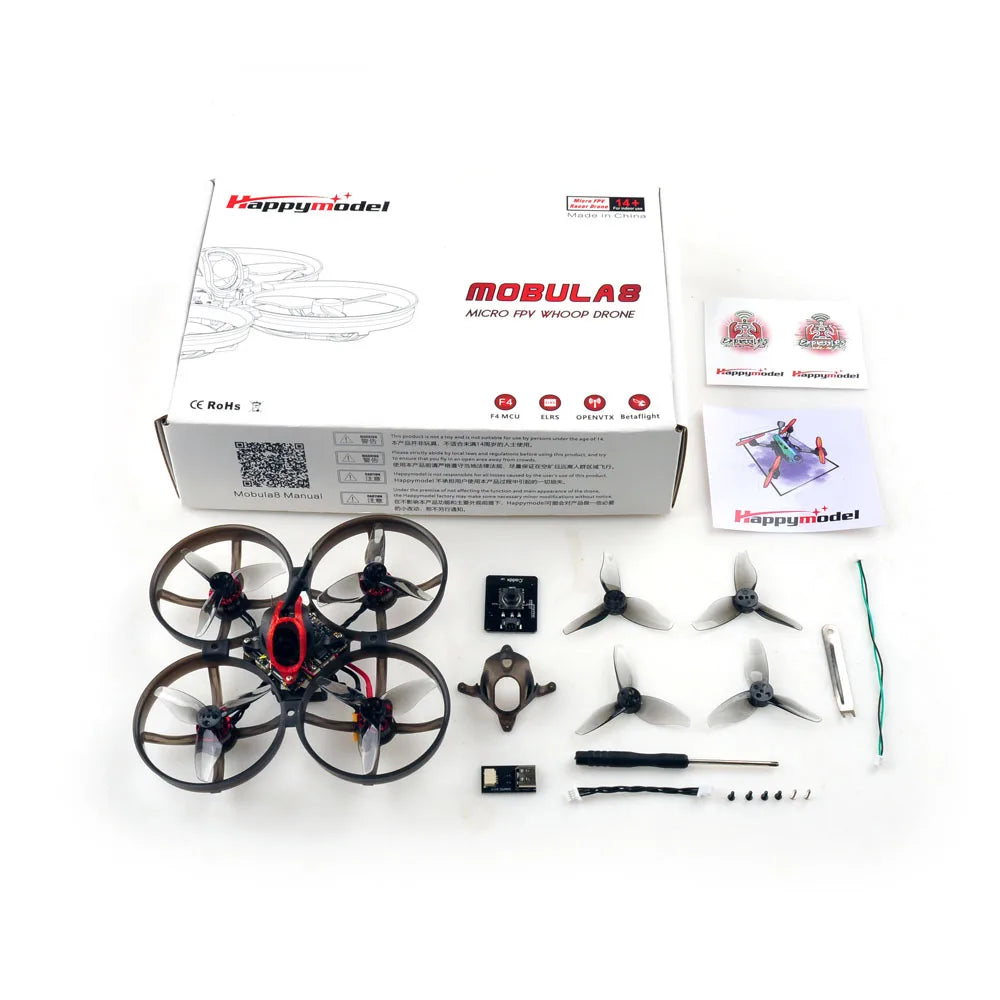

Package includes:
| Item Name | Qty |
| Mobula8 Frame | 1 |
| X14 ELRS AIO flight controller | 1 |
| EX1103 KV11000 brushless motor | 4 |
| Gemfan Hurricane 2023 tri-blade propellers(4cw+4ccw) | 1 |
| Caddx ANT 1200TVL Camera | 1 |
| Onboard 5.8G Openvtx 0mw~400mw VTX | 1 |
| Canopy for 14mmx14mm camera | 1 |
| Screw driver | 1 |
Spare parts specifications:
| Motor | Mode: EX1103 KV11000 Configu-ration:9N12P Stator Diamter:11mm Stator Length:3mm Shaft Diameter:Φ1.5mm Motor Dimension(Dia.*Len):Φ13.5mm*15.5mm Weight(g):3.8g No.of Cells(Lipo):1-2S |
| Propellers | Weight:0.88g Material: PC Pitch:2.3inch Props Dia:52.17mm Center Thickness:5mm Center Hole Dia:1.5mm |
| Flight controller | X14 ELRS AIO 5-IN-1 Flight controller MCU: STM32G473CEU6 Gyro: ICM42688P Blackbox memory: 16MB Sensor: Voltage & Current BEC: 5V, Max. 2A UART: UART 1, UART 2, UART 3 (For RX), UART 4(For VTX) BetaFlight OSD: AT7456ELAH Camera plug: 0.8mm 3pin ESC: 12A continuous OPENVTX: 5.8GHz 48 channels, Max. 400mW FC firmware target: CRAZYBEEG473 USB port: SH1.0-4Pin Battery connector: XT30 or A30 Mounting hole size: 5mm x 25.5mm Weight: 83g without power pigtail and VTX antenna |
| Onboard 4in1 ESC | Power supply: 1-2S LiPo/LiPo HV Current: 12A continuous peak 15A (3 seconds) Support BLHeliSuite programmable Firmware target: Z_H_30 Default protocol: DSHOT300 Bluejay firmware ready |
| Onboard uart ExpressLRS 2.4GHz Receiver | Serial ExpressLRS 2.4GHz Antenna: Enameled copper wire 31mm length Firmware target: HappyModel EP1/EP2 2.4GHz RX Telemetry output Power: <12dBm Compatible with ExpressLRS V3.x.x TX Module ExpressLRS firmware version 3.0.1 Support flash firmware by WIFI Bind method is the same like all ExpressLRS 2.4GHz receivers |
| Onboard 5.8g OPENVTX | OPENVTX Firmware Support firmware upgrade by openvtx configurator Output power: PIT/10/25/100/400 Frequency: 5.8GHz 48 channels, with Raceband: 5658~5917MHz Channel SEL: SmartAudio2.1 Modulation type: FM Operating temperature: -10℃~+80℃ Antenna port: IPEX1/U.FL |
| Caddx ANT 1200tvl camera | Image Sensor: 1/3″ CMOS Sensor Horizontal Resolution: 1200 TVL TV System: NTSC or PAL IMAGE: 16:9 or 4:3 Synchronization: Internal Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000 S/N Ratio : >52dB (AGC OFF) Video Output: CVBS Lens: 1.8mm Min. Illumination: 0.001Lux@F1.2 Auto Gain Control: YES WDR: Global WDR DNR: 3D DNR Dimensions: 14*14mm(with bracket to 19*19mm) Wide Power Input: DC 3.7-18V Weight: 2g (N.W.) |

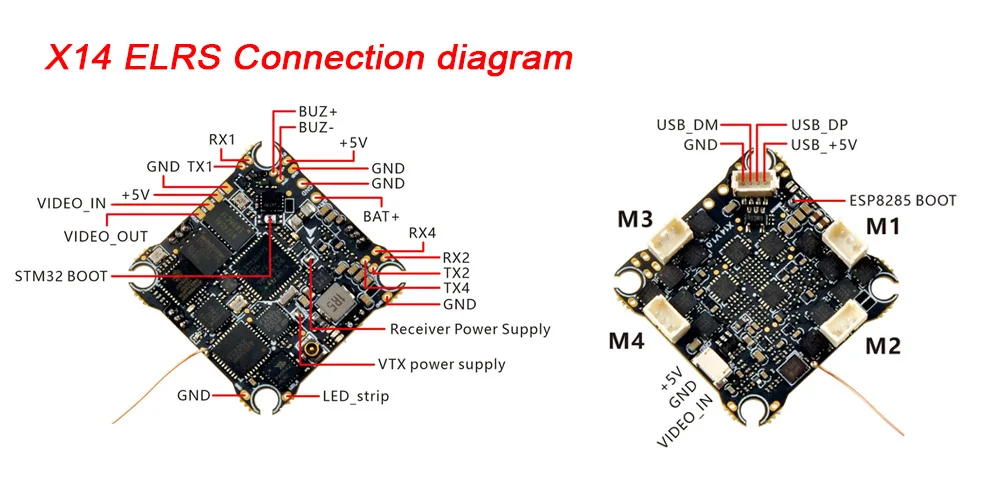

Connection diagram

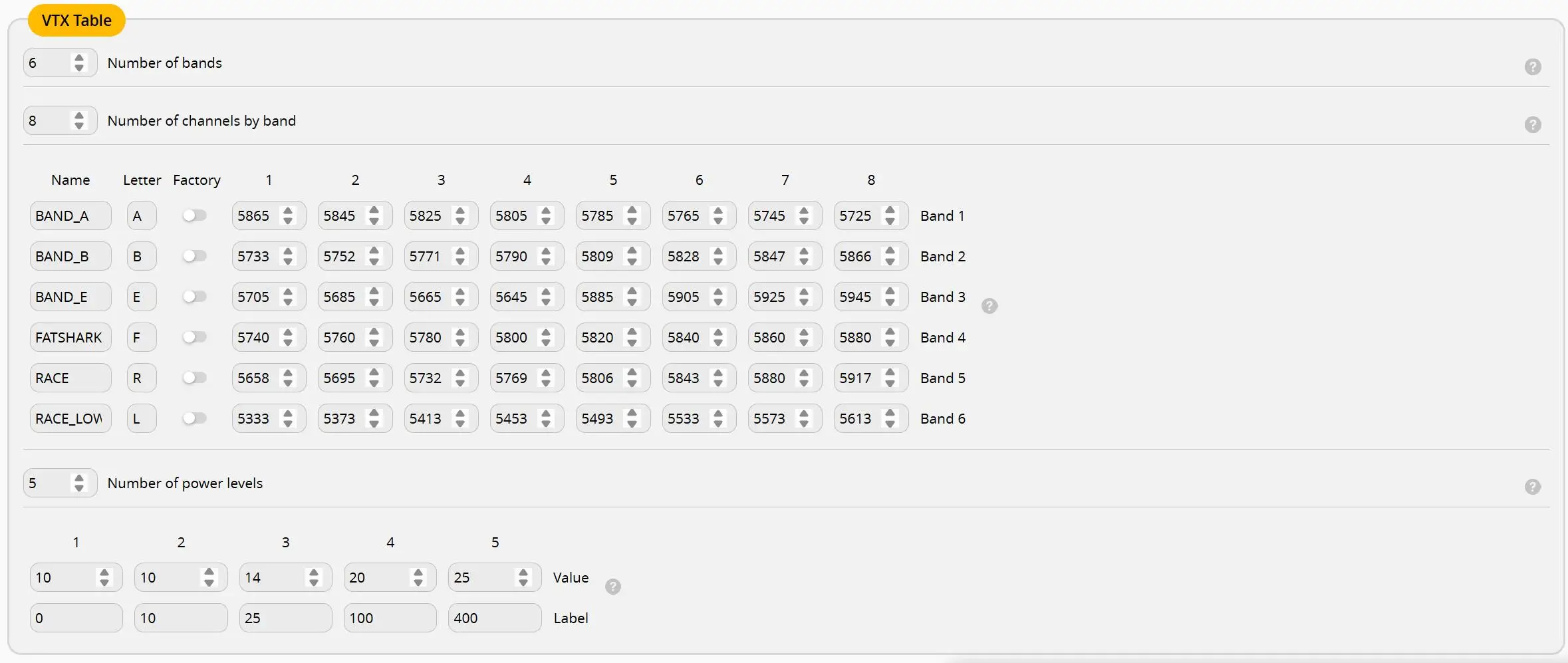

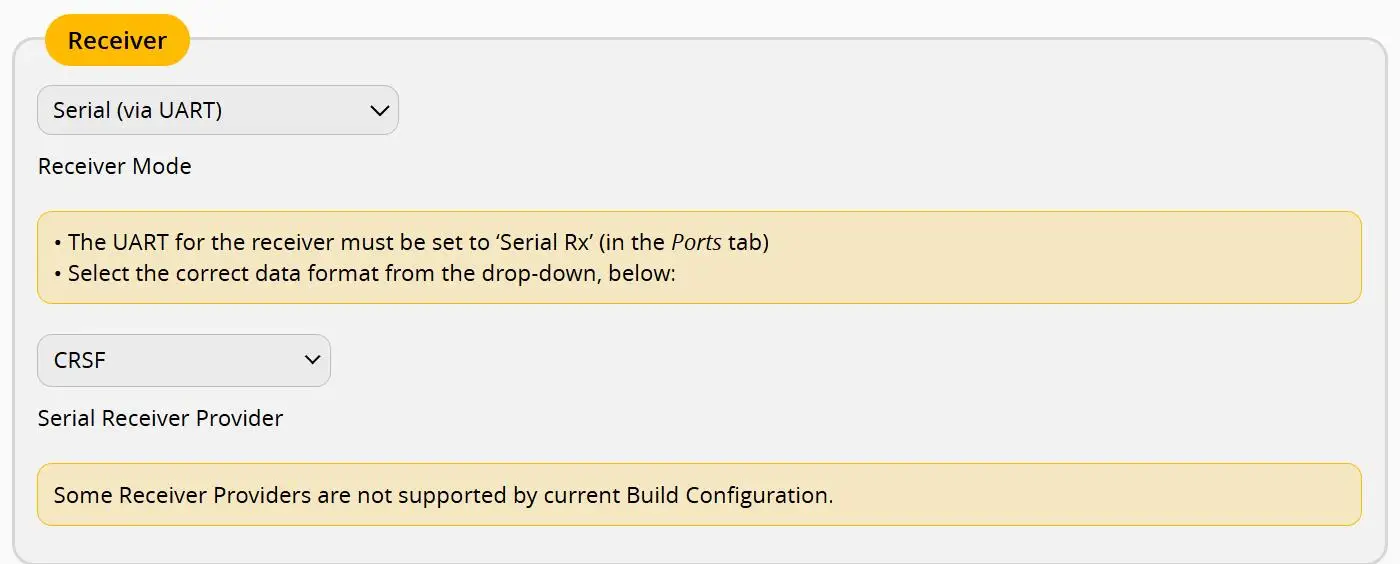

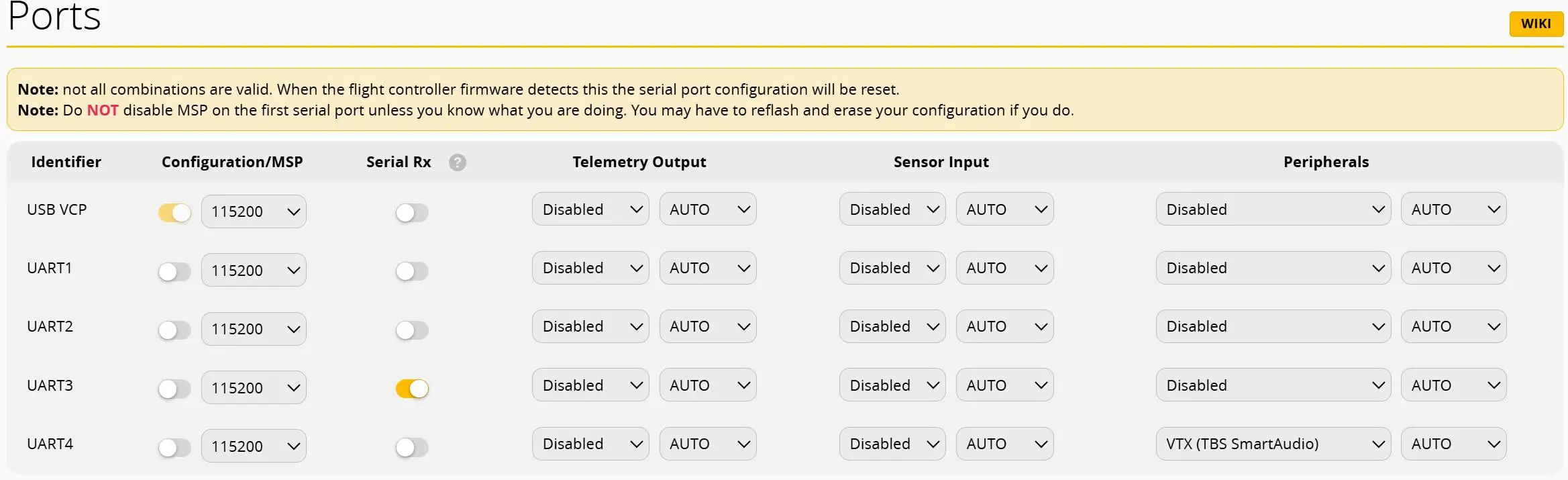

Noted: Visit https://app.betaflight.com and click “select your device” then choose can’t find my USB device, then connect comport and betaflight configurator to do configuration setting.
Default dump file for Mobula8 ELRS V3 with X14 ELRS AIO flight controller :
