HappyModel X12 AIO 5in1 1-2S Flight Controller

HappyModel X12 AIO 5in1 1-2S Flight Controller

$67.00 USD
$79.00 USD $67.00 USD
Sale Sold out
Version

The world first 5-IN-1 AIO flight controller, OPENVTX(up to 400mw), 12A Brushless Blheli_S ESC and Betaflight OSD coming out recently.

It comes with onboard SPI ELRS receiver which support ELRS TX module 2.x firmware, and also provide other receiver option like SPI Frsky receiver which support Frsky D8/D16 , REDPINE and SFHSS.

This is an amazing flight controller for Brushless whoop. You could get unbelievable RX and VTX range by using this flight controller.



Specifications:

Brand Name: Happymodel

Item Name: X12 AIO 5-IN-1 Flight controller built-in 12A ESC and OPENVTX

Betaflight firmware target:

ELRS Version: CRAZYBEEF4SX1280

FRSKY Version:CRAZYBEEF4FR

PNP Version:CRAZYBEEF4DX

LITE Version:CRAZYBEEF4SX1280

VTX antenna: U.FL

Weight: 5.1g

Size: 30mm*30mm*8mm

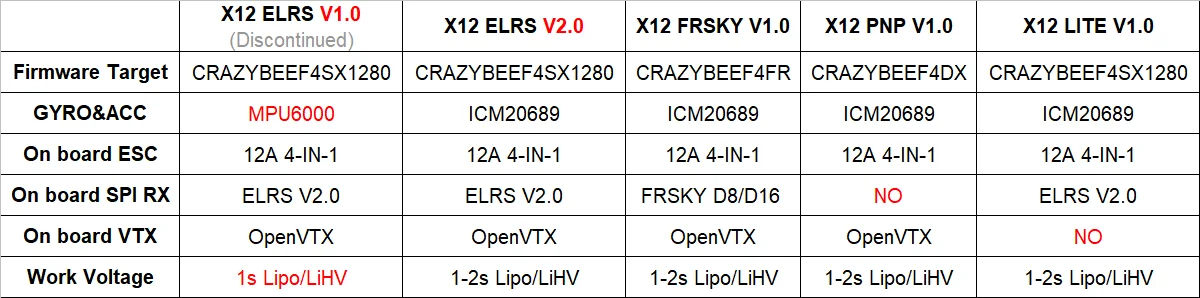

Flight controller

X12 ELRS V2.0 flight controller built-in ELRS 2.4G receiver Target: CRAZYBEEF4SX1280

X12 Frsky V1.0 flight controller built-in FRSKY 2.4G receiver Target: CRAZYBEEF4FR

X12 PNP V1.0 flight controller without onboard receiver Target CRAZYBEEF4DX

X12 LITE V1.0 flight controller built-in ELRS 2.4G receiver Target:CRAZYBEEF4SX1280

MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU6000 or ICM20689 or BMI270(SPI connection)
Mount hole size: 25.5mm*25.5mm
Power supply: 1-2S battery input (DC 2.9V-8.7V)
Built-in 12A(each) Blheli_S 4in1 ESC

Built-in Betaflight OSD(SPI Control)
Built-in 5.8G OpenVTX 0mw~400mw
Built-in ExpressLRS 2.4G,Frsky D8/D16
Built-in voltage meter sensor , voltage meter scale 110

Built-in current meter sensor , current meter scale 470

Onboard 4in1 ESC

Power supply: 1-2S LiPo/LiPo HV

Current: 12A continuous peak 15A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: Z_H_30_REV16_7.HEX
Default protocol: DSHOT300

Support Bluejay firmware

When use Blujay firmware with 48khz, should set startup power to 1100/1200

Onboard SPI ExpressLRS 2.4GHz Receiver

Packet Rate option: 50Hz/150Hz/250Hz/500Hz

ExpressLRS Firmware version: V2.0
RF Frequency: 2.4GHz

Antenna : SMD antenna
Telemetry output Power: <12dBm

Receiver protocol:  SPI ExpressLRS

Compatible with ExpressLRS V2.0 TX Module

Couldn't flash separately ExpressLRS firmware

Onboard Frsky SPI D8/D16 receiver Version

SPI BUS receiver

CC2500 RF
Compatible Non EU transmitter D8 model Channels: 8ch
No ground interference ( Transmitter and receiver 1 m from the ground): 200meterFailsafe support

Support Frsky D8/ D16 , Redpine , SFHSS

Onboard 5.8g OPENVTX

Firmware version: OPENVTX

Smartaudio v2.1

PIT Mode support

RCE Mode support

Channels:48ch

Transmitting Power: 0/RCE/25mw/100mw/400mw

Power supply: DC 5V

Current (5v): <650ma (400mw)

Antenna connector: U.FL
