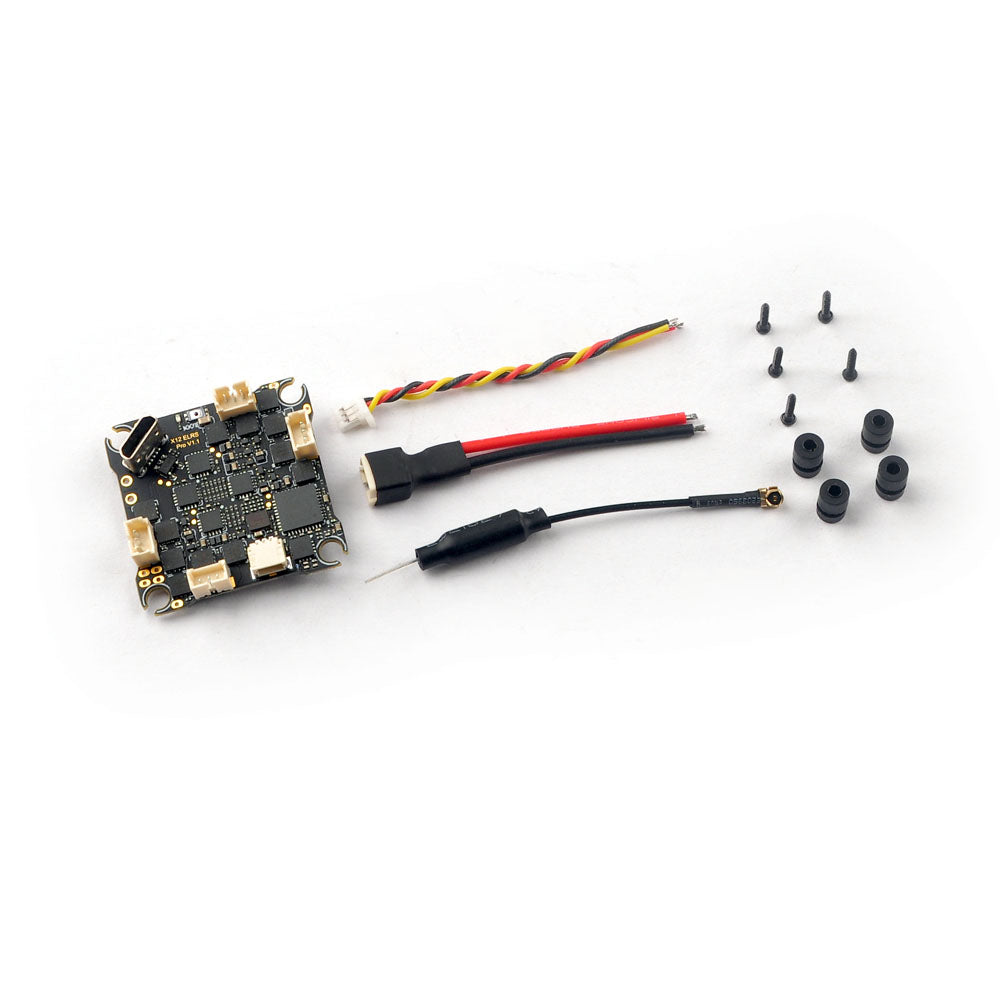

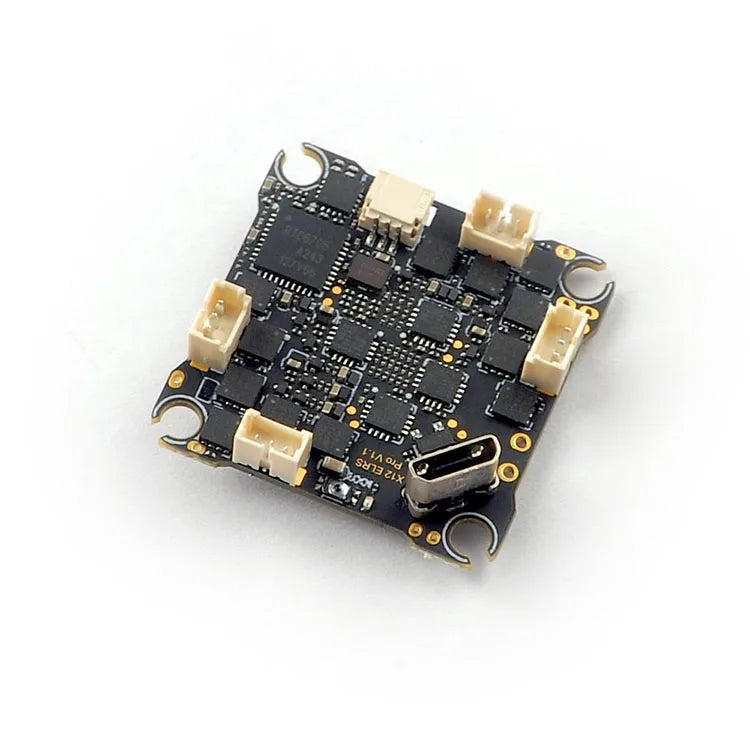

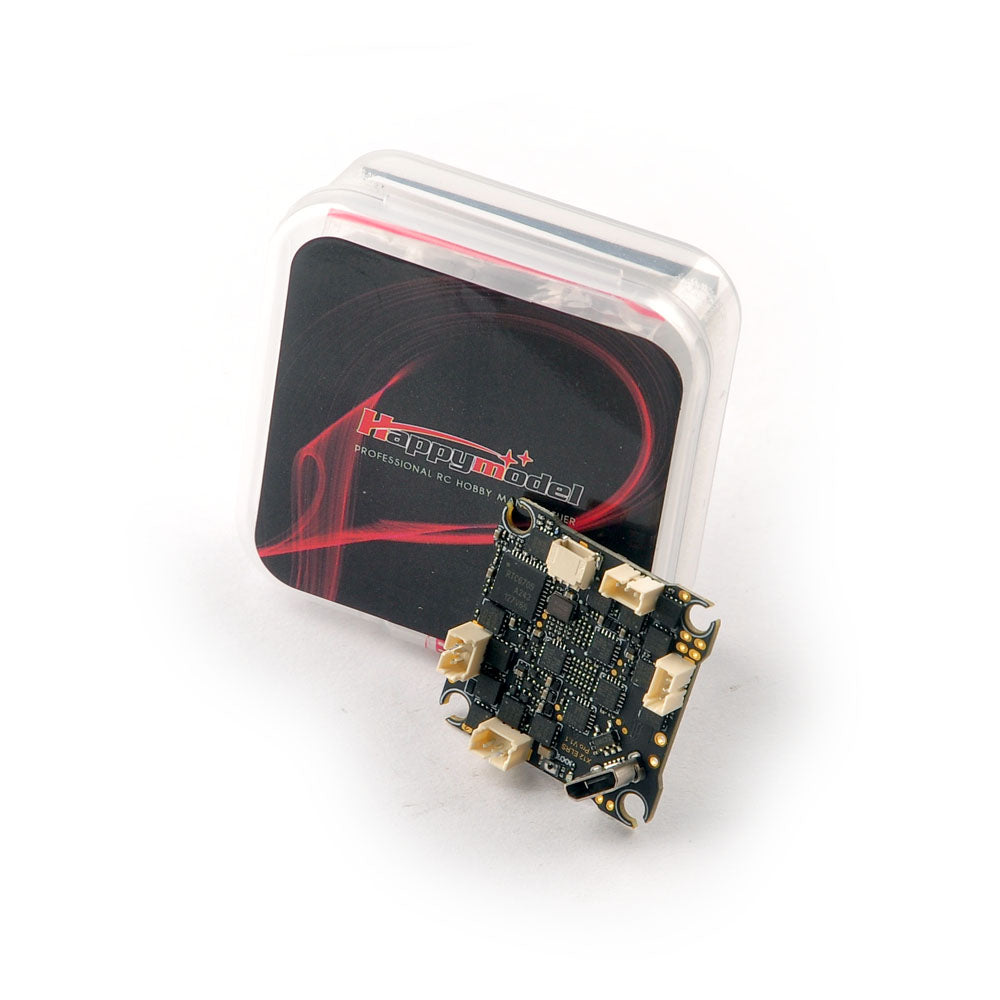

HappyModel X12 ELRS Pro 5in1 AIO Flight Controller
HappyModel X12 ELRS Pro 5in1 AIO Flight Controller
Regular price
$69.99 USD
Regular price
$79.00 USD
Sale price
$69.99 USD
Unit price
/
per
Couldn't load pickup availability
Specifications:
Brand Name: Happymodel
Item Name: X12 ELRS Pro AIO 5-IN-1 Flight controller built-in 12A ESC and OPENVTX
Betaflight firmware target:
betaflight_4.4.0_STM32F411
VTX antenna: U.FL

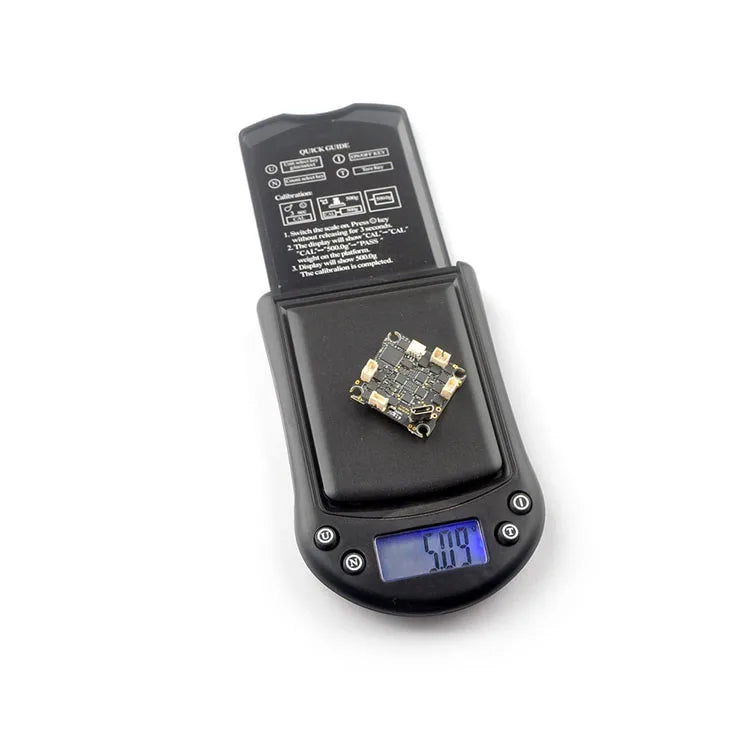

Weight: 5.1g
Size: 30mm*30mm*8mm
| Flight controller | X12 ELRS Pro v1.1 AIO 5-IN-1 Flight controller MCU:STM32F411CEU6 (100MHZ, 512K FLASH) ,ESP32-PICO-D4 Sensor: ICM42688P(SPI connection) Mount hole size: 25.5mm*25.5mm Power supply: 1-2S battery input (DC 2.9V-8.7V) Built-in 12A(each) Blheli_S 4in1 ESC Built-in Betaflight OSD(SPI Control) Built-in 5.8G OpenVTX 0mw~400mw (MSP control) Built-in UART ExpressLRS v3.0.0 Built-in voltage meter sensor , voltage meter scale 110 Built-in current meter sensor , current meter scale 470 |
| Onboard 4in1 ESC | Power supply: 1-2S LiPo/LiPo HV Current: 12A continuous peak 15A (3 seconds) Support BLHeliSuite programmable Factory firmware: Bluejay v0.19.2 Default protocol: DSHOT300 Recommend ESC Startup power value to min1100/max1200 |
| Onboard UART ExpressLRS 2.4GHz Receiver | Packet Rate option: 50Hz/150Hz/250Hz/500Hz ExpressLRS Firmware version: V3.0 RF Frequency: 2.4GHz Antenna : SMD antenna Telemetry output Power: <12dBm Receiver protocol: Serial_based CRSF Compatible with ExpressLRS V3.x.x TX Module Could flash single ELRS receiver firmware by Wifi ExpressLRS firmware target: HappyModel AIO 2.4GHz RX+VTX (ExpressLRS web flasher) Available from Expresslrs version 3.4.0 RC2 |
| Onboard 5.8g OPENVTX | Firmware version: OPENVTX MSP VTX PIT Mode support Channels:40ch Transmitting Power: 0/RCE/25mw/100mw/400mw Power supply: DC 5V Current (5v): <650ma (400mw) Antenna connector: U.FL |
