HGLRC 5.8G 80CH 10W FPV VTX 2-8S LiPo
HGLRC 5.8G 80CH 10W FPV VTX 2-8S LiPo
Regular price
$79.99 USD
Regular price
$99.00 USD
Sale price
$79.99 USD
Quantity
Couldn't load pickup availability
5.8G 10W High-Power Video Transmitter (Adjustable Power) for Aerial Photography / FPV Drone Racing**
**Advantages:**
* **10W High Power:** Ensures ample power output, suitable for long-range and ultra-long-distance flights.
* **4 Adjustable Power Levels:** PIT / 25mW / 200mW / 5W / 10W.
* **Excellent Heat Dissipation:** Features a CNC-machined one-piece upper/lower shell design combined with a cooling fan for powerful heat dissipation and stable performance.
* **Easy Frequency Adjustment:** Utilizes a dual-function button paired with a clear digital display tube for quick and accurate frequency tuning.
* **Supports IRC Tramp Protocol:** Allows for OSD parameter adjustment.
* **Wide Voltage Input:** Supports 2-8S (7-36V).
* **Mounting Hole Pattern:** 20*20mm with M2 holes.

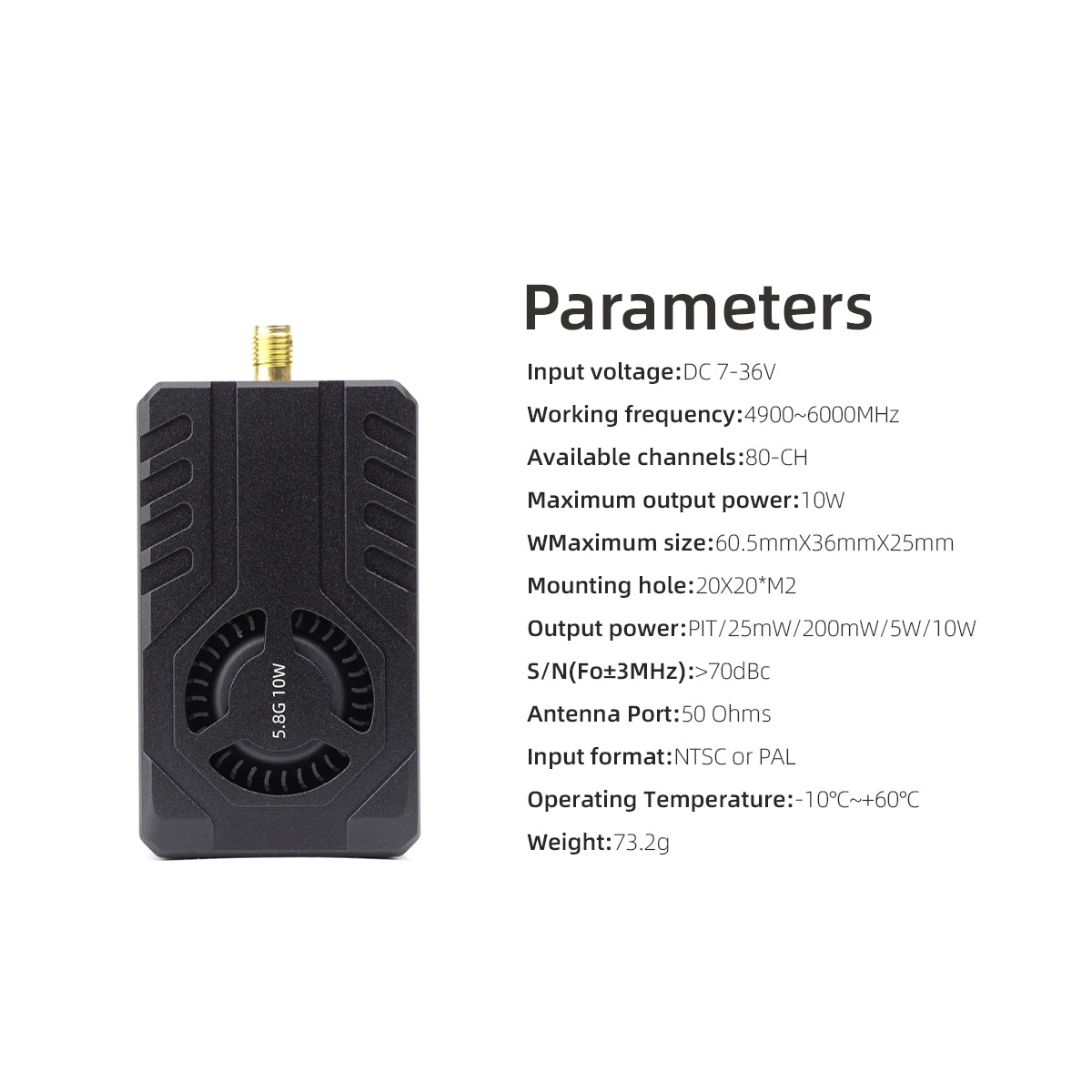

**Specifications:**
* Input Voltage: DC 7-36V
* Operating Frequency: 4900~6000MHz
* Available Channels: 80-CH
* Maximum Output Power: 10W

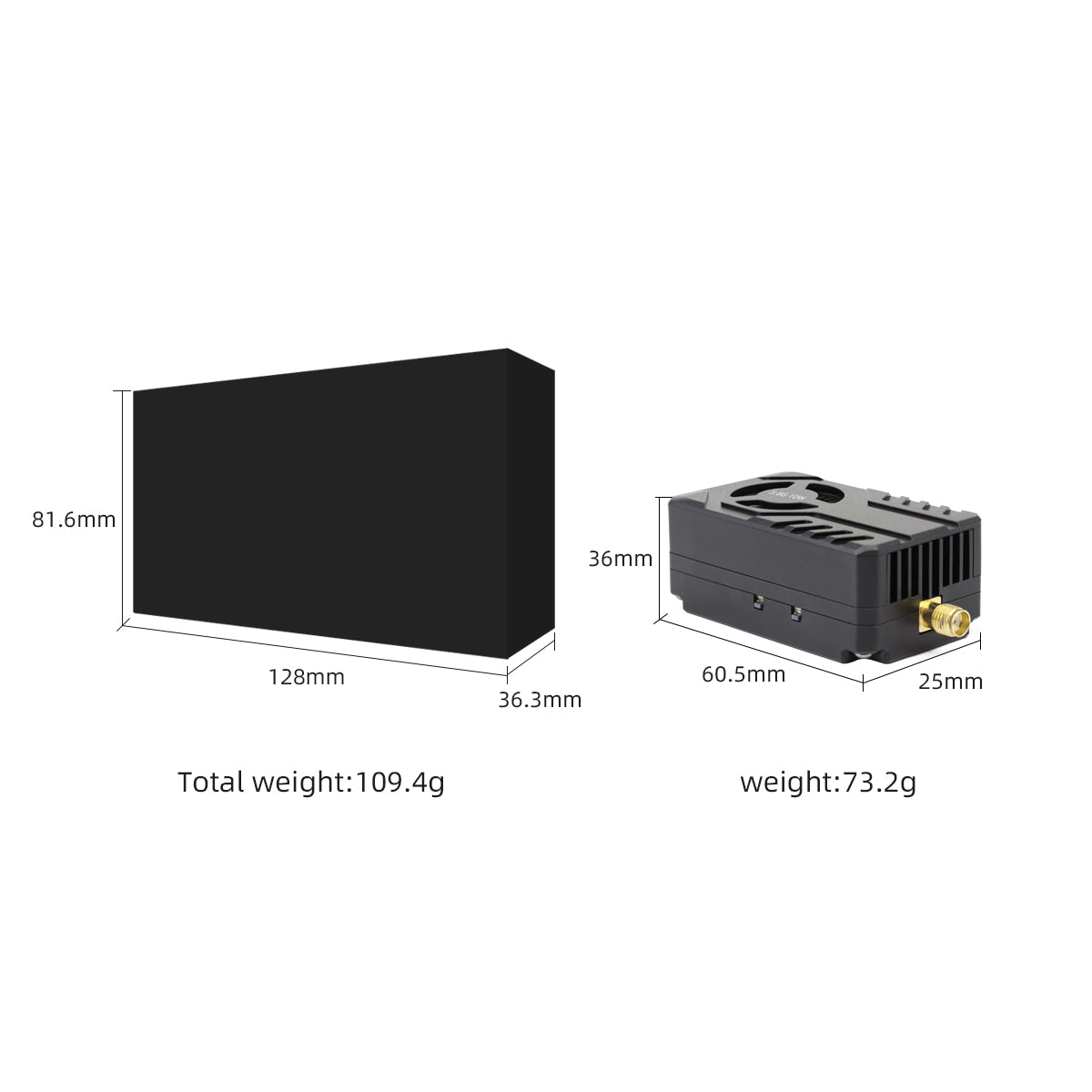

* Dimensions (L*W*H): 60.5mm x 36mm x 25mm
* Mounting Hole Pattern: 20 x 20mm, M2 holes
* Output Power Levels: PIT / 25mW / 200mW / 5W / 10W
* Signal-to-Noise Ratio S/N (Fo±3MHz): >70dBc
* Antenna Port Impedance: 50 Ohms
* Input Signal Format: NTSC or PAL
* Operating Temperature: -10℃ ~ +60℃
* Weight: 73.2g

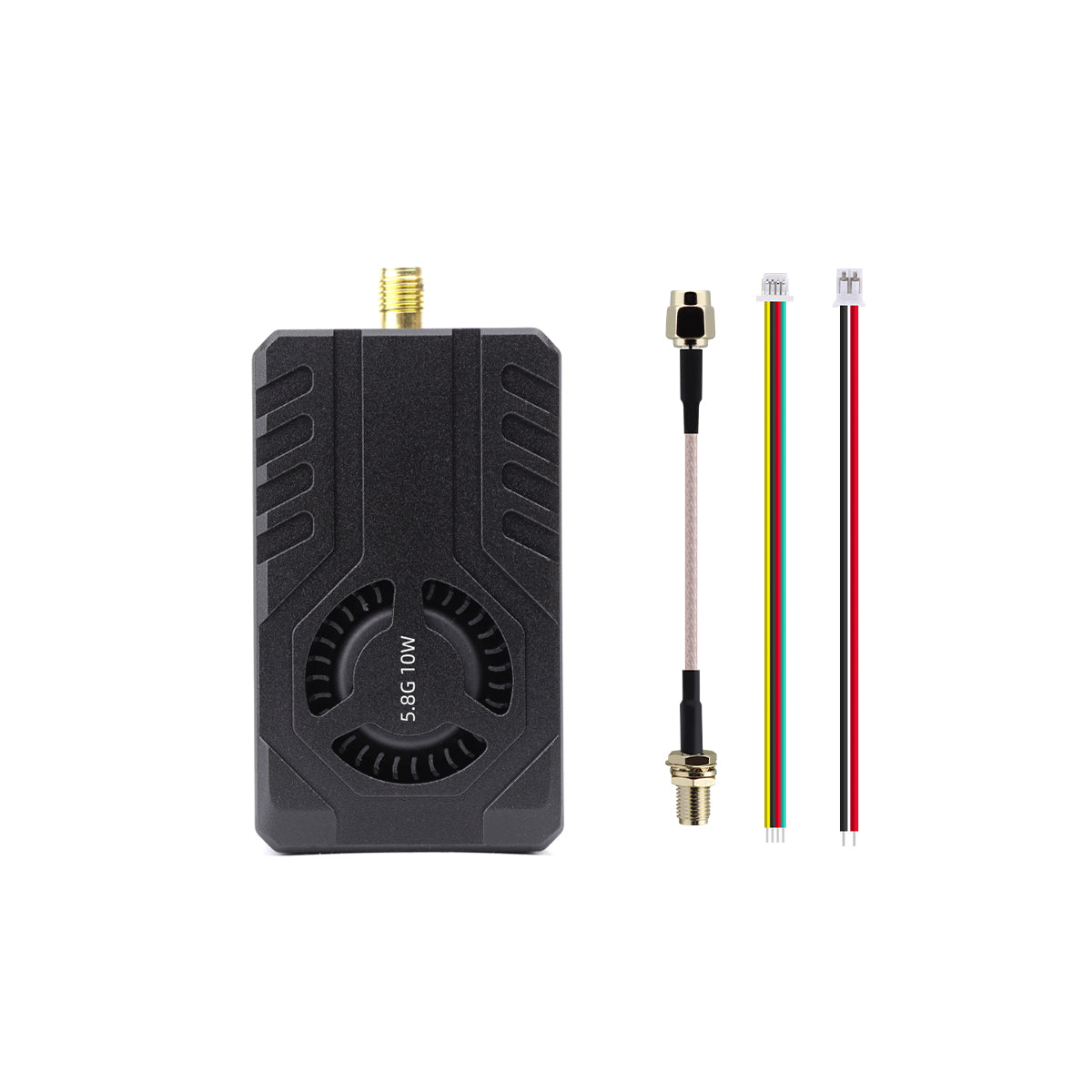

**Included Accessories:**
* 1 x 5.8G 10W VTX
* 1 x 4P Single-Ended Tinned Connection Cable
* 1 x PH2.0 Single-Ended Tinned Connection Cable
* 1 x Straight SMA Male (Plug) to Straight SMA Female (Jack) Adapter Cable (RG316 Cable), Total Length 100mm
