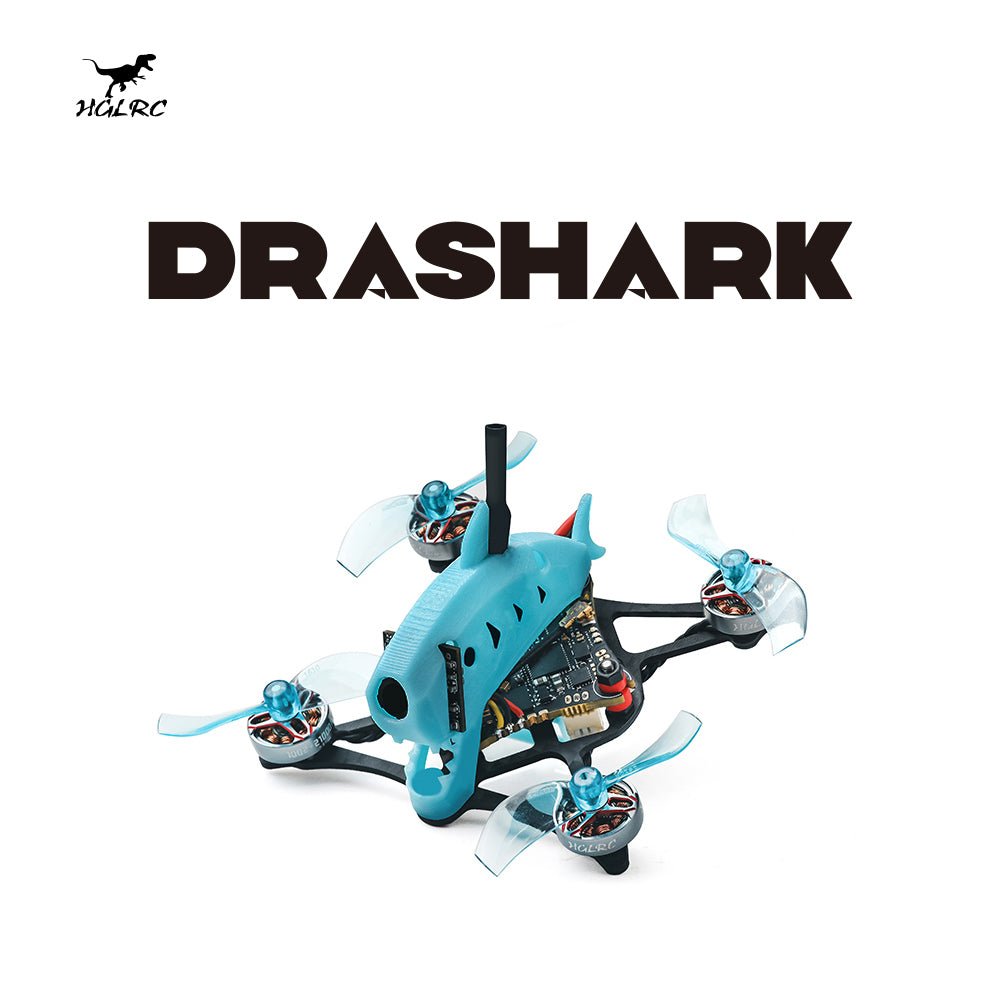

HGLRC Drashark 1.6inch Toothpick FPV Drone

Drashark:

HGLRC Drashark (Dragon shark) is a 1.6-inch toothpick fpv drone, suitable for indoor or outdoor light flight

Drashark Naming inspiration from Dragon ➕ Shark, So translated as Drashark, hence the name

The new SPECTER 5 in1 AIO integrated ESC, flight control, 5.8G VTX , elrs receiver and Betaflight OSD

Using Caddx camera, clear and sharp picture;

Built-in integrated 400mw simulation map transmission, up to 48 CH, stable and efficient;

The drone with the new SPECTER 1002 motor, strong power;

Standard Gemfan1610 two-blade propeller, silky flight and flight sound is only 70 decibels;



light and handy size , the weight of about 30g, a single battery life of about 5 minutes;

Straight plug motor, no welding is more convenient;

Built-in integrated SPI elrs3.0 receiver, built-in antenna, can be connected to black sheep receiver, customized miniature T-shaped antenna, reduce weight;

Recommended use: 1s 550mah high voltage battery， drone battery plug is A30 plug

Drone parameter:

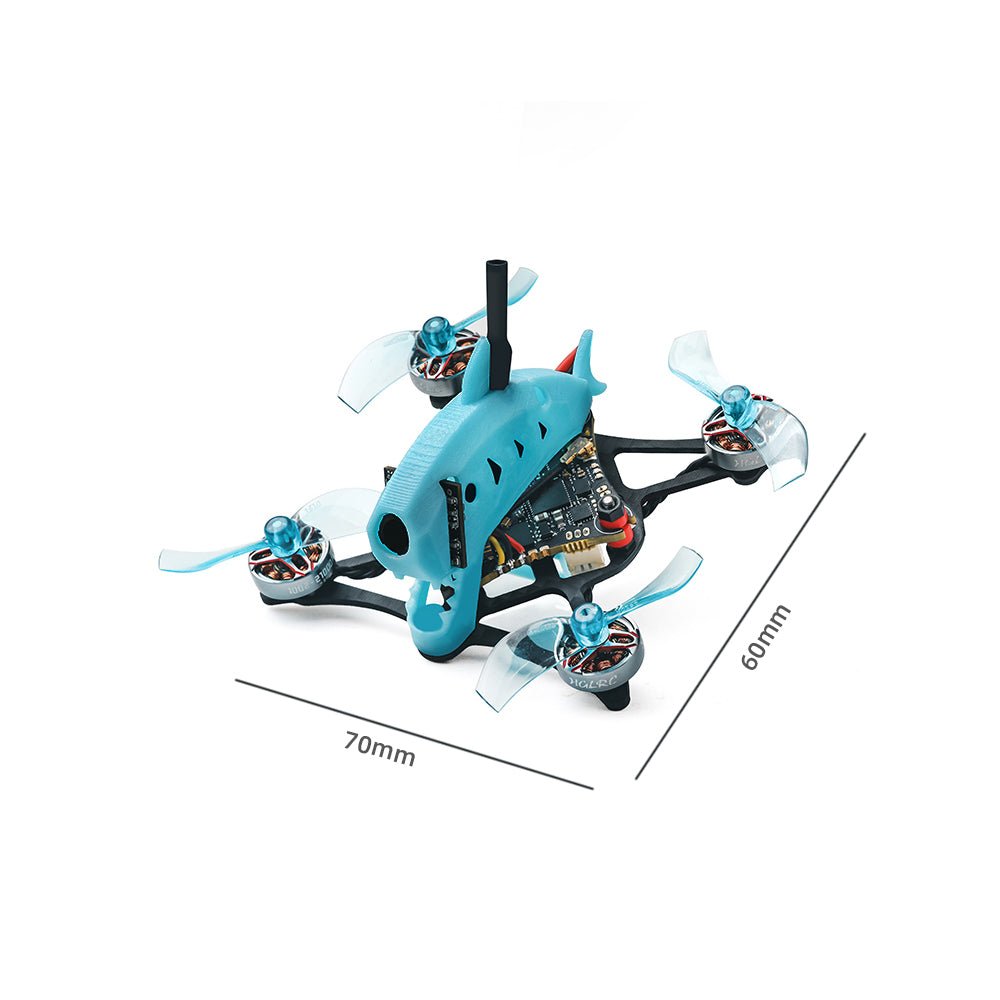

Frame: Drashark 75mm frame

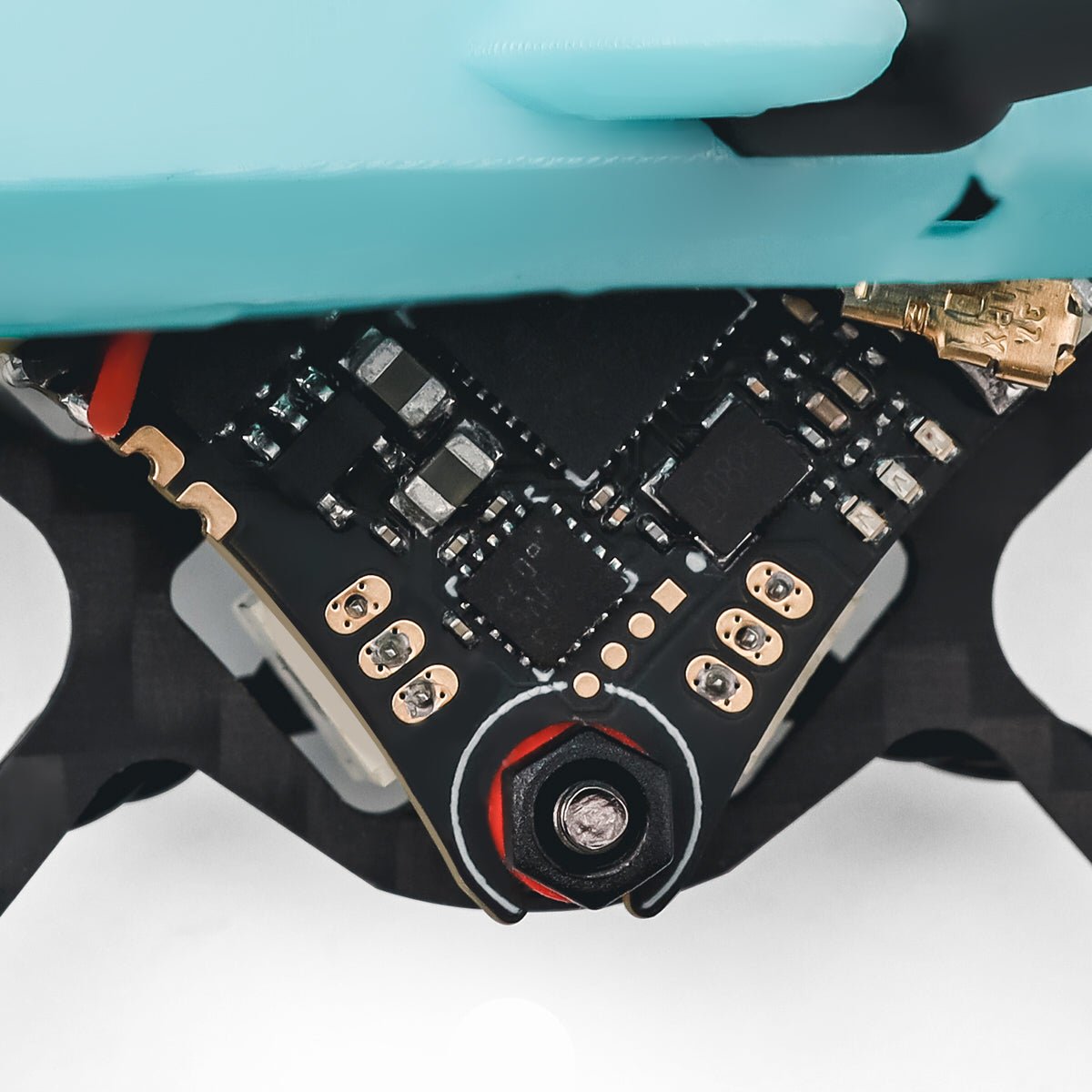

Flight control: HGLRC SPECTER 10A F411AIO

MCU：STM32F411

Gyro：ICM42688

Built-in receiver: SPI ExpressLRS 2.4G

Built-in VTX: 25-100-400 mW (adjustable)

integrated ESC: Continuous current: 10A; peak current:13A (10s)

Electromodulation protocol: Dshot600, Oneshot, Multishot; electric firmware:Z-H-30 (Bluejay)

Flight control firmware: HGLRCF411SX1280 V2

Input voltage: 1-2 S 3.7-7.4v (Lipo)

Installation hole position: 25.5X25.5mm.M2

Motor: SPECTER 1002 21000kv Motor
Propeller: Gemfan 1610 two-blade

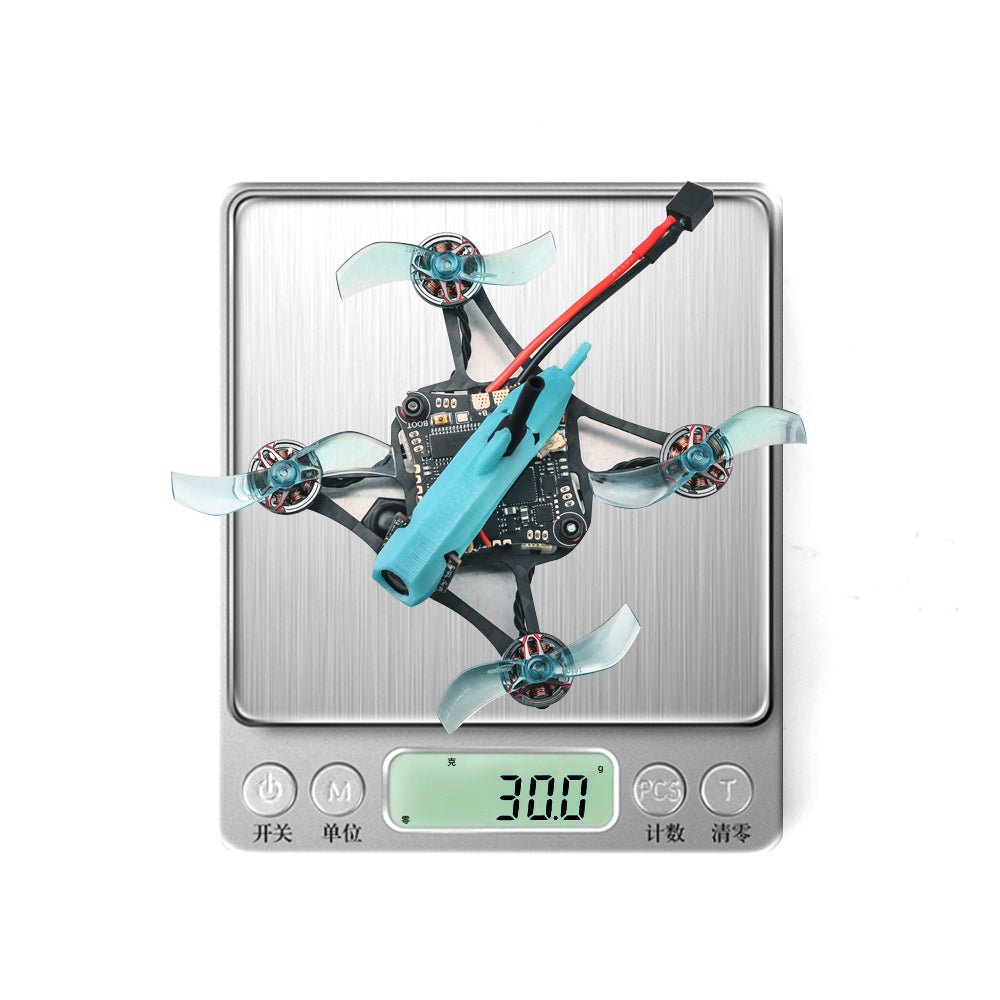

weight: 30g

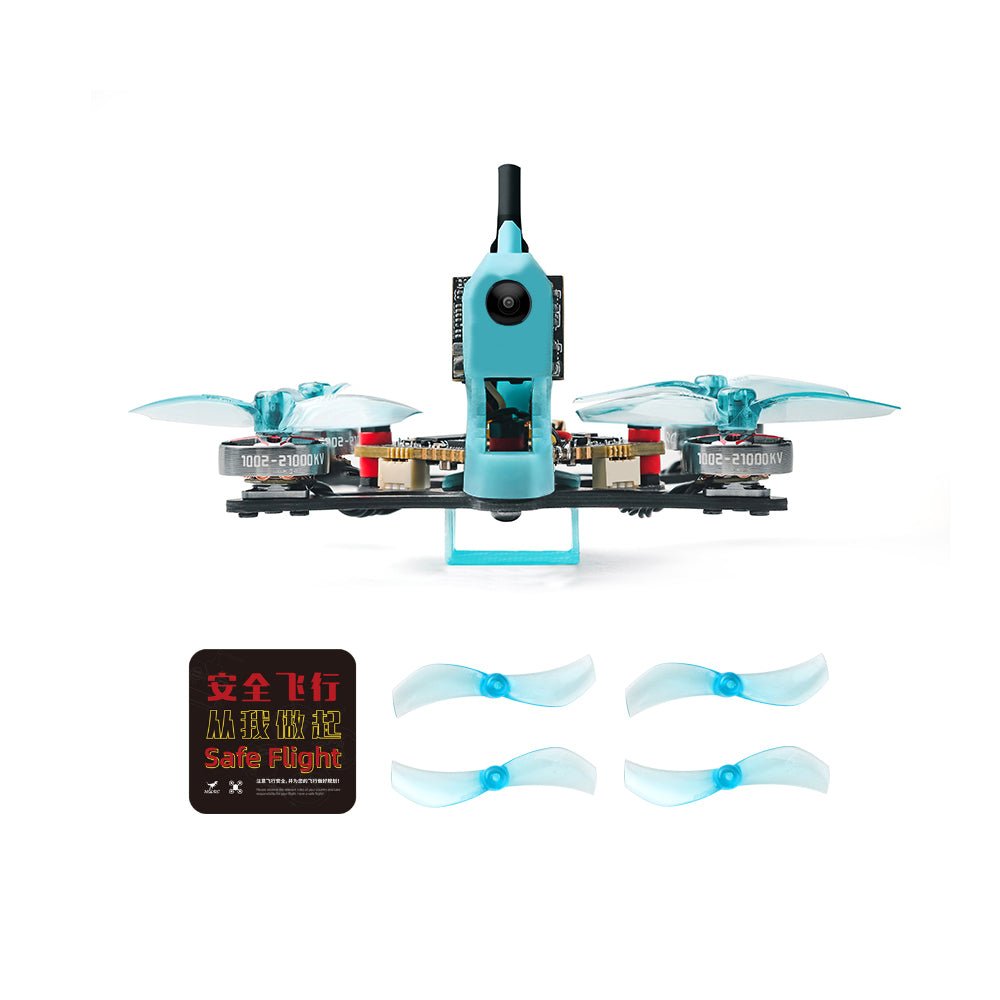

packing list:

1x Drashark drone

1x Drashark TPU green battery compartment

1x Gemfan 1610 two-blade propeller 40mm-PC blue 1.5mm (4 pairs / pack)

1 xPP plastic square box, size: 82 * 82 * 40mm
