HGLRC MY15 15inch Long Battery Life FPV Frame

Frame: HGLRC MY15 Frame

Type: 15-inch Frame

Top Plate Thickness: 2mm

Middle Plate Thickness: 4mm

Bottom Plate Thickness: 3mm

Arm Thickness: 10mm

Camera Side Plate Thickness: 2mm

Frame Wheelbase: 635mm

Flight Controller Mounting Holes: 30.5mm*30.5mm*M3

VTX Mounting Holes: 30.5mm*30.5mm*M2

25.5mm*25.5mm*M2

20mm*20mm*M2

Motor Mounting Holes: 30mm*30mm*M4

Lens Mounting Holes: 19-20mm

External Dimensions: 510mm*510mm

Single Frame Weight: 784.3g±5g (including antenna mount, screws, and anti-slip pads)

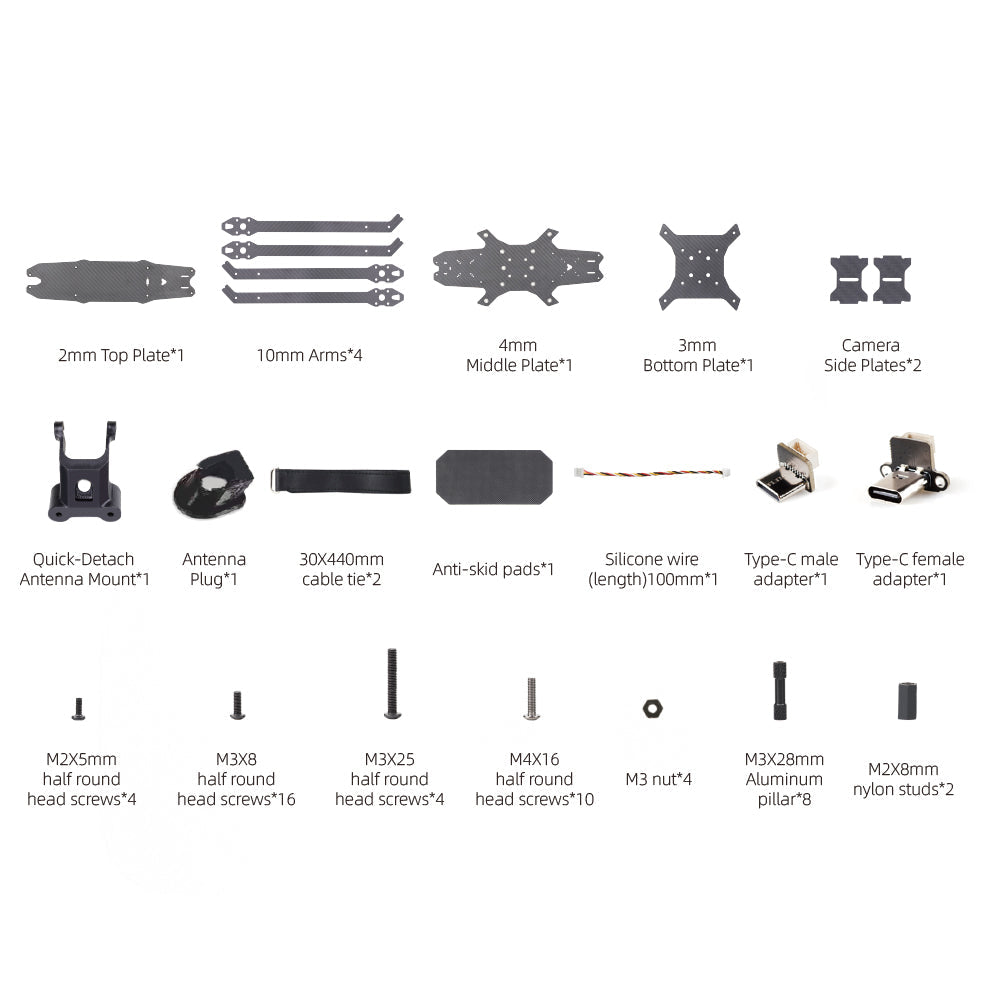

Shipping List:

1 * HGLRC MY15 Frame

4* M2*5 half-round head screws

16* M3*8 half-round head screws

4* M3*25 half-round head screws

10* M4*16 half-round head screws

4* M3 nylon nuts

8* M3*28 aluminum posts+

2* M2*8 double-through nylon posts

1* Quick-release antenna mount

1* Antenna plug

2* 30*440mm cable ties

1* Anti-slip pad

1* Type-C male/female adapter

1* Type-C 4-pin ribbon cable
