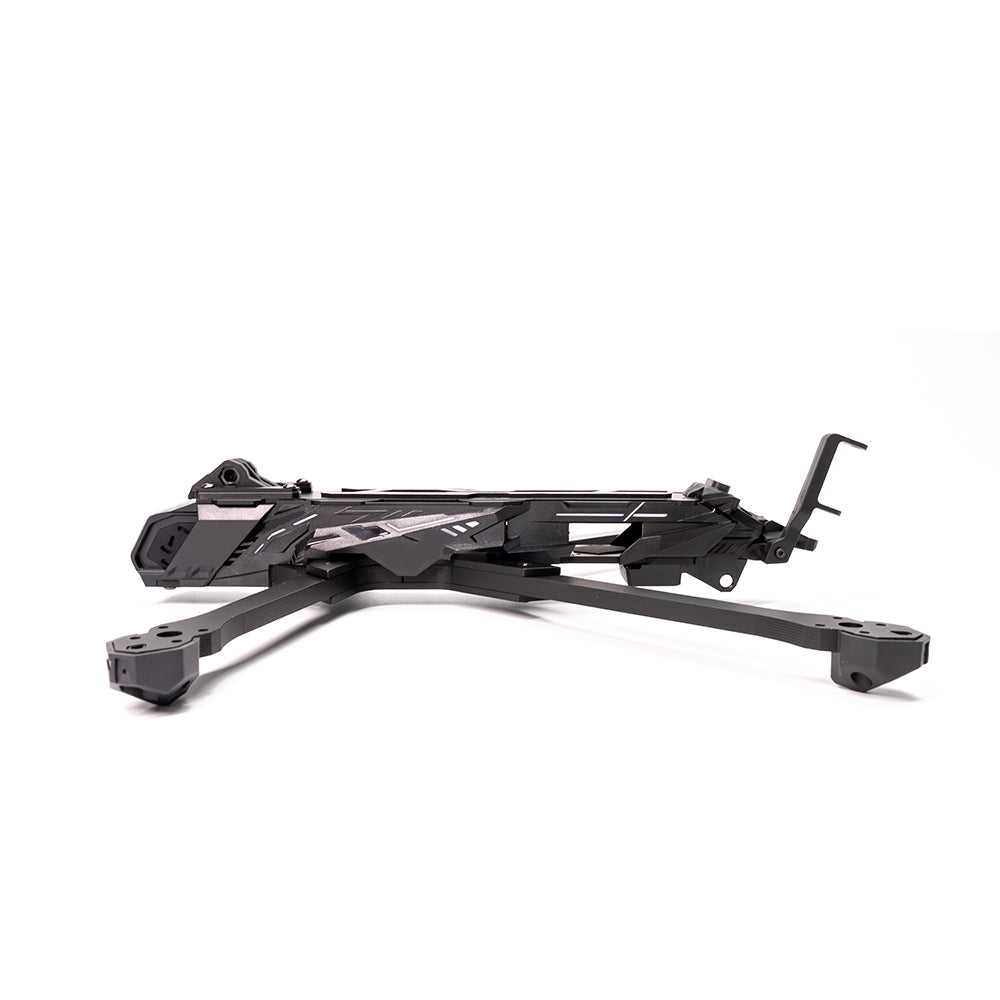

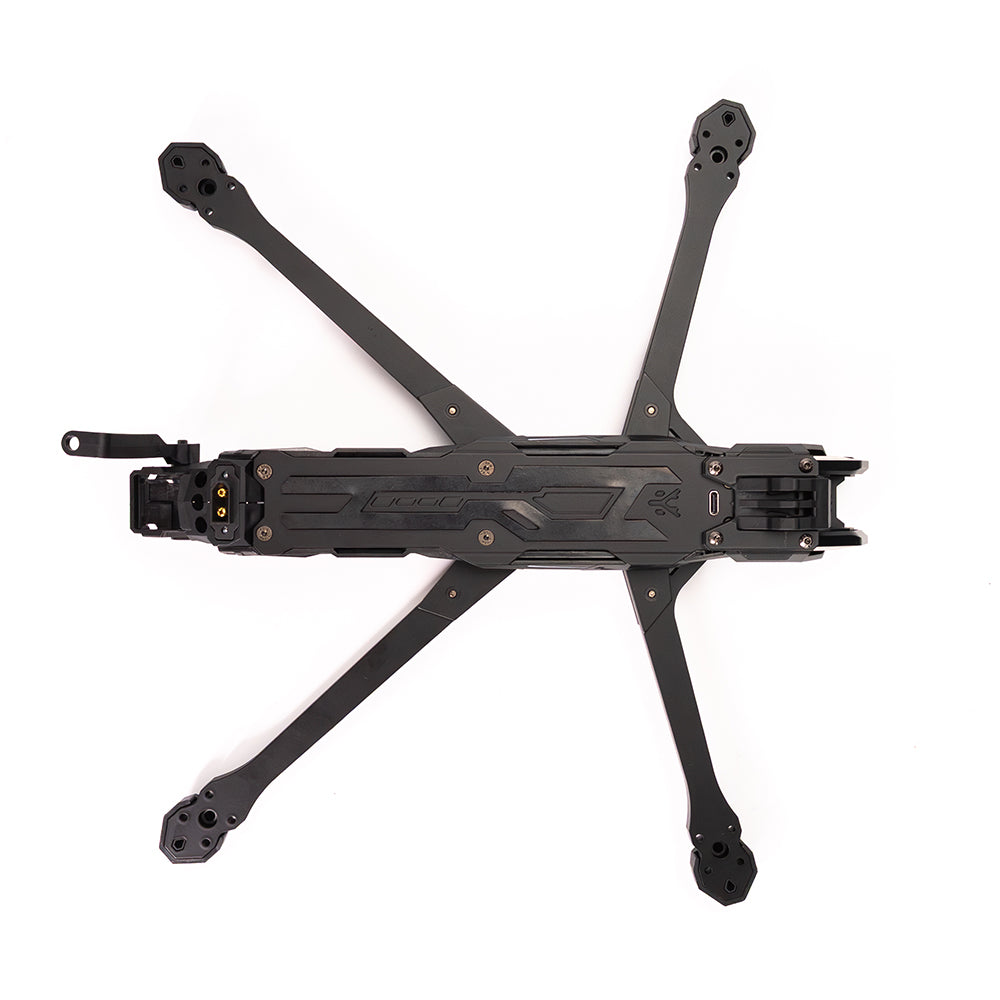

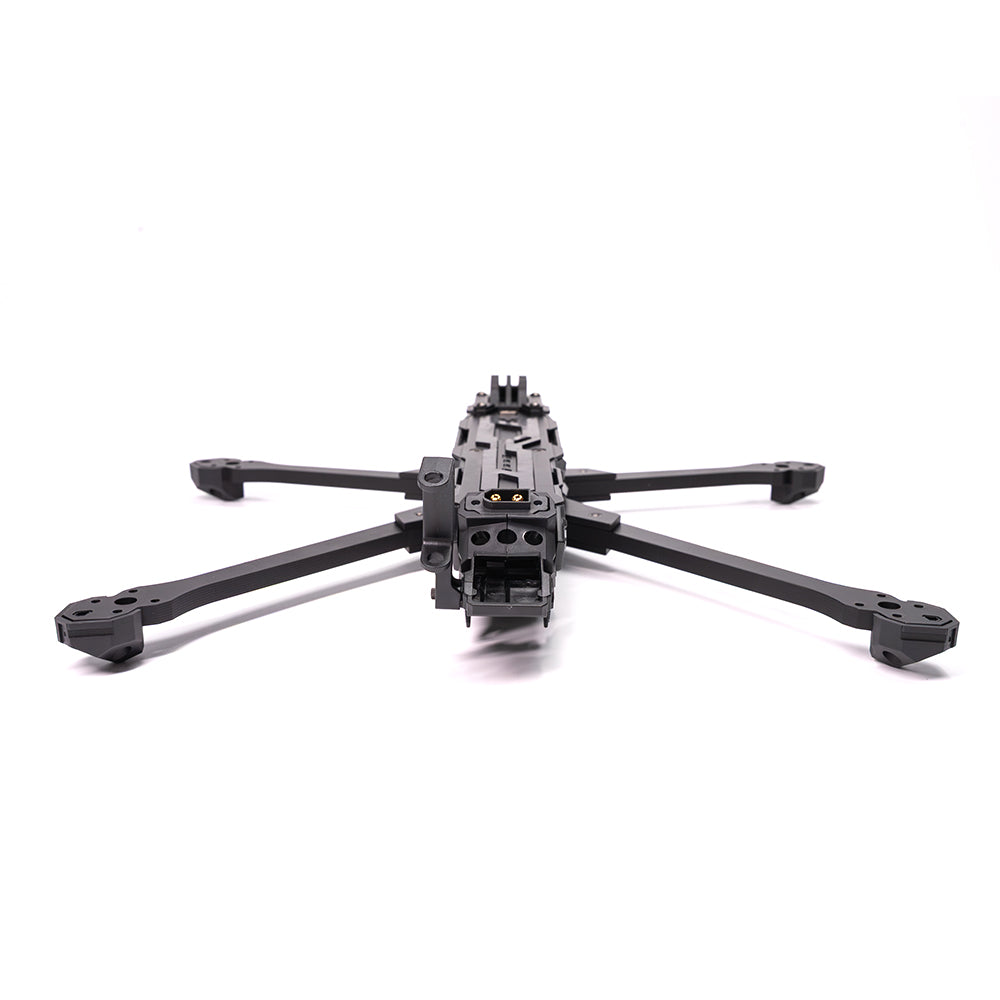

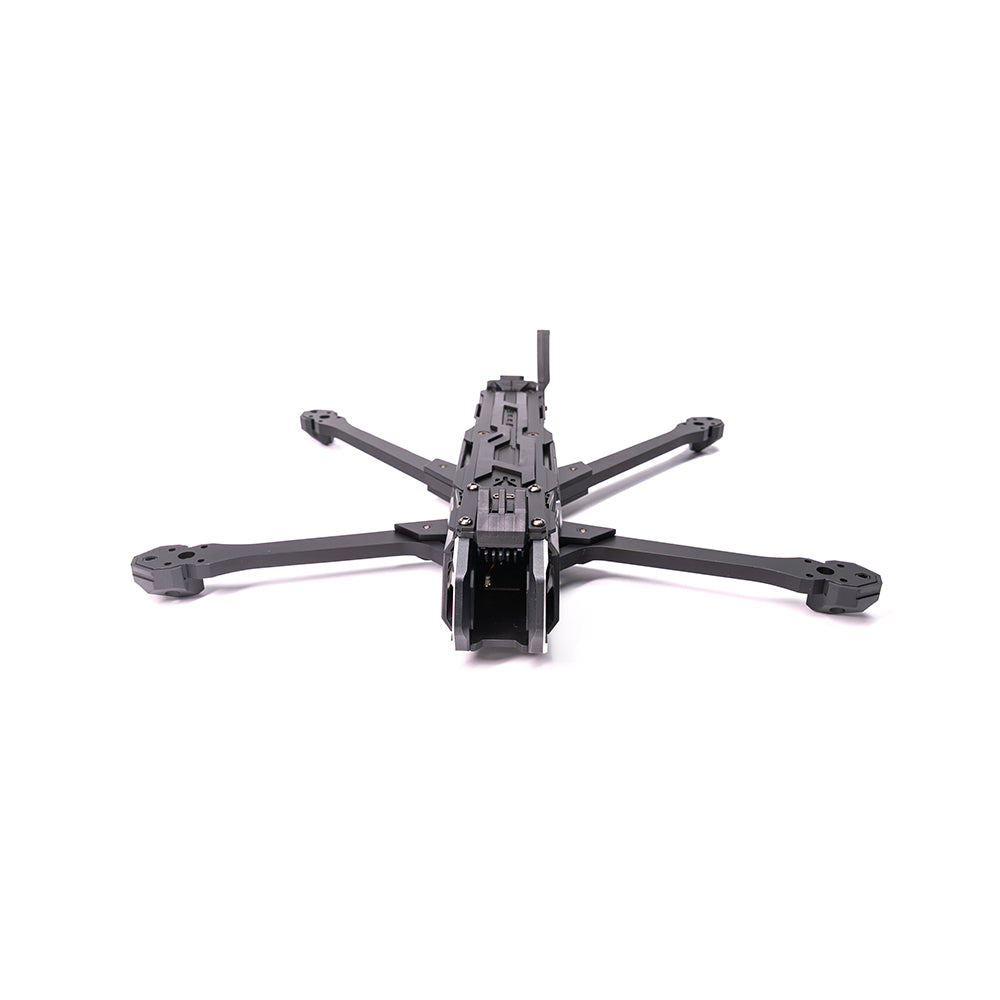

HGLRC Nblade Pro 7inch Freestyle Cinematic FPV Frame

Product Features

1. Streamlined high-strength frame: adopts a newly designed slender body, combining aesthetics and sturdiness to achieve a perfect balance between shape and high strength:

2. Wear-resistant injection molded parts: abandon traditional FDM prints, use high-wear-resistant mold injection ABS\PP parts, significantly improve shock absorption and buffering performance and overall durability;

3. Fully covered side plate protection: The side plate of the fuselage are fully covered to protect the internal electronic equipment without fear of flying sand and rocks intrusion;

4. Independent quick-release receiver compartment: a dedicated independent receiver compartment is set up to say goodbye to the crowded and messy internal frequency debugging, maintenance and replacement are convenient and efficient:

5. Colorful RGB lighting effect system: equipped with colorful RGB LED light strips, support independent APP wireless control, customized lighting effects, let your drone become the most dazzling focus in the night sky.

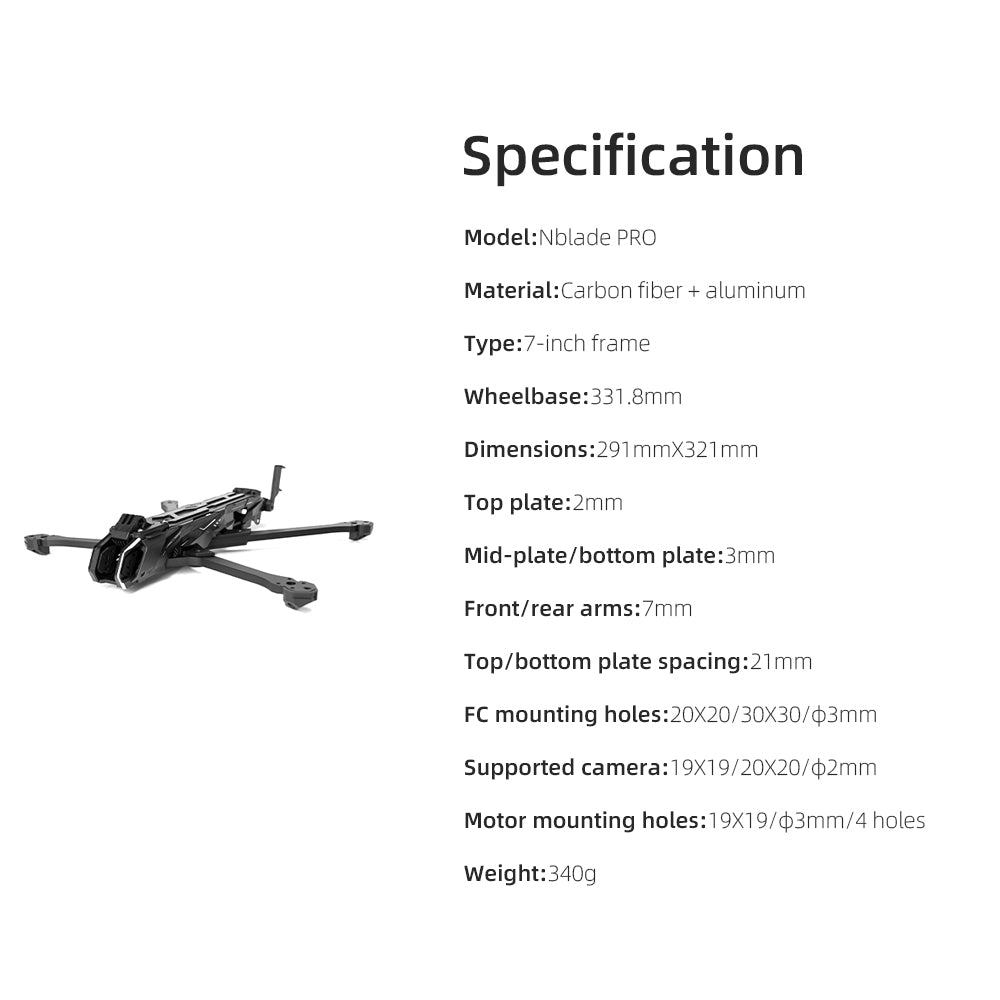

Model: Nblade PRO

Material: Carbon fiber + aluminum

Type: 7-inch frame

Wheelbase: 331.8mm

Dimensions: 291mm×321mm

Top plate: 2mm

Mid-plate/bottom plate: 3mm

Front/rear arms: 7mm

Top/bottom plate spacing: 21mm

FC mounting holes: 20x20/30×30/φ3mm

Supported camera: 19×19/20x20/φ2mm

Motor mounting holes: 19×19/φ3mm/4孔

Weight: 340g

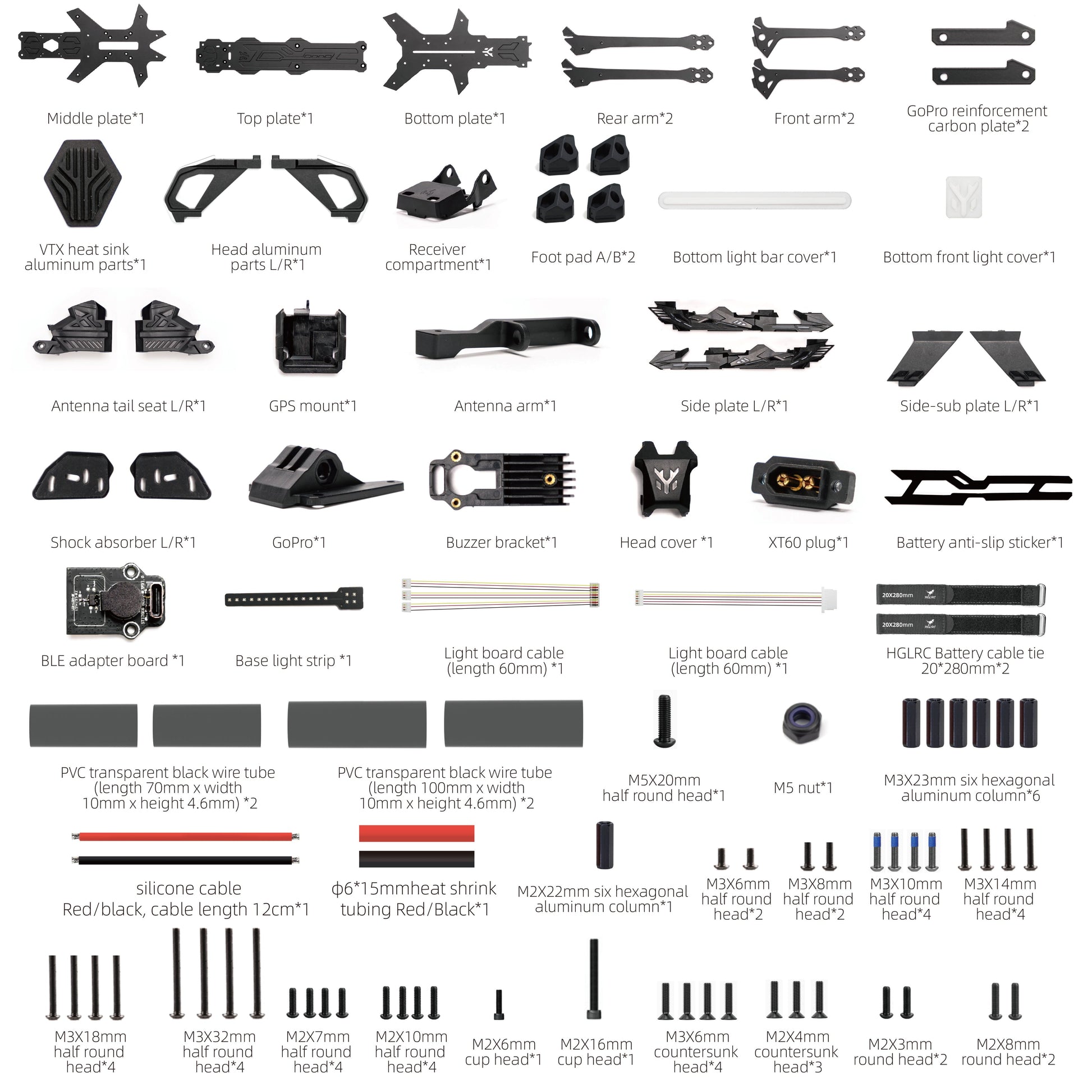

Shipping list

Bottom plate

Middle plate

Top plate

Front arm x2

Rear arm x2

Head aluminum part L

Head aluminum part R

GoPro reinforced carbon sheet x2

VTX heat dissipation aluminum part

Camera shock pad L

Camera shock pad R

GoPro

Foot pad A x2

Foot pad B x2

Antenna tail seat L

Antenna tail seat R

GPS mount

Receiver compartment

Antenna arm

Battery anti-slip sticker

Buzzer mount

Side plate L

Side plate R

Side sub-plate L

Side sub-plate R

Bottom light bar cover

Bottom front light cover

Head cover

Semi-circular head M5*20

Self-locking M5 nut

BLE adapter small board

Bottom light bar

0.8mm piercing terminal wire 6P

0.8mm piercing terminal wire 9P—3P*3

XT60EW-M male head

PVC cable bundle 70mm x2

PVC cable bundle 100mm x2

HGLRC battery strap



M3*6 half round head X2

M3*18 half round head X4

M3*14 half round head X4

M3*32 half round head X4

M3*8 half round head X2

M3*10 half round head X4

M3*6 countersunk head X4

M2*4 countersunk head X3

M2*3 round head X2

M2*6 cup head X1

M2*16 cup head X1

M2*8 round head X2

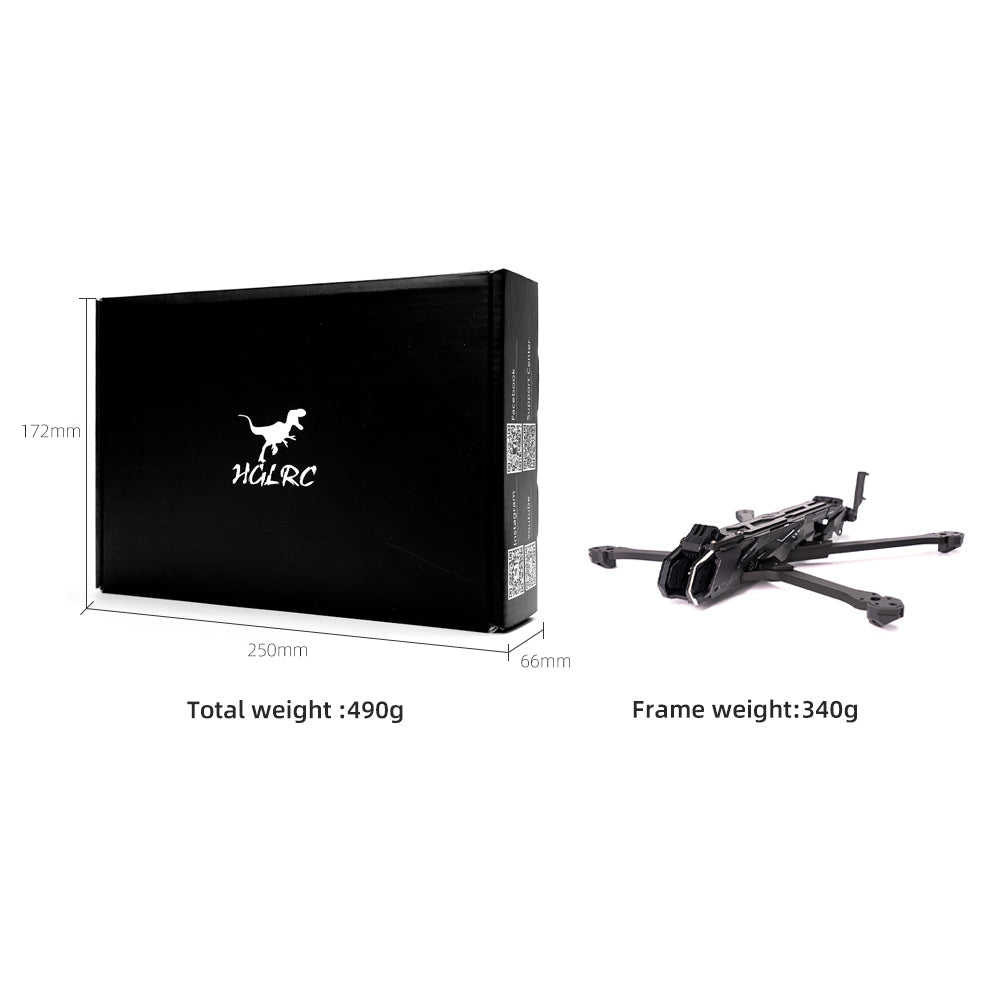

Packing list

Nblade PRO Frame X1

HGLRC 2023 large sticker X1

Universal QR code instruction manual X1

HGLRC battery strap X2

Nblade PRO Frame packaging box X1
