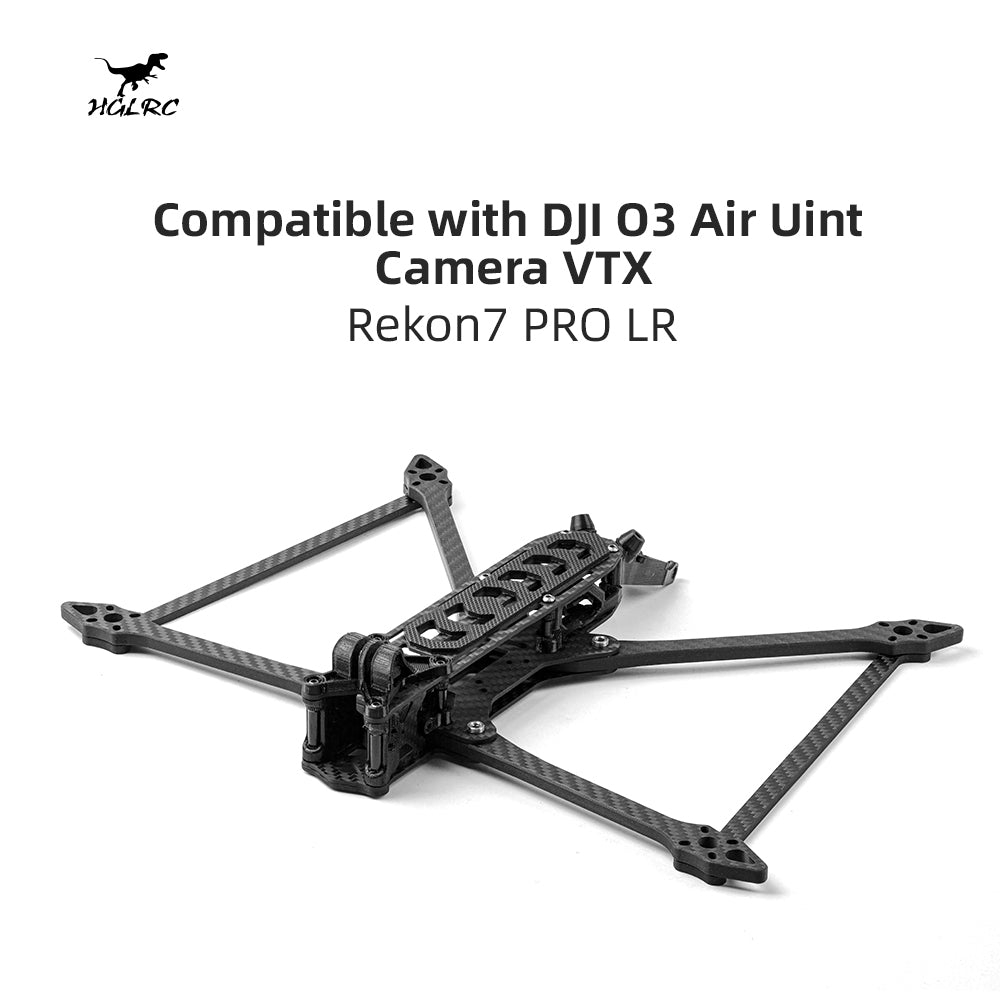

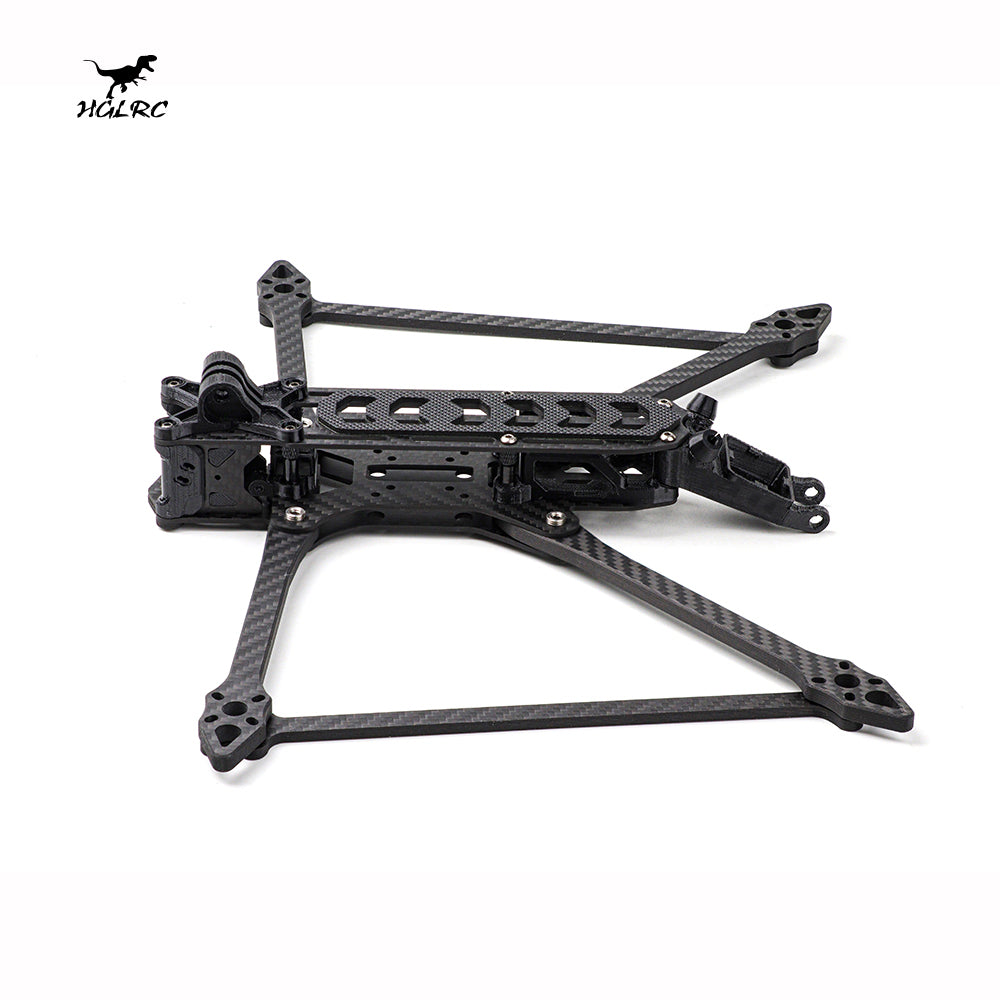

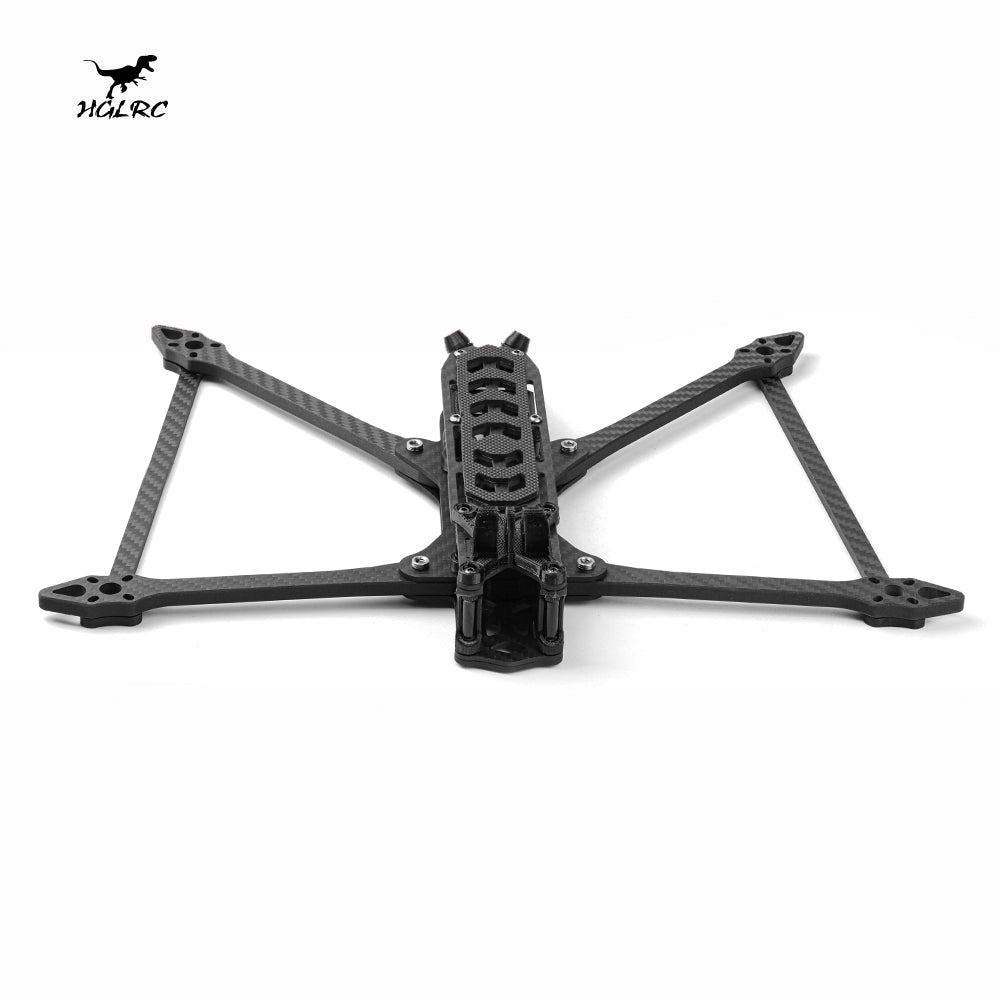

HGLRC Rekon7 Long Range HD O3 Frame Kit

HGLRC Rekon7 Long Range HD O3 Frame Kit

Regular price $69.99 USD
Regular price $89.99 USD Sale price $69.99 USD
Sale Sold out
Product name:Rekon
Model:Rekon7 LR Frame kit
Material:3K Carbon fiber
Type:7 inch
Wheelbase:324mm
Size:337*246mm
Top plate thickness:2mm
Bottom plate thickness:2mm
Middle plate thickness:2mm
Front arm:6mm
Rear arm:6mm
Frame protection bar:2mm
Camera side plate:2mm
Top and middle plate space:20mm
Flight controller mounting hole:20x20mm
Camera mount:19*19mm/20x20mm
Motor mounting hole:16*16/19*19mm
Weight:0g

Package includes:
1x 2mm top plate
1x 2mm base plate
1x 2mm mid plate
2x 6mm front arm
2x 6mm rear arm
2x 2mm rack protection board
2x 2mm camera side panel
2x 4mm Arm Reinforcement rod
2x M3*28mm black mesh aluminum column
4x M3*20mm black mesh aluminum column
2x M3*18mm black mesh aluminum pillar
4x M4*12 Screws
4x M3*20 Screws
4x M3*16 Screws
4x M3*10 Screws
8x M3*8 Screws
4x M2*20 Screws
1x M2*16 Screws
1x M2*10 Screws
2x M2*4 Screws
1x M5 lock nut (red)
4x M3 self-locking nuts
5x M2 self-locking nuts
8x M3*8 shock-absorption balls
4x M2*4 shock-absorption balls
2x battery straps 20x250mm
1x Battery Anti-slip pad
1x TPU black GoPro holder mount
1x TPU black GPS mount
1x TPU black antenna mount
1x TPU black T-antenna mount
1x TPU black buzzer mount
1x TPU black DJI Air unit Block A
1x TPU black DJI Air unit Block B
1x TPU black DJI O3 holder mount
1x TPU black Camera converting seat

Recommended parts:(not included)
Flight control:Zeus F722
Motor:2806.5
ESC:Zeus 48-60A
Camera:19X19mm/20x20mm
Propeller:7 inches
Battery:6S 1800-4200mAh
