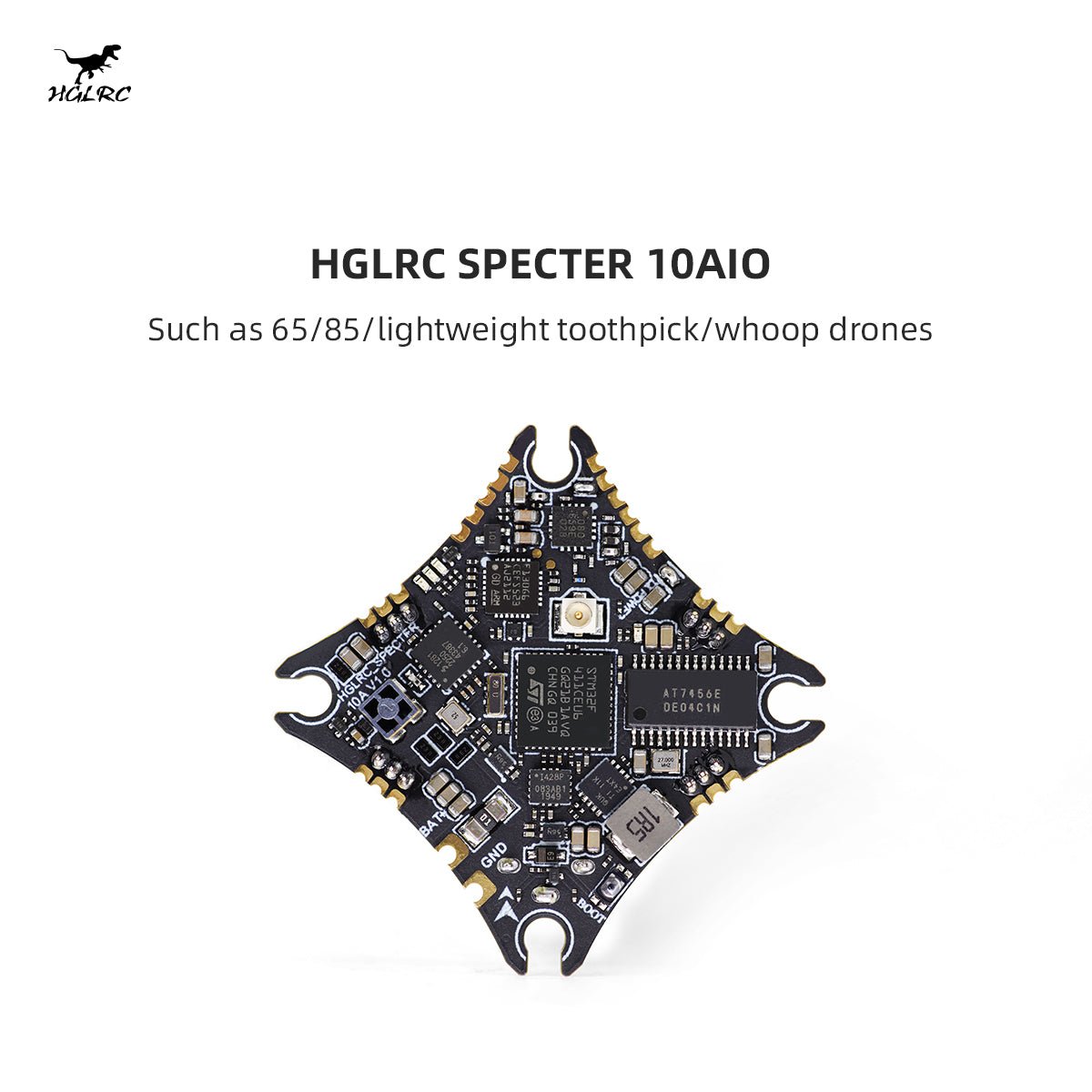

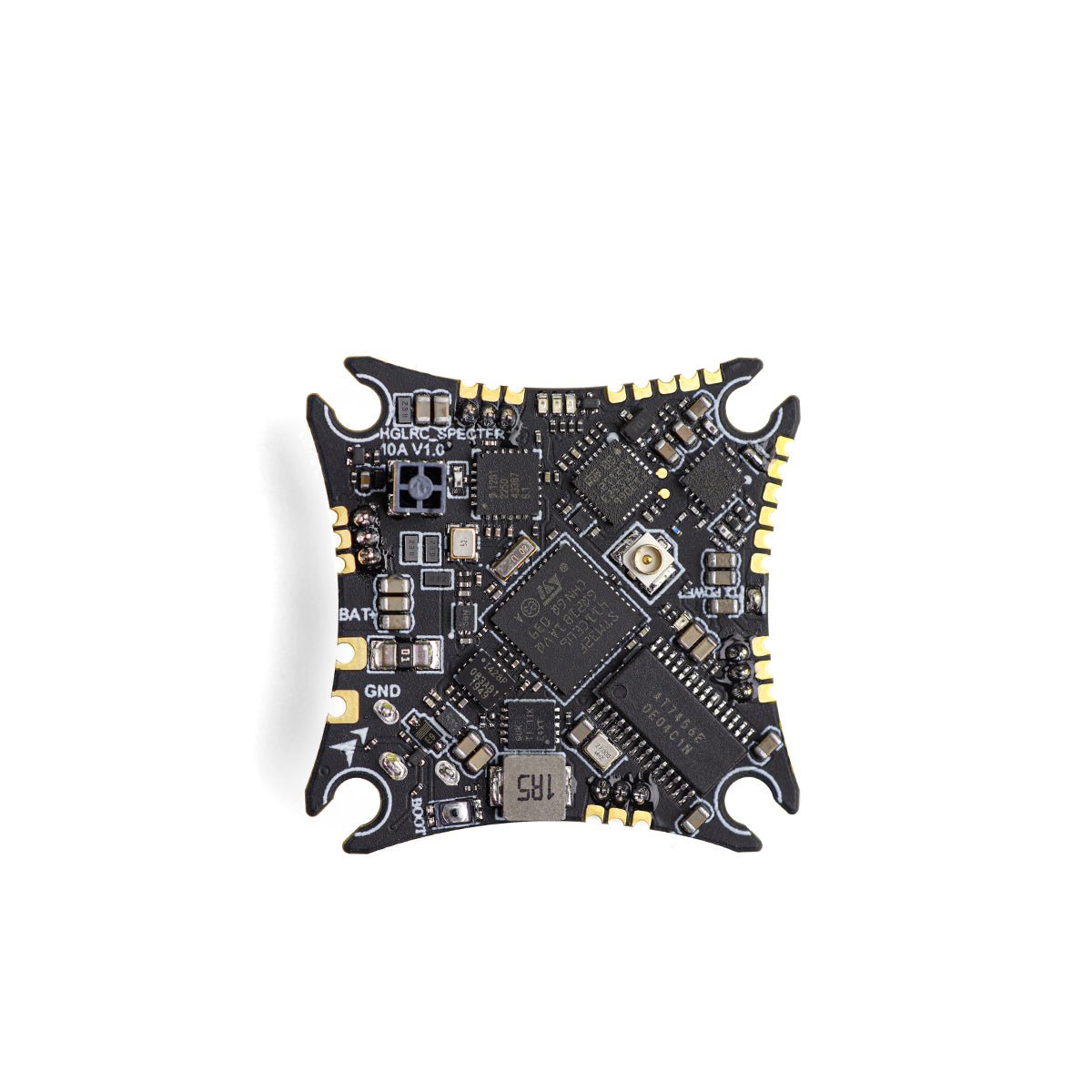

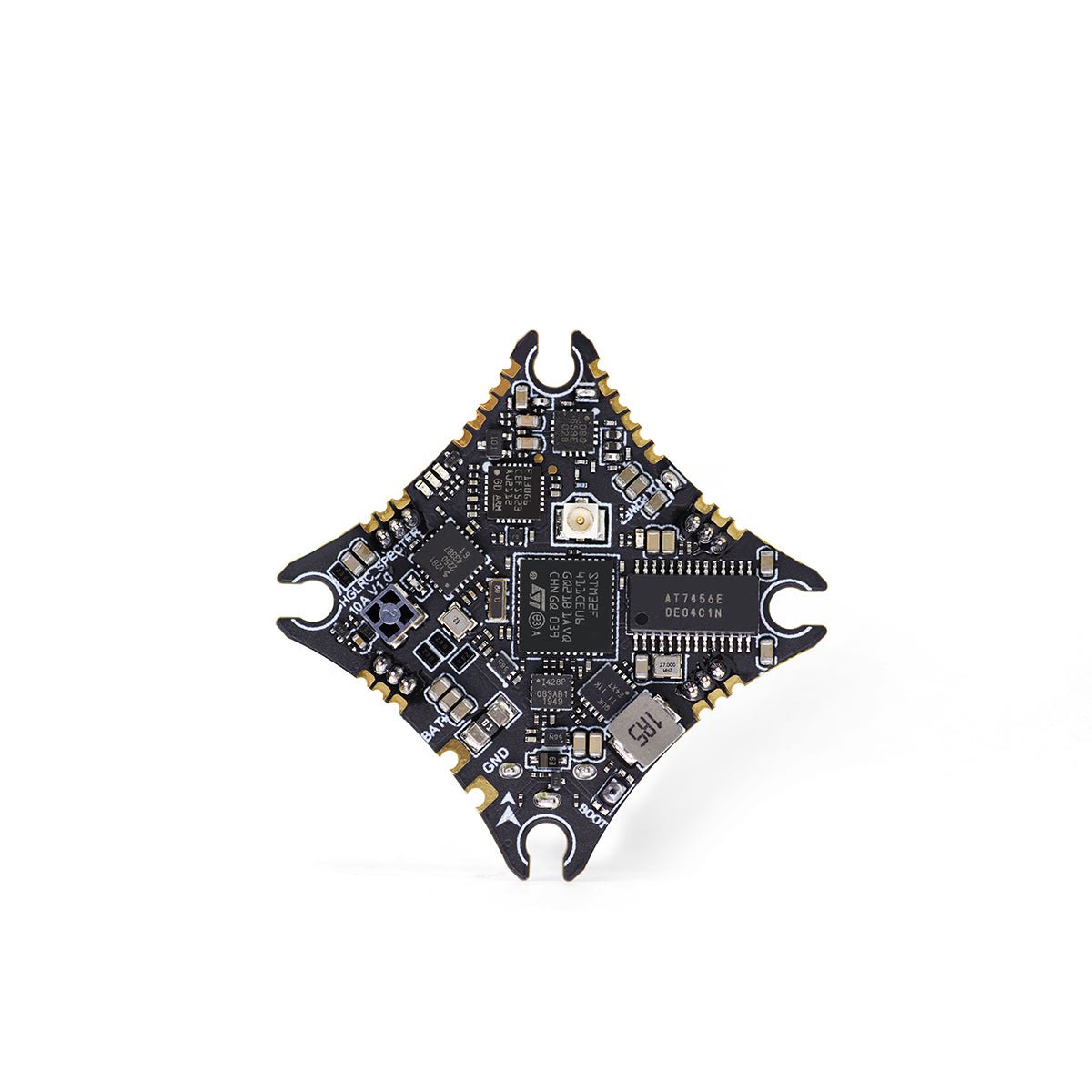

HGLRC SPECTER 10A 1-2S ELRS AIO

Summary：
This is an ultra-light F411 10A 1-2S AIO integrated brushless flight controller, integrated SPI ExpressLRS 2.4G receiver, and integrated 400mW 5.8GHz adjustable power video transmission at the same time
The SIP ELRS receiver uses patch ceramic antennas to solve the short-distance problem of the ancient SIP D8/D16 protocol. The ELRS receiver superimposes 400mW high-power video transmission to easily fly around the harsh indoor environment.The built-in receiver has the characteristics of high sensitivity, high refresh rate and low delay, and is loved by many FPV enthusiasts. This AIO flight controller is fully compatible with 65/75/85mm/lightweight toothpick drone/whoop series and other frames on the market


Features：
* Built-in SPI ELRS receiver/or external CRSF protocol receiver
* Built-in integrated TBS 400mW 5.8GHz analog video transmission
* Independent 3P socket, which can be directly connected to the motor
* By default, the Bluejay firmware is flashed to improve the flight efficiency, which is the best choice for the drone
* Compatible with all 65mm-85mm hoop/toothpick frames
* Maximum support for input voltage of 1-2s


Specification:
Product name: SPECTER 10A 1-2S AIO
MCU: STM32F411
MPU: IXM42688
BEC: 5V1.5A
OSD: support
LED: support
Buzzer: support
UARTS: UARTS1 image transmission OSD Adjustment parameters/UARTS2 CRSF protocol receiver/ VTX HD
Built-in receiver: SPI ExpressLRS 2.4G
Built-in receiver frequency: 2.4GHZ
Built-in image transmission: 25-REC-100-400mW (adjustable)
Built-in image transmission frequency: 48CH-5.8ghz
Continuous current: 10A
Peak current: 13A (10s)
ESC protocol: Dshot600, Oneshot, Multishot
Flight control firmware: HGLRCF411SX1280 V2
ESC firmware: Z-H-30 (Bluejay)
Input voltage: 1-2S 3.7V-7.4V (Lipo)
Size: 32x32mm
Mounting hole: 25.5X25.5mm.M2
Weight: 4.9g

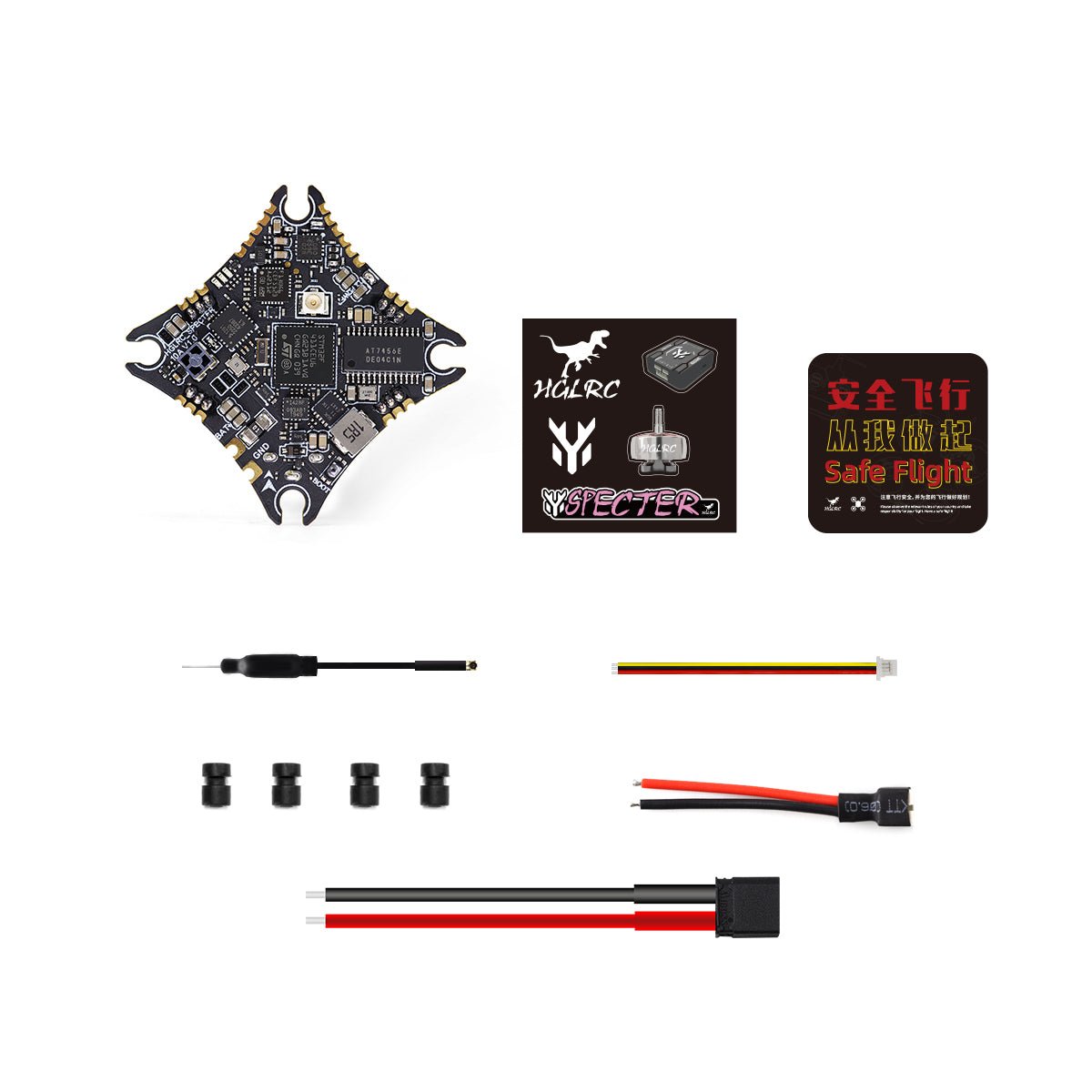

Shipping list:
1x SPECTER 10A 1-2S AIO
1x XT30U-M 22AWG 70mm male power cord
1x PH2.0-2P 22AWG 35mm male power cord
1x MX1.25-3P 30AWG 75mm camera cable
4x M2*6.6 Shock-absorbing column
