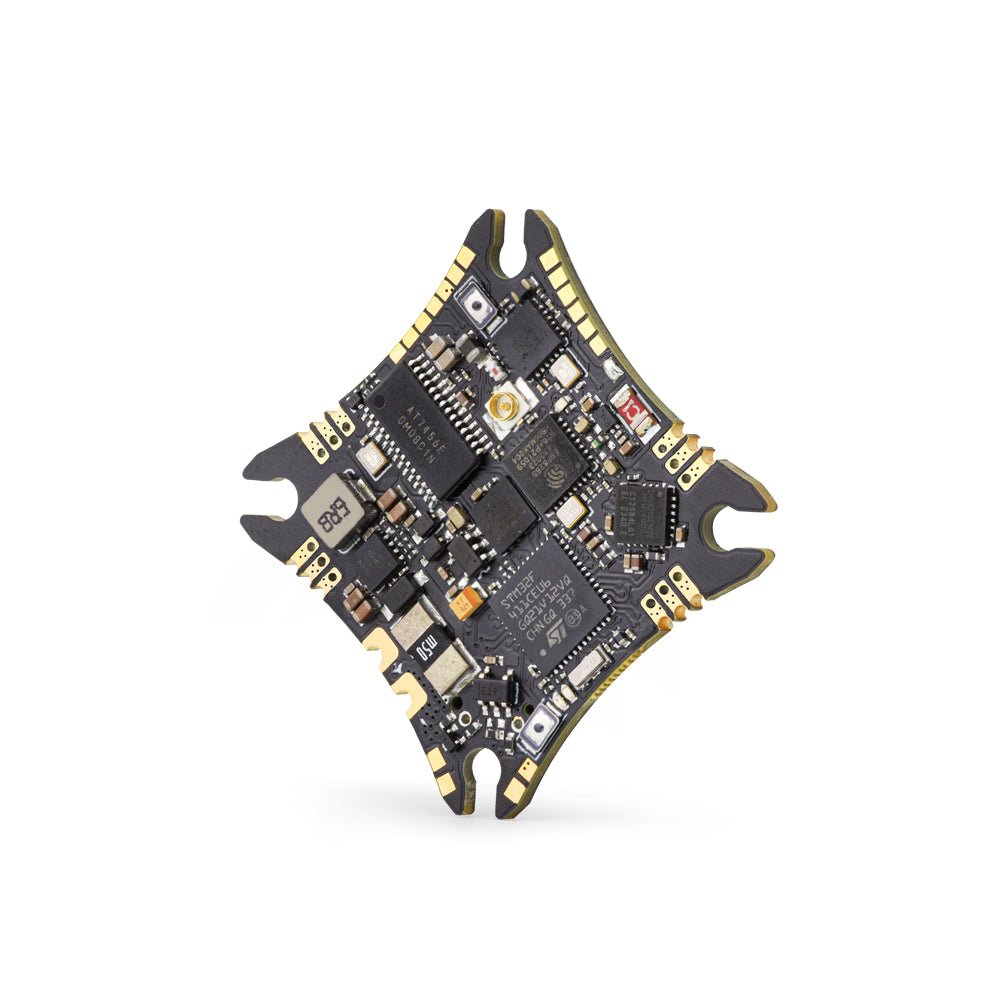

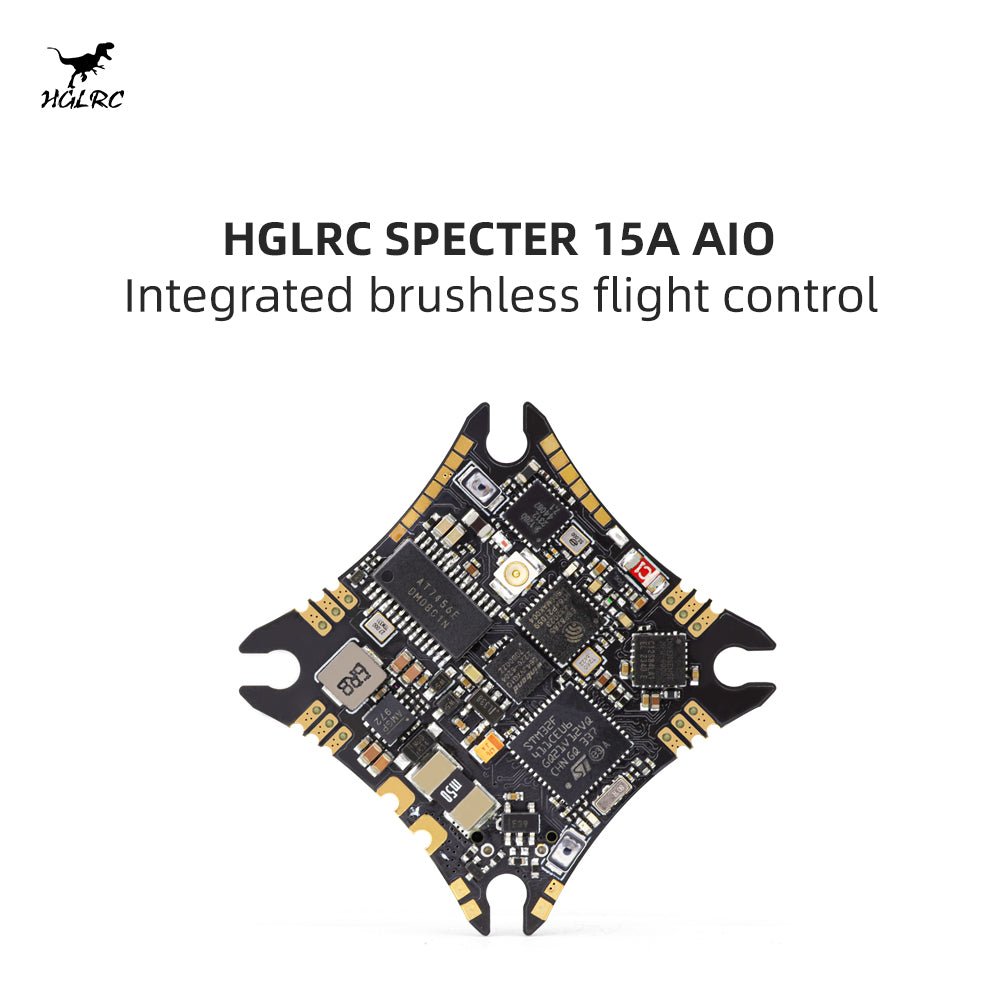

HGLRC SPECTER 15A AIO

This is an F411 15A 2-4S ELRS AIO integrated brushless flight controller that integrates a UARTS serial port ExpressLRS 2.4G receiver. The integrated UARTS serial port receiver will be more stable than the SPI receiver in terms of performance/signal.
It solves the problem of SIP receivers having few functions, cumbersome operation, and close signal distance. The integrated serial port ELRS receiver also solves the problem of no place to place the receiver during daily setup. The board has a reserved IPEX receiver seat and a T-shaped antenna, which can easily surround the harsh indoor environment flight,
The ELRS receiver has the characteristics of high sensitivity, high refresh rate and low latency, and is loved by many FPV enthusiasts. This AIO flight controller can support up to 2-4S batteries, and is also compatible with 75mm/85mm whoop/3-inch lightweight on the market. Toothpick /etc. frame

Selling point:
* Supports input voltage up to 2-4s.
* Newly upgraded and expanded UARTS port
* The flight control uses F411 main control with MPU6000 gyroscope to make flight control feel smoother
* The flight controller reserves a direct plug-in motor base and an extra large motor pad, which can be used selectively
* Built-in independent serial port ELRS receiver can reduce installation space and is very suitable for indoor /toothpick frame
* Bluejay firmware is flashed by default to improve flight efficiency and is the best choice for flying drone

Specification:
Product name: SPECTER 15A AIO
MCU: STM32F411
MPU: MPU6000
BEC: 5V2A
Black box: 8MB
OSD: support
LED: support
Buzzer: support
UARTS: UARTS3
Built-in receiver: UARTS R1 ExpressLRS 2.4G
Built-in receiver frequency: 2.4GHZ
Continuous current: 15A
Peak current: 18A (10s)
ESC protocol: Dshot300, Dshot600, Oneshot, Multishot
Flight control firmware: ZEUSF4EVO
ESC firmware: Q-H-50 (Bluejay)
Input voltage: 2-4S 7.4V-14.8v (Lipo)
Size: 42.5x42.5mm
Mounting hole: 25.5X25.5mm.M2

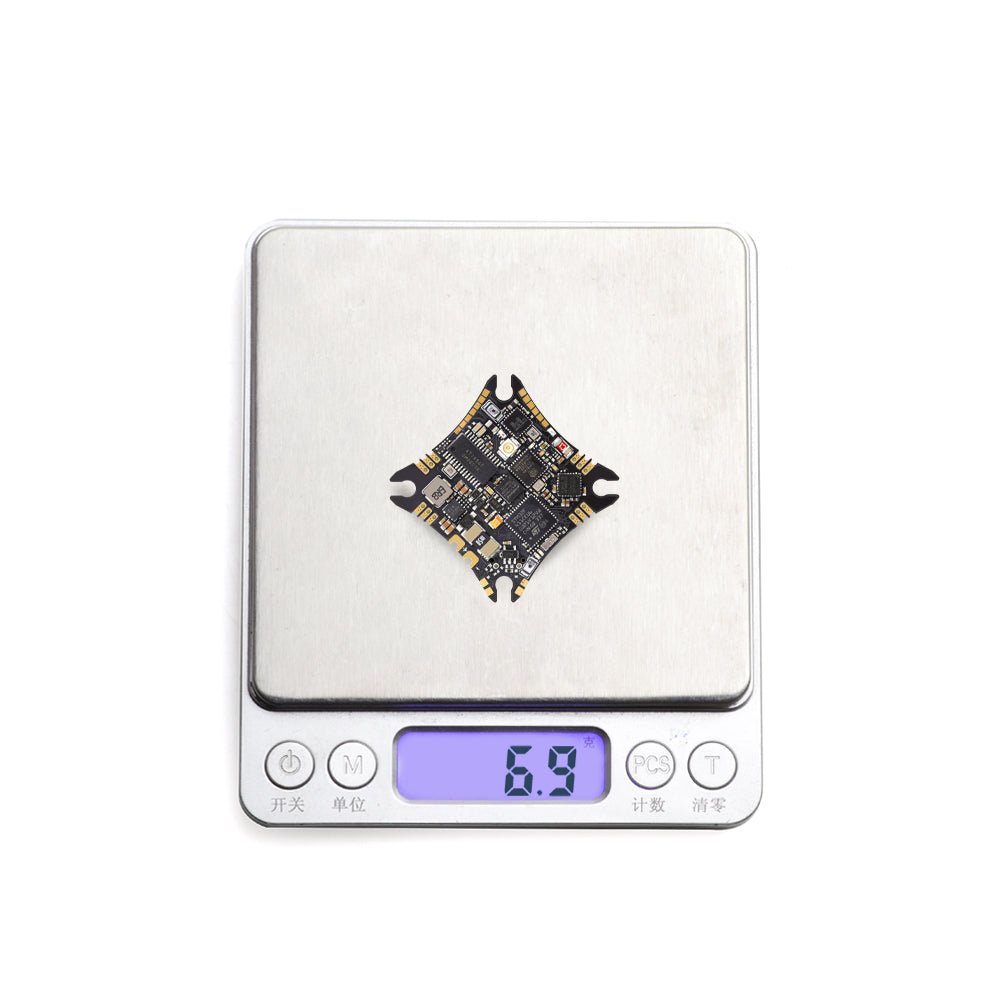

Weight: 6.9g

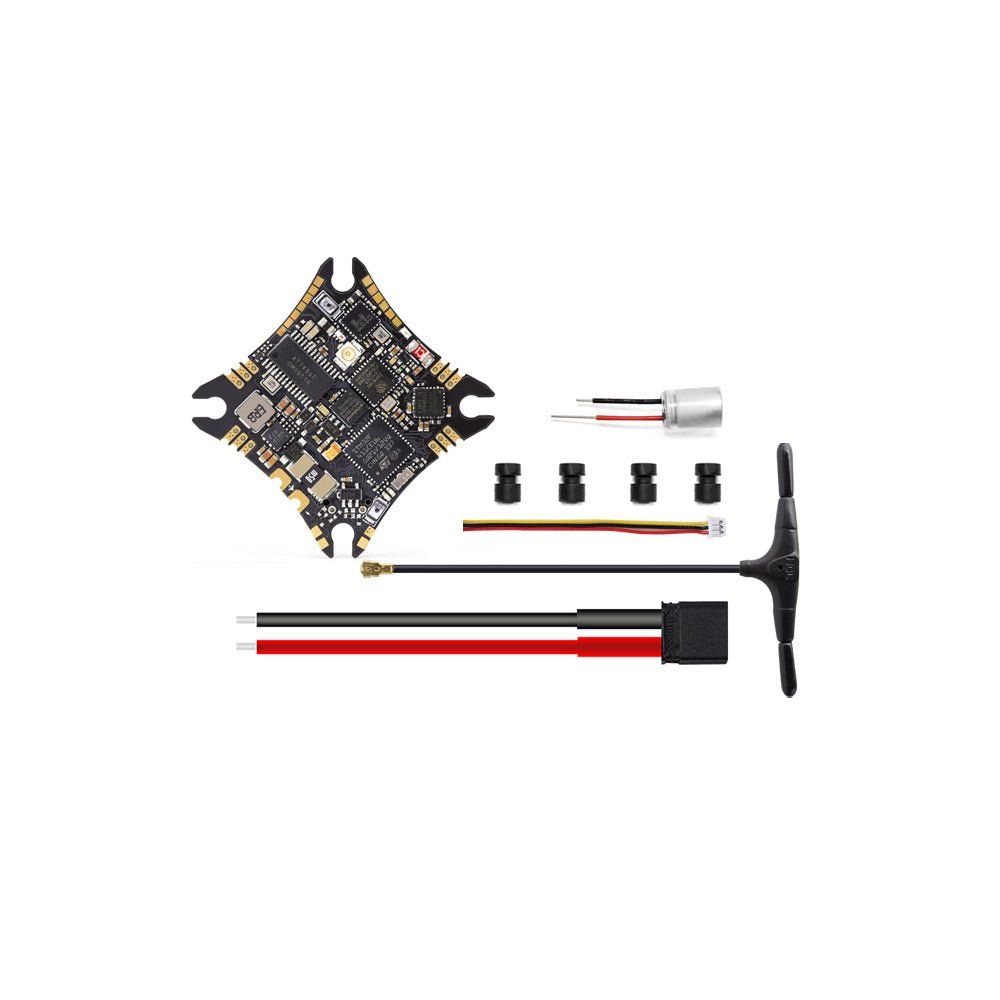

Shipping list:
1x SPECTER 15A AIO
1x 35V 220UF solid capacitor
1x XT30U-M 18AWG 70mm male power cord
1x MX1.25-3P 30AWG 75mm camera cable
4x M2*6.6 Shock-absorbing column
1x HGLRC 2.4G T-shaped antenna
