HGLRC T One TX Module - 915MHz

Introduction: The HGLRC ELRS T ONE TX Module is based on the ExpressLRS project, an open source RC link for RC applications. T ONE has a high power of up to 2W, which can escort customers to long-distance flights. The heat sink across the entire high-frequency head is not afraid of high power and long-term operation. The two replaceable bottom shells are perfectly compatible with most remote controls on the market.



Features:

1.The performance has been upgraded, and the maximum wireless power can reach 2w, which can escort ultra-long-distance flight, bring stronger signals, longer transmission distance and wide remote control range.

2.The cooling system composed of CNC metal heat sink and turbofan across the entire TX Module is not afraid of the high temperature caused by high-power operation. Even at 2W power, it can run stably for a long time without losing power under normal environment.

3. It has two replaceable bottom shells: JR standard 5-pin and NANO standard 8-pin, which are compatible with most remote control TX Module compartments on the market. You only need to remove 4 screws and plug in a 3pin port to complete the replacement.

4. OLED display, high contrast, can display clearly in any application environment

5.XT30 external power input port, can support up to 25.2V voltage input



Technical parameters

Product model: T ONE TX Module

Working frequency band: 868-915MHz FCC

Output power: 100mw/250mw/500mw/1000mw/2000mw

Refresh rate: 25Hz/50Hz/100Hz/200Hz

XT 30 external power supply port voltage: DC 7.4V~25.2V (2S~6S)

Adaptive position: JR standard 5-pin/NANO standard 8-pin

Display: OLED

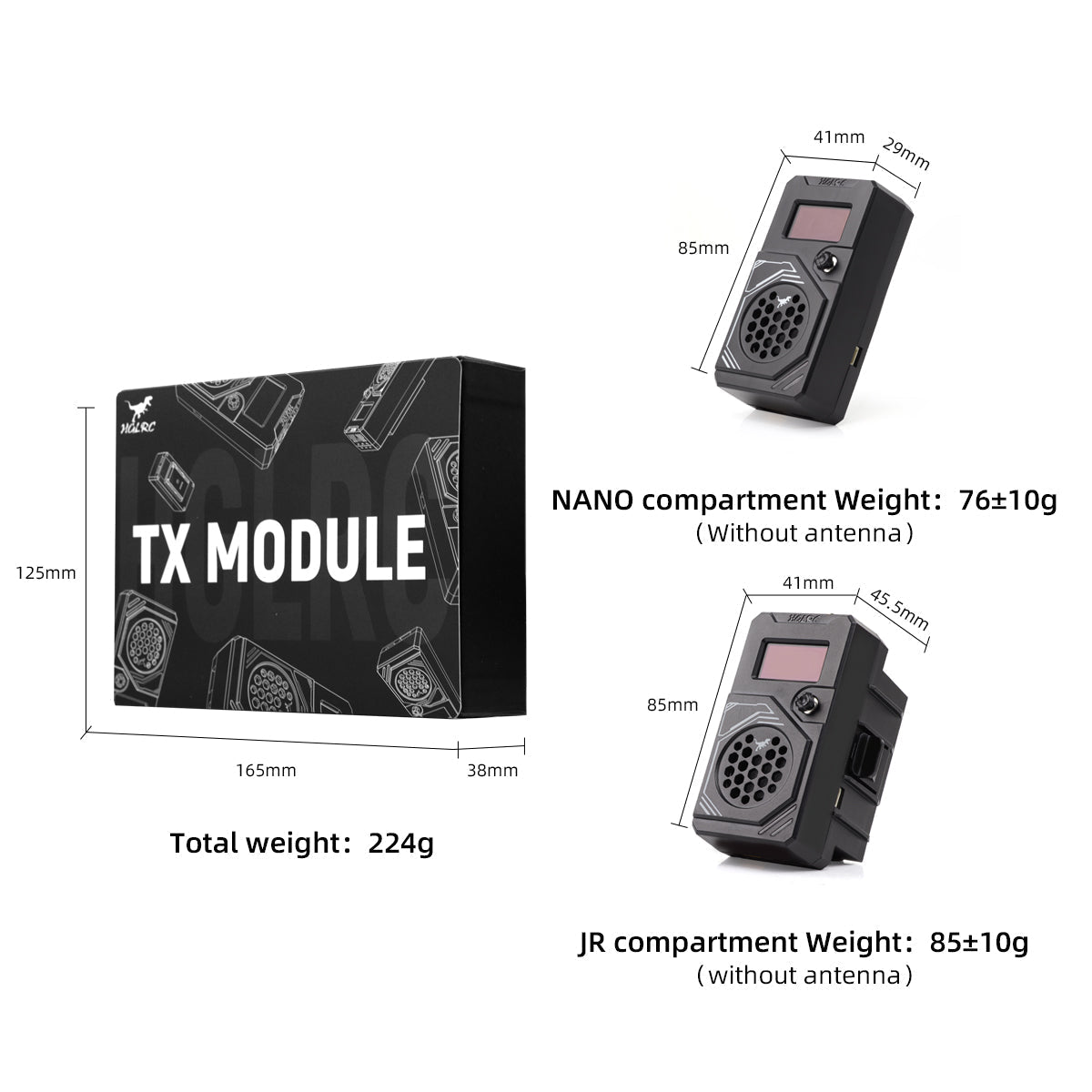

Weight: 76g (Nano without antenna)

85g (JR without antenna)

Dimensions: 41*85*29 (NANO bottom shell without antenna)

41*85*45.5 (JR bottom shell without antenna)

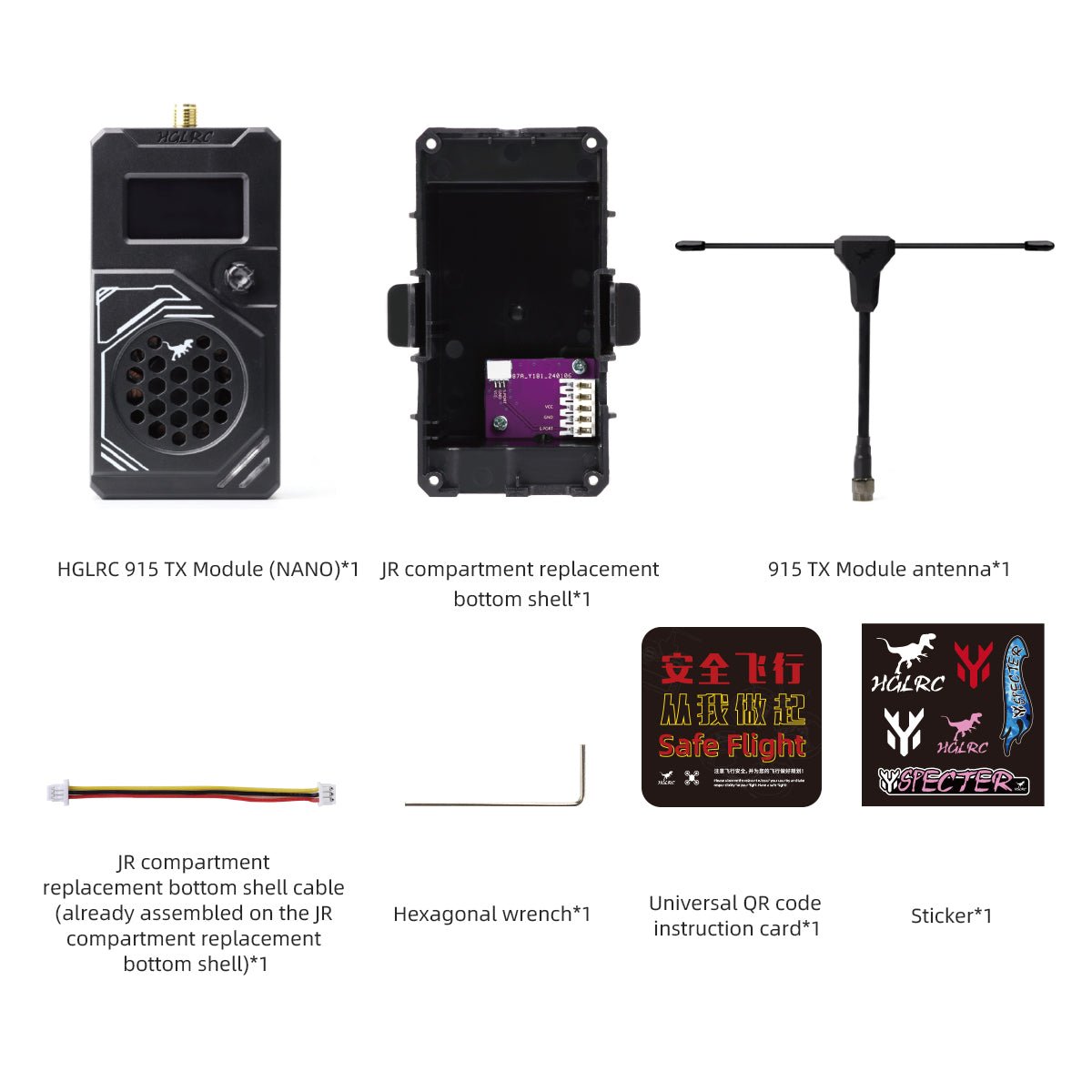

Shipping list:

915 TX Module (NANO)*1

JR compartment replacement bottom shell*1

JR compartment replacement bottom shell cable (already assembled on the JR compartment replacement bottom shell)*1

915 TX Module antenna*1

Hexagonal wrench*1
