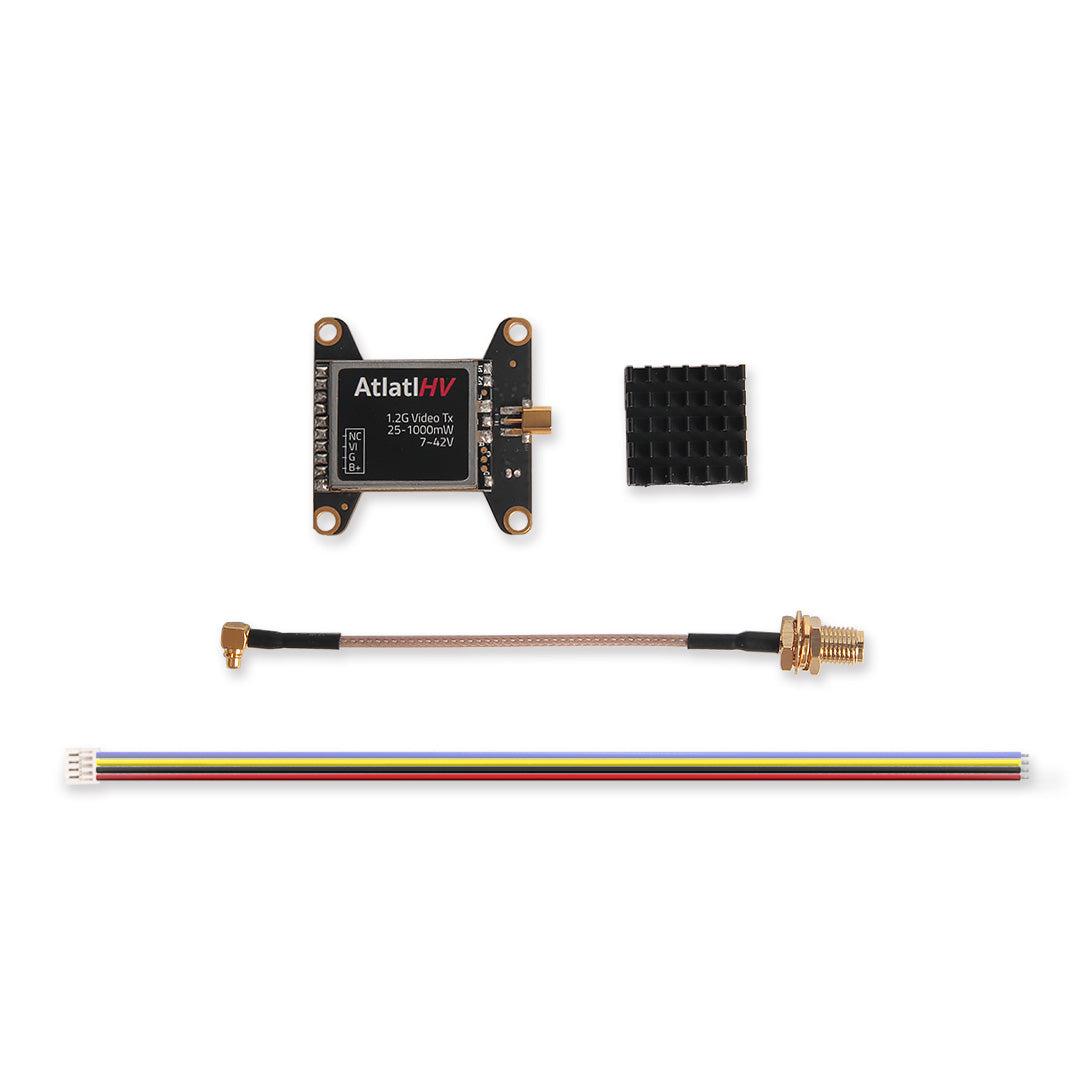

HolyBro Atlatl HV V2 VTX 1.2GHz 1W

The Atlatl HV V2 VTX - 1.2GHZ 1W is a low-frequency signal VTX compared to VTX with 5.8G frequency band. It has excellent diffraction ability and has stronger anti-interference and penetration. Images are clearer and more stable, the transmission distance is longer, and it is more suitable for long-range and various complex environments.

Note: Powering on without antenna can result in damage!

Features

• Supports up to 9 frequency Channels.
• Variable transmit power: Pit/25/200/1000mw
• Pit Mode allows you to power up safely without the risk of knocking other pilots out of the air.
• Onboard microphone, so you can listen to your motors while you fly, no matter how far away you fly.
• Standard 30.5 x 30.5mm mounting holes, allows you to mount the Atlatl directly in your flight controller stack.

Specifications

• Output Power: 0.5 mW (pit mode), 25 mW, 200 mW, 1000 mW
• Audio: 6.5 MHz Mono (6.0 MHz Optional)
• Antenna Connector: MMCX
• Input Voltage: 2-8S LiPo
• Dimensions: 35x35x9mm (Including connector)
• Mounting Holes: Standard 30.5mm square to center of holes
• Weight: 9.3g (VTX Only)

Adjusting the Output Power and Frequency Channel
