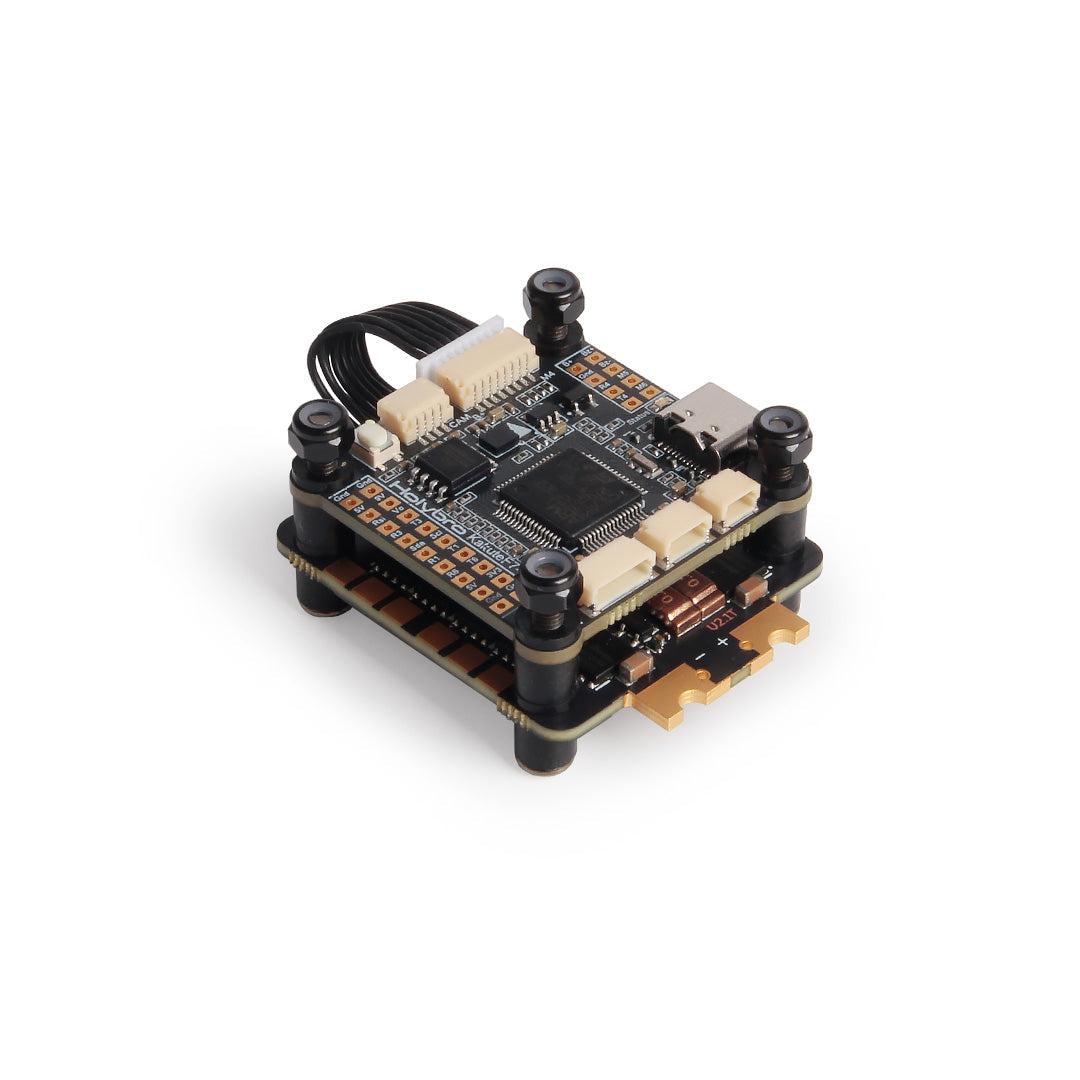

HolyBro Kakute F722 Stacks
HolyBro Kakute F722 Stacks
Regular price
$89.99 USD
Regular price
$119.00 USD
Sale price
$89.99 USD
Unit price
/
per
Couldn't load pickup availability
Flight Controller
Kakute F722
Overview:
- High-performance STM32 F722 MCU with speeds up to 216MHz.
- ICM42688P gyroscope, independent low-noise power supply.
- Various Ports for quick & easy setup: ESC port, Digital VTX port, Analog VTX port, Receiver port, and LED port.
- Built-in analog video OSD, 16 Mbytes black box,
- High power synchronous rectifier BEC, supports up to 8S input and provides stable 9V/3A & 5V/2A output.
Specification:
- MCU: STM32F722 32-bit processor, 216MHz, 256Kbytes RAM, 512Kbytes Flash
- IMU: ICM42688-P (SPI)
- Barometer: BMP280
- OSD: AT7456E
- 5x hardware UARTS (UART1,2,3,4,6)
- 7x PWM Outputs (6 Motor Output, 1 LED)
- Onboard 16 Mbytes for Blackbox logging
- Battery input voltage: 3S - 8S
- BEC: 9V/3A, 5V/2A, 3.3V/0.2A
-
Connector
- 2x JST-SH 8pin port for ESC
- 1x JST-SH 6pin port for HD VTX
- 2x JST-SH 4pin port for Receiver & Analog Camera
- 1x JST-SH 3pin port for LED
- USB Type -C
- Dimensions: 35x35mm
- Mounting Holes: Standard 5 x 30.5
- Weight: 8g
Firmware Targets
- Betaflight Target: KAKUTEF7MINIV3
- INAV Target: KAKUTEF7MINIV3
ESC
Tekko32 F4 4in1 50A ESC
Fast F4 MCU @150Mhz / PWM output up to 96K / 4~6S / BLHeli32 / 30x30
Features:
- New and faster F4 MCU @ 150Mhz (compared to F3 @108Mhz & F0 @48Mhz)
- PWM Frequency: 16k to 96k
- Separate drive & control circuit, this broadens the current capability of the drive circuit while reducing the electrical interference to the control circuit.
Tekko32 F4 4in1 60A ESC
Fast F4 MCU @150Mhz / PWM output up to 96K / 4~6S / BLHeli32 / 30x30
Features:
- New and faster F4 MCU @ 150Mhz (compared to F3 @108Mhz & F0 @48Mhz)
- PWM Frequency: 16k to 96k
- Separate drive & control circuit, this broadens the current capability of the drive circuit while reducing the electrical interference to the control circuit.
Tekko32 F4 Metal 4in1 65A ESC
F4 MCU @150Mhz / Metal-Cased MOSFET / PWM output: 16k ~96k PWM / 4~6S / BLHELI32
Powerful & reliable metal-cased MOSFET 4in1 ESC with smooth control and quick response.
Features:
- New & faster F4 MCU @ 150Mhz (compared to F3 @108Mhz & F0 @48Mhz)
-
PWM Frequency: 16k to 96k
-
Metal-cased MOSFET for excellent heat dissipation
-
Massive on-board capacitance for noise filtering at 2068uf
-
3 oz copper PCB design to allow bigger current and better heat dissipation
-
Separate drive & control circuit, this broadens the current capability of the drive circuit while reducing the electrical interference to the control circuit.
