HolyBro Tekko32 F4 4in1 Mini 50A ESC(AM32)

Feature:

• All new High-quality MOSFETs with low internal resistance & heat generation, and individual metal heatsink
• New and faster F4 MCU @ 150Mhz (compared to F3 @108Mhz & F0 @48Mhz)
• Separate drive & control circuit, reducing the electrical interference to the control circuit

Specification:

• Continuous current: 50A x4
• Burst current: 60A x4
• Battery support: 4-6S
• PWM frequency: 8k to 96k
• Support DShot 150/300/600/1200
• Support MultiShot/OneShot/Proshot/PWM, etc.
•  ESC telemetry Support
• Onboard analog current sensor
• AM32 Firmware
• 1000uf 35v capacitor included
• Mounting holes: 3.8mm @ 20x20mm, compatible with either M2& M3 Rubber Gourmet (Included)
• Dimensions: 46.6x38x6mm / Weight: 15.6g

Pin Diagram:

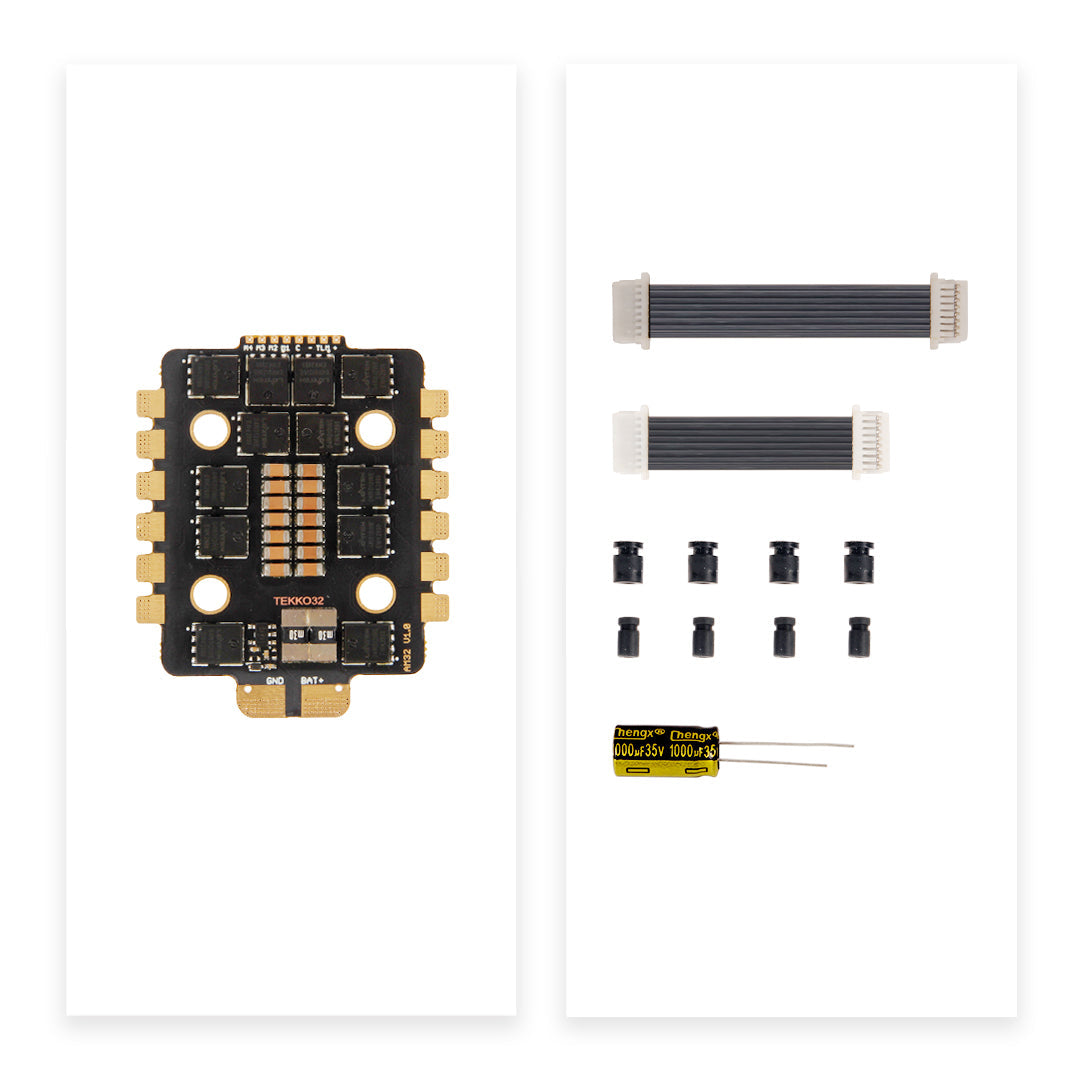

Package Included:
