IFLIGHT

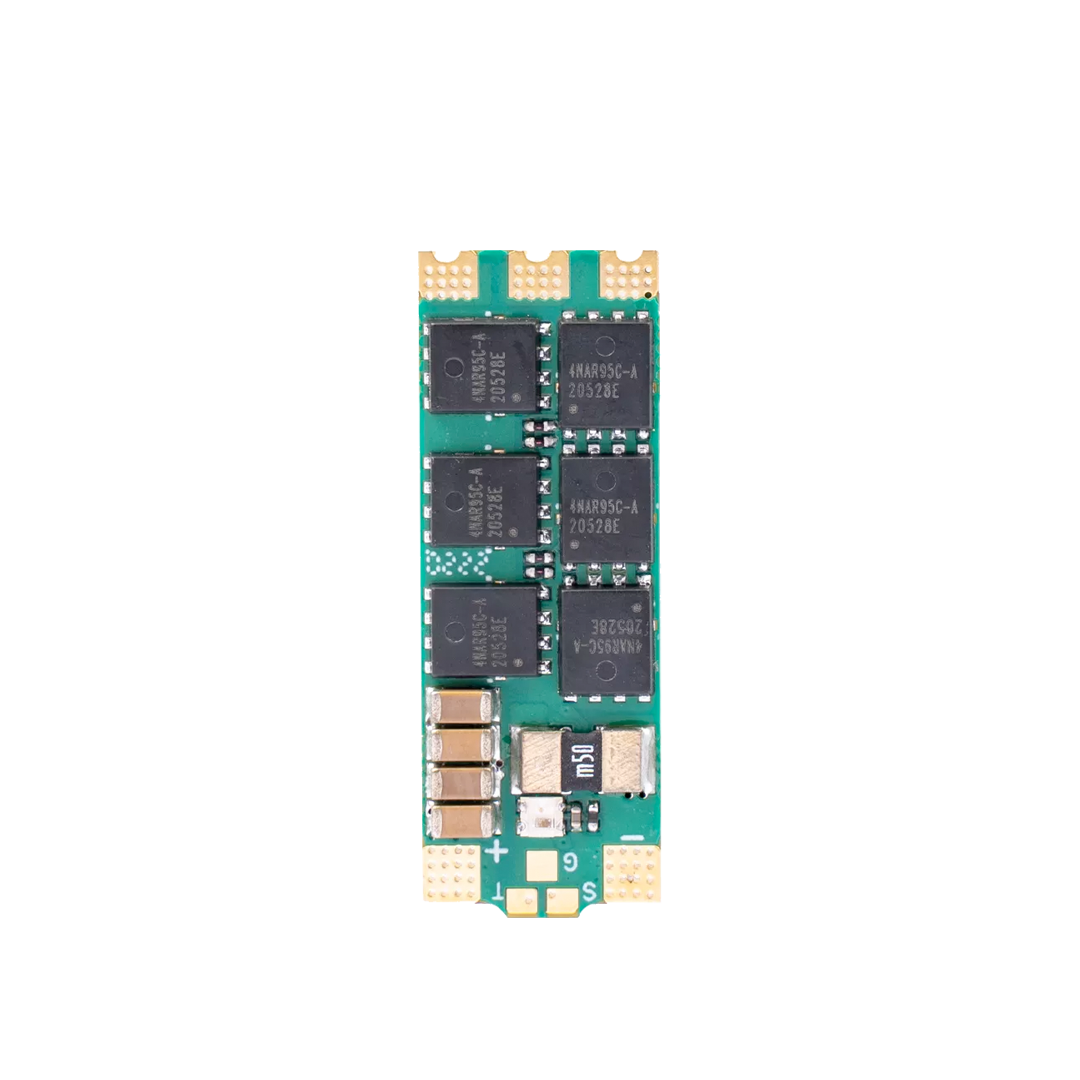

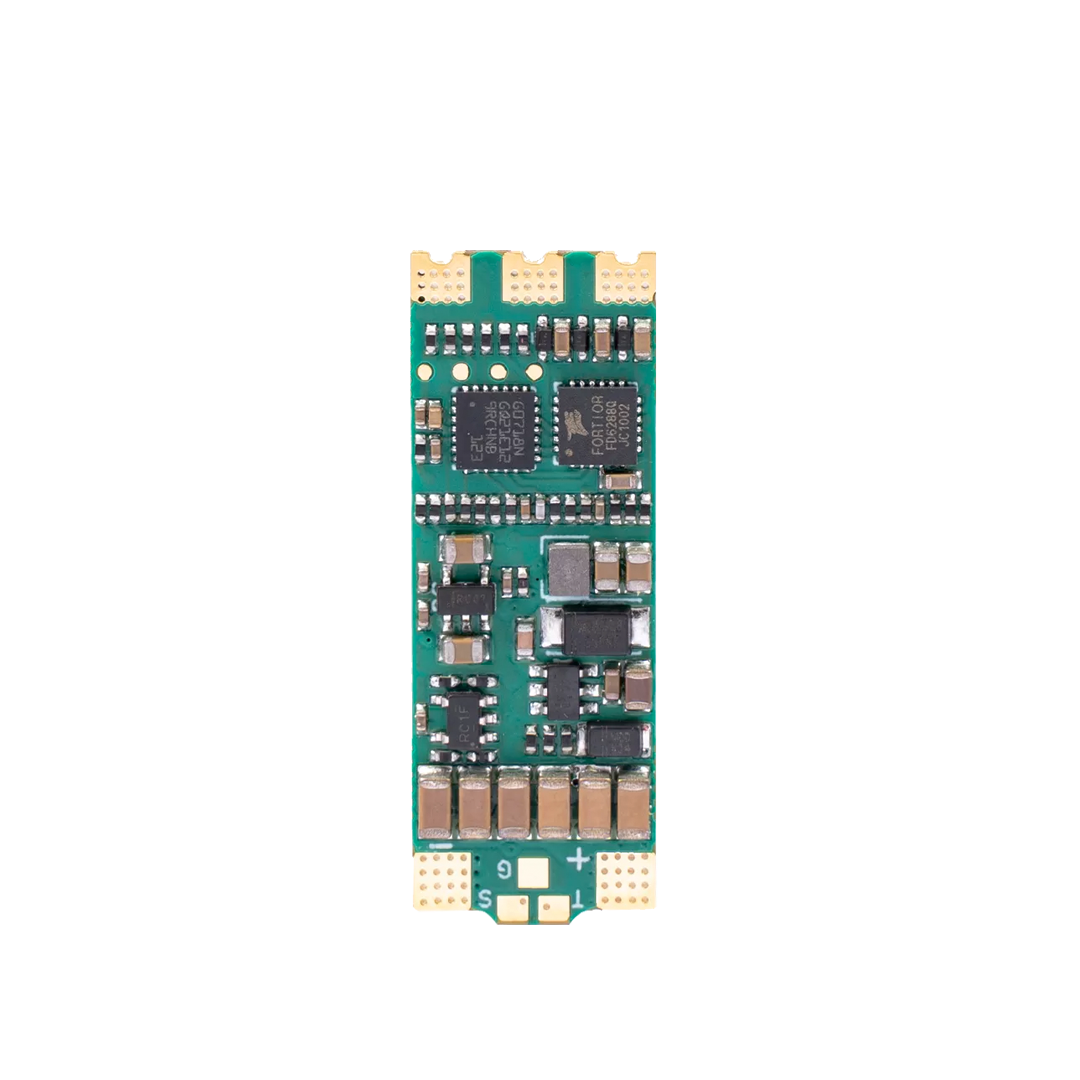

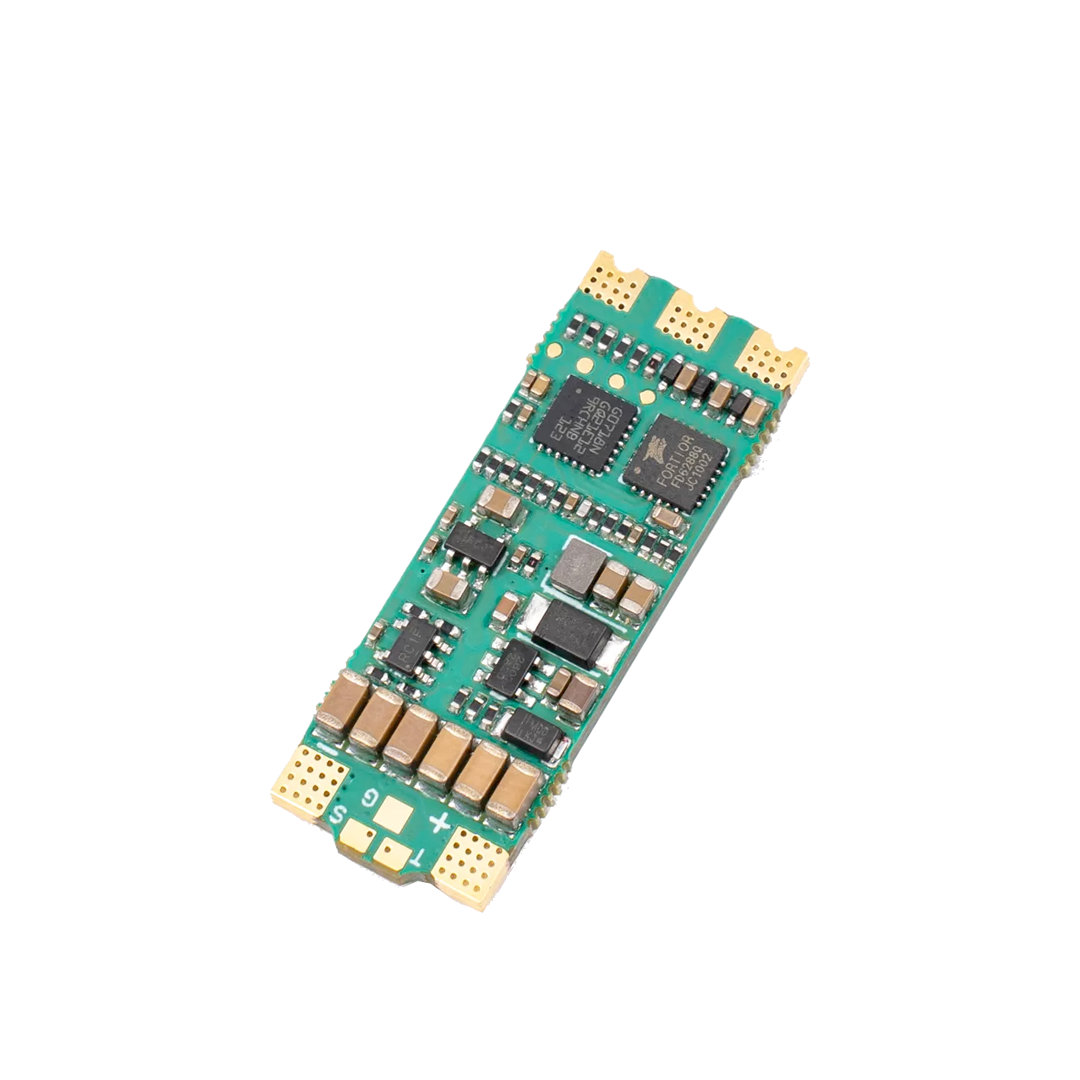

IFlight BLITZ E55 Single ESC

IFlight BLITZ E55 Single ESC

Regular price $29.99 USD
Regular price $39.99 USD Sale price $29.99 USD
Sale Sold out
Features

8 layers double-sided PCB board

3oz 1.4mm thick power board

32bit F051 MCU, 48kHz maximum clock speed

TDK MLCC Low ESR ceramic capacitors

Specifications

Supports up to Dshot600, Proshot, Oneshot, Multishot

Constant: 55A / Burst: 60A (10S)

Up tp 48kHz PWM frequency

Target: IFLIGHT_BLITZ_G3

BlHeli32 telemetry: Yes

Firmware Version: 32.9

Dimensions: 35*13mm

Current Sensor: Yes

Input: 2-6S LIPO

RGB LED: Yes

Weight: 4.7g

MCU: G071

BEC: No

Note
No additional capacitor needed up to 5S!
But to encounter back EMF and ensure the longevity of your electronics, min. 220uF Cap 35V for 4-5S, 50V for 6S on your main lead!
Packing List

1 x BLITZ E55 55A Single ESC

Wiring diagram

https://drive.google.com/drive/folders/1l10mEOXwERfLqRun0bbHMEJoxXV2RKN2
