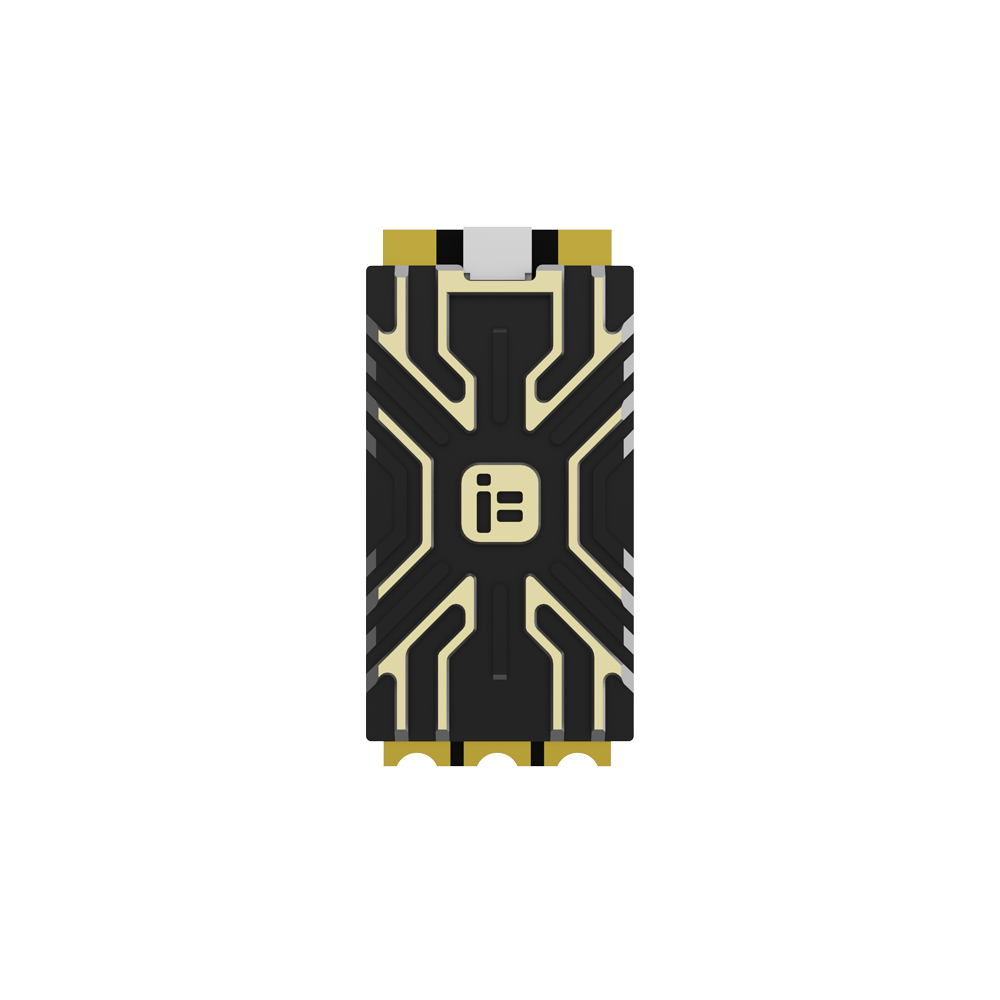

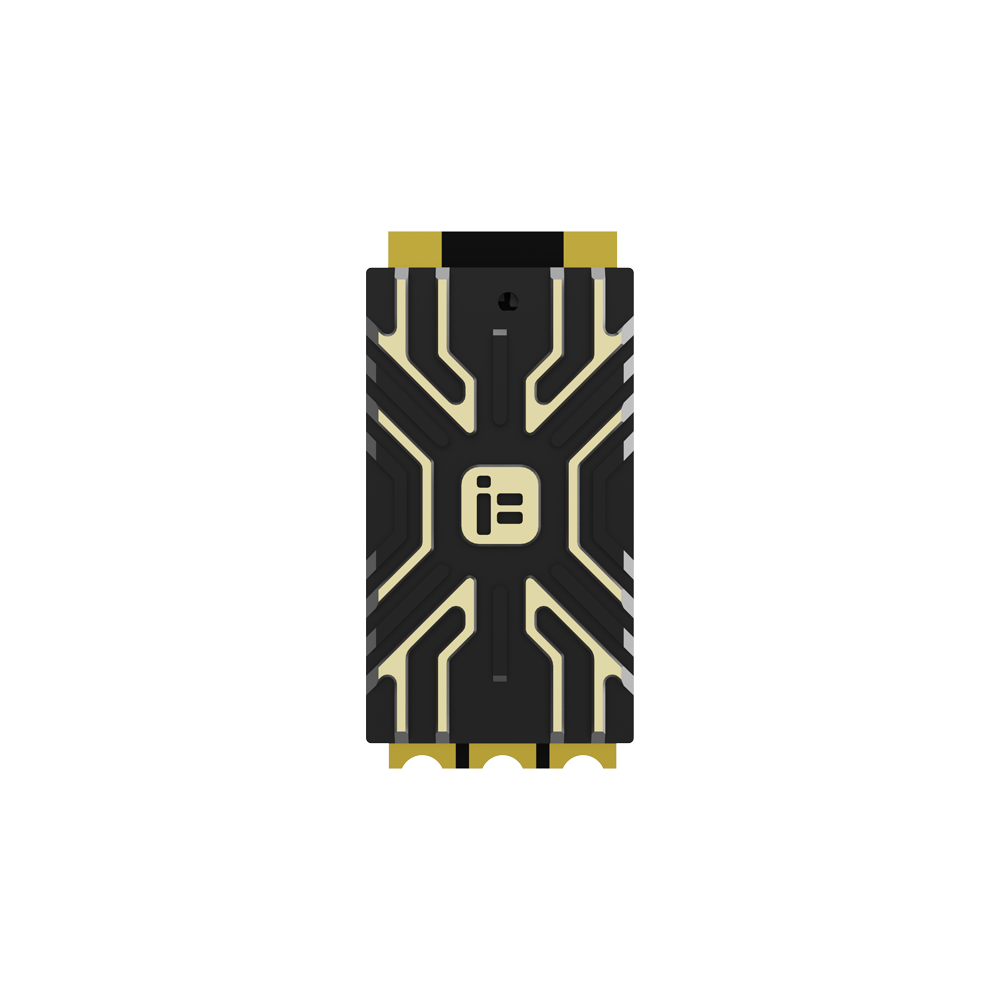

IFlight BLITZ E80 Single ESC

BLITZ E80 BLHeli Dshot600 Single ESC was designed to give your motors smooth power with great stability and

durability. The 32bit 48mHz G071 MCU and 11 pieces TDK MLCC total 240UF Low ESR capacitors bring faster

responding speed and a smoother flying experience.

2-8S input (max 8S)

80A 8 layers 4OZ copper PCB, better operating load capacity;

11 pieces TDK MLCC total 420UF Low ESR capacitors, lower ripple and more stable;

Top grade NTMFS5C430NL MOSFET, stable and reliable;

1 * 3528 LED for power- on display;

Rational layout, large soldering pad, countersinks and semicircle orifices enable each layer to be energized after power-on.

Product Name: BLITZ E80 Single ESC

Input Voltage: 2-8S

Max. Continuous Current: 80A

Max. Burst Current: 100A

MCU: G071

BEC: No

Firmware: BLHeli32

Current Sensor: Yes

Telemetry: Supported

Target: IFLIGHT_BLITZ_G2

Dimensions: L40 x W17 x W10mm

Weight: 14.5g(±2)

Protocal: DShot DShot150/300/600/MultiShot/OneShot PWM Drive

Current Sensor

Telemetry output

Motor Timing

Brake on Stop

1 x BLITZ E80 Single ESC

1 x 50V 470UF capacitor

1 x Power cables & ESC signal wires
