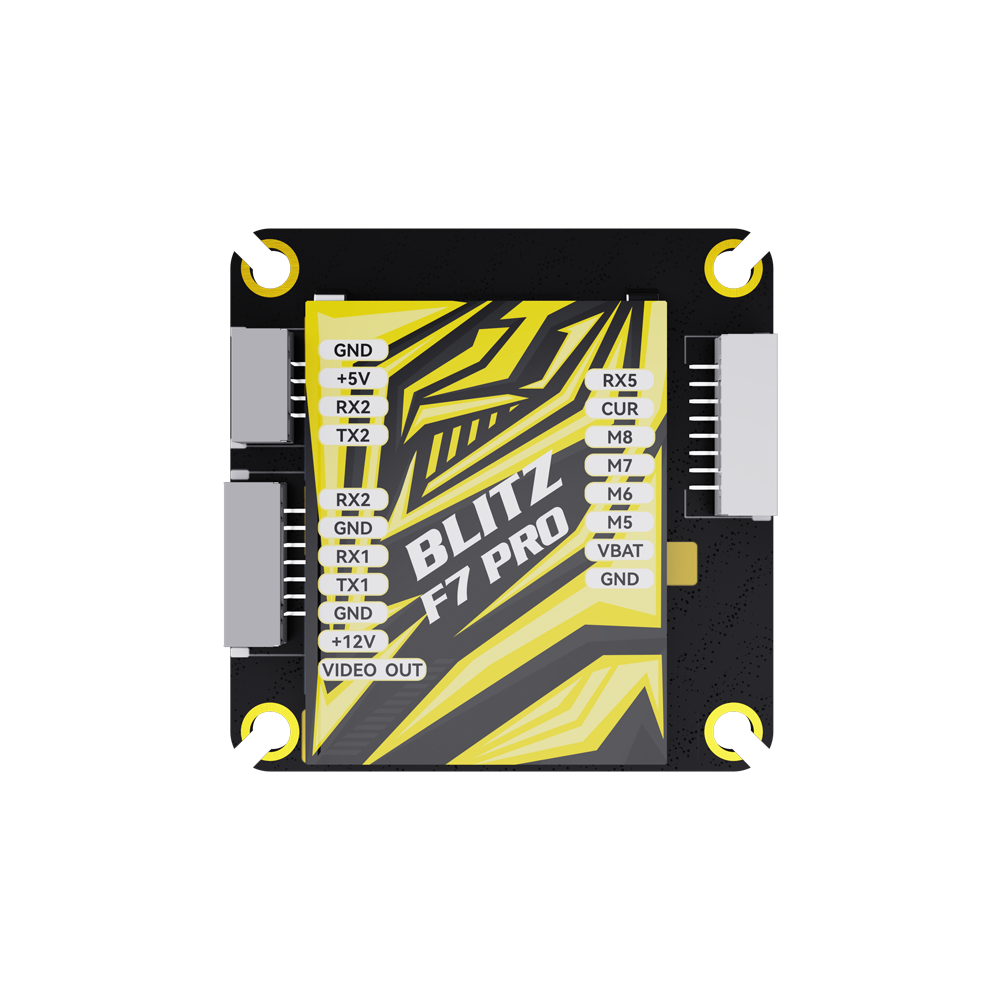

IFlight BLITZ F7 Pro Flight Controller
IFlight BLITZ F7 Pro Flight Controller
Couldn't load pickup availability
Improved circuit design, better components, and lower electrical noise!
DJI HD VTX Connector (Plug-and-Play / No soldering required)
FC indicator LEDs for visual debugging
512MB BlackBox
With LC filter
Mount pattern: 35*35mm/ 4mm PCB hole diameter
Smartaudio / IRC Tramp VTX protocol supported
Firmware target: IFLIGHT_BLITZ_F7_PRO
Input Voltage: 14.8V-34V (4S-8S LIPO)
Motor outputs: 4x (SH1.25 connector)
Flash: 512MB (Blackbox flash)
I2C serial: SDA / SLA pads
Dimensions: 41*41.5mm
Barometer: DPS310
OSD Chip: AT7456E
LED controller: Yes
MCU: STM32 F722
Weight: 17g (±2)
Beeper pad: Yes
Gyro: BMI270
UARTS: 4
UART1 for VTX HD/Analog
UART2 for Receiver
UART4 for GPS
UART5 for ESC Telemetry
8×Dshot/PWM outputs
1×I2C for GPS Mag
1. F722 MCU has an inner inverter.
2. SBUS、CRSF、ELRS、IBUS、DSM ETC... can be connected to any unused UART_RX, we suggest you connect to Uart_RX2
3. Frsky SmartPort, Tramp & Smartaudio can be connected to any unused UART_TX, we suggest you connect to Uart_TX1
4. F.port can be connected to any unused UART_TX, we suggest you connect to Uart_TX2
