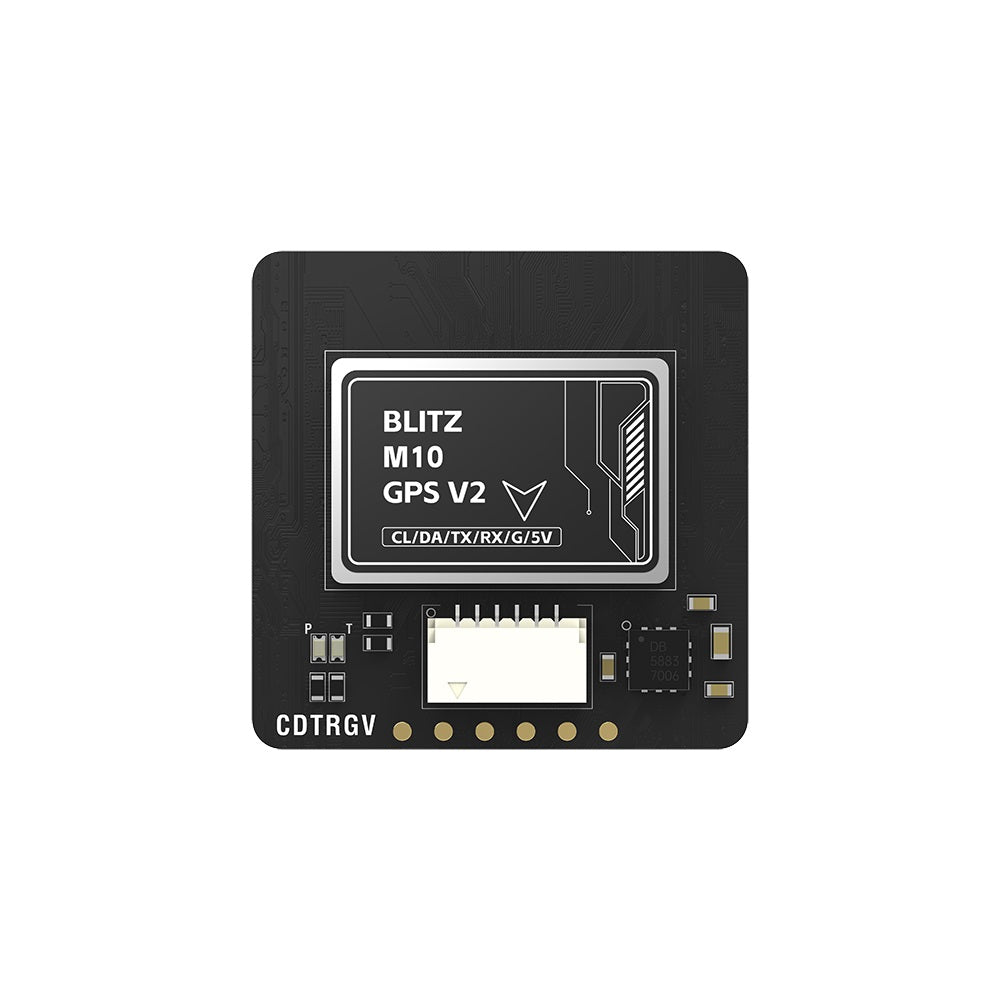

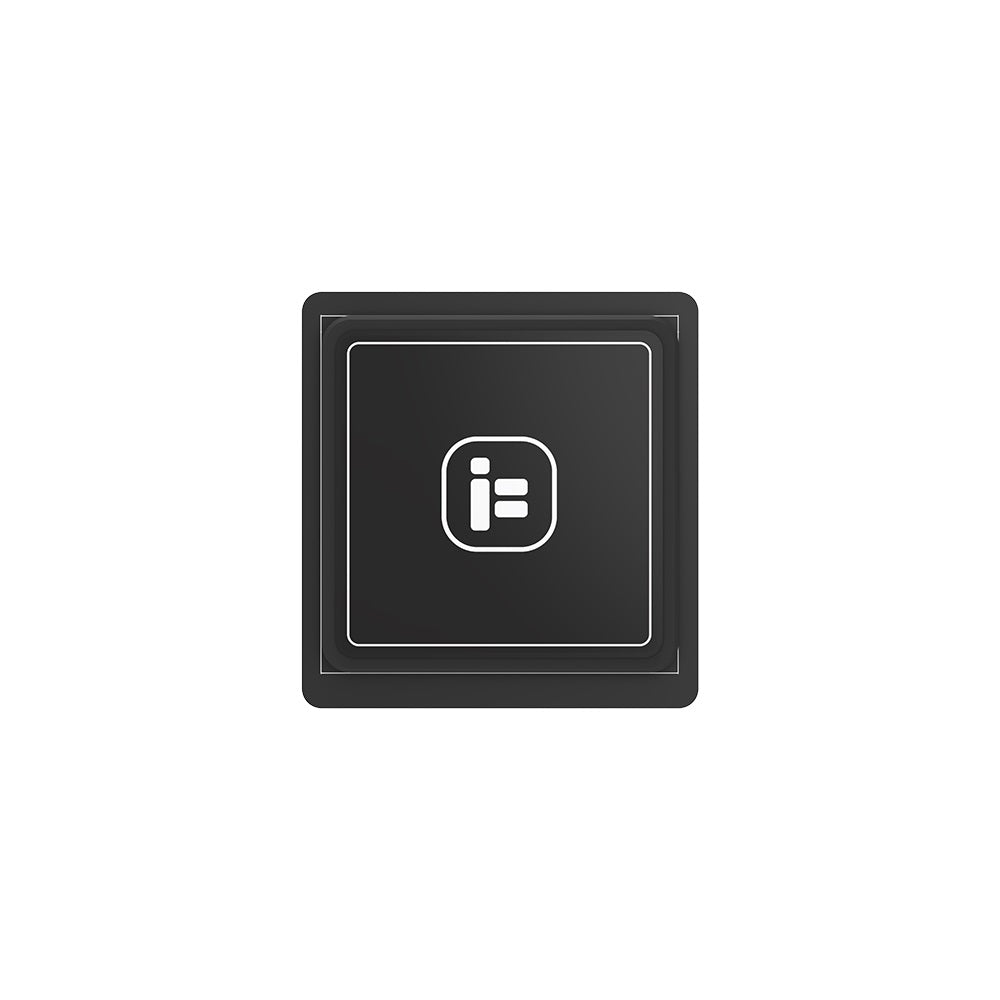

IFLIGHT BLITZ M10 V2 GPS MODULE
IFLIGHT BLITZ M10 V2 GPS MODULE
Regular price
$39.99 USD
Regular price
$49.00 USD
Sale price
$39.99 USD
Unit price
/
per
Couldn't load pickup availability
FEATURES:
- UBLOX M10 chip, low power consumption, strong signal
- Compass module QMC5883L integrated
- Built-in farad capacitor for faster hot start
- High-precision positioning
- Onboard LNA (Low Noise Amplifier), RF filter, and TCXO (temperature-compensated crystal oscillator)
- 10 Hz Refresh rate
- Built-in Flash
SPECIFICATIONS:
- Compass module: QMC5883L
- Baud Rate: 9600-460800 / 4800bps-921600bps (Default - 115200bps)
- Sensitivity: Tracking: -167dBm
- Cold start: 27s
- Hot start: 1s
- Maximum height: 80000m
- Maximum speed: 500 m/s
- Speed accuracy: 0.05 m/s
- Maximum acceleration: ≦ 4G
- Refresh Rate: 10 Hz
- GPS patch antenna size: 18.2 x 18.2 x 4 mm / 25 x 25 x 6 mm
- Total dimensions: 20 x 21 x 8 mm / 25 x 25 x 11 mm
- Weight: 8g / 16 g
- Input Voltage: 3.3-5.5 V
- GPS pin definition: RX/TX UART
- Compass pin definition: SDA/SLA
- GNSS: GPS+SBAS+Galileo+QZSS+Glonass
COMPATIBILITY:
Mini Version compatibility:
Single-hole TPU mount:
- Chimera7 Pro v2
- iH3 O3
- Nazgul Evoque F4/F5/F6
- XL10 v6
- BOB57 HD
Dual hole TPU mount:
- Nazgul5 V3
- Taurus X8 Pro/V3
- ProTek60 Pro
GPS TPU mount is not required:
- Helion 10
PACKAGE INCLUDES:
- 1 x BLITZ M10 V2 GPS
- 1 x Cable set
