IFlight BLITZ Whoop 5.8GHz 2.5W VTX

Built-in microphone

4 Power levels up to 2500mW;

40 Channels (including Raceband)

Fast frequency lock, no startup interference with other pilots

Built-in output power self-check functionality

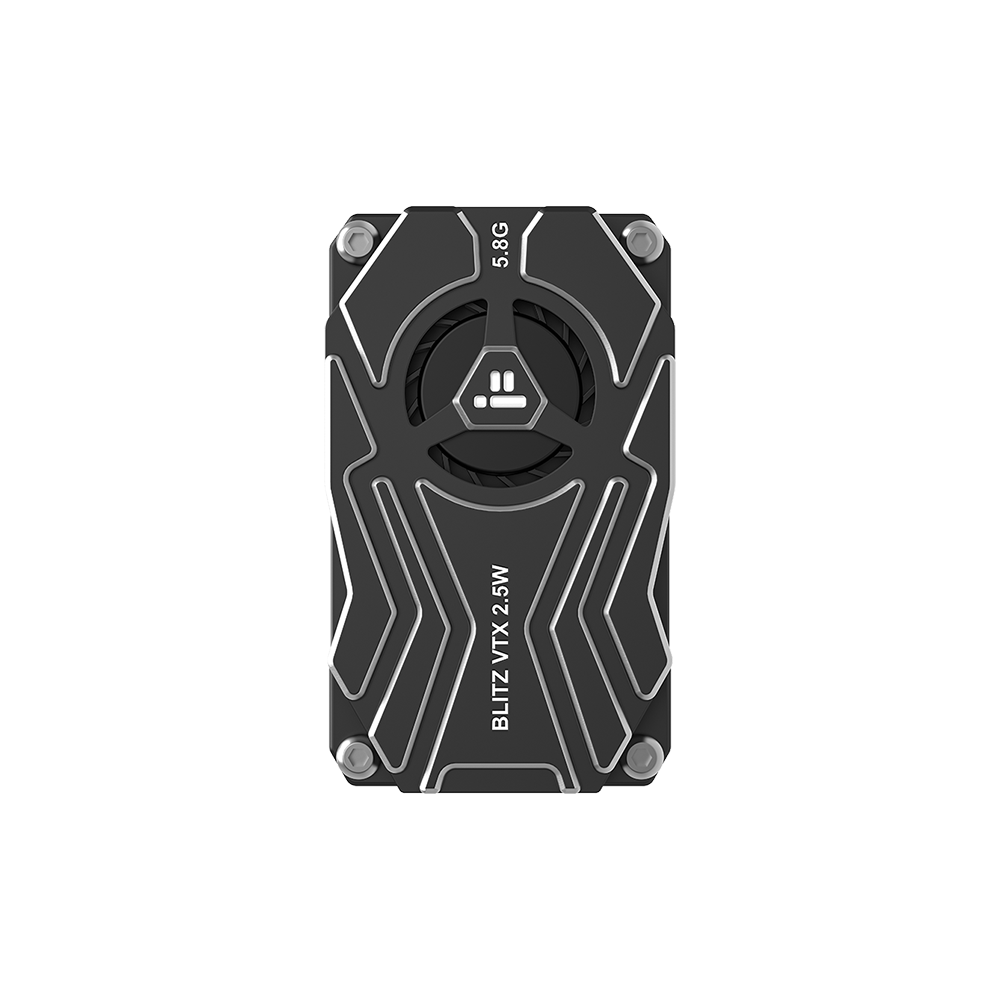

The CNC cooling casing, along with an integrated cooling fan, offers a dual heat dissipation effect.

VTX is set to 25mW by default! Power levels above 25mW require a HAM license or have to be approved by local authorities! Please ensure you're flying legal frequencies and use our prepared Betaflight VTX tables according to your region.

Input voltage: 7V～34V

Interface: MMCX

Power levels: PIT/25mW/400mW/1000mW/2500mW

Channels: 40 (including Raceband)

Mounting pattern: 25.5x25.5mm/Φ1.6

Lightweight: 32g (excluding antenna)

VTX telemetry: IRC Tramp

Betaflight IRC Tramp Configuration: Please download the attached VTX table for Betaflight!

RC Tramp VTX table values: 25mW/400mW/1000mW/2500mW

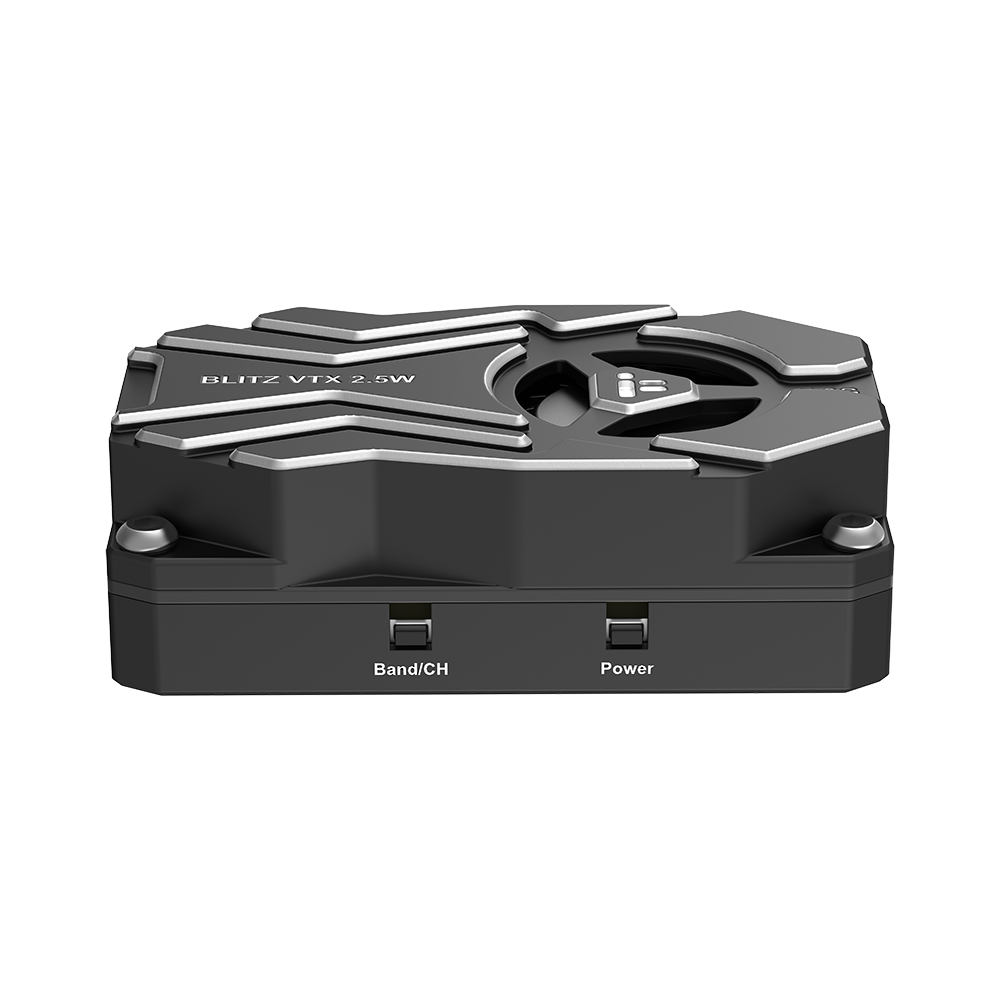

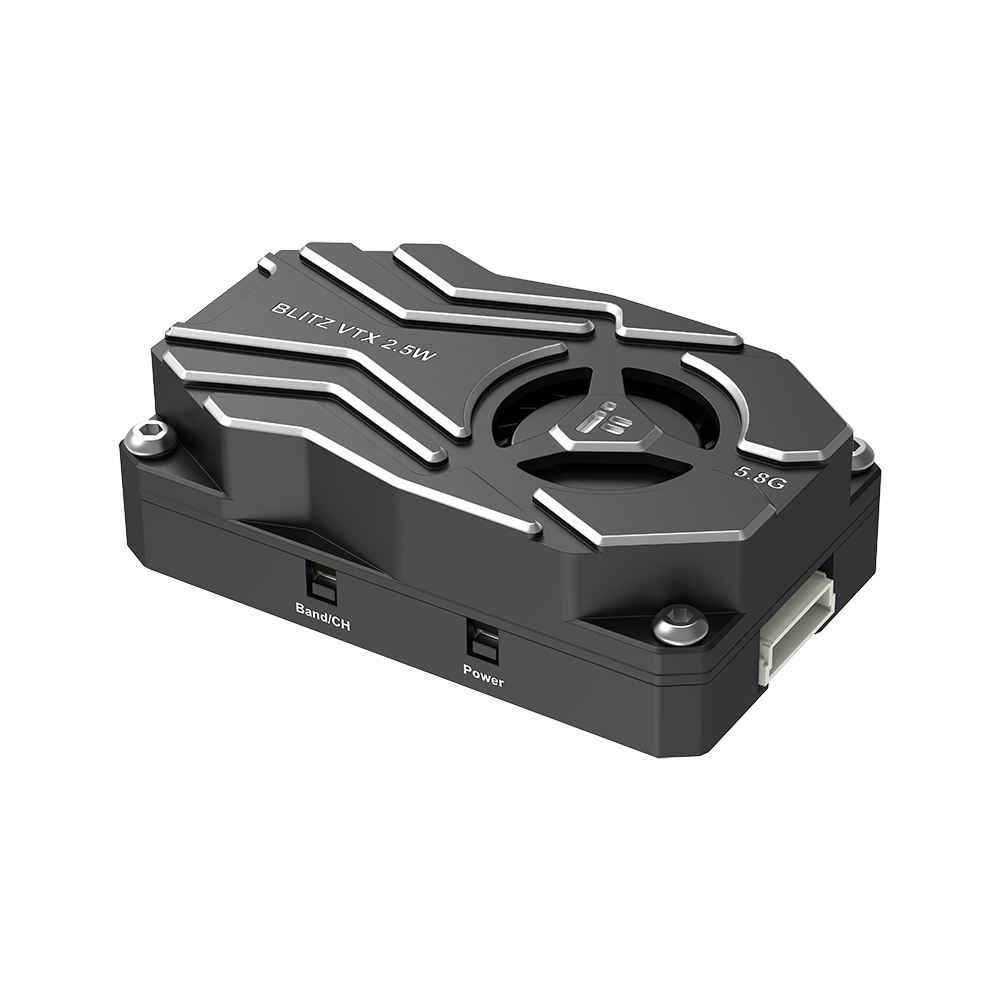

Power Button:

Press and hole for 2s: Enter or exit PIT mode, solid green light indicates entering PIT mode

Short press: Green light (output power): The number of LED flashing indicates the VTX output power. 1 flash=25mW, 2 flashes=400mW,3 flashes=1000mW, 4 flashes=2500mW. Short press to change output power.

Band and Channel Button

Press and hole for 2s: Red(BAND): The number of LED flashing indicates the BAND A-R. Press and hold for 2s to switch Band.

Short press: Blue(CH): The number of LED flashing indicate the channel 1 to 8. Short press to switch the Channel.

VBAT: 2-8S，7-34V DC Positive Input

GND: Negative

5v out: 5v Voltage Output

IRC: IRC Tramp Signal Input

GND: Negative

Video in: Video Signal Input

Camera in: Camera video Input

Camera out:Camera video output

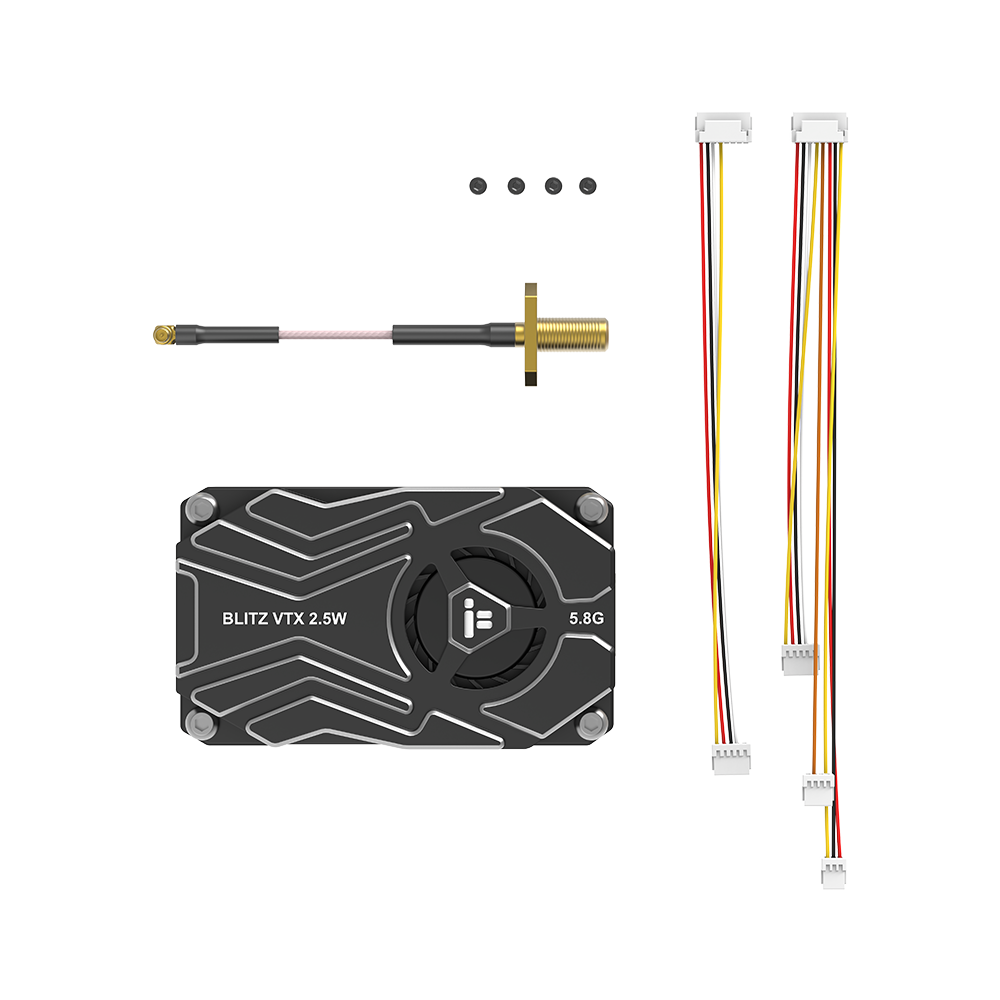

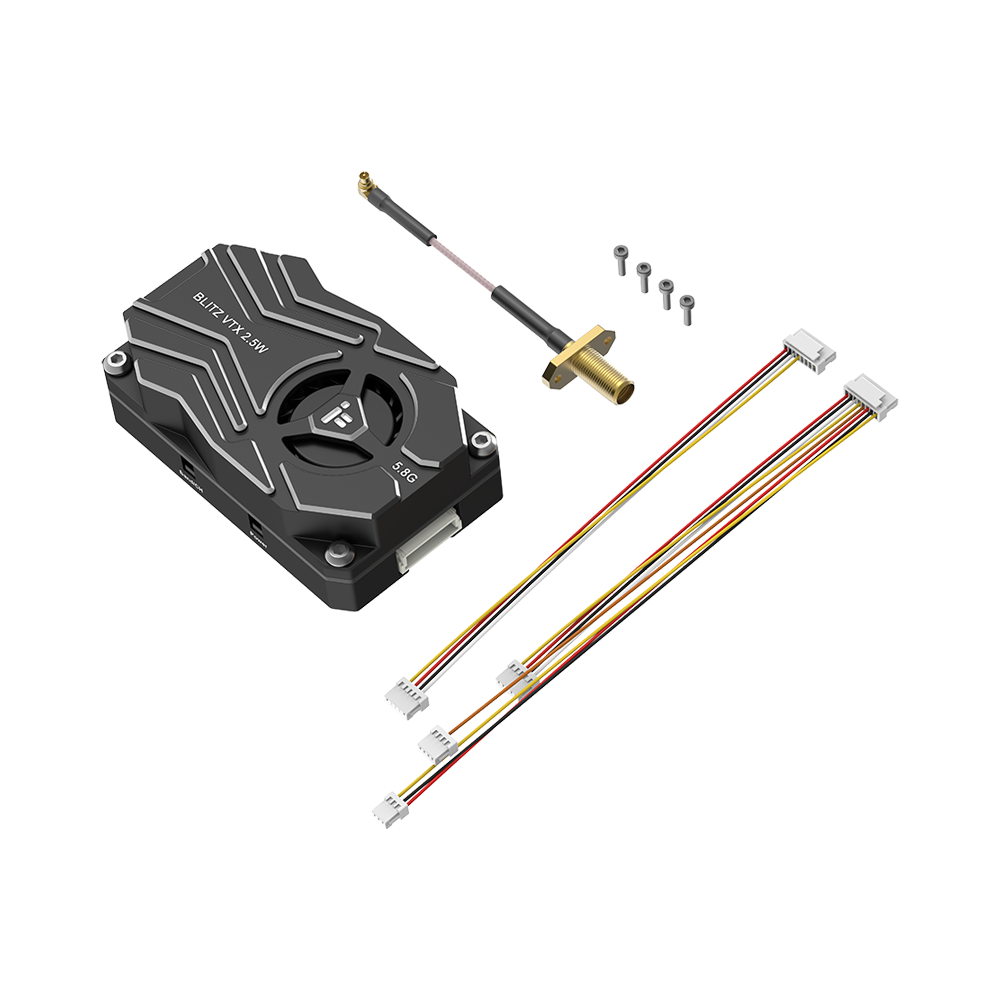

1 x BLITZ Whoop 5.8G 2.5W VTX
