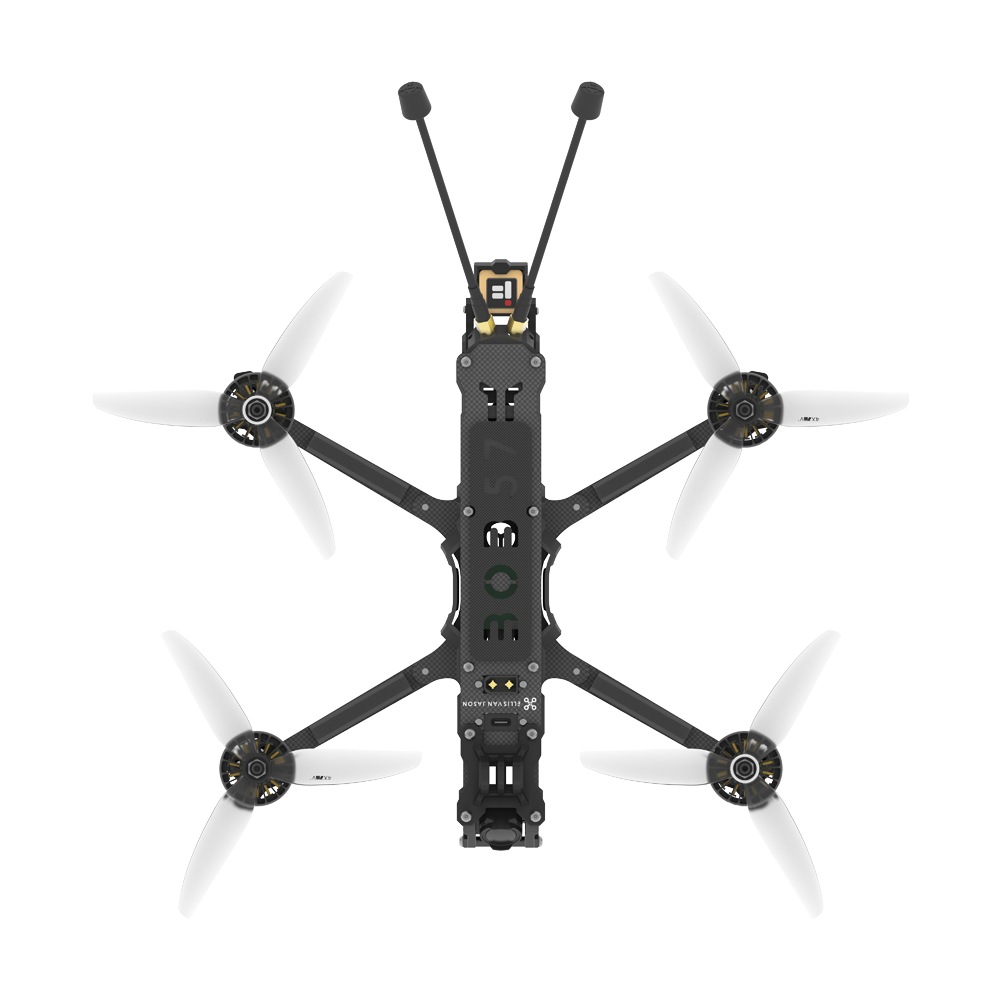

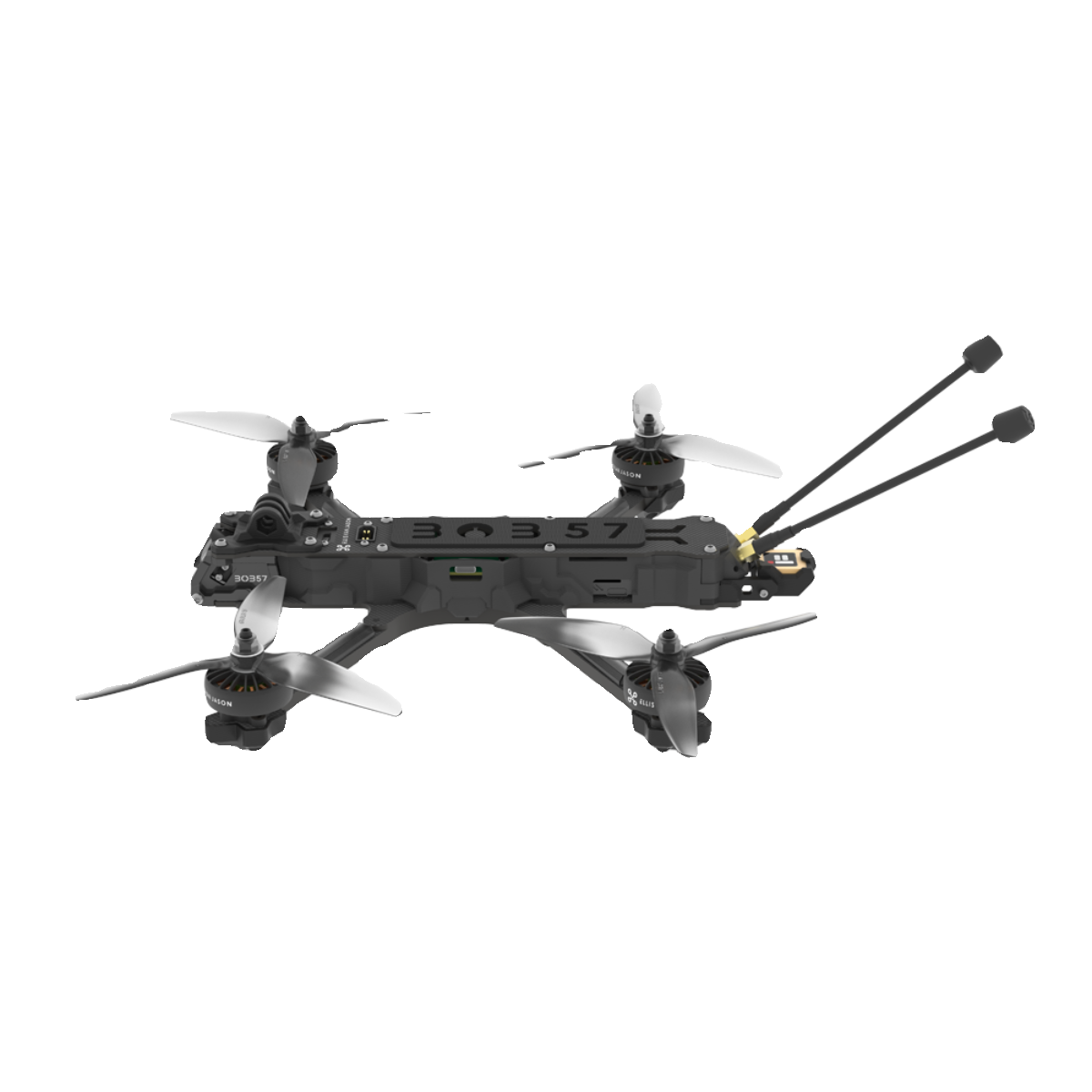

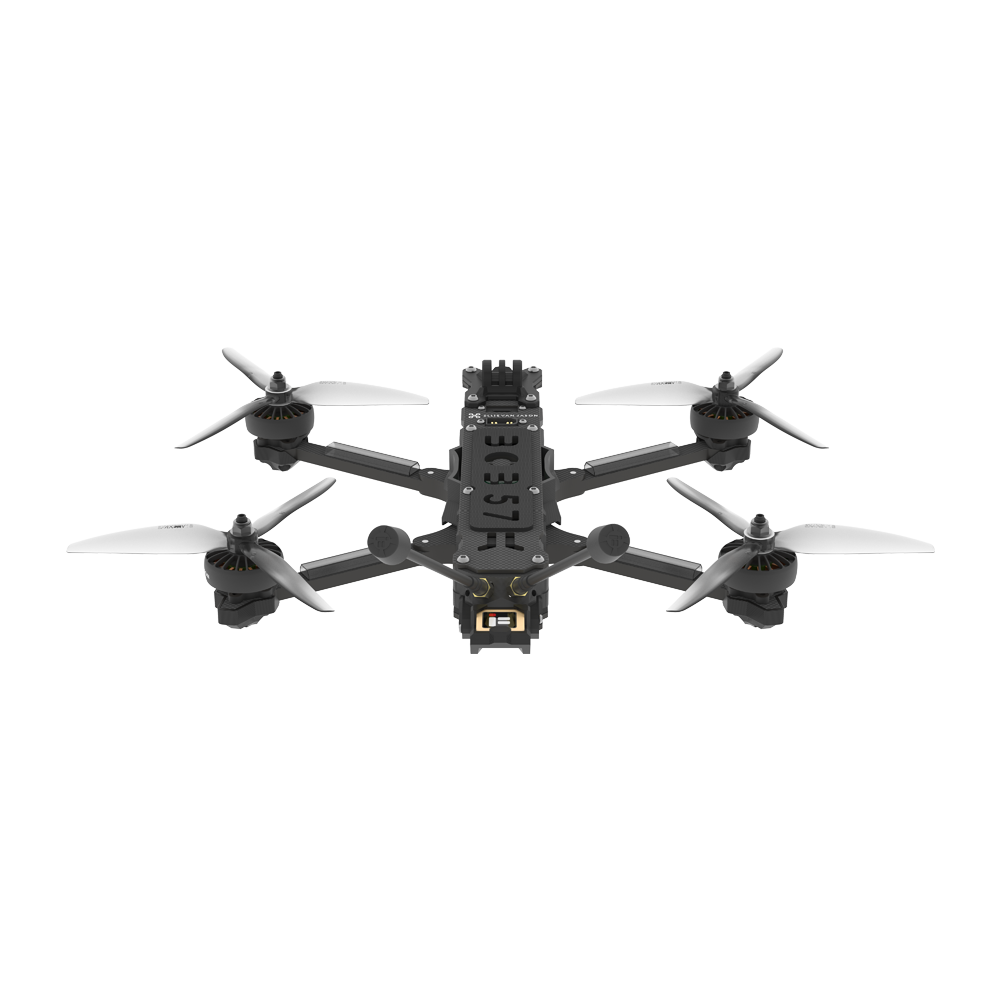

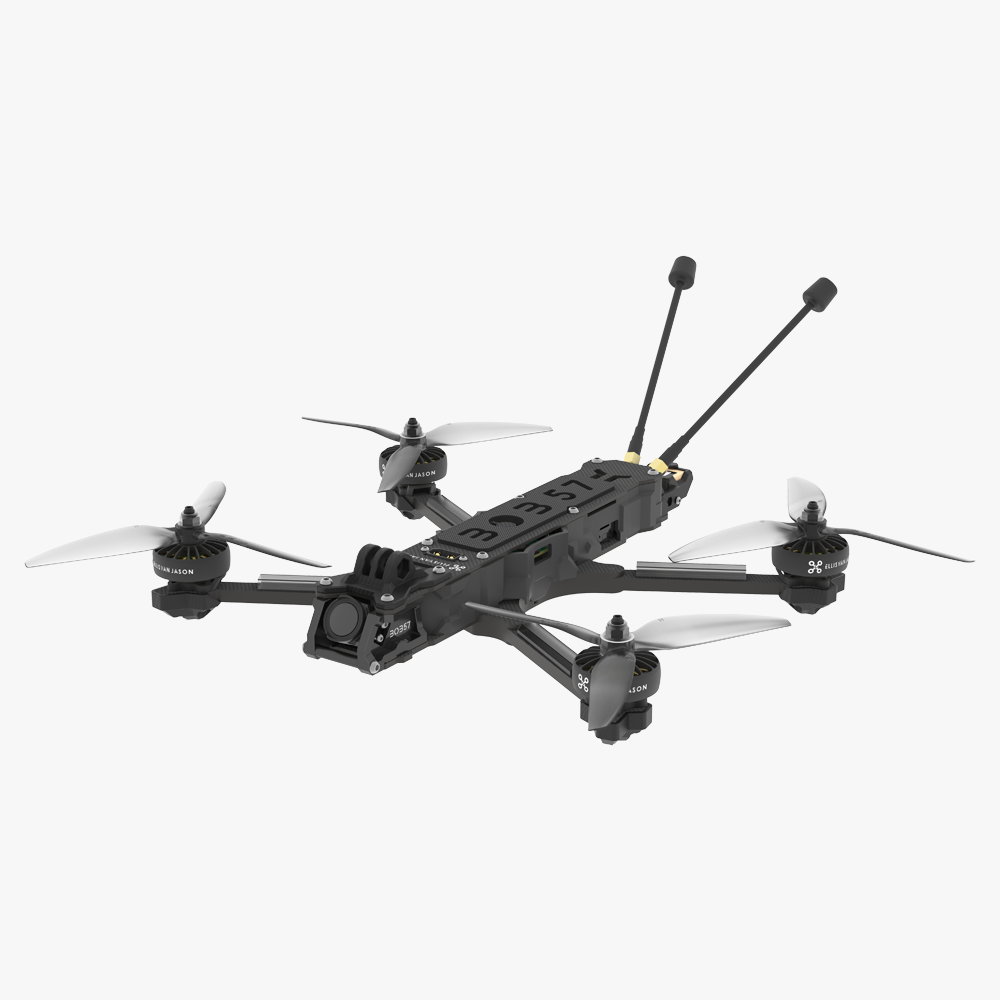

IFlight BOB57 O3 Cinematic 6S HD

The iFlight BOB57 is a long-range HD drone that was designed in collaboration with pilot & videographer Ellis van Jason. The team crafted this cinematic 6-inch drone that ensures agility and flight time while combining the advantages of both 5-inch and 7-inch drones for both cinematic and freestyle flights.

Hybrid motor design optimized for  that can be used with both bi-blade and tri-blade 6" propellers

High-end GPS is used to minimize the risk of failure during proximity flights

Long backbone with enough space up to fit 3000mAh 6S batteries

Solid antenna mount for less ocillations when using long antennas

Gladiator shell protects from dust and water droplets

ESCs with built-in spike absorber for more reliability

Built in BEC to directly power a GoPro camera

9-minute flight time with 3000mAh 6S Lipo

Front-mounting XT-60

Product Name: BOB57 O3 6S HD BNF

FC: BLITZ F722

ESC: BLITZ E55 55A 4-IN-1 ESC

Video Transmission: DJI O3 Air Unit

Frame: 280mm wheelbase

Motor: XING2 2506 motors

Prop: GEMFAN 6032-3 propellers

Takeoff Weight: Approx. 580 g

Dimensions (L×W×H)：226×166×34 mm

Max Speed: 180 Km/h (Manual Mode)

Maximum Takeoff Altitude: 7000 m

Max Hover Time: Approx. 8 mins (With 6S 1400 no load.)

Max Wind Speed Resistance: Level 7

Operating Temperature Range: -10° to 40° C (14° to 104° F)

Antennas: 2 Antenna

GNSS: GPS+SBAS+Galileo+QZSS+Glonass

Product Name: DJI O3 Air Unit

Weight: Approx. 36.4 grams（headband included）

Dimensions (L×W×H): L32.5 * W30.5 * H 14.5mm

Communication Bandwidth： Max 40 MHz

FOV (single screen): 155°

Communication Frequency: 2.400-2.4835 GHz；5.725-5.850 GHz

End-to-End Latency

With DJI FPV Goggles V2:

810p/120fps Video Transmission Quality: The latency is lower than 28 ms.

810p/60fps Video Transmission Quality: The latency is lower than 40 ms.

With DJI Goggles 2:

1080p/100fps Video Transmission Quality: The latency is as low as 30 ms.

1080p/60fps Video Transmission Quality: The latency is as low as 40 ms.

Max Video Transmission Bitrate: 50 Mbps

Max Video Transmission Range：10 km (FCC), 2 km (CE), 6 km (SRRC)

Operating Temperature Range: -10º to 40º C (14° to 104° F)

Power Input: 7.4-26.4 V

Audio Transmission: N/A

1 x BOB57 6S HD BNF

2 x Antennas

2 x Battery pads

2 x Prop(Pairs)
