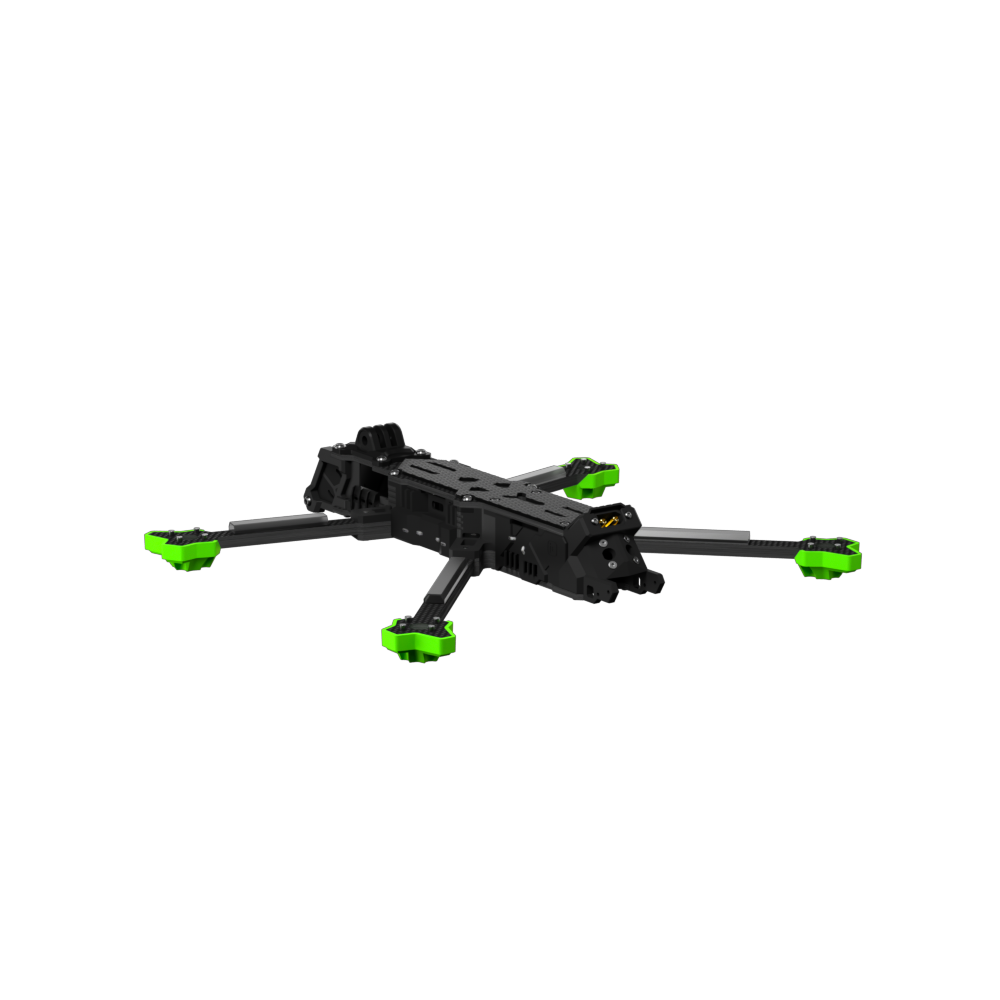

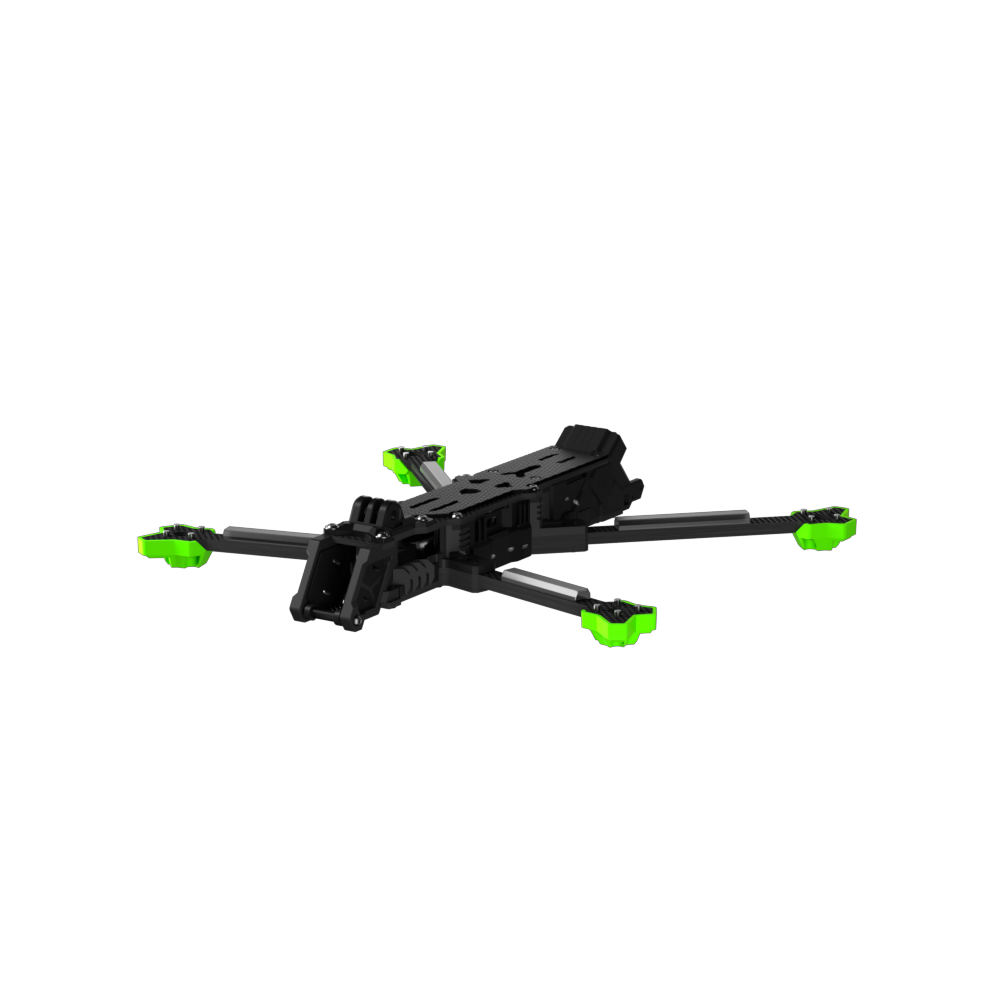

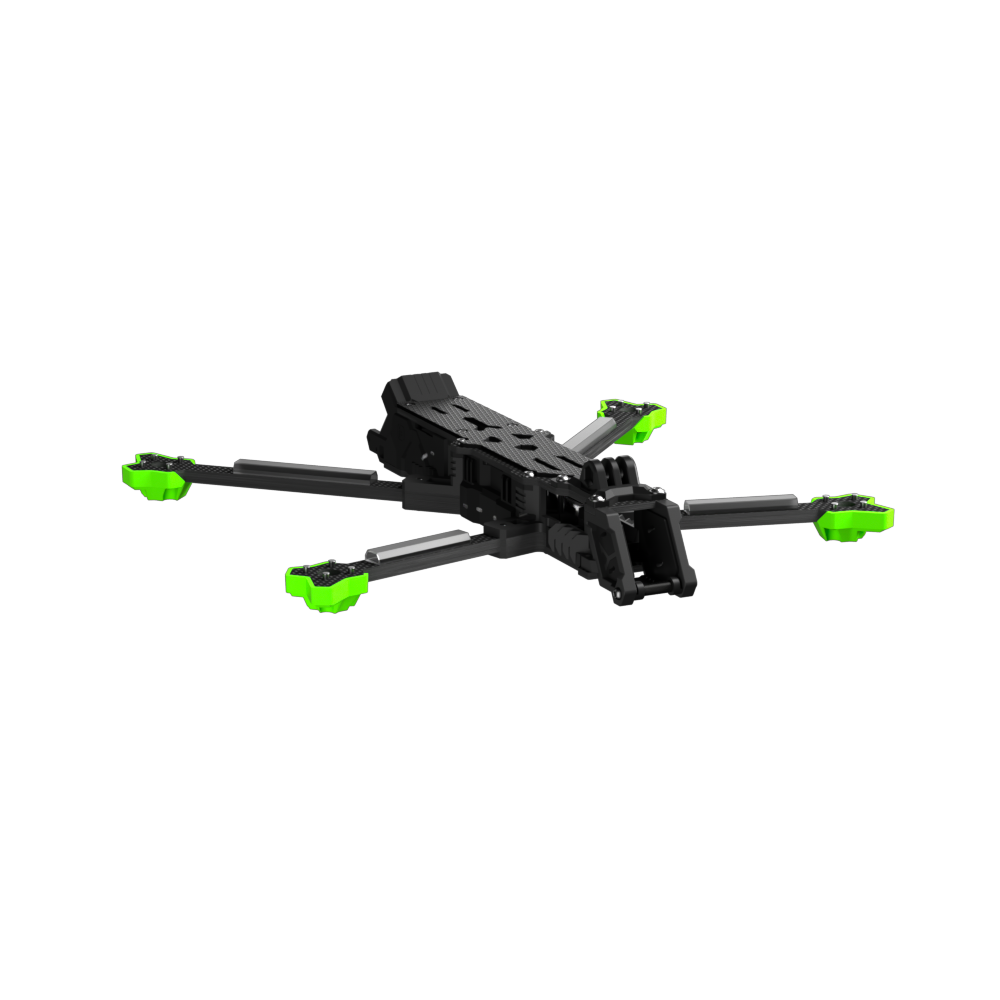

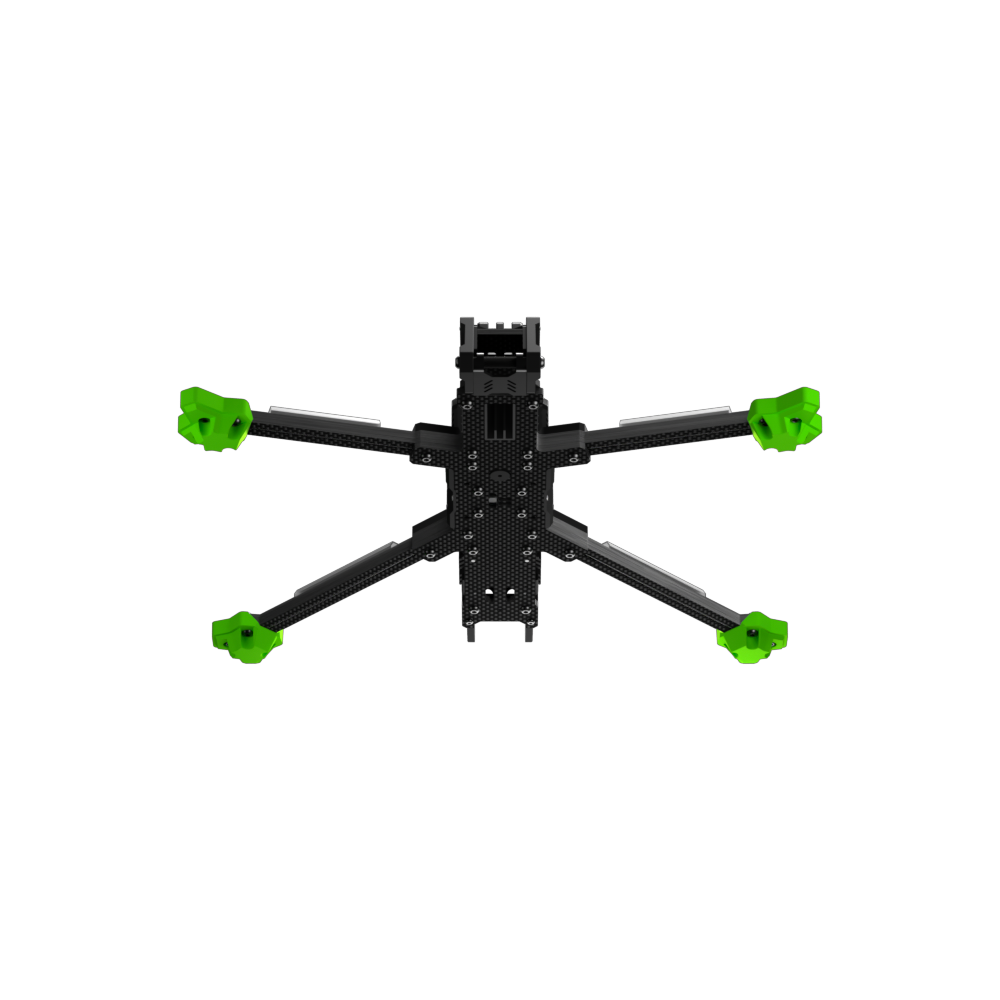

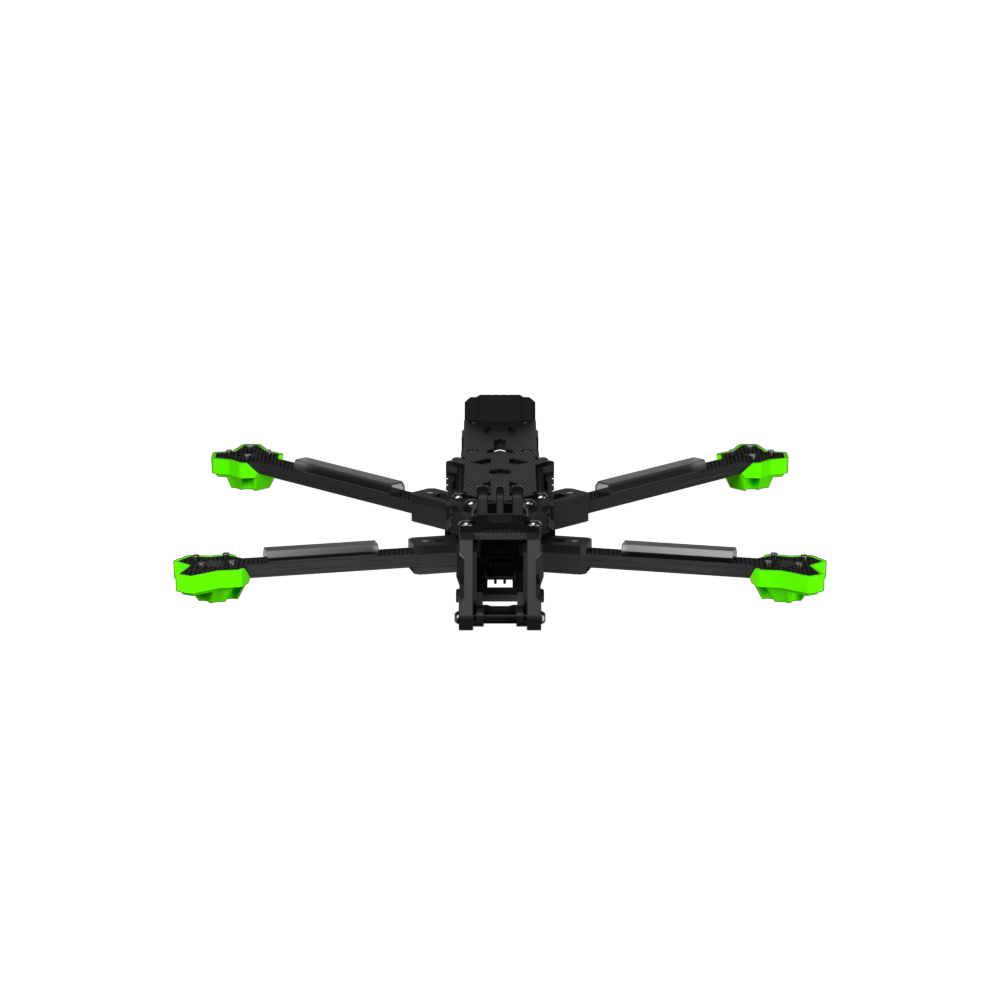

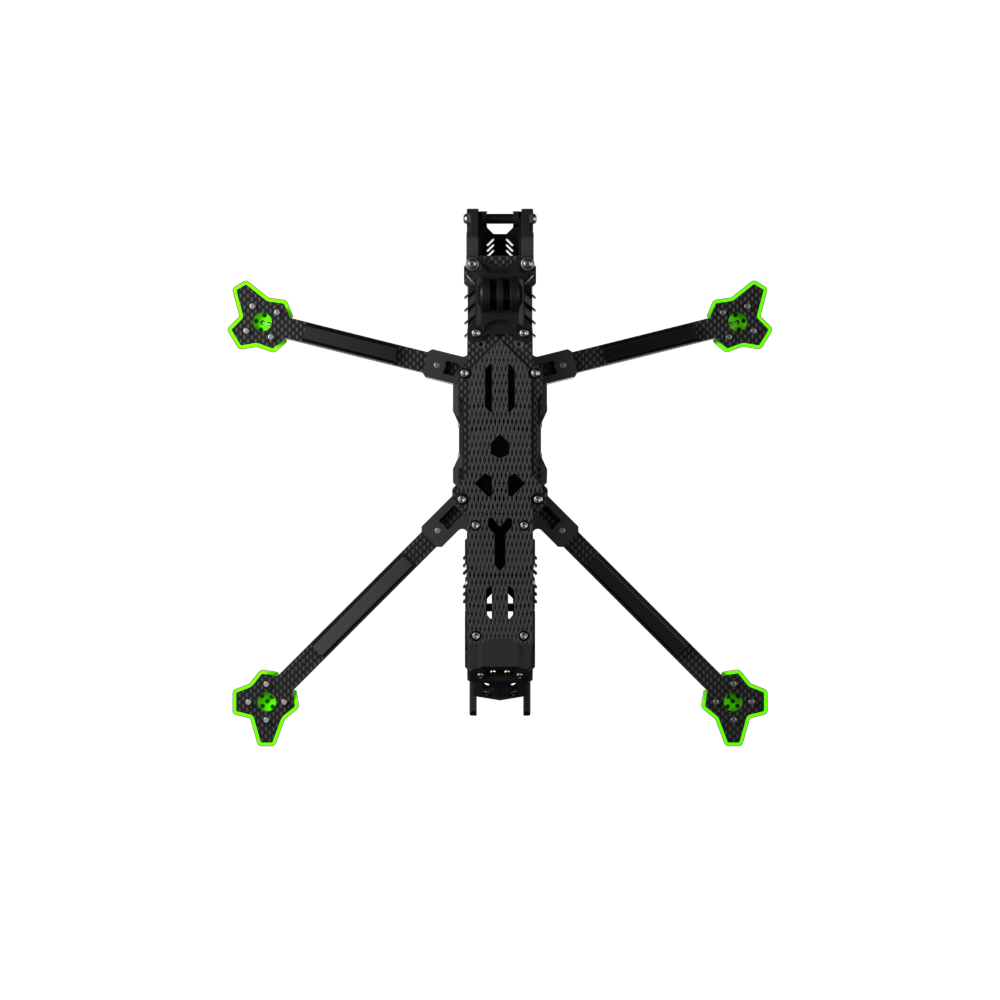

IFlight Nazgul Evoque F7 O4 Frame Kit

The latest addition to the Nazgul Evogue lineup inherits the series' DC geometry, delivering cinematic shots free of prop obstruction. Fully compatible with DJI O4 Air Unit Pro, it enables hassle-free on-board recording for immersive, unobstructed scenery capture during your flights over mountains and seas.

Product Name：Nazgul Evoque F7 O4 Frame Kit

Wheelbase: 321mm

Geometry: Deadcat(DC)

Frame Dimension: L284*W283*H53 mm

Arm Thickness: 6mm

Bottom Plate Thickness: 3mm

Top Plate Thickness: 3mm

Max Flight Stack Height: 25mm

Max VTX Height: 13mm

Flight Stack Mounting: 20*20/Φ3mm 30.5*30.5/Φ3mm

VTX Mounting: 25.5*25.5/Φ2mm

Motor Mounting: 19*19/Φ3mm

Weight: 319±5g

Compatibility:DJI O4 Air Unit Pro/BLITZ Whoop 1.6W VTX/BLITZ Mini Force 600mW VTX

1 x Nazgul Evoque F7 O4 Frame Kit

2x O4 IPEX to RP-SMA Antenna Pigtails

1 x Injection-molded parts/TPU printed parts Set

1 x Screw Bag

2 x Anti-Slip Battery Pad

2 x Battery Strap

Tolerance Note

Due to manufacturing processes, the thickness of our products may have a standard manufacturing tolerance of ±0.2mm. The size of the hole may have a standard manufacturing tolerance of ±0.1mm.

Shipping Note

The frame will be shipped as separate components. Assembly is required by the user. Images on the page are for display purposes only.

Compatibility Note

Before purchase, please confirm the installation dimensions of your flight controller, ESC, VTX and other accessories to ensure compatibility with the frame.
