IFlight Nazgul Evoque F7 O4 Pro 6S HD Waterproof FPV Drone Quadcopter

Introducing the new 7-inch Nazgul Evoque—packed with 6 key upgrades for immersive long-range flights. It inherits the series’ DC geometry, delivering cinematic shots free of prop obstruction. Equipped with the DJI O4 Pro Air Unit, it supports seamless video capture and output, letting you capture unobstructed mountain and sea views effortlessly. Dual tuning presets (Long-Range/Freestyle) adapt to your needs, paired with iconic Dynamic LED effects for standout recognition and tech flair. Enjoy extended flight time to fly and create without limits.

Dual Official Tuning Presets

Nazgul Evoque series upgrades with two official PID presets, unlocking new exploration possibilities for pilots. These presets can be selected directly in the PID Tuning tab of the Betaflight Configurator.

Dualband Dual-Antenna, Enhanced Long-Range Stability

With an optional ELRS dualband dual-antenna receiver, supporting simultaneous 2.4GHz + 900MHz communication. Paired with a dual-antenna, fan-shaped distributed layout for omnidirectional signal reception, it ensures stable, controlled long-range flights even in complex environments.

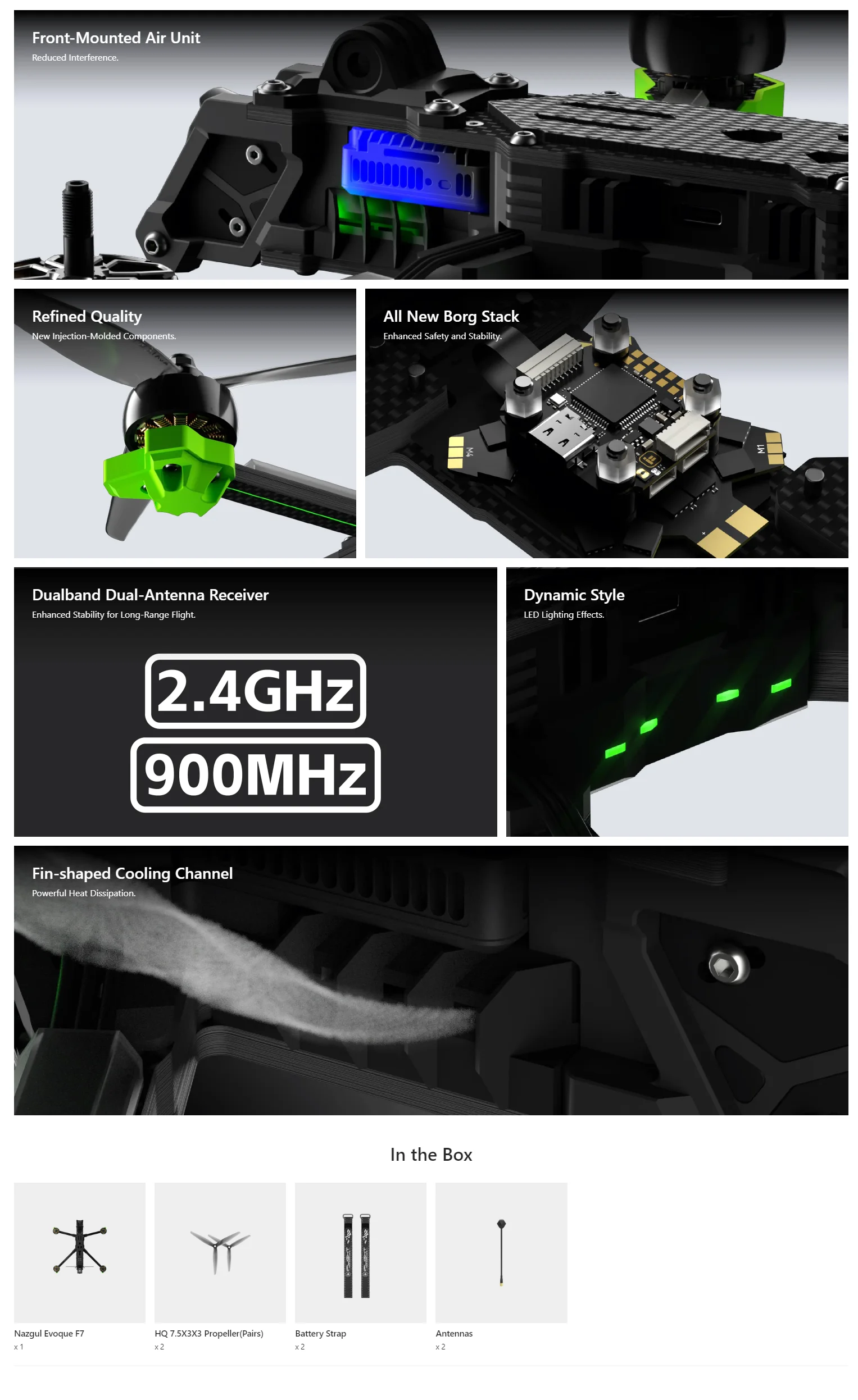

Upgraded Borg Stack

The upgraded Borg Stack features a built-in anti-spark filter, dual independent BEC power supply (12V 2A with VTX switch + 5V 25A) for stable power, and a built-in polymer capacitor to extend device lifespan.

Fin-Shaped Cooling Channel

The fin-shaped cooling channel design enhances heat dissipation and ensures stable long-range flight performance. It comes with Dynamic LED effects full of recognition and technological sense.

Flagship Recording Capability Equipped with DJI O4 Air Unit Pro

Upgraded with a 1/1.3-inch image sensor, delivers remarkable performance in low-light and night environments. Capture low-altitude, high-speed flight footage in 4K resolution with an ultra-wide 155° FOV. Experience the immersive visual impact of flight like never before, with crisp 4K output that effortlessly meets your creative needs.

Product Name: Nazgul Evoque F7 O4 6S HD

Geometry: Deadcat(DC)

FC: Borg Mini F7 Flight Controller

ESC: Borg 60R ESC

Video Transmission: DJI O4 Air Unit Pro

Frame: 321mm wheelbase

Motor: XING2 2809 1250KV motors

Prop: HQ 7.5X3X3 propellers

Weight: 765±5g(Without Battery)

Takeoff Weight: Approx. 1620±5g (incl. 21700 6S 10000mAh)

Dimensions (L×W×H): 284*283*53mm

Max Speed: 140km/h

Maximum Takeoff Altitude: 7000 m

Max Hover Time: Approx. 25min with 6S 8000-10000mAh battery No Load

Recommended load: 800g

Operating Temperature Range: -20° to 40° C

Antennas: Dual Antennas

GNSS: GPS+SBAS+Galileo+QZSS+Glonass

Product Name: DJI O4 Air Unit Pro

Image Sensor: 1/1.3-inch

Lens: FOV: 155°

ISO: 100-25600

Video Resolution: 1080p/100fps H.265

Video Format: MP4, Max Video Bitrate: 130Mbps

Color Mode: Normal Mode/D-Log M

Stabilization: RockSteady 3.0+ ; Stabilization function off (When RockSteady is enabled, the shooting angle only supports standard.)

Live View Quality: 1080P@100fps

Operating Frequency: 5.170-5.250 GHz  & 5.725-5.850 GHz

Transmitter Power (EIRP): 5.1GHz＜23dBm(CE)/5.8GHz＜33dBm(FCC)/＜14dBm(CE)/＜30dBm(SRRC))

Max Video Transmission Range: With DJI Goggles 3/DJI Goggles N3: 15 km (FCC), 8 km (CE), 8 km (SRRC)

Communication Bandwidth: Max 60 MHz

Antenna: Dual antennas

Built-in Storage: 4GB

Supported SD cards: microSD (up to 512GB)

Operating Temperature: -10° to 40° C

Weight: Air Unit (camera module included): Approx. 32 g

Dimensions: Transmission Module: 33.5×33.5×13 mm (L×W×H)

1 x Nazgul Evoque F7 O4 6S HD

1 x Battery pad

2 x 7.5 inch Prop(Pairs)

2 x Battery strap
