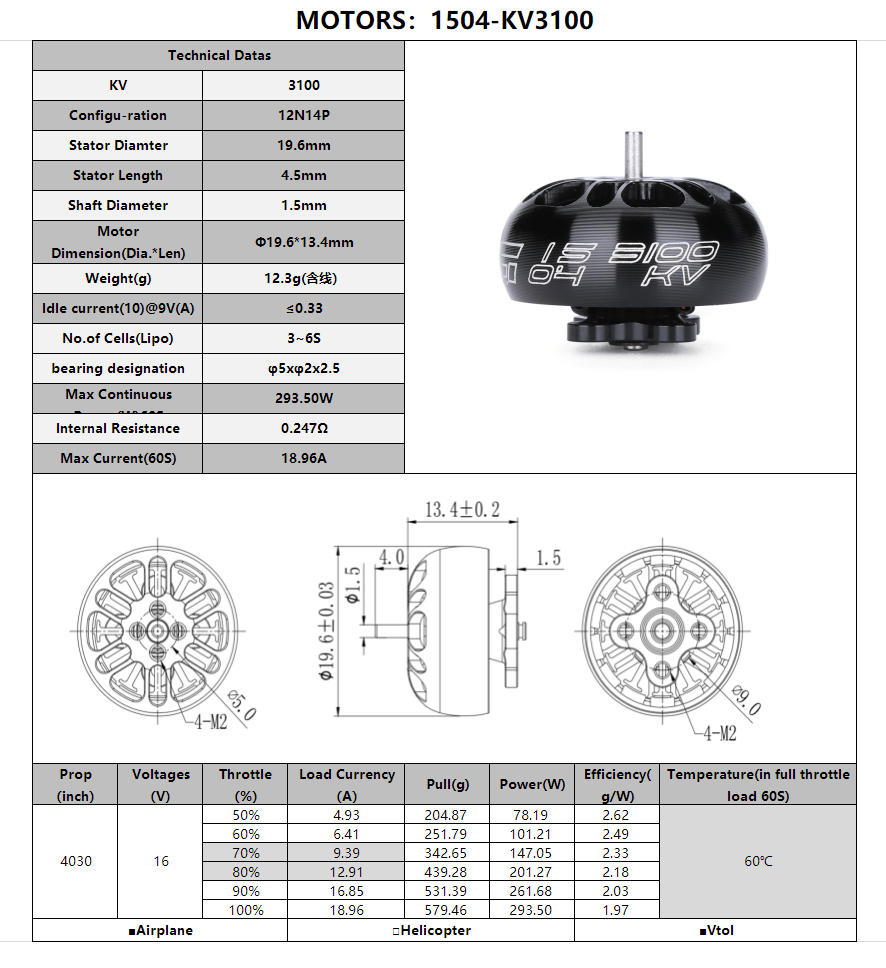

IFlight XING 1504 3100KV FPV Motor

Model: XING 1504 Black Motor

KV: 3100KV

Weight(included wire): 12.3g

Dimension: φ21.6*13.45mm

Interphase Resistance: 0.247Ω

Input Volts: 3~6 S

Peak Current: 12.44A

Max Watt: 207W

Mounting Holes: 9*9 φ2mm

Rotor Specifications:  Unibell

Shaft Diameter: 1.5mm

Shaft Protruding Length: 4.0mm

Configuration: 12N14P

Bearing Type: NSK

Bearing Specification: φ5*φ2*2.5

Winding: Single Strand copper winding

1 x XING 1504 3100KV Motor Black
