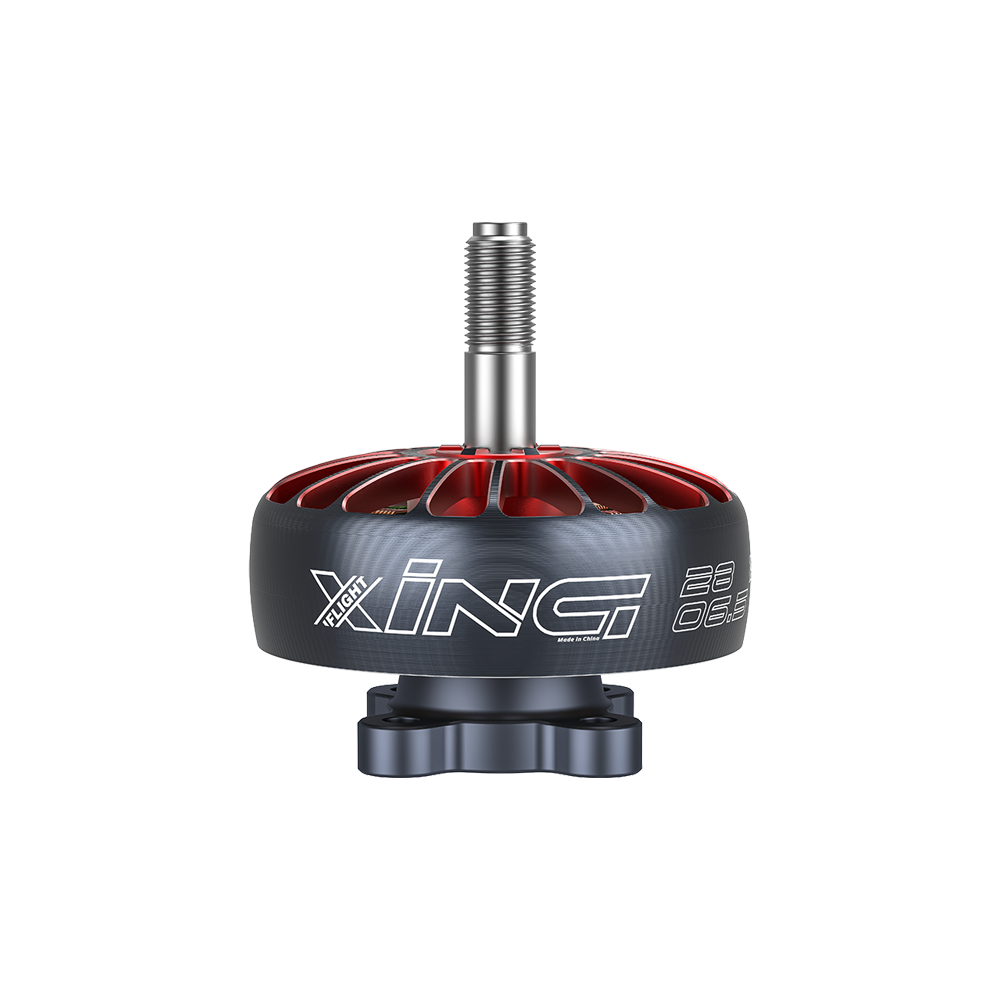

IFlight XING 2806.5 FPV Cinelifiter Motor
IFlight XING 2806.5 FPV Cinelifiter Motor
The Motor XING 2806.5 designed for bigger quads like 7-8 inch quad frames, which is with better efficiency in this range frames.The XING 2806.5 features uni-bell design and adopt Japan NSK bearing, N52H arc magnets. It offers incredible thrust number, highly responsive and extremely smooth flight characteristics. The bigger stator size 2806.5 allows it to provide instant power to save you from those crazy mountain dives last minute. It's a great motor if you're building bigger drones like 7 inch or 8 inch.
High-strength 4mm Titanium alloy shaft
Unibell design
7075 aluminum Bell and Base
Electromagnetically matched magnets and stator
Japanese NSK 11*5*5 bearings
N52H Arc curve magnets
Motor wires protected
Hex bolt shaft set screw
Dynamically balanced
Model: XING X2806.5 Motor
KV: 1300KV/1800KV
Weight(included wire):54.3g/53.3
Dimension: φ35.06*21.3mm
Interphase Resistance:72.29mΩ/ 45.5mΩ
Input Volts: 24V
Peak Current: 48.33A/72.3A
Max Watt: 1132.9W/1681.0W
Mounting Holes: 19*19 φ3mm
Rotor Specifications: Unibell
Shaft Diameter: 5mm/4mm
Shaft Protruding Length: 15.5mm
Lead: 265mm/18AWG
Magnet: N52H Curved
Configuration: 12N14P
Bearing Type: NSK
Bearing Specification: φ11*φ5*45
Winding: Single Strand copper winding
1 x X2806.5 motor
1 x M5 Screw nut
4 x M3*8 screws
