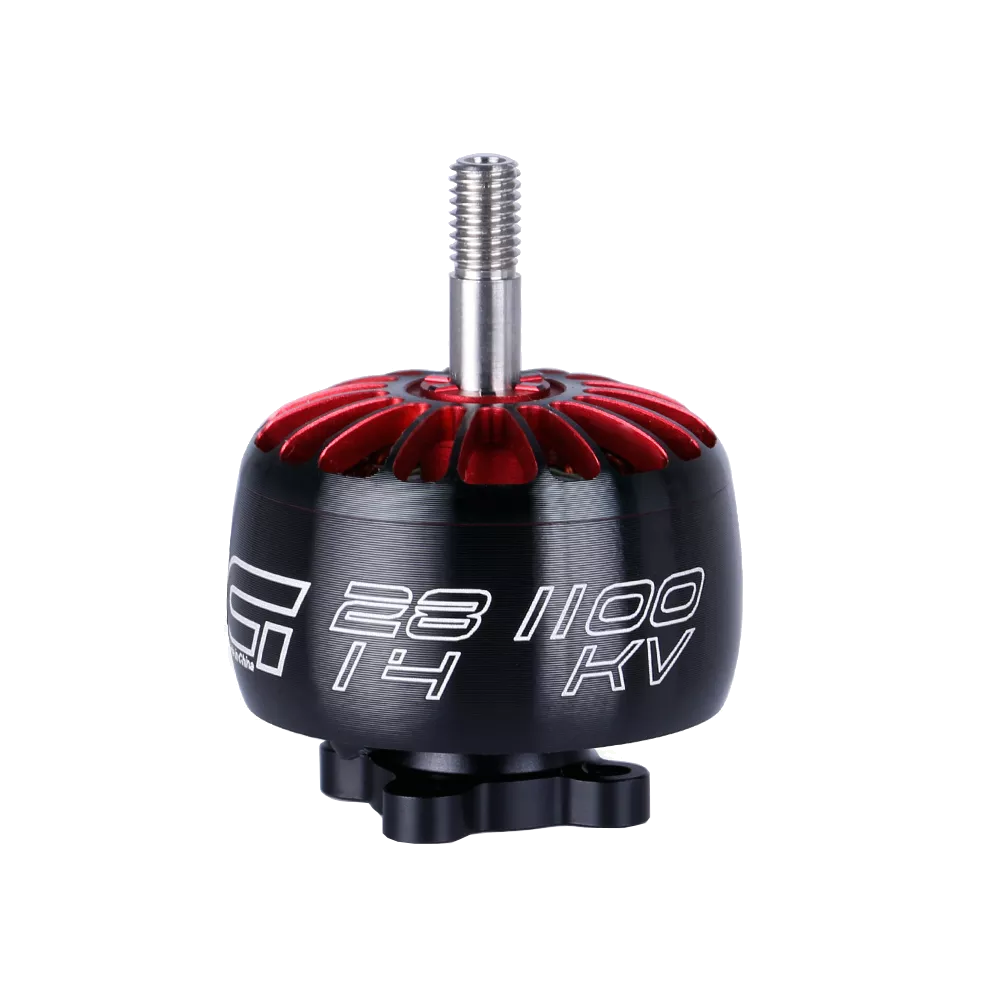

IFlight XING 2814 2-6S FPV Motor

The Motor XING 2814 designed for bigger quads like 9-10 inch quad frames, which is with better efficiency in this range frames. The XING 2814 features adopt Japan NSK bearing, N52H arc magnets. It offers incredible thrust number, highly responsive and extremely smooth flight characteristics. The bigger stator size of 2814 allows it to provide instant power to save you from those crazy mountain dives last minute. It's a great motor if you're building bigger drones like 9 inch or 10 inch.

7075 aluminum Bell and Base

Electromagnetically matched magnets and stator

Japanese NSK 11*5*5 bearings

N52H Arc curve  magnets

Motor wires protected

Hex bolt shaft set screw

Model: XING X2814 Motor

KV: 890KV / 1100KV

Weight(included wire): 88.3g / 93g

Dimension: φ36*30mm

Interphase Resistance:57.3mΩ / 48.6mΩ

Peak Current: 50.9A / 43.9A

Max Watt: 1221.6W / 916W

Shaft Diameter: 28mm

Shaft Protruding Length: 14mm

Configuration: 12N14P

1 x X2814 motor

1 x M5 Screw nut

4 x M3*8 screws
