IFLIGHT

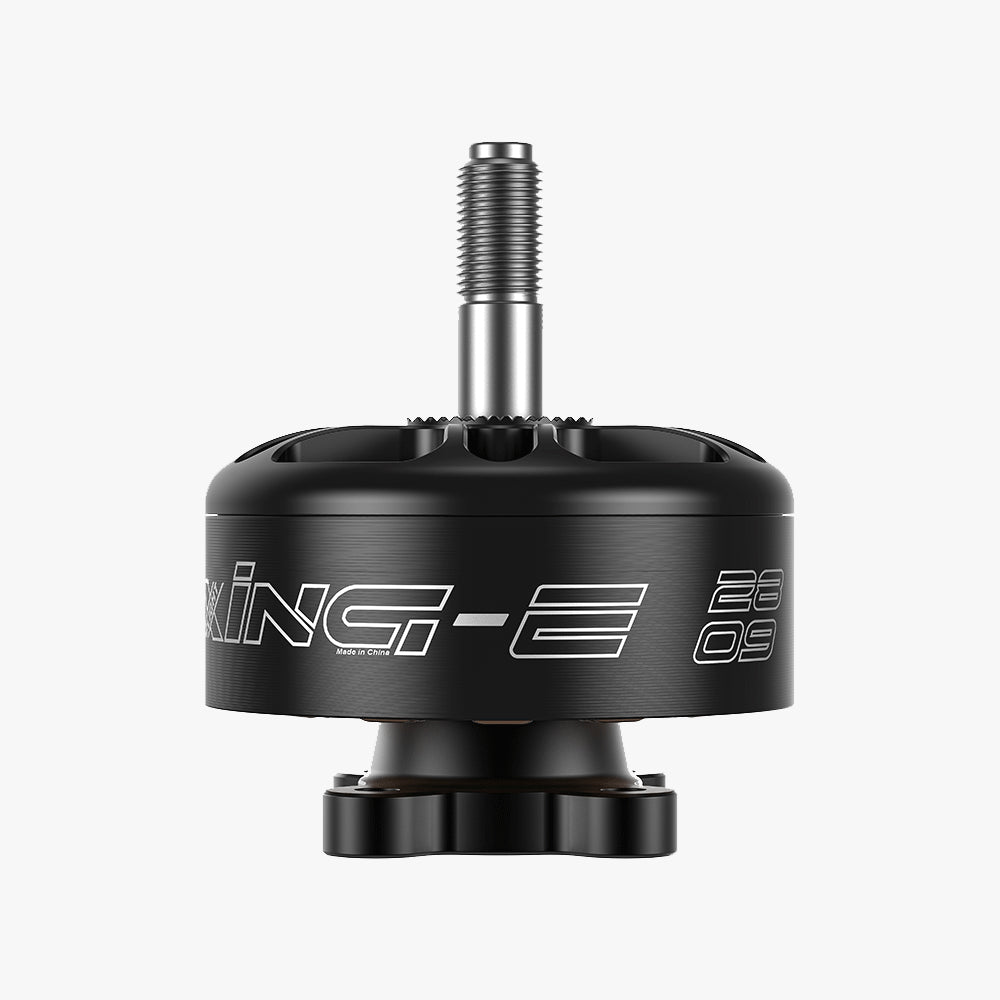

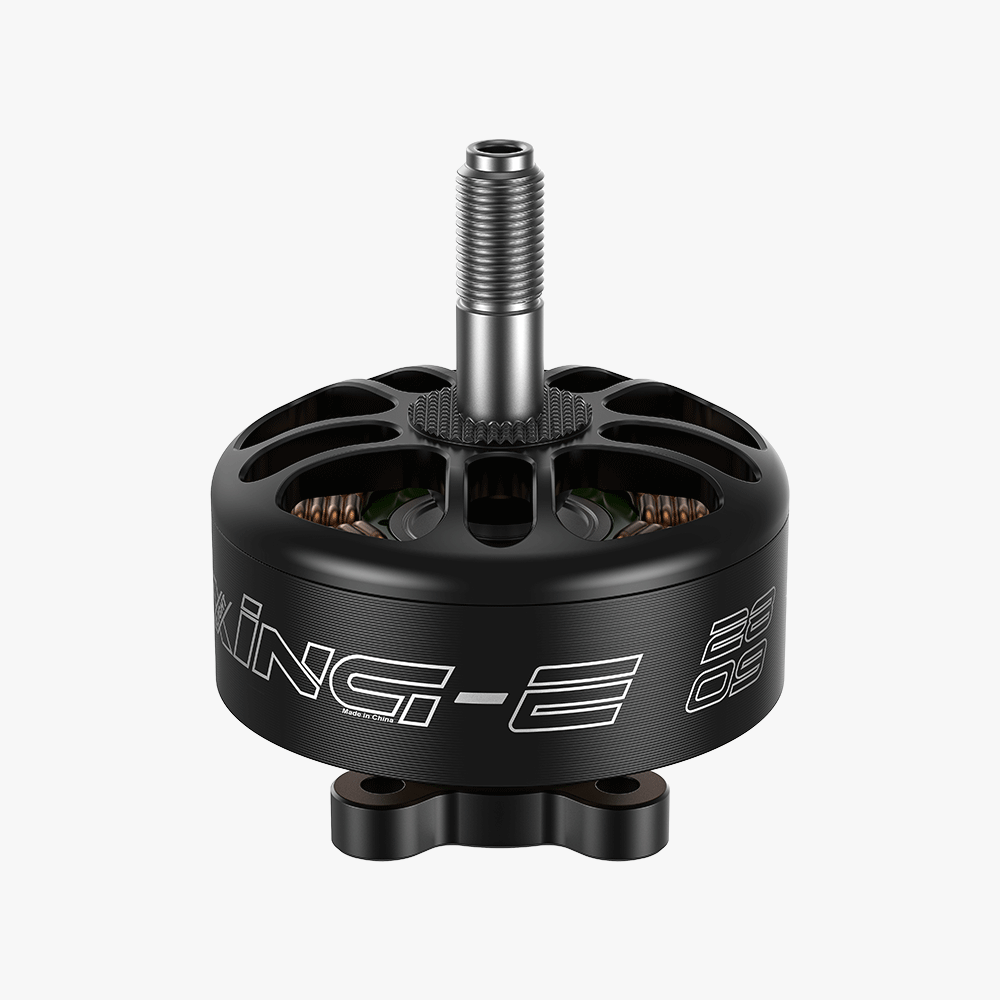

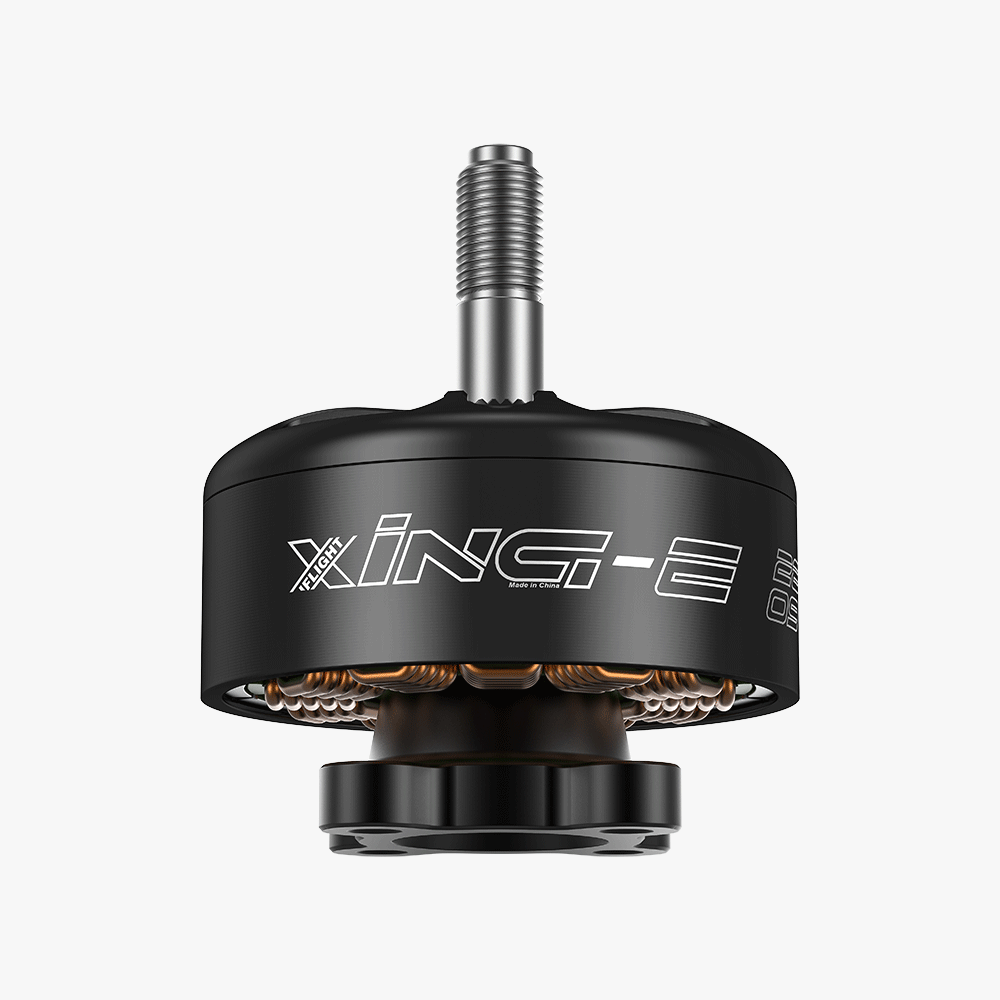

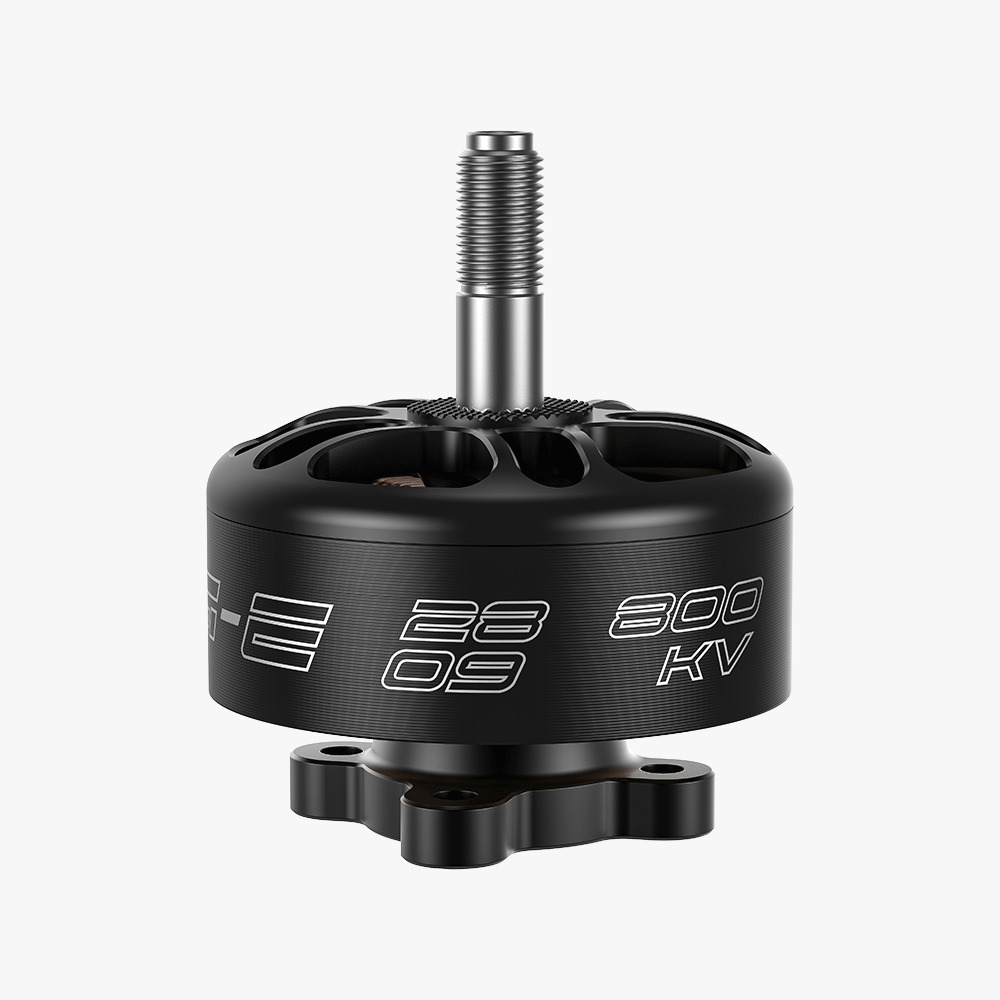

IFlight XING-E 2809 Cinelifter Motor
IFlight XING-E 2809 Cinelifter Motor
Regular price
$28.99 USD
Regular price
$35.99 USD
Sale price
$28.99 USD
Unit price
/
per
Couldn't load pickup availability
Features
High-strength 5mm Steel shaft
N52H High-temperature magnets
19x19mm hole pattern
Single strand copper winding
Hex bolt shaft set screw
Specifications
Model: XING-E 2809 Motor
KV: 800KV/1250KV
Weight(included wire): 61g/60.4g
Dimension: φ33.2*23.8mm
Interphase Resistance: 129.3mΩ/65mΩ
Input Volts: 24V
Peak Current: 25.63A/42.23A
Max Watt: 610.3W/1147.1W
Mounting Holes: 19*19 φ3mm
Shaft Diameter: 5mm
Shaft Protruding Length: 15.5mm
Lead: 260mm/18AWG
Magnet: N52H Curved
Configuration: 12N14P
Bearing Specification: φ11*φ5*5
Winding: Single Strand copper winding
Packing List
1 x XING-E 2809 Brushless Motor
4 x M3x8 screws
1 x M5 Flange Nut
