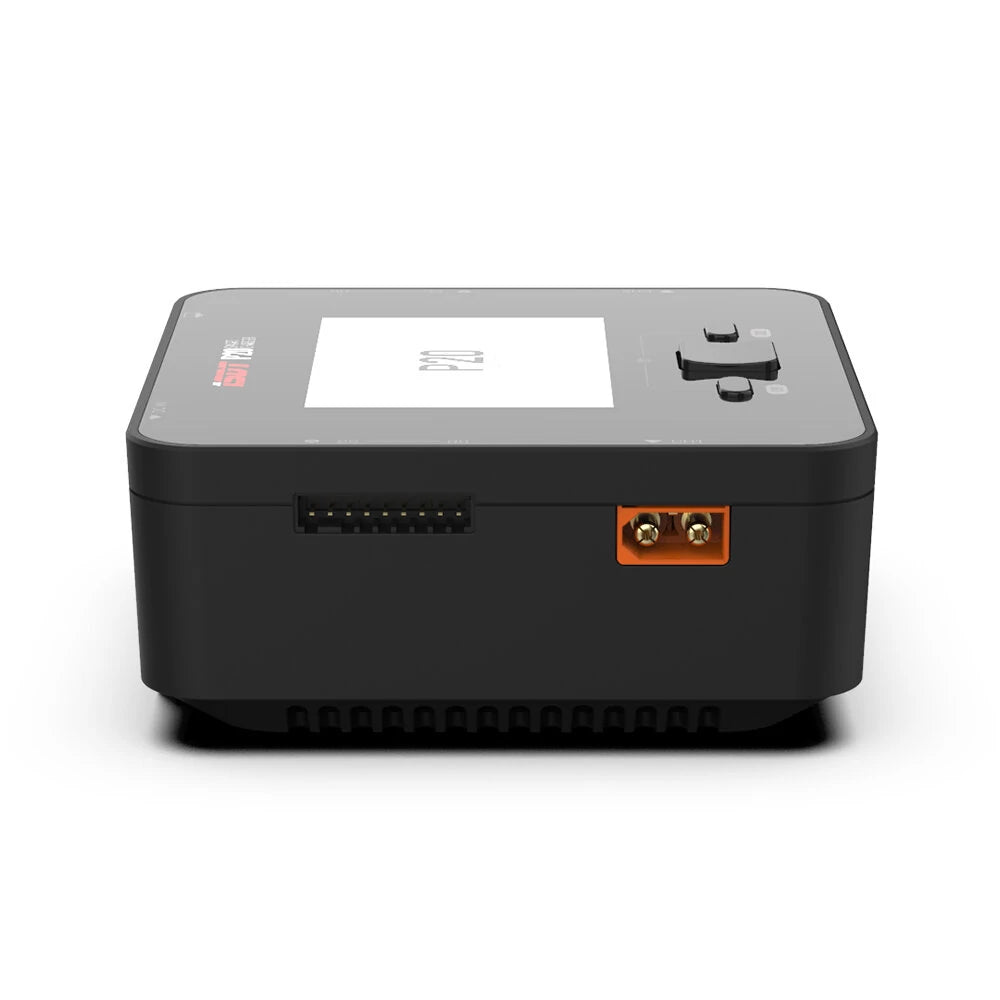

ISDT P20 35A Dual DC Charger (500W)x2

This is the ISDT P20 Smart Dual DC Charger. This P20 dual charger is a lightweight, small size, compact and extremely powerful charger! With many advanced features such as automatically identifying battery types and choosing the appropriate charge settings, high resolution 2.8? IPS LCD display with low power consumption mode, Smart high speed processor delivers parameter interfere to each port and dark mode is suitable for low light environments where the system will adjust the interface in a dark tone to protect the user's eyes and provide a better and more comfortable feeling for the eyes, making this P20 the ultimate small and powerful DC dual charger!

Features:

• Automatically identify battery types and choose the appropriate charge settings
• High resolution 2.8? IPS LCD display with low power consumption
• Light and compact design
• Smart high speed processor delivers parameter interfere to each port
• Hassle free with maximum charging power up to 500W for a single port
• Adjustable digital power supply with CH1 of the charger becoming a DC power supply
• Dark mode suitable for low light environments where the system will adjust the interface in a dark tone to protect users eyes
• Built-in high speed processor synchronous balance two channel charging
• Upgradable firmware through a USB-C connection to the computer

Specifications:

• Output: (DC/500Wx2)
• Input voltage: DC 10-34V
• Output voltage: DC 1-34V
• Maximum input current: 35A
• Charging current: 0.2-20A x2
• Discharging current: 0.2-1.5A x2
• Maximum discharging: 15W x2
• Balance current: 1.5A/Cell Max
• Supported battery types and cell count: LiFe/LiIon /LiPo 1-8S /LiHV 1-7S/Pb 1-12S /NiMH-Cd 1-16S
• Parallel charging power and current: 800W/35A
• Parallel discharge power and current: 30W/3A
• Working temperature: 32-104F (0-40C)
• Dimensions (LxWxH): 105.5x105.5x47.3mm
• Weight: Approx. 350g
• Incorrect cell count setting alarm: Supported
• Abnormal voltage alarm: Supported
