LT5802D DVR FPV Monitor 7" 800x480 5.8G 40CH Diversity Receiver
LT5802D DVR FPV Monitor 7" 800x480 5.8G 40CH Diversity Receiver
Regular price
$99.00 USD
Regular price
$129.00 USD
Sale price
$99.00 USD
Unit price
/
per
Couldn't load pickup availability
Name: LT5802D
Built-in 5.8 GHz dual diversity receiver

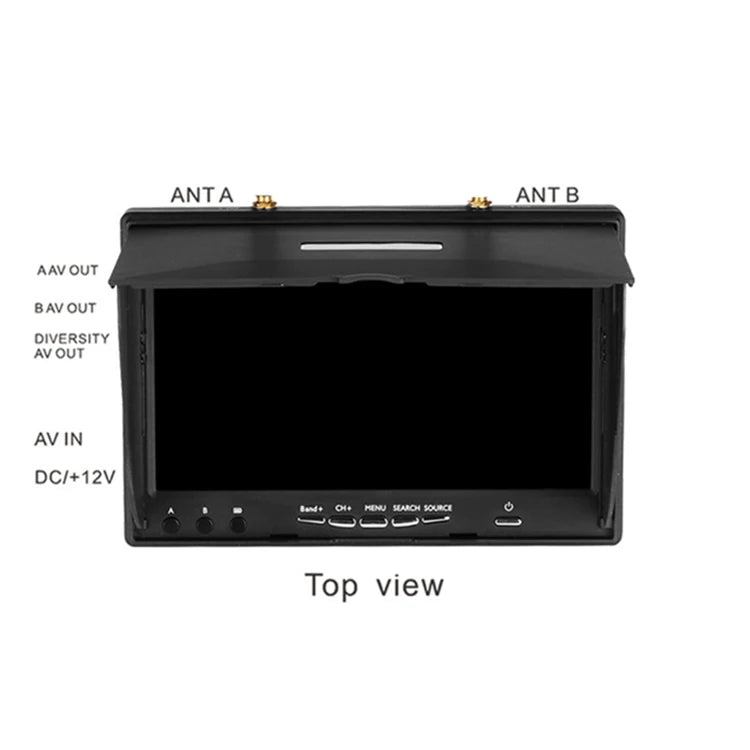

Built-in 2 ch 5.8 ghz AV output and 1 ch AV input
Built-in high-performance Li-POLYMER battery: 2000 mah / 7.4 v
OSD display of battery working status: RSSI signal; indicator; channel indication
Automatic signal search
Support Chinese and English menu
Format: JPEG, AVI
Screen size: 7 inches
Screen type: TFT LCD screen / long life, LED backlight
Resolution: 800 * 480
Brightness: 600 cd/m2
Viewing angle: 140/120degree (horizontal/vertical)

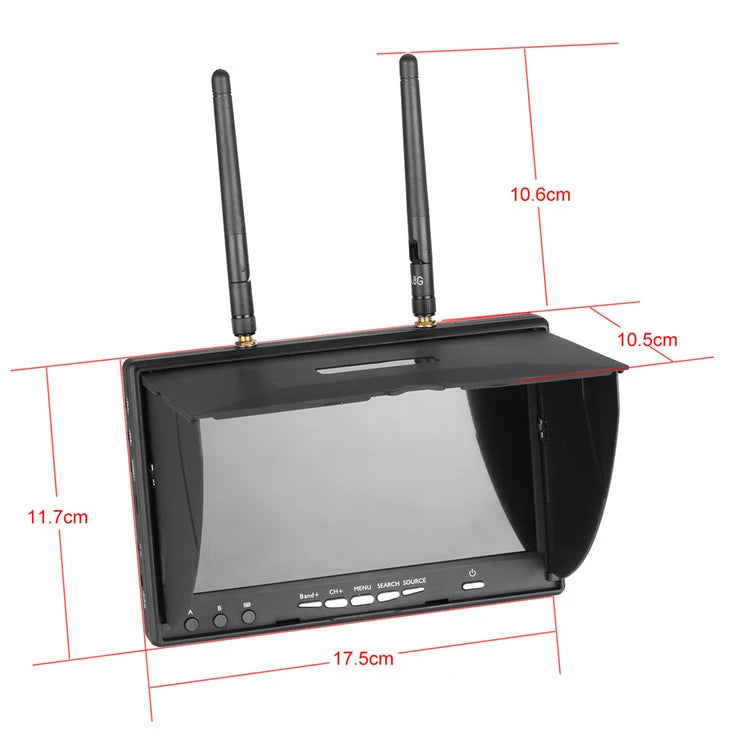

Size: 180 mm x 120 mm x 50 mm (Note: when the height is 28 mm)
Working voltage: DC 7 ~ 16 v
Power consumption: max 650 mA @12V
Battery charging current: 850mA@12V(max)
Working temperature: -10℃~ + 65℃
Connector: RP-SMA female (outer pin)
Antenna connector: RP-SMA male (inner hole)
Built-in dual receiver module
Double buffered AV output
Will not affect 2.4 ghz R/C radio
AV receiver with multiple inputs
Lightweight and durable
40 channels
Built-in battery, easy to carry and use outdoors
Automatic signal search, simple operation
Working status display: Always pay attention to the working status of the equipment.
Note: It cannot receive two different channels at the same time
Built-in 5.8 GHz dual diversity receiver
Built-in 2 ch 5.8 ghz AV output and 1 ch AV input
Built-in high-performance Li-POLYMER battery: 2000 mah / 7.4 v
OSD display of battery working status: RSSI signal; indicator; channel indication
Automatic signal search
Support Chinese and English menu
Format: JPEG, AVI
Screen size: 7 inches
Screen type: TFT LCD screen / long life, LED backlight
Resolution: 800 * 480
Brightness: 600 cd/m2
Viewing angle: 140/120degree (horizontal/vertical)
Size: 180 mm x 120 mm x 50 mm (Note: when the height is 28 mm)
Working voltage: DC 7 ~ 16 v
Power consumption: max 650 mA @12V
Battery charging current: 850mA@12V(max)
Working temperature: -10℃~ + 65℃
Connector: RP-SMA female (outer pin)
Antenna connector: RP-SMA male (inner hole)
Built-in dual receiver module
Double buffered AV output
Will not affect 2.4 ghz R/C radio
AV receiver with multiple inputs
Lightweight and durable
40 channels
Built-in battery, easy to carry and use outdoors
Automatic signal search, simple operation
Working status display: Always pay attention to the working status of the equipment.
Note: It cannot receive two different channels at the same time
