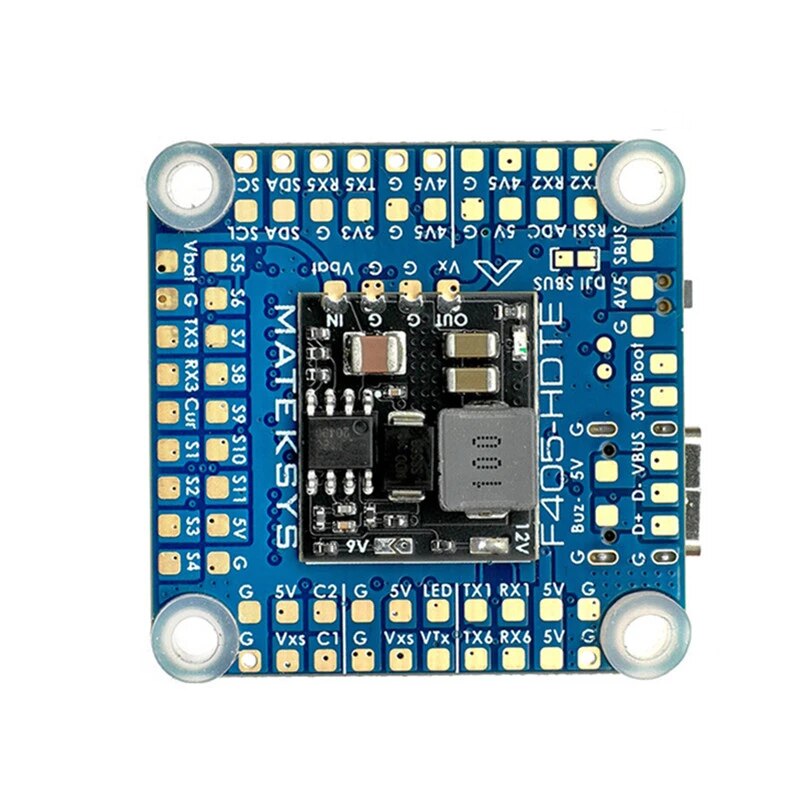

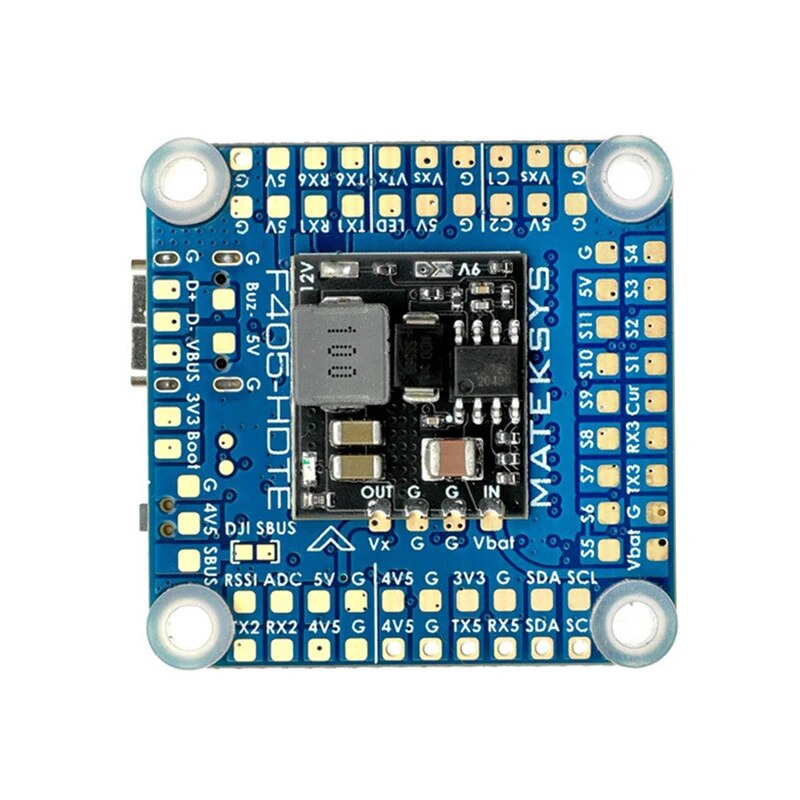

MATEKSYS F405-HDTE Flight Controller

MATEKSYS F405-HDTE Flight Controller

Regular price $56.99 USD
Regular price $69.99 USD Sale price $56.99 USD
Sale Sold out



Features

  • STM32F405 has 1MB flash which can run ArduPilot/INAV/BetaFlight
  • InvenSense the 3rd generation IMU ICM42688-P
  • 9-60V(3~12S LiPo) wide input voltage and voltage sense. and a 9~16V BEC for DJI OSD or analog VTX.
  • 8motors+3servos in INAV/BF multirotor mixer.
  • 2x SH1.0_8pin connector for PnP with 2x 4in1 ESC
  • 1x SH1.0_6pin connector for PnP with HD System(Caddx Vista & Air Unit)
  • USB pin breakout for connecting to external USB adapter.

Specifications

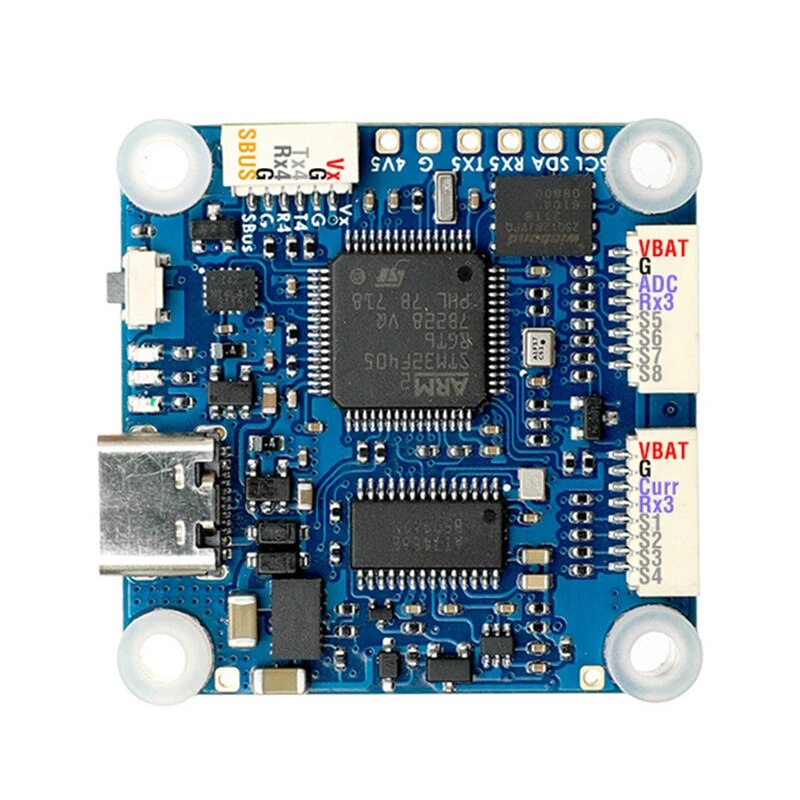

  • MCU: STM32F405RGT6
  • IMU: ICM42688-P
  • OSD: AT7456E, DJI OSD
  • Baro: SPL06-001 (I2C)
  • Blackbox: 16M-byte Flash memory
  • 6x UARTs,  1x Softserial_Tx option
  • 12x PWM outputs (8x Dshot)
  • 1x I2C
  • 4x ADC (VBAT, Current, RSSI, Airspeed)
  • 2x PINIO
  • 2x SH1.0_8pin connector for 4in1 ESC
  • 1x SH1.0_6pin connector for HD System(Caddx Vista & Air Unit)
  • 3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red)
  • 9~16V(Vxs) output ON/OFF switchable
  • Dual analog camera signal switchable

Power

  • Input: 9~60V (3~12S LiPo)
  • BEC: 5V 1.5A
  • BEC: Vx,  9~16V/1~2A (3S IN/9V 2A, 4S IN/12V 2A, 6S IN/16V 2A, 8S IN/16V 1.5A, 12S IN/16V 1A)
  • Battery Voltage Sensor: 1K:20K (INAV scale 2100, BF scale 210)
  • No Current Sensor built-in, supports external current sensor of PDB/4in1

Firmware

  • ArduPilot: MatekF405-TE
  • INAV: MATEKF405TE
  • BetaFlight: MATEKF405TE

Physical

  • Mounting: 30.5 x 30.5mm, Φ4mm with Grommets Φ3mm
  • Dimensions: 36 x 36 x 5 mm
  • Weight: 7g

Including

  • 1x FC F405-HDTE
  • 6x Silicon grommets M4 to M3

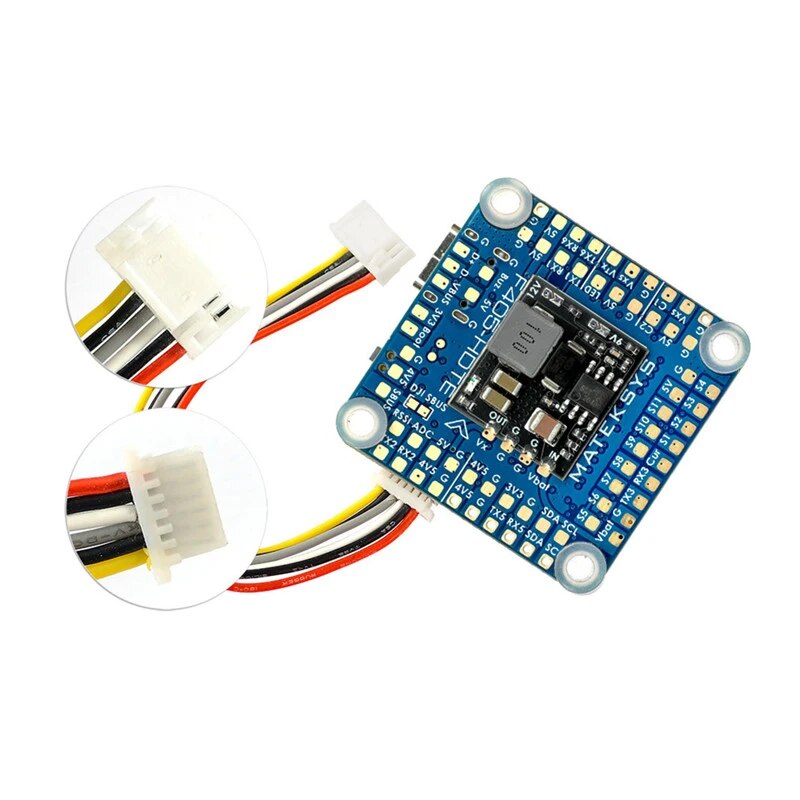

  • 1x SH1.0_8pin cable 5cm,  2x SH1.0_8pin connectors
  • 1x SH1.0_6pin to GH1.25_8pin cable 8cm for HD System(Caddx Vista & Air Unit)
